TK70516SC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TK70516SC

TK70516SC: DescriptionFixed Positive LDO Regulator, 1.6V, 0.28V Dropout, PDSO5, SOT-23, 5 PIN; CategoryPower/power management The power supply circuit; File Size764KB，23 Pages; ManufacturerAKM [Asahi Kasei Microsystems]

Download Datasheet Parametric Compare View All

TK70516SC Overview

Fixed Positive LDO Regulator, 1.6V, 0.28V Dropout, PDSO5, SOT-23, 5 PIN

TK70516SC Parametric

Parameter Name	Attribute value
Maker	AKM [Asahi Kasei Microsystems]
Parts packaging code	SOT-23
package instruction	SOT-23, 5 PIN
Contacts	5
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum drop-back voltage 1	0.28 V
Maximum input voltage	14 V
Minimum input voltage	2.1 V
JESD-30 code	R-PDSO-G5
length	2.9 mm
Number of functions	1
Number of terminals	5
Maximum output current 1	0.1 A
Maximum output voltage 1	1.65 V
Minimum output voltage 1	1.55 V
Nominal output voltage 1	1.6 V
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	1.3 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
width	1.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

[TK705xxS/TK707xxS,TK706xxH/TK708xxH]

TK705xxS/TK706xxH

LDO Regulator IC

1-. DESCRIPTION

TK705xxS and TK706xxH is a low dropout linear

regulator with ON/OFF control, which can supply 100mA

load current.

The IC is an integrated circuit with a silicon monolithic

bipolar structure.

The output voltage, trimmed with high accuracy, is

available from 1.5 to 5.0V in 0.1V steps.

The packages are the small and thin SON2017-6, and

the extremely versatile SOT23-5. The IC is designed for

portable applications with space requirements, battery

powered system and any electronic equipment.

Two kinds of pin configuration can be selected for each

package.

The over current, over heat sensor and reverse bias over

current protection circuits are built-in.

ESD is also high, so it won’t break easily. It is possible

to use at ease.

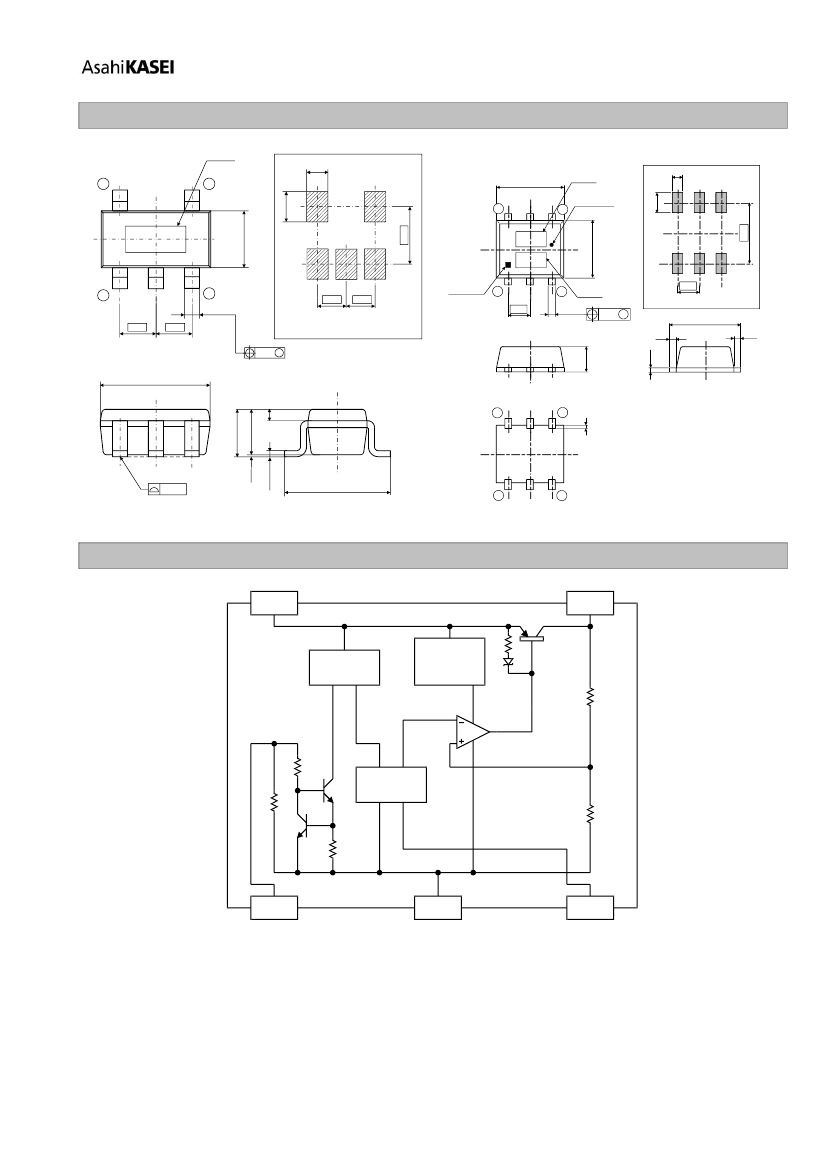

4-. PIN CONFIGURATION

Top View

· SOT23-5

TK705xxS

Vcont

Vin

Axx

GND

Vout

SON2017-6

TK706xxH

Vcont 1

Vin

Axx

2-. FEATURES



Output current: 100mA, Peak 200mA



Active high on/off control



Excellent Ripple rejection ratio: 80dB (f=1kHz)

70dB (f=10kHz)



Output capacitance: Cout



0.47F(Ceramic)



Output voltage accuracy:

1.5%

50mV



Short circuit protection (Over current protection)



Internal thermal shutdown (Over heat protection)



Reverse bias protection

GND

Vout

*2pin,5pin are connected in the IC.

3-. APPLICATIONS



Any Electronic Equipment



Battery Powered Systems



Mobile Communication

AP-MS0027-E-00

-1-

2011/02
