IFRM18P13G1/S14L datasheet, PDF

Datasheet> All Categories > The sensor> Sensor/transducer> IFRM18P13G1/S14L

IFRM18P13G1/S14L: DescriptionInductive Sensor, 20mm Min, 20mm Max, 200mA, Cylindrical; CategoryThe sensor Sensor/transducer; File Size72KB，1 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric Compare View All

IFRM18P13G1/S14L Overview

Inductive Sensor, 20mm Min, 20mm Max, 200mA, Cylindrical

IFRM18P13G1/S14L Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
Reach Compliance Code	unknown
Other features	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION
body height	60 mm
Body length or diameter	18 mm
shell	BRASS NICKEL PLATED
Maximum measuring range (mm)	20 mm
Minimum measuring range (mm)	20 mm
Maximum working current	24 mA
Maximum operating temperature	60 °C
Minimum operating temperature
Output interface type	3-WIRE INTERFACE
Output range	200mA
Output type	ANALOG CURRENT
Package Shape/Form	CYLINDRICAL
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	30 V
Minimum supply voltage	12 V
Termination type	CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

Inductive sensors

Inductive proximity switch

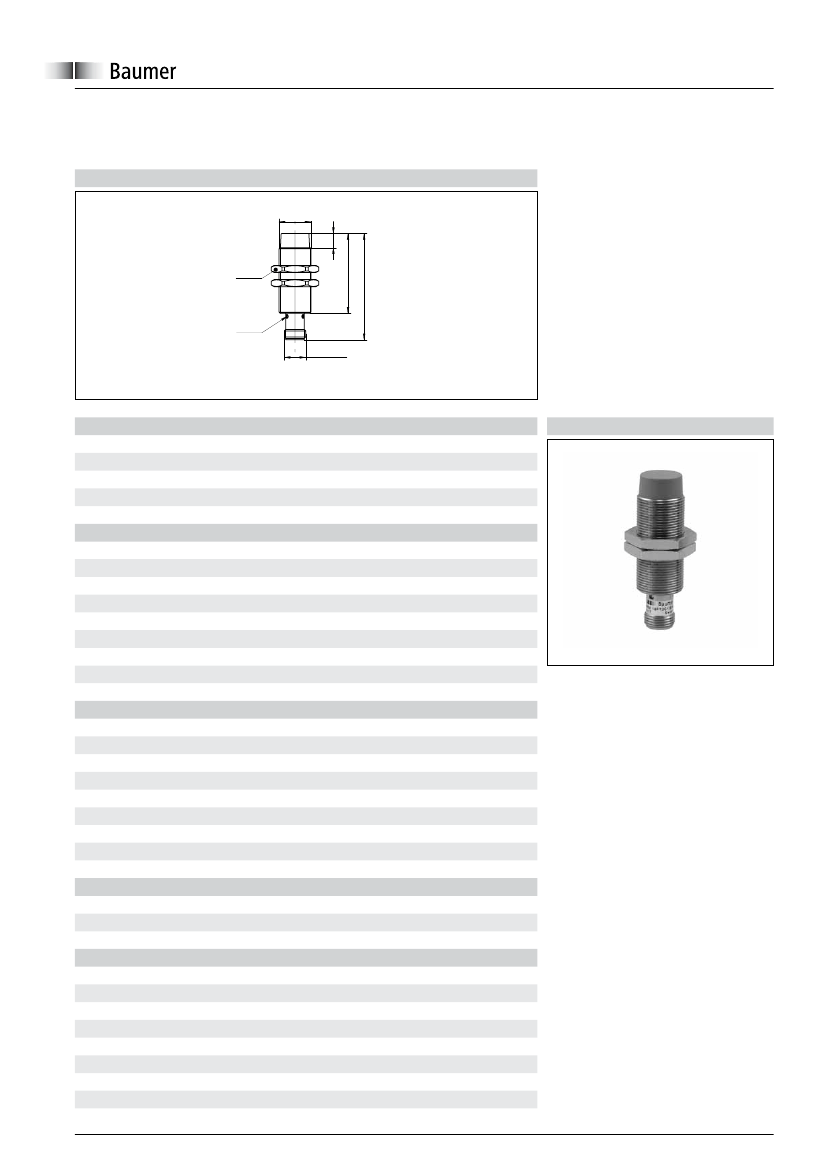

sample drawing

M18 x 1

IFRM 18 (Sn = 20 mm, long)

S W 24

M12 x 1

3xLED

general data

mounting type

special type

nominal sensing distance Sn

hysteresis

electrical data

switching frequency

voltage supply range +Vs

current consumption max. (no load)

voltage drop Vd

output current

short circuit protection

reverse polarity protection

< 400 Hz

12 ... 30 VDC

24 mA

< 2 VDC

< 200 mA

yes

non-flush

enhanced distance (GammaProx)

20 mm

2 ... 25 % of Sr

sample picture

mechanical data

type

material (sensing face)

housing material

dimension

cable, 2 m

housing length

connector M12

housing length

ambient conditions

operating temperature

protection class

order reference

IFRM 18N13G1/L

IFRM 18N13G1/S14L

IFRM 18N33G1/L

IFRM 18N33G1/S14L

IFRM 18P13G1/L

IFRM 18P13G1/S14L

IFRM 18P33G1/L

IFRM 18P33G1/S14L

connection types

cable, 2 m

connector M12

cable, 2 m

connector M12

cable, 2 m

connector M12

cable, 2 m

connector M12

0 ... +60 °C

IP 67

output circuit

NPN make function (NO)

NPN break function (NC)

PNP make function (NO)

PNP break function (NC)

output indicator

LED red

3 port LED red

LED red

3 port LED red

LED red

3 port LED red

LED red

3 port LED red

60 mm

50 mm

cylindrical threaded

PBT

brass nickel plated

18 mm

www.baumer.com

8/1/2014

IFRM18P13G1/S14L Related Products

	IFRM18P13G1/S14L	IFRM18N33G1/S14L	IFRM18P13G1/L	IFRM18N13G1/L	IFRM18P33G1/L	IFRM18P33G1/S14L	IFRM18N13G1/S14L
Description	Inductive Sensor, 20mm Min, 20mm Max, 200mA, Cylindrical	Inductive Sensor, 20mm Min, 20mm Max, 200mA, Cylindrical	Inductive Sensor, 20mm Min, 20mm Max, 200mA, Cylindrical	Inductive Sensor, 20mm Min, 20mm Max, 200mA, Cylindrical	Inductive Sensor, 20mm Min, 20mm Max, 200mA, Cylindrical	Inductive Sensor, 20mm Min, 20mm Max, 200mA, Cylindrical	Inductive Sensor, 20mm Min, 20mm Max, 200mA, Cylindrical
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION
body height	60 mm	60 mm	50 mm	50 mm	50 mm	60 mm	60 mm
Body length or diameter	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm
shell	BRASS NICKEL PLATED	BRASS NICKEL PLATED	BRASS NICKEL PLATED	BRASS NICKEL PLATED	BRASS NICKEL PLATED	BRASS NICKEL PLATED	BRASS NICKEL PLATED
Maximum measuring range (mm)	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
Minimum measuring range (mm)	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
Maximum working current	24 mA	24 mA	24 mA	24 mA	24 mA	24 mA	24 mA
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C
Output interface type	3-WIRE INTERFACE	3-WIRE INTERFACE	3-WIRE INTERFACE	3-WIRE INTERFACE	3-WIRE INTERFACE	3-WIRE INTERFACE	3-WIRE INTERFACE
Output range	200mA	200mA	200mA	200mA	200mA	200mA	200mA
Output type	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT	ANALOG CURRENT
Package Shape/Form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE	PROXIMITY SENSOR,INDUCTIVE	PROXIMITY SENSOR,INDUCTIVE	PROXIMITY SENSOR,INDUCTIVE	PROXIMITY SENSOR,INDUCTIVE	PROXIMITY SENSOR,INDUCTIVE	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Minimum supply voltage	12 V	12 V	12 V	12 V	12 V	12 V	12 V
Termination type	CONNECTOR	CONNECTOR	CABLE	CABLE	CABLE	CONNECTOR	CONNECTOR
Maker	Baumer Electric Ag	-	-	Baumer Electric Ag	Baumer Electric Ag	Baumer Electric Ag	Baumer Electric Ag
Base Number Matches	1	1	1	1	-	-	-
