IZRM18N1501 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> Sensor/transducer> IZRM18N1501

IZRM18N1501: DescriptionInductive Sensor, 2mm Min, 5mm Max, 200mA, Cylindrical; CategoryThe sensor Sensor/transducer; File Size92KB，1 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric View All

IZRM18N1501 Overview

Inductive Sensor, 2mm Min, 5mm Max, 200mA, Cylindrical

IZRM18N1501 Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
Reach Compliance Code	unknown
Other features	IP 65, REVERSE POLARITY PROTECTION, SHIELDED, SHORT CIRCUIT PROTECTION
body height	111 mm
Body length or diameter	18 mm
shell	BRASS NICKEL PLATED/PBT
Maximum measuring range (mm)	5 mm
Minimum measuring range (mm)	2 mm
Maximum working current	20 mA
Maximum operating temperature	60 °C
Minimum operating temperature
Output interface type	4-WIRE INTERFACE
Output range	200mA
Output type	ANALOG CURRENT
Package Shape/Form	CYLINDRICAL
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	30 V
Minimum supply voltage	14 V
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

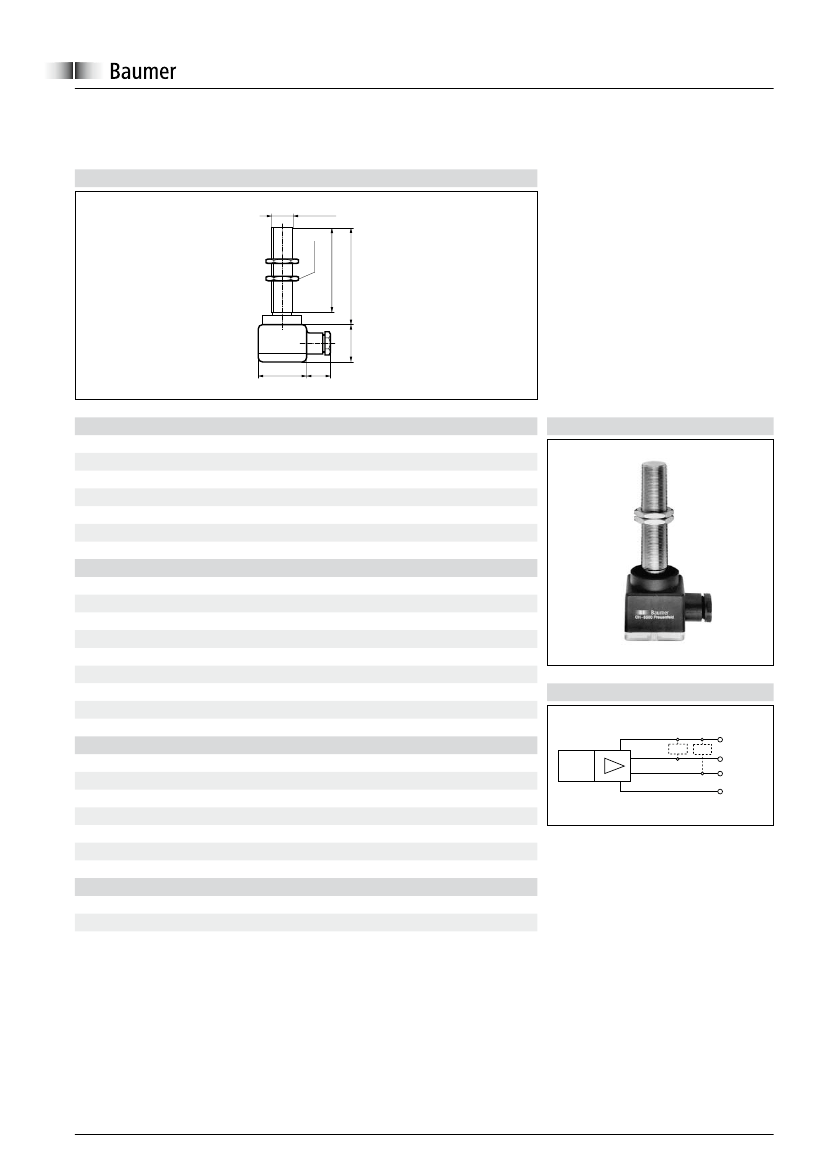

Inductive sensors

Inductive sensors special versions

dimension drawing

M18 x 1

SW 24

IZRM 18N1501

40 x 40

general data

mounting type

special type

operating range

hysteresis

output indicator

shielded

2 adjust. switching points

2 ... 5 mm

1 ... 15 % of Sr

LED red


electrical data

switching frequency

voltage supply range +Vs

current consumption max.

output circuit

voltage drop Vd

output current

short circuit protection

reverse polarity protection

mechanical data

type

material (sensing face)

housing material

dimension

housing length

connection types

ambient conditions

operating temperature

protection class

0 ... +60 °C

IP 65

cylindrical threaded

PBT

brass nickel plated / PBT / PC

18 mm

111 mm

screw connections

• two adjustable switching points

< 1 kHz

14 ... 30 VDC

20 mA

NPN make function (NO)

< 2 VDC

< 200 mA

yes

connection diagram

IZRM

(1)

(4)

(2)

(3)

output 1

output 2

www.baumer.com

15/10/2011
