TS78M06ACPRO datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TS78M06ACPRO

TS78M06ACPRO: DescriptionFixed Positive Standard Regulator, 6VPSSO2, ROHS COMPLIANT, TO-252, DPAK-3; CategoryPower/power management The power supply circuit; File Size164KB，10 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/

Download Datasheet Parametric Compare View All

TS78M06ACPRO Overview

Fixed Positive Standard Regulator, 6VPSSO2, ROHS COMPLIANT, TO-252, DPAK-3

TS78M06ACPRO Parametric

Parameter Name	Attribute value
Maker	Taiwan Semiconductor
package instruction	ROHS COMPLIANT, TO-252, DPAK-3
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum input voltage	25 V
Minimum input voltage	8.5 V
JESD-30 code	R-PSSO-G2
length	6.525 mm
Number of functions	1
Number of terminals	2
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	0.5 A
Maximum output voltage 1	6.24 V
Minimum output voltage 1	5.76 V
Nominal output voltage 1	6 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-252
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	2.6 mm
surface mount	YES
Terminal form	GULL WING
Terminal pitch	2.3 mm
Terminal location	SINGLE
width	5.5 mm
Base Number Matches	1

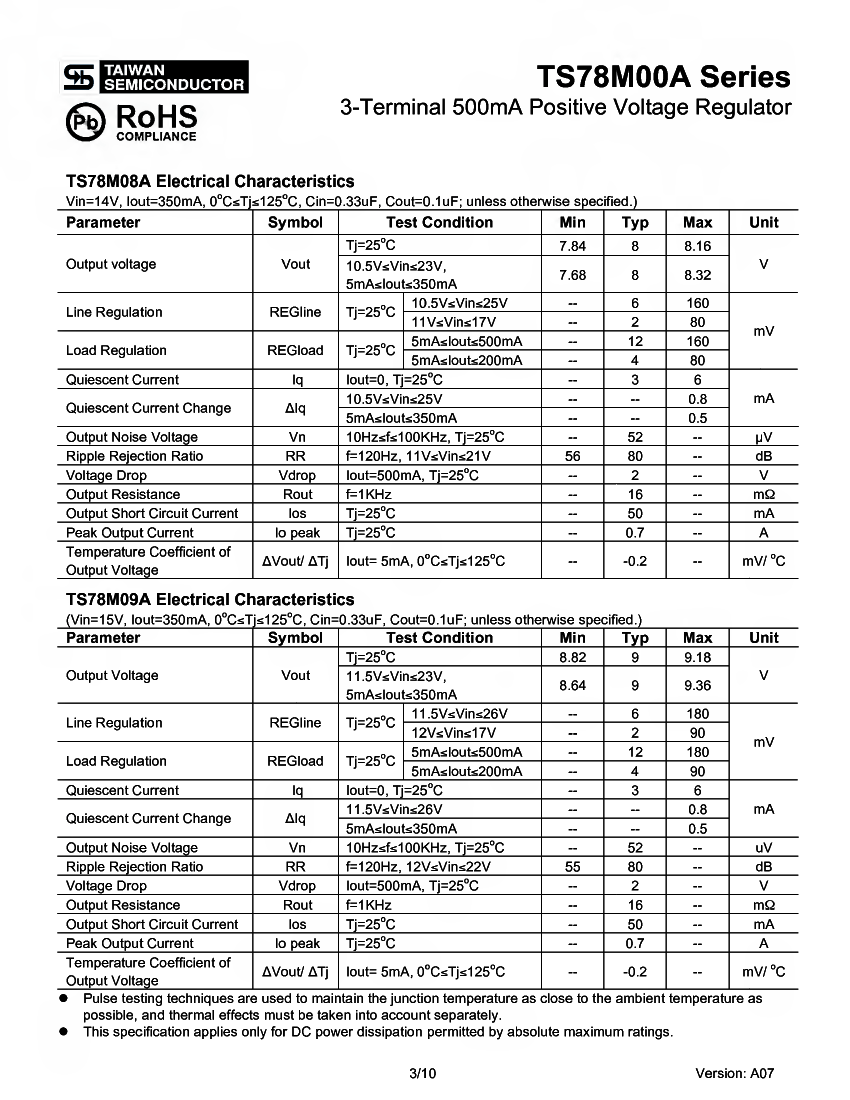

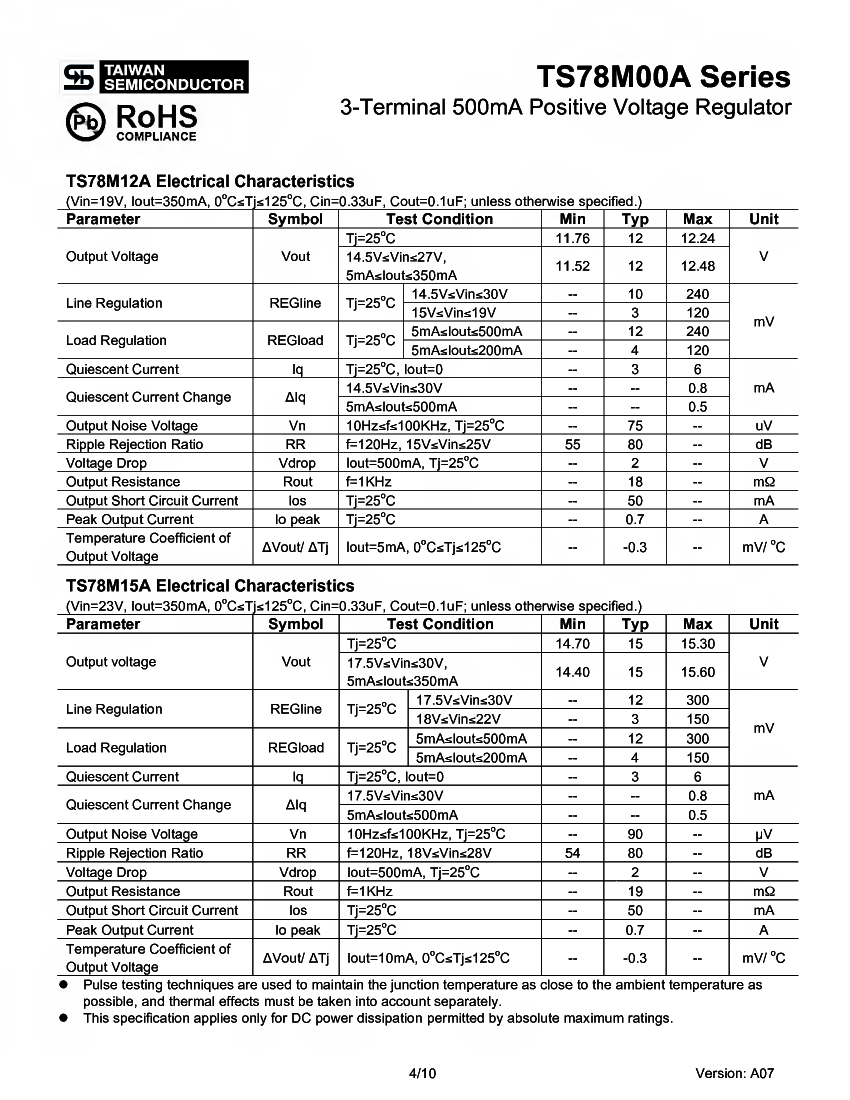

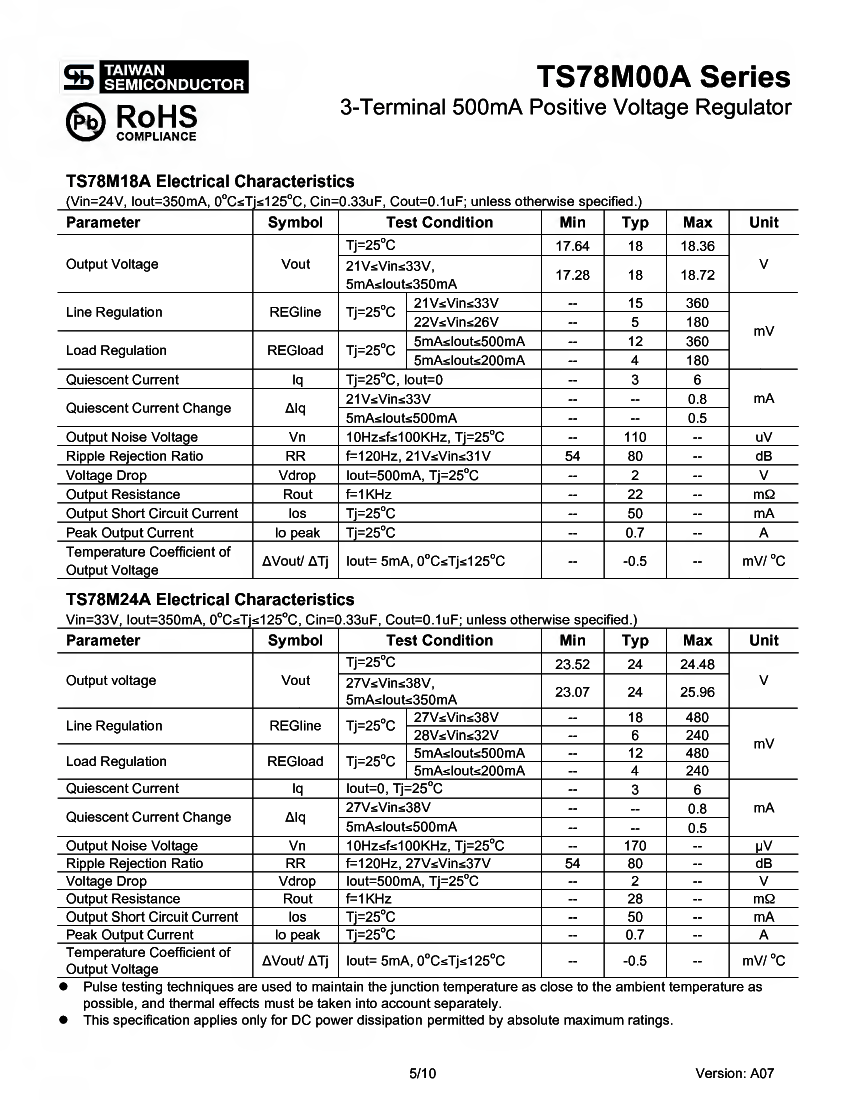

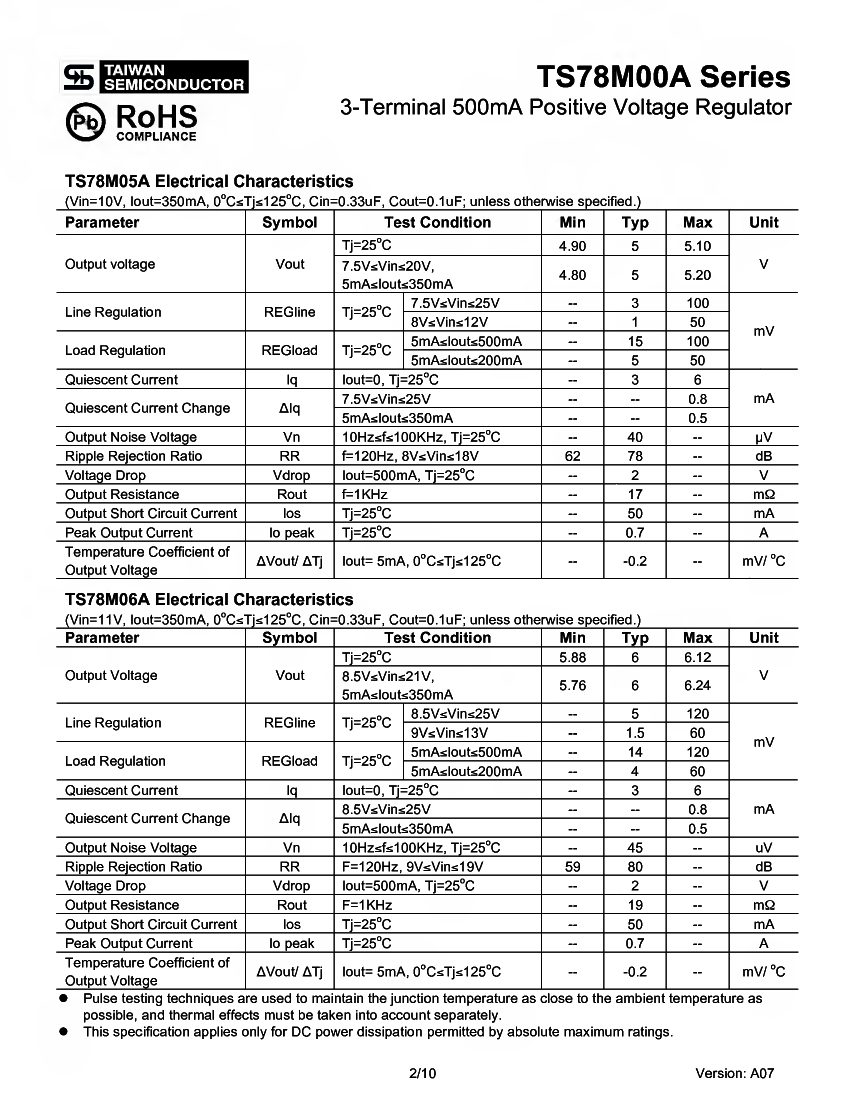

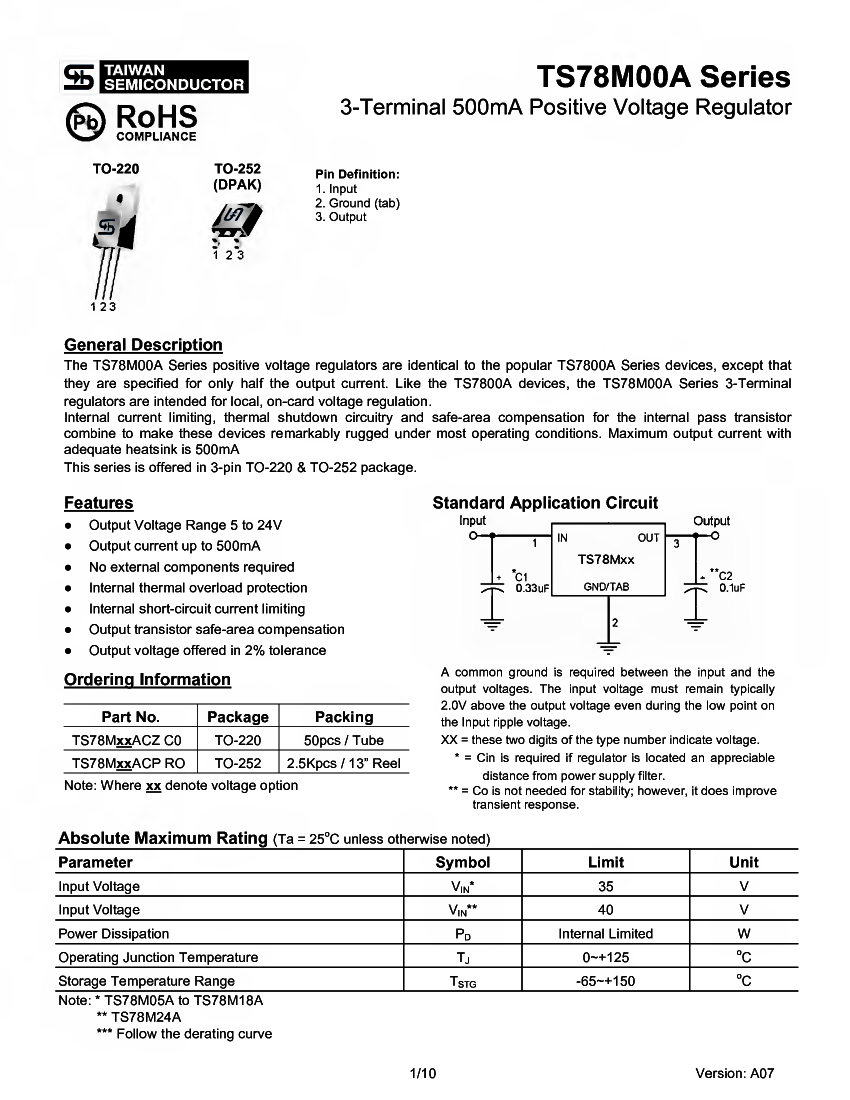

Preview

Download Datasheet

View All

TS78M06ACPRO Related Products

	TS78M06ACPRO	TS78M15ACZC0	TS78M12ACZC0	TS78M06ACZC0	TS78M08ACZC0	TS78M09ACZC0
Description	Fixed Positive Standard Regulator, 6VPSSO2, ROHS COMPLIANT, TO-252, DPAK-3	Fixed Positive Standard Regulator, 15V, ROHS COMPLIANT, TO-220, 3 PIN	Fixed Positive Standard Regulator, 12V, ROHS COMPLIANT, TO-220, 3 PIN	Fixed Positive Standard Regulator, 6V, ROHS COMPLIANT, TO-220, 3 PIN	Fixed Positive Standard Regulator, 8V, ROHS COMPLIANT, TO-220, 3 PIN	Fixed Positive Standard Regulator, 9V, ROHS COMPLIANT, TO-220, 3 PIN
package instruction	ROHS COMPLIANT, TO-252, DPAK-3	,	,	ROHS COMPLIANT, TO-220, 3 PIN	ROHS COMPLIANT, TO-220, 3 PIN	ROHS COMPLIANT, TO-220, 3 PIN
Reach Compliance Code	compliant	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum input voltage	25 V	30 V	30 V	25 V	25 V	26 V
Minimum input voltage	8.5 V	17.5 V	14.5 V	8.5 V	10.5 V	11.5 V
JESD-30 code	R-PSSO-G2	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3
Number of functions	1	1	1	1	1	1
Number of terminals	2	3	3	3	3	3
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Maximum output voltage 1	6.24 V	15.6 V	12.48 V	6.24 V	8.32 V	9.36 V
Minimum output voltage 1	5.76 V	14.4 V	11.52 V	5.76 V	7.68 V	8.64 V
Nominal output voltage 1	6 V	15 V	12 V	6 V	8 V	9 V
Package body material	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
surface mount	YES	NO	NO	NO	NO	NO
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	Taiwan Semiconductor	-	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor
