BR9190 datasheet, PDF - EEWORLD Datasheet

BR9190: Description10 MHz - 400 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, H2; CategoryWireless rf/communication Radio frequency and microwave; File Size623KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BR9190 Overview

10 MHz - 400 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, H2

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	22 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	400 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

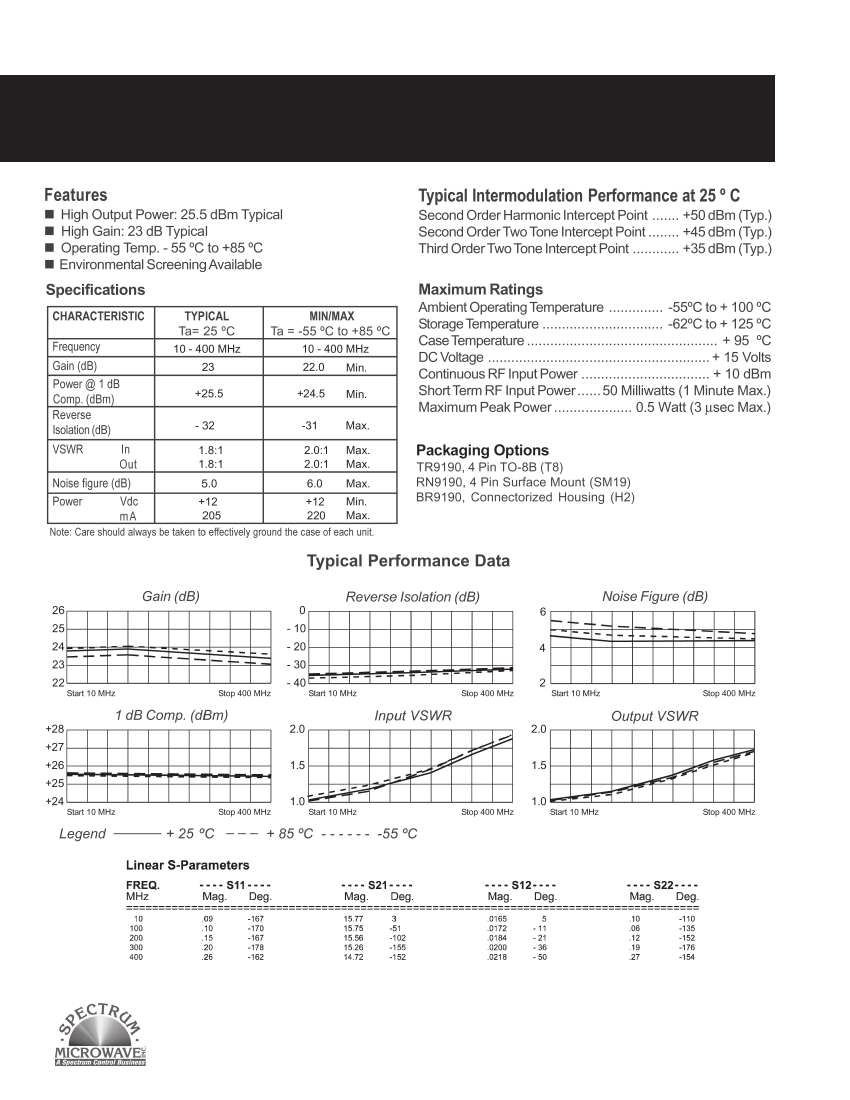

RF Amplifier

High Output Power: 25.5 dBm

Model TR9190

10 to 400 MHz

(see Appendix)

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

448

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

	BR9190	TR9190
Description	10 MHz - 400 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, H2	10 MHz - 400 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, T8, TO-8B, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT
Gain	22 dB	22 dB
Maximum input power (CW)	10 dBm	10 dBm
Maximum operating frequency	400 MHz	400 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2
Base Number Matches	1	1
