EPR1404G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> EPR1404G

EPR1404G: DescriptionT1/E1/CEPT/ISDN-PRI Interface Transformers; CategoryPower management transformer; File Size14KB，1 Pages; ManufacturerPCA Electronics Inc.; Websitehttp://www.pca.com/

Download Datasheet Parametric View All

EPR1404G Overview

T1/E1/CEPT/ISDN-PRI Interface Transformers

EPR1404G Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	PCA Electronics Inc.
Reach Compliance Code	compli
ECCN code	EAR99
Other features	TURNS RATIO: 1CT:1.15CT:2CT; 1CT:1CT:2CT, HEIGHT DIM INCLUDES TERMINAL ALSO
Certification	IEC
high	10.03 mm
JESD-609 code	e0
length	24.13 mm
Manufacturer's serial number	EPR1404G
Installation features	SURFACE MOUNT
method of packing	TUBE
physical size	24.13mm X 14.99mm X 10.03mm
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Transformer type	TELECOM TRANSFORMER
width	14.99 mm

Preview

Download Datasheet

View All

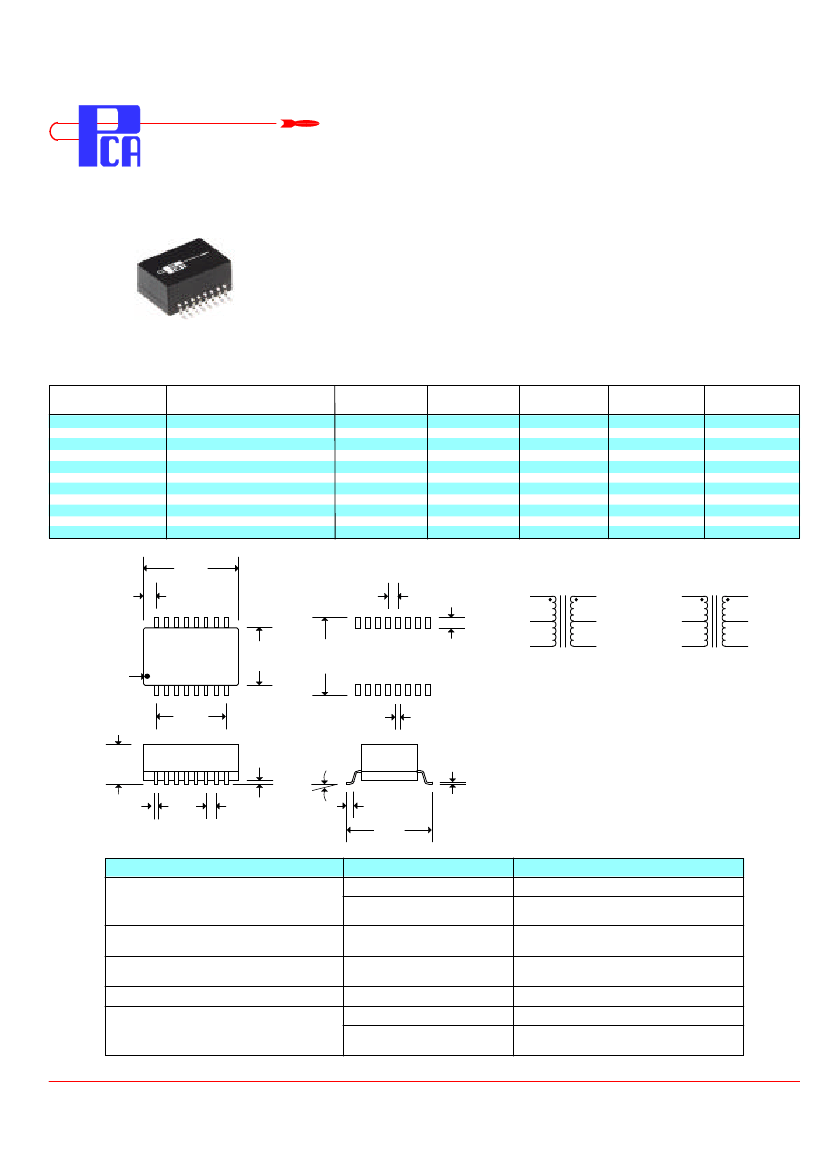

T1/E1/CEPT/ISDN-PRI

Interface Transformers

ELECTRONICS INC.

EPR1401G - EPR1411G &

EPR1401G-RC - EPR1411G-RC

• Optimized for Leading Transceiver I.C.’s

• Meets or exceeds EN60950, CS950, AS3260 and IEC950 Standards

• RoHS Compliant (add -RC to part number)

• 3000 Vrms Isolation

Electrical Parameters @ 25° C

Part

Number

EPR1401G-(RC)

EPR1402G-(RC)

EPR1403G-(RC)

EPR1404G-(RC)

EPR1405G-(RC)

EPR1406G-(RC)

EPR1407G-(RC)

EPR1408G-(RC)

EPR1409G-(RC)

EPR1410G-(RC)

EPR1411G-(RC)

Turns

Ratio

1CT:1CT/1CT:1CT

1CT:1CT/1CT:2CT

1CT:1.15CT/1CT:1CT

1CT:1.15CT/1CT:2CT

1CT:1CT/1CT:1.36CT

1CT:1.36CT/1CT:1.36CT

1CT:1.41CT/1CT:1.41CT

1CT:2CT/1CT:1.41CT

1CT:2CT/1CT:1.36CT

1CT:2CT:1CT:2CT

1CT:2.3CT:1CT:2CT

.950

(24.13)

.125

(3.18)

OCL

(mH Min.)

1.2 / 1.2

1.6 / 1.6

1.5 / 1.2

1.2 / 1.2

Cw/w

(pF Max.)

15 / 15

Pri. DCR

(Ω Max.)

1.0 / 1.0

1.1 / 1.0

1.0 / 1.0

1.1 / 1.1

1.0 / 1.25

1.0 / 1.0

1.0 / 1.1

Sec. DCR

(Ω Max.)

1.0 / 1.0

1.0 / 1.7

1.1 / 0.9

1.2 / 1.7

0.9/ 1.2

1.2 / 1.2

1.35 / 1.35

1.7 / 1.35

1.65 / 1.15

1.7 / 1.7

2.0 / 1.8

Primary

Pins

1-3/6-8

16-14/6-8

1-3/6-8

16-14/11-9

16-14/6-8

Package

.100

(2.54)

.075

(1.91)

Schematic

Pin 1

I.D.

PCA

EPR14XXG-RC

D.C.

.590

(14.99)

.790

(20.07)

Solder Pad

Layout

.700

(17.78)

.395

(10.03)

.016/.022

(.406/.559)

.010/.015

(.254/.381)

.030

(.762)

0°-8°

.008/.012

(.203/.305)

.100

(2.54)

.040

(1.02)

.745

(18.92)

EPR1404G - EPR1411G

(Leadframe)

SnPb

225°C

(+0/-5°C)

(168 Hours,

≤30°C/60%RH)

Notes :

1. Assembly Process

(Solder Composition)

(Assembly Solder)

EPR1404G-RC - EPR1411G-RC

SnPb

(RoHS exemption 7a)

2. Peak Solder Rating

(per IPC/JEDEC J-STD-020C)

3. Moisture Sensitive Levels (MSL)

(per IPC/JEDEC J-STD-020C)

4. Weight

5. Packaging Information

(Tube)

(Tape & Reel)

260°C

(+0/°C)

(72 Hours,

≤30°C/60%RH)

8 grams

TBD pieces

TBD pieces/13” reel

(*EPR1404G - EPR1411G-TR)

8 grams

TBD pieces

TBD pieces/13 reel

(*EPR1404G-RCTR - EPR1411G-RCTR)

Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25

PCA ELECTRONICS, INC.

16799 SCHOENBORN ST.

NORTH HILLS, CA 91343

Product performance is limited to specified parameters. Data is subject to change without prior notice.

CSR1401G-CSR1411G&-RC

Rev. 1

8/22/05 JDG

TEL: (818) 892-0761

FAX: (818) 894-5791

http://www.pca.com
