VSKT56/12P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> VSKT56/12P

VSKT56/12P: DescriptionSilicon Controlled Rectifier, 90.42A I(T)RMS, 60000mA I(T), 1200V V(DRM), 1200V V(RRM), 2 Element, TO-240AA, ROHS COMPLIANT, ADD-A-PAK-7; CategoryAnalog mixed-signal IC Trigger device; File Size332KB，12 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

VSKT56/12P Overview

Silicon Controlled Rectifier, 90.42A I(T)RMS, 60000mA I(T), 1200V V(DRM), 1200V V(RRM), 2 Element, TO-240AA, ROHS COMPLIANT, ADD-A-PAK-7

VSKT56/12P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	TO-240AA
package instruction	FLANGE MOUNT, R-XUFM-X7
Contacts	7
Manufacturer packaging code	ADD-A-PAK
Reach Compliance Code	unknown
Shell connection	ISOLATED
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	4 V
Quick connection description	2G-2GR
Description of screw terminals	A-K-AK
Maximum holding current	200 mA
JEDEC-95 code	TO-240AA
JESD-30 code	R-XUFM-X7
Maximum leakage current	15 mA
On-state non-repetitive peak current	1370 A
Number of components	2
Number of terminals	7
Maximum on-state current	60000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	90.42 A
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

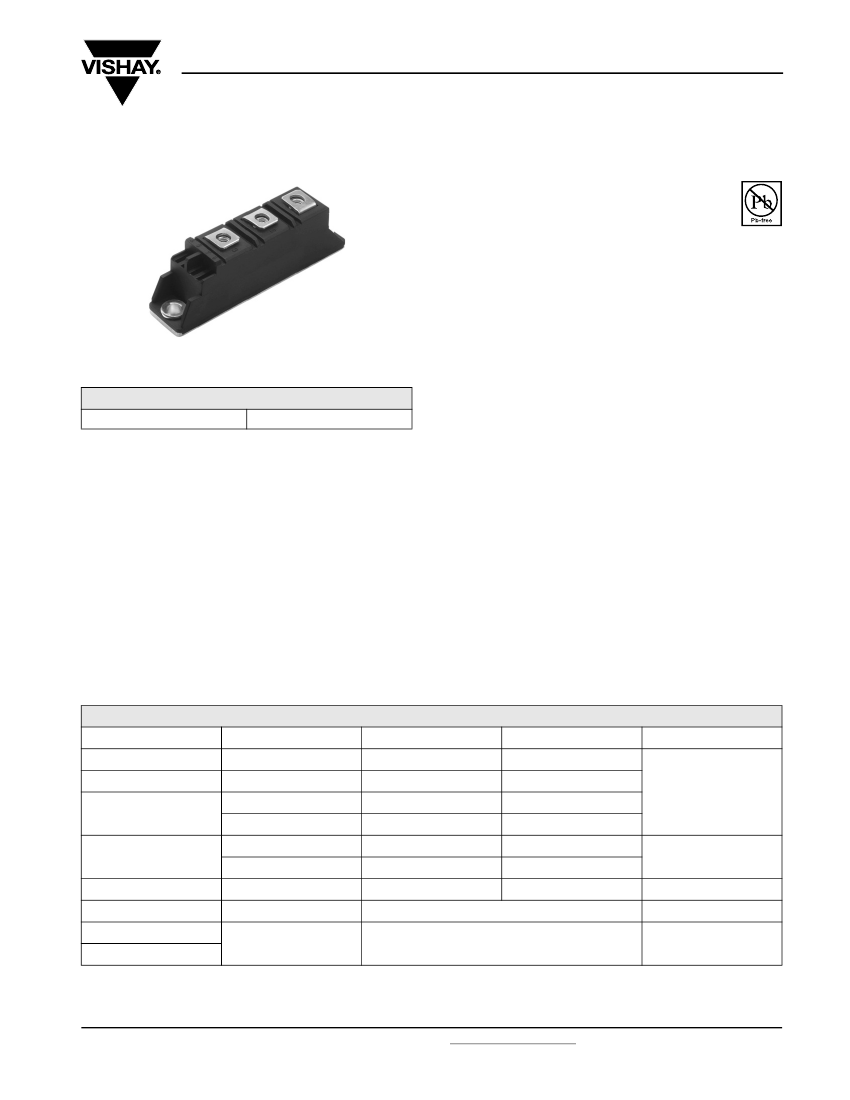

VSK.41, .56..PbF Series

Vishay High Power Products

Thyristor/Diode and Thyristor/Thyristor

(ADD-A-PAK

Generation 5 Power Modules), 45/60 A

FEATURES

• High voltage

• Industrial standard package

• Thick copper baseplate

• UL E78996 approved

• 3500 V

RMS

isolating voltage

• Totally lead (Pb)-free

ADD-A-PAK

RoHS

COMPLIANT

• Designed and qualified for industrial level

PRODUCT SUMMARY

T(AV)

or I

F(AV)

45/60 A

BENEFITS

• Up to 1600 V

• Fully compatible TO-240AA

• High surge capability

• Easy mounting on heatsink

• Al

DBC insulator

• Heatsink grounded

MECHANICAL DESCRIPTION

The Generation 5 of ADD-A-PAK

modules combine the

excellent thermal performance obtained by the usage of

Direct Bonded Copper substrate with superior mechanical

ruggedness, thanks to the insertion of a solid copper

baseplate at the bottom side of the device. The Cu baseplate

allows an easier mounting on the majority of heatsink with

increased tolerance of surface roughness and improved

thermal spread. The Generation 5 of AAP modules is

manufactured without hard mold, eliminating in this way any

possible direct stress on the leads.

The electrical terminals are secured against axial pull-out:

they are fixed to the module housing via a click-stop feature

already tested and proved as reliable on other Vishay HPP

modules.

ELECTRICAL DESCRIPTION

These modules are intended for general purpose high

voltage applications such as high voltage regulated power

supplies, lighting circuits, temperature and motor speed

control circuits, UPS and battery charger.

MAJOR RATINGS AND CHARACTERISTICS

SYMBOL

T(AV)

or I

F(AV)

O(RMS)

TSM,

FSM

√t

RRM

Stg

Range

CHARACTERISTICS

85 °C

As AC switch

50 Hz

60 Hz

50 Hz

60 Hz

VSK.41

100

850

890

3.61

3.30

36.1

400 to 1600

- 40 to 125

VSK.56

135

1310

1370

8.50

7.82

85.0

√s

°C

UNITS

Document Number: 94419

Revision: 23-Apr-08

For technical questions, contact: ind-modules@vishay.com

www.vishay.com
