KTN-R-40: DescriptionFAST BLOW ELECTRIC FUSE, 40A, 250VAC, 200000A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size86KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

KTN-R-40 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KTN-R-40	-	-	View	Buy Now

KTN-R-40 Overview

FAST BLOW ELECTRIC FUSE, 40A, 250VAC, 200000A (IR), INLINE/HOLDER

KTN-R-40 Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	unknown
Fusing characteristics	FAST
body height	76.2 mm
Body length or diameter	20.57 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	KTN-R
Installation features	INLINE/HOLDER
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	BOX
physical size	20.57mm x 76.2mm
Rated breaking capacity	200000 A
Rated current	40 A
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

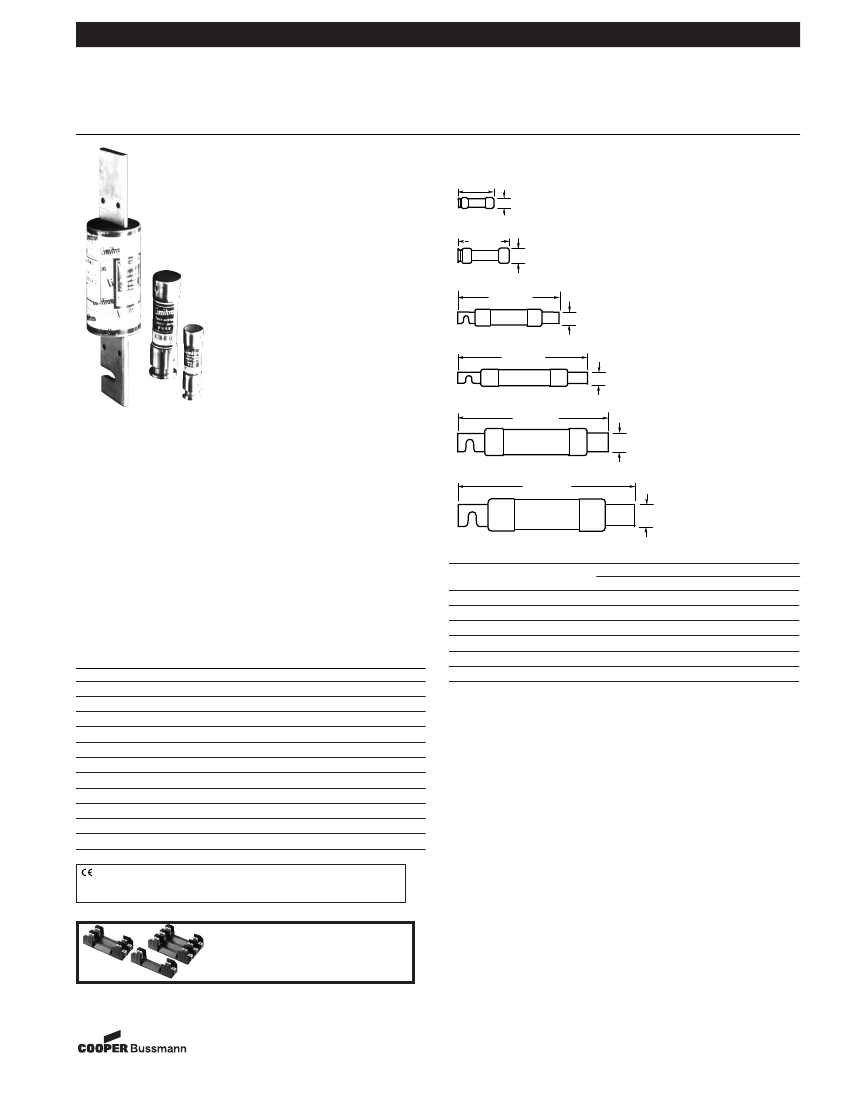

Preview

Download Datasheet

View All

Bussmann

Limitron

Fast-Acting Fuses

250 Volt

Dimensional Data

(± 0.31)

.56" (± 0.008)

1/10A to 30A

KTN-R

1-600A

(± 0.31)

.81" (± 0.008)

35A to 60A

5.88"

(± 0.062)

1.06" (± 0.008)

70A to 100A

7.13"

(± 0.062)

1.56" (± 0.008)

110A to 200A

Catalog Symbol:

KTN-R (250V)

Fast-Acting

Current-Limiting

Ampere Rating:

1 to 600A

Voltage Rating:

250 ac Vac (or less)*

Interrupting Rating:

200,000A RMS Sym.

Tube Material:

Glass Melamine

End Caps:

70/30 Brass

Operating Temp.:

–40°C to +85°C

Storage Temp.:

–55°C to +85°C

Agency Information:

UL Listed, Std. 248-12, Class RK1, Guide JDDZ, File E54273

CSA Certified, C22.2 No. 248.12, Class 1422-02, File 53787

*0-600A is rated 250Vdc and 10 KAIC.

8.63"

(± 0.094)

2.06" (± 0.008)

225A to 400A

10.38"

(± 0.094)

2.59" (± 0.008)

450A to 600A

Carton Quantity and Weight (250Vac)*

Amps

1–30

40–60

70–100

110–200

225–400

Carton

Qty.

Weight**

Lbs.

0.45

1.82

1.85

1.05

2.38

3.50

Kg.

0.204

0.824

0.838

0.476

1.078

1.587

Catalog Numbers

KTN-R-1

KTN-R-2

KTN-R-3

KTN-R-4

KTN-R-5

KTN-R-6

KTN-R-8

KTN-R-10

KTN-R-12

KTN-R-15

KTN-R-20

KTN-R-25

KTN-R-30

KTN-R-35

KTN-R-40

KTN-R-45

KTN-R-50

KTN-R-60

KTN-R-70

KTN-R-75

KTN-R-80

KTN-R-90

KTN-R-100

KTN-R-110

KTN-R-125

KTN-R-150

KTN-R-175

KTN-R-200

KTN-R-225

KTN-R-250

KTN-R-300

KTN-R-350

KTN-R-400

KTN-R-450

KTN-R-500

KTN-R-600

450–600

*Contact Bussmann for dc ratings.

**Weight per carton.

CE logo denotes compliance with European Union Low Voltage Directive

(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact

Bussmann Application Engineering at 314-527-1270 for more information.

Recommended fuseblocks for

Class R 250V fuses

See Data Sheet: 1110

General Information:

• Single-element, fast-acting fuses with minimal time-delay.

• Provides a high degree of short-circuit current-limitation

(component protection).

• Particularly suited for circuits and loads with no heavy surge

currents of motors, transformers, solenoids, and welders.

• LIMITRON fuses are commonly used to protect circuit

breakers with lower interrupting ratings.

• If used in circuits with surge currents (motors, etc.) must be

sized to prevent unwanted opening and thus only provide

short-circuit protection.

• Incorporate Class R rejection feature. Can be inserted in

non-rejection type fuseholders. Thus, can physically and

electrically replace fast-acting Class H, K1, K5, RK5, and

other fast-acting fuses.

10-2-02

SB02295

Form No. KTN-R

Page 1 of 2

Data Sheet: 1043
