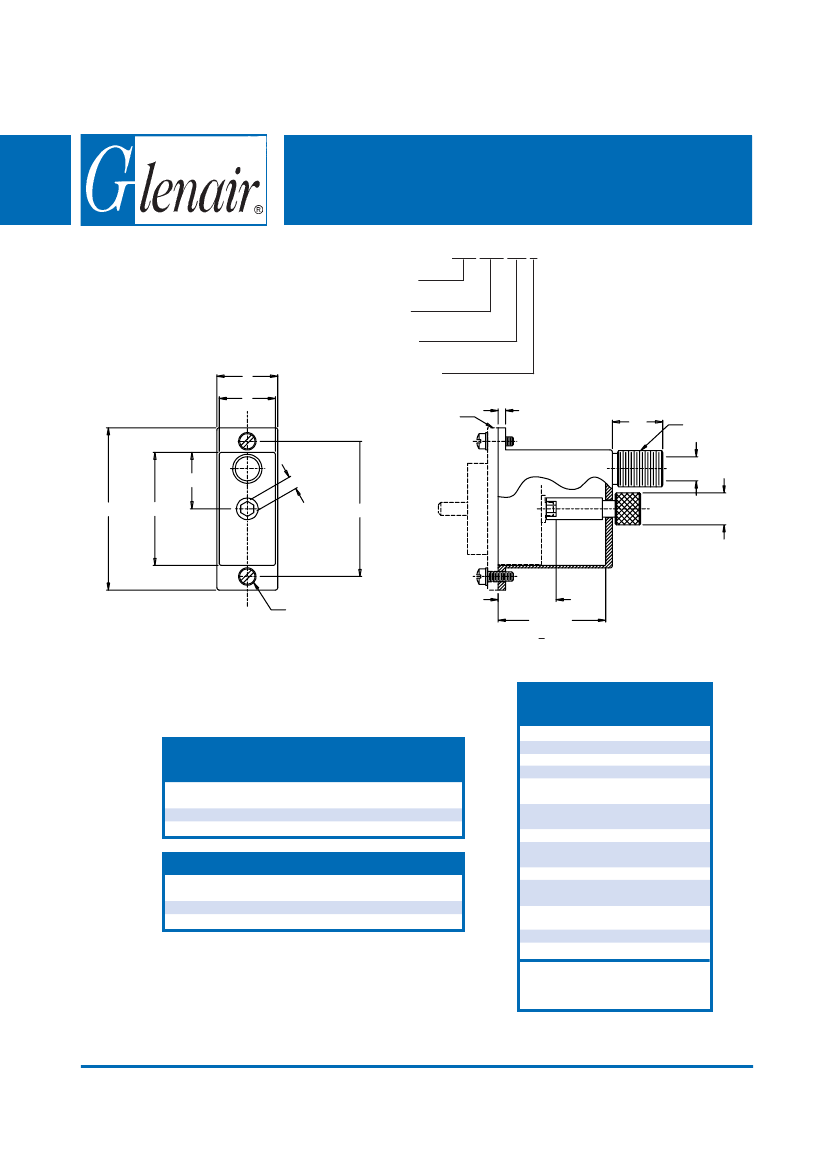

527-296

Split Backshell

with Accessory Thread for Hughes RA Connector

M28804/4, Dash Numbers 2 & 5

527 296 NF 2

Product Series

Basic Number

Finish (Table II)

Miscellaneous

Rectangular

Backshells

Shell Size (Table I)

ble I)

Connector

shown for

Reference

Only

.090 (2.3)

.590

(15.0)

A Thread

.156 (4.0)

Hex Socket

Cable Entry

.380 (9.7)

#4-40 Screw and

Lock Washer

(2 Places)

.920 / .830

(23.4 / 21.1)

Ref

1.520

(38.6)

+ .020

(0.5)

TABLE III:

FINISH OPTIONS

TABLE I: CONNECTOR INTERFACE

(Continued Below)

Shell

A Thread

Size

Class 2A

7/16 - 28 UNEF

3/4 - 20 UNEF

Dim

.730 (18.5)

.910 (22.9)

Dim

.648 (16.5)

.825 (21.0)

Max Dim

1.950 (49.5)

2.790 (70.9

Symbol

U**

Metric dimensions (mm) are indicated in parentheses.

Finish

Cadmium Plate/Olive Drab

Black Anodize

Anodic Hard Coat

Gold Iridite over Cadmium Plate

over Electroless Nickel

Cadmium Plate/Bright over

Electroless Nickel

Cadmium Plate/Olive Drab over

Electroless Nickel

Zinc Cobalt/Dark Olive Drab

Cadmium Plate/Olive Drab over

Electroless Nickel

Cadmium Plate/Bright over

Electroless Nickel

Cadmium Plate/Black

Zinc-Nickel Alloy/Olive Drab

TABLE I: (Continued)

Shell

Size

Max Dim

1.360 (34.5) .680 (17.3)

2.200 (55.9) 1.100 (27.9)

Max Dim

1.625 (41.3)

2.470 (62.7)

Cable Entry

Max

.290 (7.4)

.550 (14.0)

*Anodize finish is not suitable for EMI shielding or grounding

applications.

**Applicable to corrosion resisting steel backshells and accesso-

ries. Consult factory for other available finishes.

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

D-22
