MB814100-10LPSZ datasheet, PDF

Datasheet> All Categories > storage> storage> MB814100-10LPSZ

MB814100-10LPSZ: DescriptionFast Page DRAM, 4MX1, 100ns, CMOS, PZIP20,; Categorystorage storage; File Size60KB，1 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

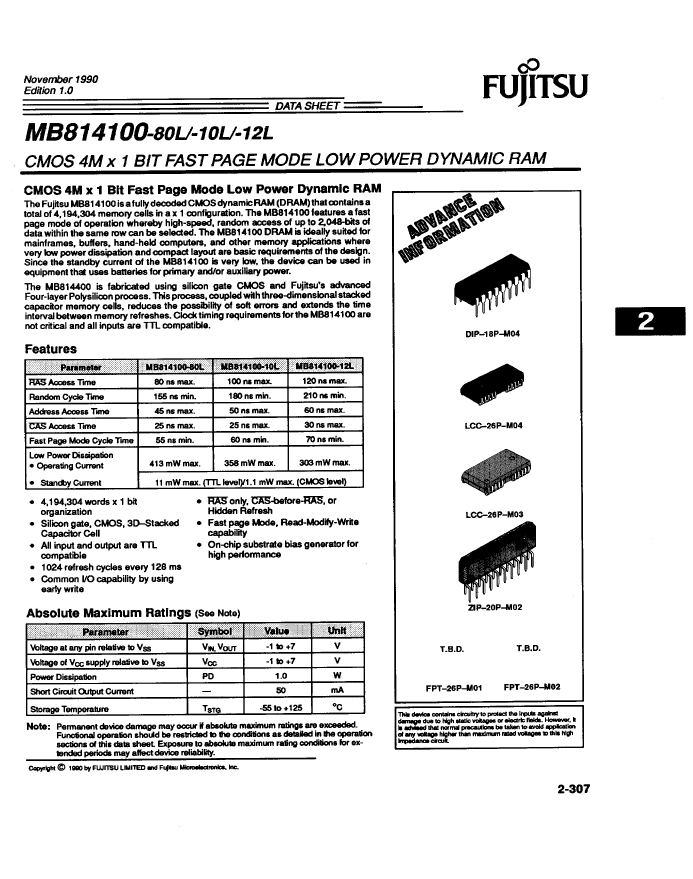

MB814100-10LPSZ Overview

Fast Page DRAM, 4MX1, 100ns, CMOS, PZIP20,

MB814100-10LPSZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	FUJITSU
Parts packaging code	ZIP
package instruction	ZIP, ZIP20,.1
Contacts	20
Reach Compliance Code	compliant
Maximum access time	100 ns
I/O type	SEPARATE
JESD-30 code	R-PZIP-T20
JESD-609 code	e0
memory density	4194304 bit
Memory IC Type	FAST PAGE DRAM
memory width	1
Number of terminals	20
word count	4194304 words
character code	4000000
organize	4MX1
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	ZIP
Encapsulate equivalent code	ZIP20,.1
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
self refresh	NO
Maximum standby current	0.0002 A
Maximum slew rate	0.065 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	ZIG-ZAG
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

MB814100-10LPSZ Related Products

	MB814100-10LPSZ	MB814100-80LPJ	MB814100-80LPJN	MB814100-12LPSZ	MB814100-10LPJ	MB814100-10LPJN	MB814100-12LPJN
Description	Fast Page DRAM, 4MX1, 100ns, CMOS, PZIP20,	Fast Page DRAM, 4MX1, 80ns, CMOS, PDSO20,	Fast Page DRAM, 4MX1, 80ns, CMOS, PDSO20,	Fast Page DRAM, 4MX1, 120ns, CMOS, PZIP20,	Fast Page DRAM, 4MX1, 100ns, CMOS, PDSO20,	Fast Page DRAM, 4MX1, 100ns, CMOS, PDSO20, PLASTIC, LCC-26/20	Fast Page DRAM, 4MX1, 120ns, CMOS, PDSO20,
package instruction	ZIP, ZIP20,.1	SOJ, SOJ20/26,.4	SOJ, SOJ20/26,.34	ZIP, ZIP20,.1	SOJ, SOJ20/26,.4	SOJ,	SOJ, SOJ20/26,.34
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	unknown	compliant
Maximum access time	100 ns	80 ns	80 ns	120 ns	100 ns	100 ns	120 ns
JESD-30 code	R-PZIP-T20	R-PDSO-J20	R-PDSO-J20	R-PZIP-T20	R-PDSO-J20	R-PDSO-J20	R-PDSO-J20
memory density	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000	4000000	4000000
organize	4MX1	4MX1	4MX1	4MX1	4MX1	4MX1	4MX1
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	ZIP	SOJ	SOJ	ZIP	SOJ	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	YES	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	ZIG-ZAG	DUAL	DUAL	ZIG-ZAG	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-	incompatible
Maker	FUJITSU	-	-	FUJITSU	FUJITSU	FUJITSU	FUJITSU
Parts packaging code	ZIP	LCC	LCC	ZIP	LCC	-	LCC
Contacts	20	26/20	26/20	20	26/20	-	26/20
I/O type	SEPARATE	SEPARATE	SEPARATE	SEPARATE	SEPARATE	-	SEPARATE
JESD-609 code	e0	e0	e0	e0	e0	-	e0
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	-	3-STATE
Encapsulate equivalent code	ZIP20,.1	SOJ20/26,.4	SOJ20/26,.34	ZIP20,.1	SOJ20/26,.4	-	SOJ20/26,.34
power supply	5 V	5 V	5 V	5 V	5 V	-	5 V
refresh cycle	1024	1024	1024	1024	1024	-	1024
self refresh	NO	NO	NO	NO	NO	-	NO
Maximum standby current	0.0002 A	0.0002 A	0.0002 A	0.0002 A	0.0002 A	-	0.0002 A
Maximum slew rate	0.065 mA	0.075 mA	0.075 mA	0.055 mA	0.065 mA	-	0.055 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	-	5 V
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	-	-	-
