MA4E2072 Series
Surface Mount Schottky Crossover Quads
Features
•
Designed for High Volume Applications
•
Crossover Quad Configuration
•
Lead Free and RoHS* Compliant With 260°C
Reflow Capability
•
100 % MATTE Tin Plating
•
Available in SOT-143 ( ODS –1068 )
•
Tape and Reel Deliverable
M/A-COM Products
Rev. V2
Package Outline (Topview)
SOT-143 (1068)
Description and Applications
M/A-COM’s MA4E2072 is a high performance silicon
Schottky cross over quad. These parts are usable
for a variety of mixer applications. The closely
matched junctions minimize variation in capacitance,
forward voltage and dynamic resistance within the
four diodes in the quad. They are offered in low, medium
and high barrier heights. These diodes are available
in a small profile surface mount package SOT-143
(ODS-1068). They are available in tape and reel for
automatic pick and place assembly.

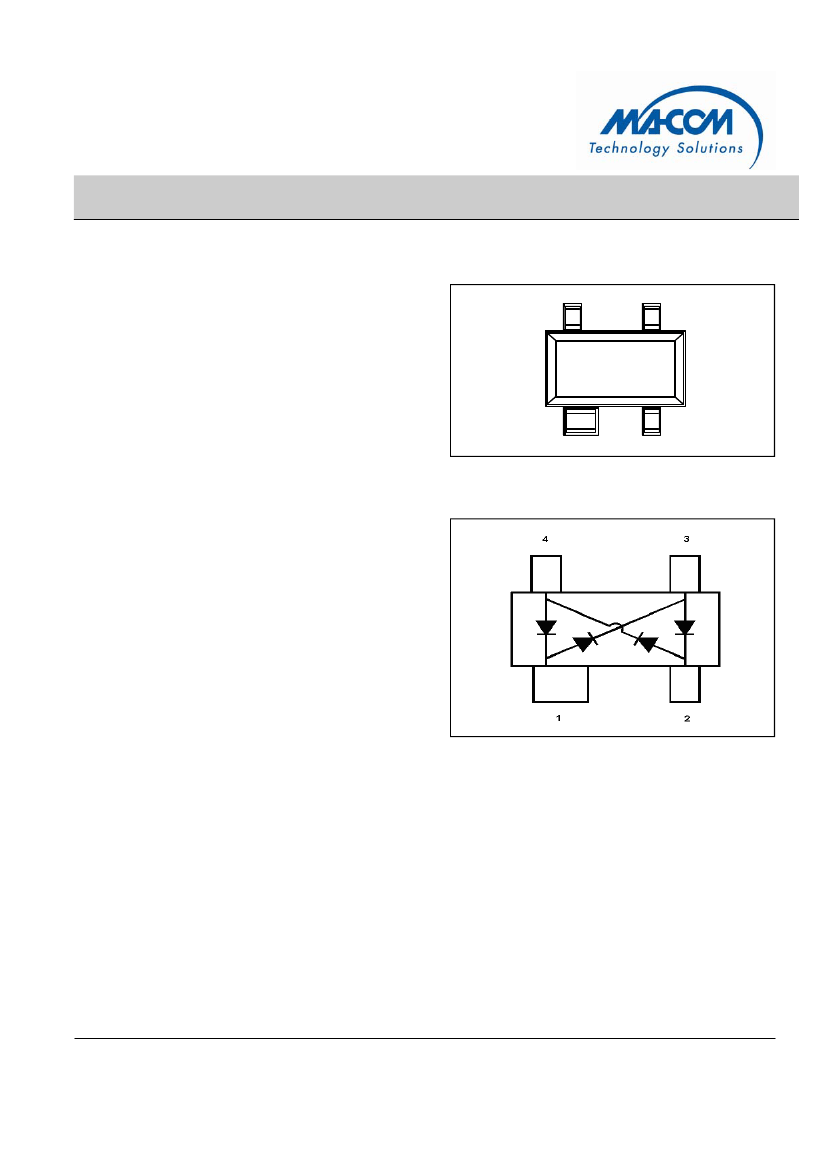

Configuration (Topview)
Associated Application Note
M538 – Surface Mounting Instructions
*Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM is considering for
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
development. Performance is based on target specifications, simulated results, and/or prototype
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM has under develop-
Visit www.macom.com for additional data sheets and product information.
ment. Performance is based on engineering tests. Specifications are typical. Mechanical outline has
been fixed. Engineering samples and/or test data may be available. Commitment to produce in
MA-COM Technical Solutions and its affiliates reserve the right to make changes to
volume is not guaranteed.
the product(s) or information contained herein without notice.
MA4E2072 Series
Surface Mount Schottky Crossover Quads
Maximum Ratings @ +25 °C
1
Parameter
Operating Temperature
Storage Temperature
Junction Temperature
RF Incident Power (CW)
Soldering Temperature
M/A-COM Products
Rev. V2
Unit
°C
°C
°C
mW
°C
Values
-65 to +125
-65 to +125
+150
75
+260 max
1. Operation of this device above any one of these parameters may cause permanent damage.
Electrical Specifications @ +25 °C
Part Number
Vf Typical (mV)
MA4E2072L -1068T
MA4E2072M -1068T
MA4E2072H -1068T
230
363
540
Forward Voltage
2
Vf Max. (mV)
240
400
600
Junction
Capacitance
3
Delta Vf Max.
(mV)
5
5
5
Dynamic
Resistance
Rd Max. (ohms)
7.0
7.0
7.0
Cj Typical (pF)
.5
.5
.5
2. Forward voltage is measured at If = 1 mA
3. Cj is measured at Vr =0 volts and f=1MHz.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM is considering for
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
development. Performance is based on target specifications, simulated results, and/or prototype
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM has under develop-
Visit www.macom.com for additional data sheets and product information.
ment. Performance is based on engineering tests. Specifications are typical. Mechanical outline has
been fixed. Engineering samples and/or test data may be available. Commitment to produce in
MA-COM Technical Solutions and its affiliates reserve the right to make changes to
volume is not guaranteed.
the product(s) or information contained herein without notice.
MA4E2072 Series
Surface Mount Schottky Crossover Quads

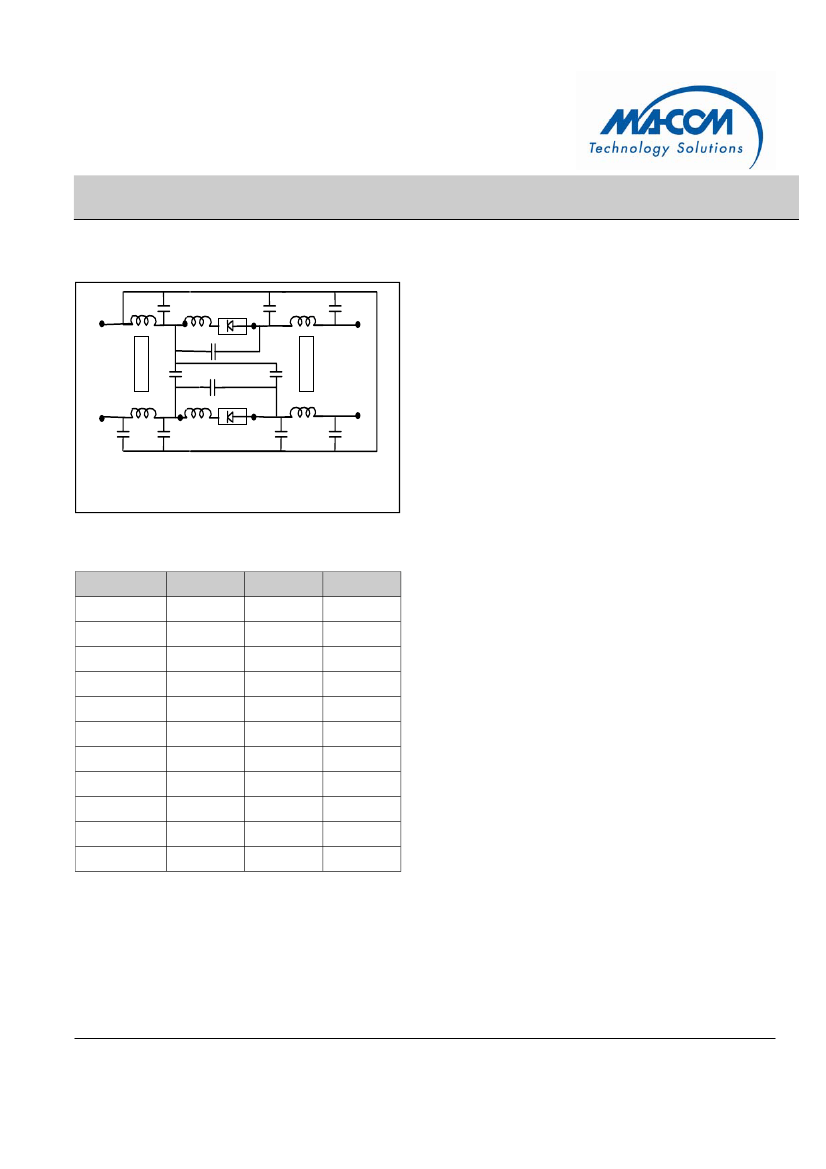

Equivalent Circuit Parasitics
SOT-143
C
1
1
Lg
7
Cp
2
M
Cp
3
L
1
LBW
8
C
1
Cp
4
5
C
1
Cp
1
L
1
3
M
LBW
6
C
1
L
1
C
1
4
M/A-COM Products
Rev. V2
2
C
1
C
1
LBW = 0.08nH, Lg = 0.36nh, L1 = 0.31nH, M = 0.12nH, C1 = 0.01pF,
Cp1 = 0.05pF, CP2 = 0.10pF, Cp3 = 0.05pF, Cp4 = 0.03pF
Spice Model Parameters
Parameter
IS
IKF
N
RS
CJO
M
FC
VJ
EG
XTI
TT
L
5.66n
0.02
1.04
1.4
0.32 pF
.23
0.1
0.16
0.7
2
0
M
3n
0.02
1.05
1.7
.35 pF
.041
0.1
0.07
0.7
2
0
H
2n
0.02
1.68
1.0
.40 pF
.8
.2
0.7
0.7
2
0
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM is considering for
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
development. Performance is based on target specifications, simulated results, and/or prototype
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM has under develop-
Visit www.macom.com for additional data sheets and product information.
ment. Performance is based on engineering tests. Specifications are typical. Mechanical outline has
been fixed. Engineering samples and/or test data may be available. Commitment to produce in
MA-COM Technical Solutions and its affiliates reserve the right to make changes to
volume is not guaranteed.
the product(s) or information contained herein without notice.
MA4E2072 Series
Surface Mount Schottky Crossover Quads
Case Style
SOT-143
G
J
A
P
M/A-COM Products
Rev. V2

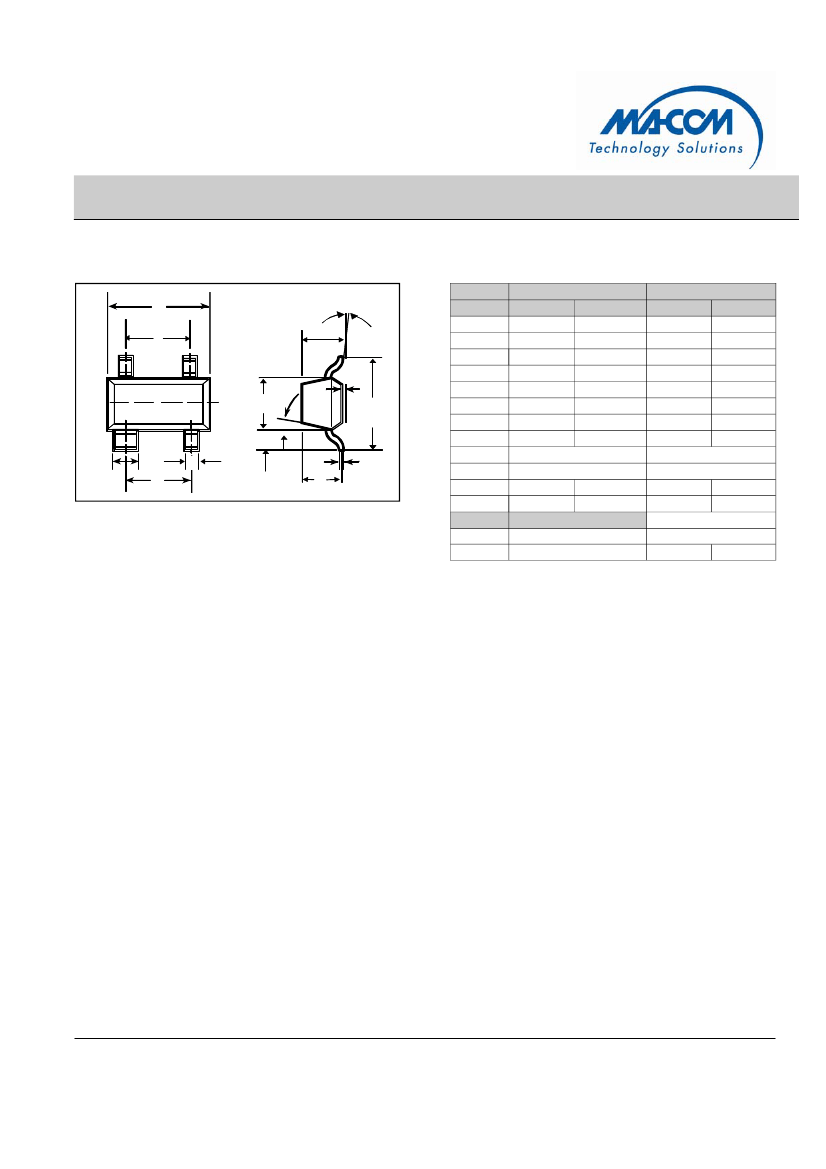

SOT-143 (Case Style 1068)
