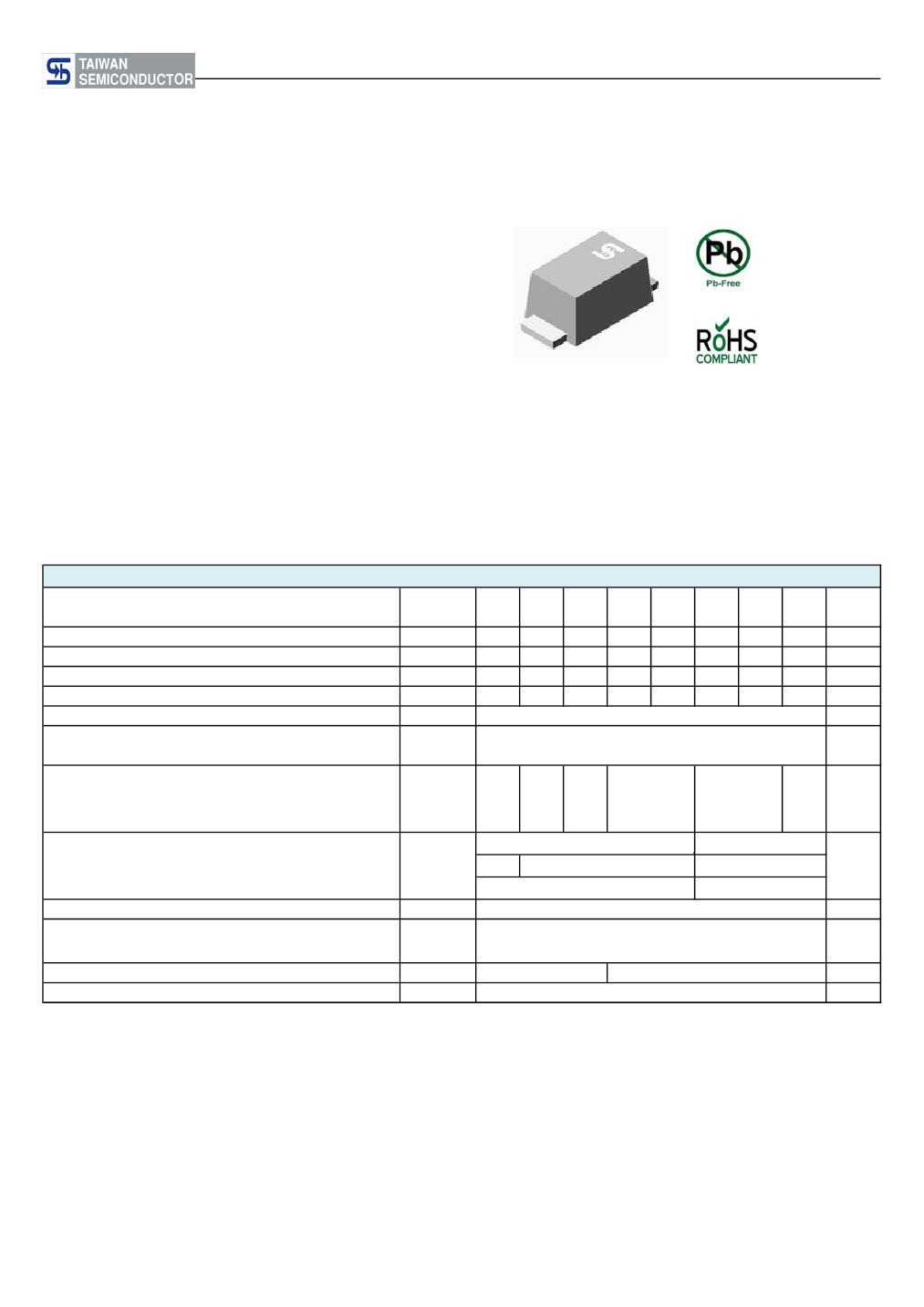

SS12L thru SS115L
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low power loss, high efficiency
- Ideal for automated placement
- Guardring for overvoltage protection
- High surge current capability
- Moisture sensitivity level: level 1, per J-STD-020
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Surface Mount Schottky Barrier Rectifier
MECHANICAL DATA
Case:
Sub SMA
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.019 g (approximately)
Sub SMA
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@ 0.5A
@ 1.0A
Maximum reverse current @ rated VR T
J
=25
℃
T
J
=100
℃
T
J
=125
℃
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
SYMBOL
SS
12L
12L
20
14
20
SS
13L
13L
30
21
30
SS
14L
14L
40
28
40
SS
15L
15L
50
35
50
1
30
SS
16L
16L
60
42
60
SS
19L
19L
90
63
90
SS
10L
100
70
100
SS
A5L
150
105
150
V
V
V
A
A
110L 115L
UNIT
V
F
0.385
0.45
0.43
0.50
0.51
0.55
0.4
0.58
0.70
0.70
0.80
0.05
0.75
0.90
V
I
R
dV/dt
R
θJL
R
θJA
T
J
T
STG
8.0
-
6.0
10000
45
100
- 55 to +125
- 55 to +150
- 55 to +150
-
0.5
mA
V/μs
O
C/W
O
O
C
C
Document Number: DS_D1308028
Version: N13
SS12L thru SS115L
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
AEC-Q101
QUALIFIED
PACKING
CODE
RU
RV
RT
MT
RQ
MQ
R3
RF
R2
M2
RH
MH
Note 1: "x" defines voltage from 20V (SS12L) to 150V (SS115L)
GREEN COMPOUND
CODE
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
1,800 / 7" Plastic reel (8mm tape)
3,000 / 7" Plastic reel (8mm tape)
7,500 / 13" Paper reel (8mm tape)
7,500 / 13" Plastic reel (8mm tape)
10,000 / 13" Paper reel (8mm tape)
10,000 / 13" Plastic reel (8mm tape)
1,800 / 7" Plastic reel (12mm tape)
3,000 / 7" Plastic reel (12mm tape)
7,500 / 13" Paper reel (12mm tape)
7,500 / 13" Plastic reel (12mm tape)
10,000 / 13" Paper reel (12mm tape)
10,000 / 13" Plastic reel (12mm tape)
PACKAGE
PACKING
SS1XL
(Note 1)
Prefix "H"
Suffix "G"
EXAMPLE
PREFERRED P/N PART NO.
SS16L RU
SS16L RUG
SS16LHRU
SS16L
SS16L
SS16L
H
AEC-Q101
QUALIFIED
PACKING CODE
RU
RU
RU
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION

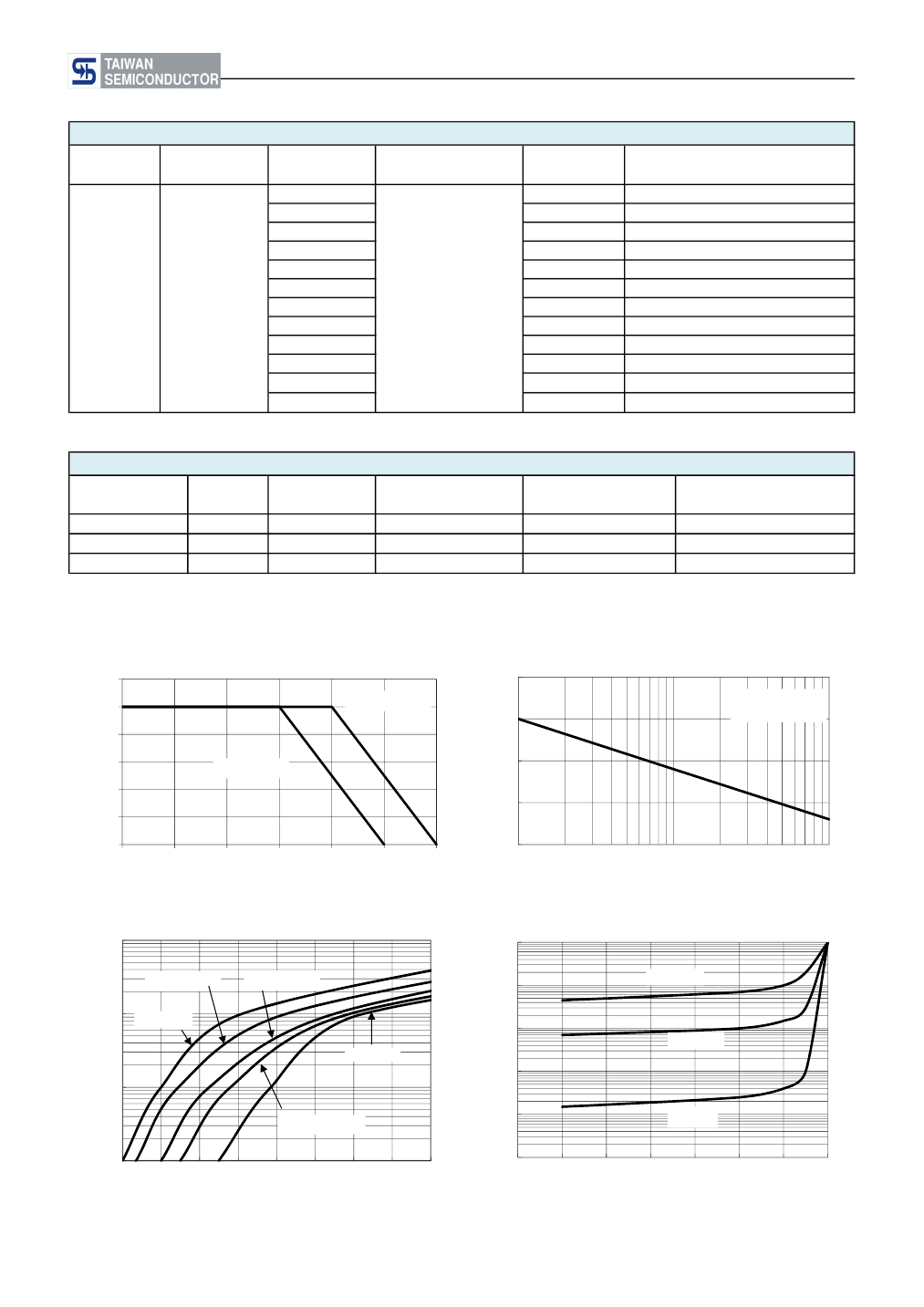

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
PEAK FORWARD SURGE CURRENT (A)
FIG. 2 MAXUMUM FORWARD SURGE CURRENT
40
8.3ms Single Half
Sine-Wave
1.2
AVERAGE FORWARD CURRENT (A)
1
0.8
0.6
0.4
0.2
0
0
25
50
75
100
SS12L-SS14L
SS15L-SS115L
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
125
150
LEAD TEMPERATURE (
o
C)
100
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
INTANTANEOUS REVERSE CURRENT. (uA)
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
10000
TJ=100℃
INSTANTANEOUS FORWARD CURRENT
(A)
SS13L-SS14L
SS15L-SS16L
1000
10
SS12L
SS115L
100
TJ=75℃
10
1
SS19L-SS110L
1
TJ=25℃
0.1
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
FORWARD VOLTAGE (V)
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE.(%)
Document Number: DS_D1308028
Version: N13
SS12L thru SS115L
Taiwan Semiconductor

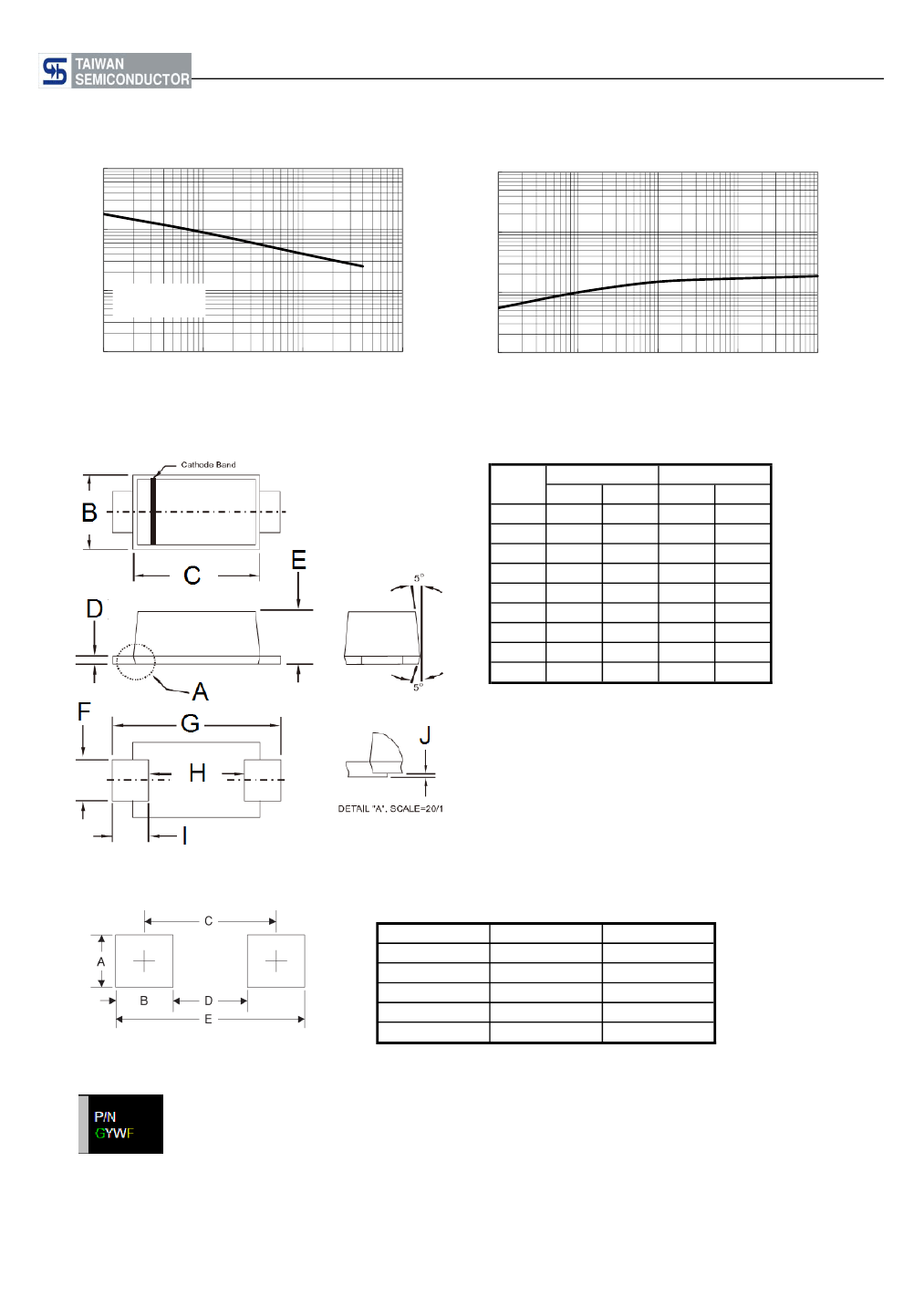

FIG. 5 TYPICAL JUNCTION CAPACITANCE
FIG. 6 TYPICAL TRANSIENT THERMAL IMPEDANCE
100
1000
JUNCTION CAPACITANCE (pF)
TRANSIENT THERMAL
IMPEDANCE (℃/W)
100
10
10
f=1.0MHz
Vslg=50mVp-p
1
1
0.1
1
10
100
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
T-PULSE DURATION(s)
10
100
PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
1.70
2.70
0.16
1.23
0.80
3.40
2.45
0.35
0.00
Max
1.90
2.90
0.30
1.43
1.20
3.80
2.60
0.85
0.10
Unit (inch)
Min
0.067
0.106
0.006
0.048
0.031
0.134
0.096
0.014
0.000
Max
0.075
0.114
0.012
0.056
0.047
0.150
0.102
0.033
0.004
DIM.
B
C
D
E
F
G
H
I
J
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.4
1.2
3.1
1.9
4.3
Unit (inch)
0.055
0.047
0.122
0.075
0.169
MARKING DIAGRAM
P/N
G
YW
F
Document Number: DS_D1308028
= Marking Code
= Green Compound
= Date Code
= Factory Code
Version: N13
SS12L thru SS115L
Taiwan Semiconductor
CREAT BY ART
