rev.
page
date
1 of 5
09/2009
PART NUMBER:
C14
DESCRIPTION:
panel mount optical encoder
ELECTRICAL SPECIFICATIONS
supply voltage
supply current
output code
power consumption
angle of throw
5 V dc ±5%
20 mA max. (open collector)
2-bit Quadature, Channel A leads Channel B by 90° with
clockwise rotation
100 mW
22.5° for code change and 16 detent positions
11.25° for code change and 32 detent positions
MECHANICAL SPECIFICATIONS
operational torque
without detent
16 position w/detent
32 position w/detent
radial
thrust
0.2 N·cm (20.4 gf·cm max.)
0.4 ±0.2 N·cm (40.8 ±20.4 gf·cm)
0.4 ±0.2 N·cm (40.8 ±20.4 gf·cm)
100 N·cm (10.2 kgf·cm)
10 N (1.02 kgf)
15 N (1.53 kgf)
1,000,000 cycles
11 g
mounting torque
shaft strength
rotational life
weight (approx)
PUSH SWITCH SPECIFICATIONS
rated voltage
contact resistance
insulation resistance
voltage proof
operating force
travel
bounce
life
12 V dc, 50 mA
200 mΩ max.
100 mΩ min.
250 V ac for 1 minute
4.5 ± 1 N (459 ±102 g·f)
0.5 ±0.3 mm
10 msec.
1,000,000
ENVIRONMENTAL SPECIFICATIONS
operating temp. range
storage temp. range
vibration
shock
cold proof
heat proof
change to temp.
humidity
0° to +60° C
-20 ~ 80°C
frequency range: 10 ~ 55 Hz, peak to peak amplitude: 1.5 mm
50 G for 11 ms, half sine wave
-20°C for 96 hours
80°C for 96 hours
-10 ~ 70°C for 30 minutes each
90 ~ 95% for 96 hours at 40°C
20050
SW
112
th
Ave. Tualatin, Oregon
97062
phone
503.612.2300
fax
503.612.2383
rev.
page
date
2 of 5
09/2009
PART NUMBER:
C14
DESCRIPTION:
panel mount optical encoder
ORDERING INSTRUCTIONS
C14X16X-XXX
Detent:
D = with detent
N = without detent
Angle of throw:
16 = 22.5° for code change
and 16 detent positions
32 = 11.25° for code change
and 32 detent positions
Push switch:
P = with push switch
N = without push switch
Termination:
A = ø 0.5 mm holes
B = 130 mm cable
with connector
C = with header I
D = with header II
E = horizontal PCB
F = vertical PCB
Waterproof:
A = IP65
Shaft diameter:
1 = 3.175 mm (1/8”)
2 = 6 mm
3 = 6.35 mm (1/4”)

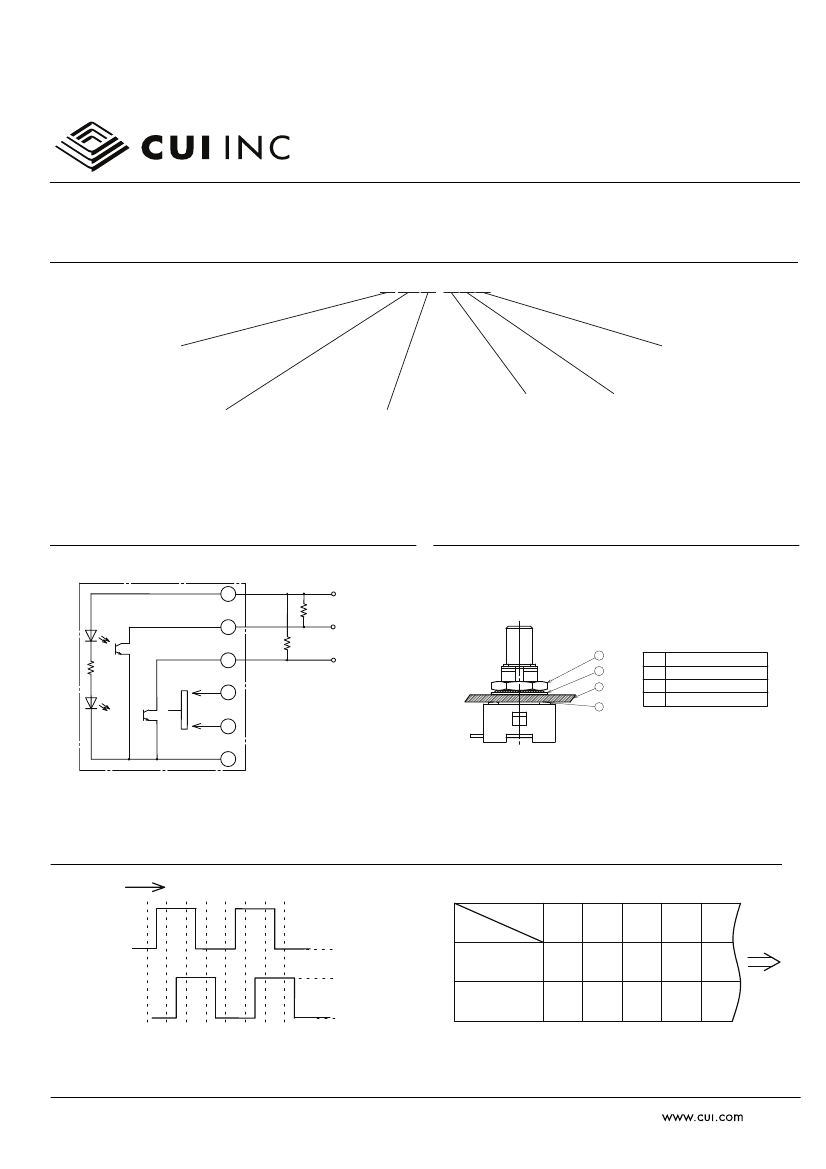

CIRCUIT CONNECTION
WATER PROOF MOUNTING
Protects against ingress of water from mounting panel side only.
OUTPUT WAVEFORM
20050
SW
112
th
Ave. Tualatin, Oregon
97062
phone
503.612.2300
fax
503.612.2383
rev.
page
date
3 of 5
09/2009
PART NUMBER:
C14
DESCRIPTION:
panel mount optical encoder

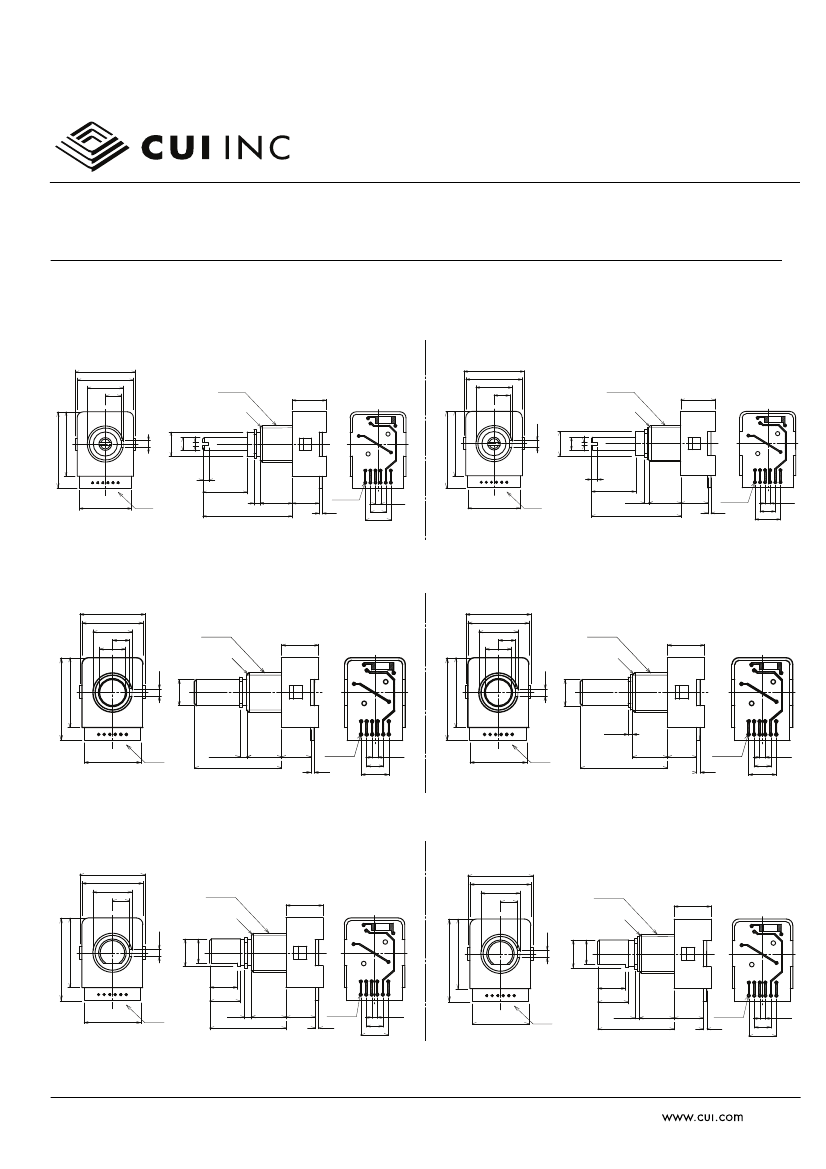

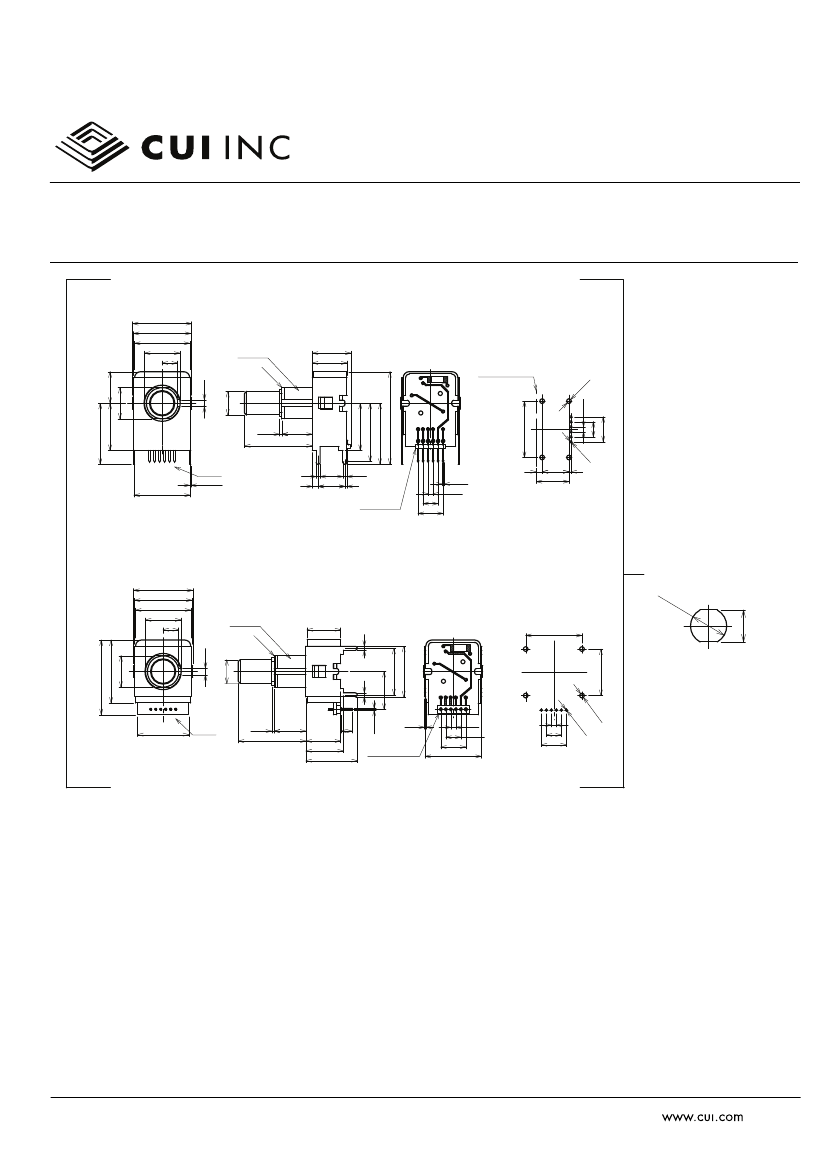

OPTIONS
ＣＵＩＩＮＣ

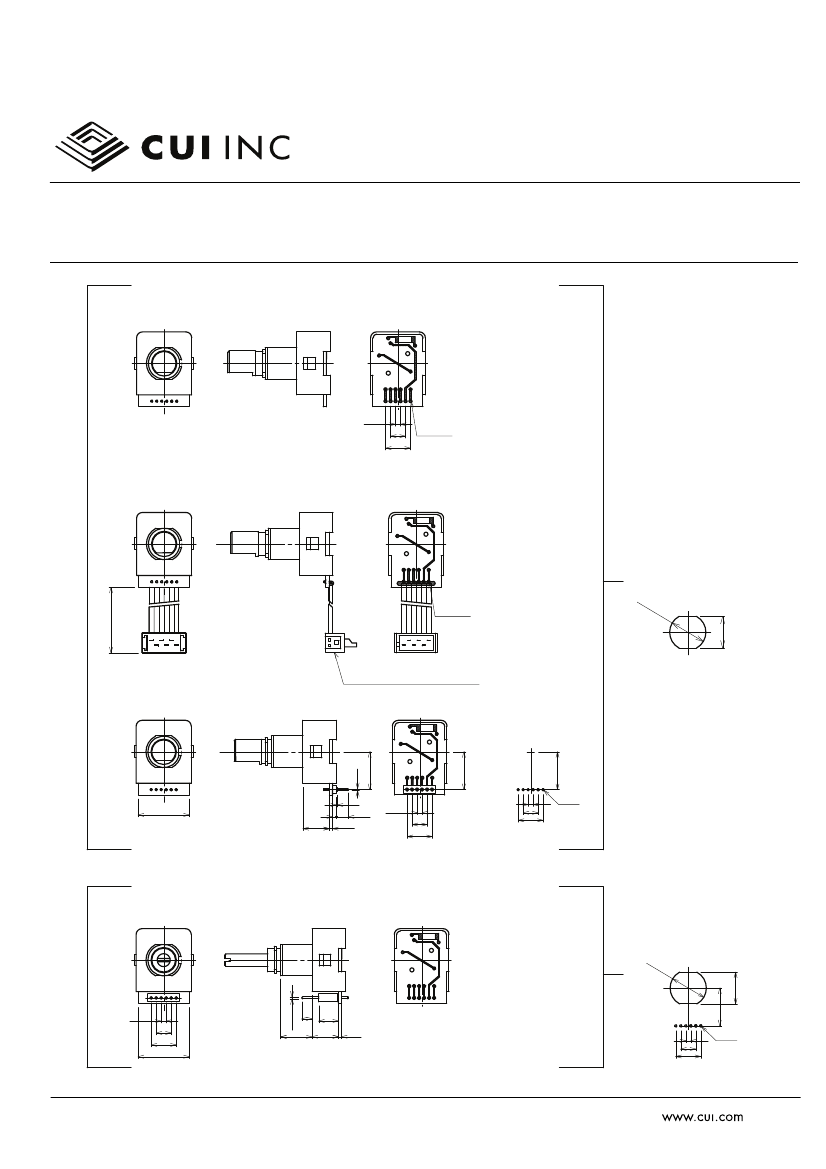

Mounting Hole Dimensions
(for A, B, and C)
ＣＵＩＩＮＣ
Mounting panel thickness: 3.5 mm max.
ＣＵＩＩＮＣ
Mounting Hole dimensions and
Footprint for D (±0.5 mm)
Mounting panel thickness: 3.5 mm max.
ＣＵＩＩＮＣ
20050
SW
112
th
Ave. Tualatin, Oregon
97062
phone
503.612.2300
fax
503.612.2383
