Datasheet> All Categories > Discrete semiconductor> diode> BAT81143

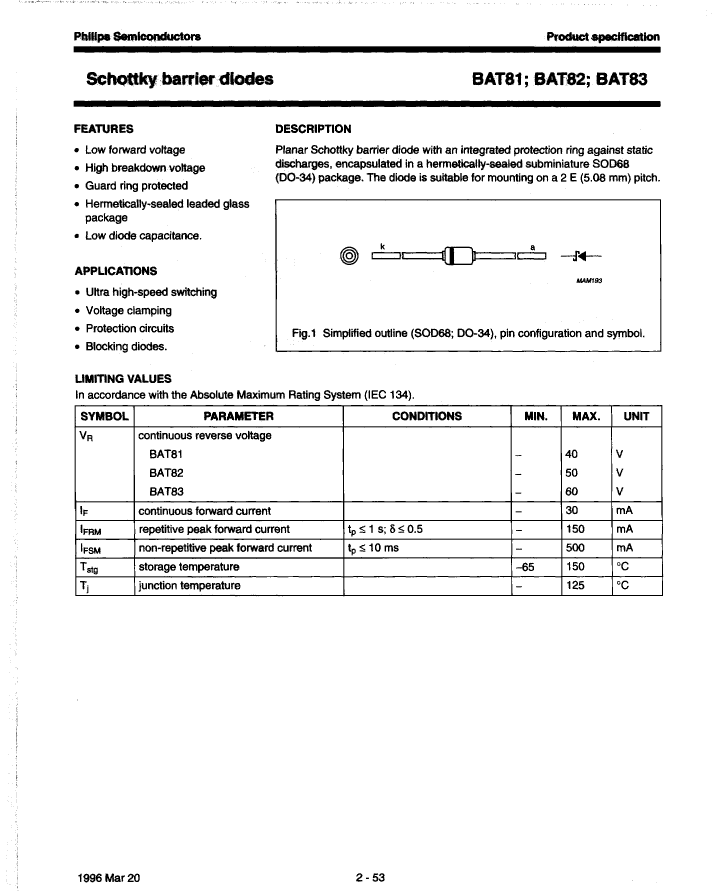

Preview

BAT81143: DescriptionDIODE 0.03 A, SILICON, SIGNAL DIODE, DO-34, Signal Diode; CategoryDiscrete semiconductor diode; File Size70KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BAT81143 Overview

DIODE 0.03 A, SILICON, SIGNAL DIODE, DO-34, Signal Diode

BAT81143 Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	O-LALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-34
JESD-30 code	O-LALF-W2
Maximum non-repetitive peak forward current	0.5 A
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	0.03 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum reverse current	0.2 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

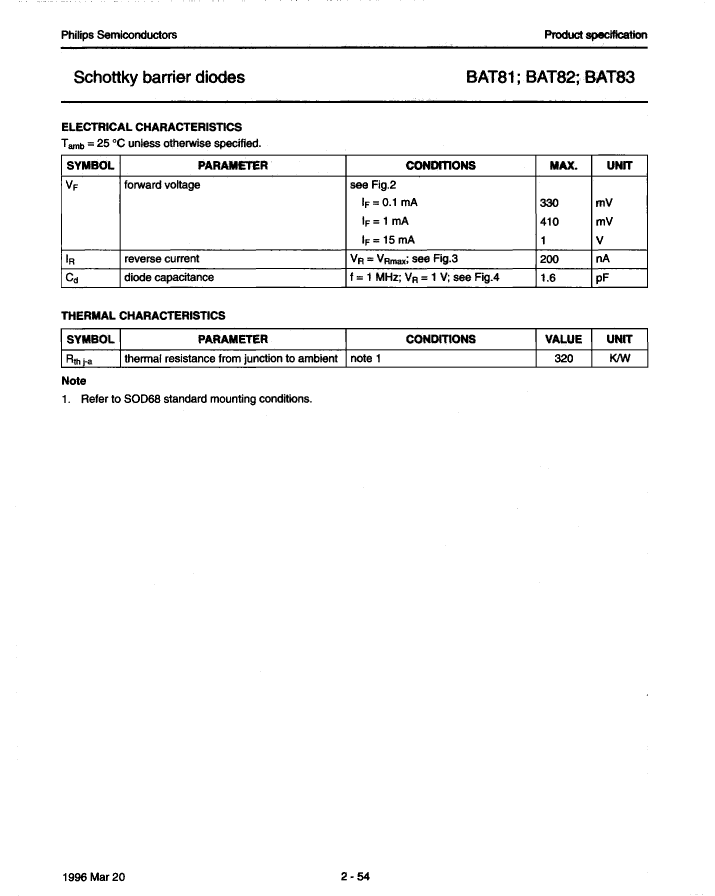

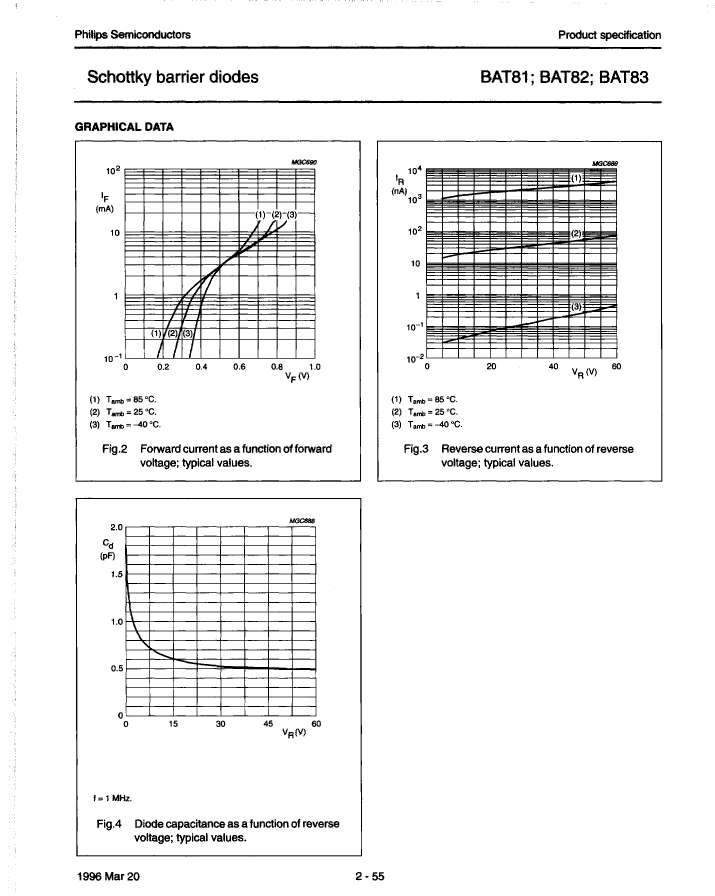

Preview

Download Datasheet

View All

BAT81143 Related Products

	BAT81143	BAT81136	BAT82116	BAT82133	BAT82143	BAT82136	BAT83116	BAT83143	BAT83136
Description	DIODE 0.03 A, SILICON, SIGNAL DIODE, DO-34, Signal Diode	DIODE 0.03 A, SILICON, SIGNAL DIODE, DO-34, Signal Diode	DIODE 0.03 A, SILICON, SIGNAL DIODE, DO-34, Signal Diode	DIODE 0.03 A, SILICON, SIGNAL DIODE, DO-34, Signal Diode	DIODE 0.03 A, SILICON, SIGNAL DIODE, DO-34, Signal Diode	DIODE 0.03 A, SILICON, SIGNAL DIODE, DO-34, Signal Diode	DIODE 0.03 A, SILICON, SIGNAL DIODE, DO-34, Signal Diode	DIODE 0.03 A, SILICON, SIGNAL DIODE, DO-34, Signal Diode	DIODE 0.03 A, SILICON, SIGNAL DIODE, DO-34, Signal Diode
Maker	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V	1 V
JEDEC-95 code	DO-34	DO-34	DO-34	DO-34	DO-34	DO-34	DO-34	DO-34	DO-34
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Maximum non-repetitive peak forward current	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	0.2 µA	0.2 µA	0.2 µA	0.2 µA	0.2 µA	0.2 µA	0.2 µA	0.2 µA	0.2 µA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	1	1	1	1	-	-	-
