SC-8P1-GG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> SC-8P1-GG

SC-8P1-GG: DescriptionPCB Terminal; CategoryThe connector terminals; File Size591KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

SC-8P1-GG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SC-8P1-GG	-	-	View	Buy Now

SC-8P1-GG Overview

PCB Terminal

SC-8P1-GG Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	unknown
ECCN code	EAR99
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

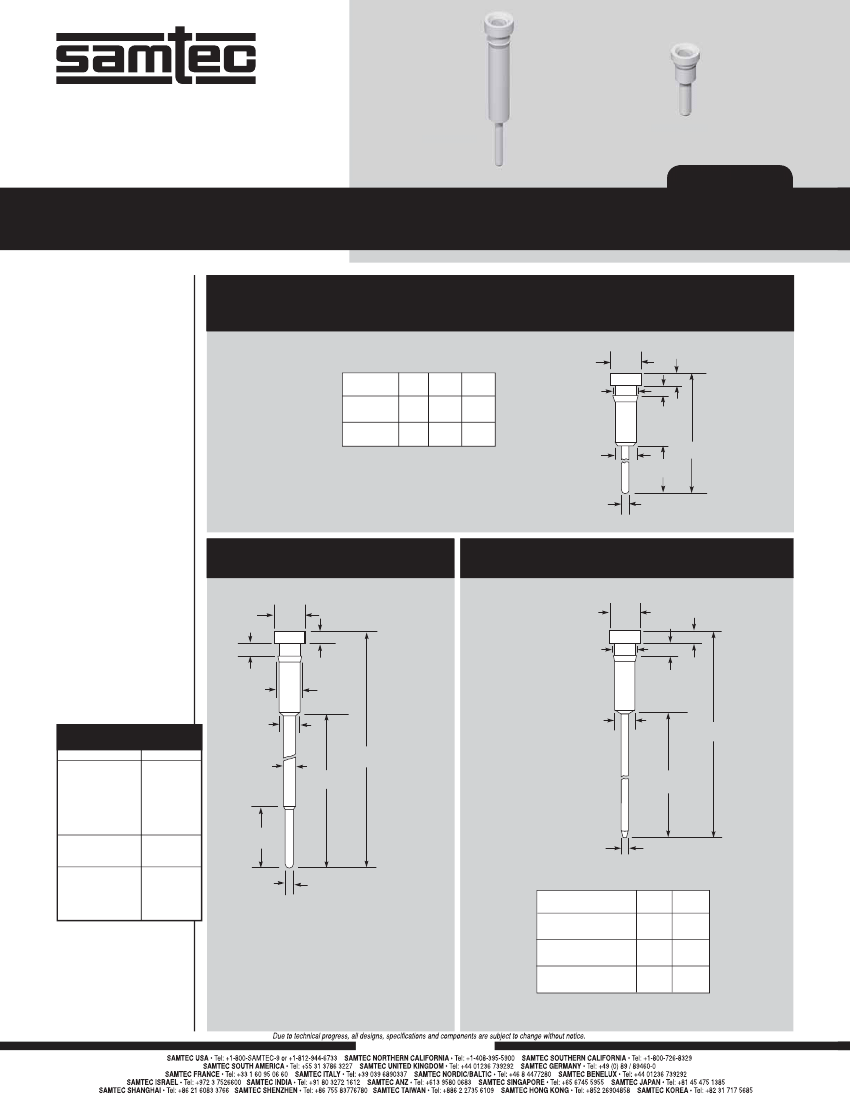

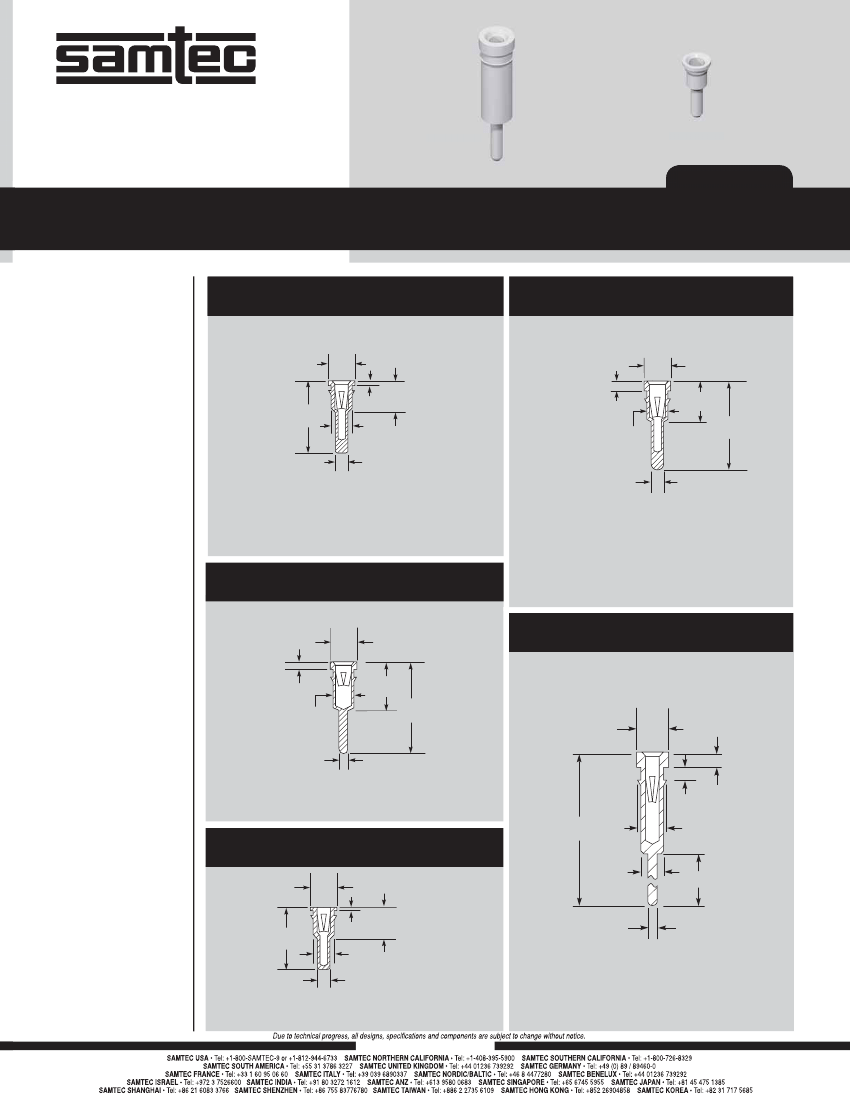

F-214 SUPPLEMENT

SC–8P1–GG

EZ–2P3–GT

SC, EZ SERIES

STANDARD, LOW PROFILE & SMT SOCKETS

Speciﬁcations:

SC, EZ

Contact:

BeCu

Shell:

Brass

-GG Plating:

30µ" (0,76 µm) Au over

50µ" (1,27 µm) Ni on contact;

10µ" (0,25 µm) Au over

50µ" (1,27 µm) Ni on shell

-GT Plating:

30µ" (0,76 µm) Au over

50µ" (1,27 µm) Ni on contact;

Sn over 50µ" (1,27 µm) Ni

on shell

-TT Plating:

Sn over 50µ" (1,27 µm)

Ni on contact; Sn over 50µ"

(1,27 µm) Ni on shell

-ST Plating:

10µ" (0,25 µm) Au over

50µ" (1,27 µm) Ni on contact;

Sn over 50µ" (1,27µm)

Ni on shellt

Contact Resistance:

10 mΩ

Insertion Force (SC):

9 oz (2,50 N) avg,

16 oz (4,45 N) max

Withdrawal Force (SC):

2.5 oz (0,70 N) avg,

1.5 oz (0,42 N) min

Insertion Force (EZ):

2.5 oz (0,70 N) avg,

5.5 oz (1,53N) max

Withdrawal Force (EZ):

2.0 oz (0,56 N) avg,

0.35 oz (0,10 N) min

Lead DIA Accepted:

.015" to .022"

(0,38 mm to 0,56 mm) and

most IC leads

RECOMMENDED

PC HOLE SIZE:

LEAD SIZE

(0,46) .018 DIA

(0,51) .020 DIA

(0,64) .025 DIA

(0,76) .030 DIA

(0,89) .035 DIA

(1,14) .045 DIA

(1,32) .052 DIA

(0,46) .018 SQ

(0,64) .025 SQ

(1,14) .045 SQ

(0,20) .008 x (0,71) .028

(0,25) .010 x (0,51) .020

(0,41) .016 x (0,51) .020

(0,41) .016 x (0,61) .024

(0,41) .016 x (0,79) .031

SC–1P1–, SC–6P1–,

EZ–1P1–, EZ–6P1–

(1,83)

.072

DIA

Part No.

(0,76)

.030

DIA

(0,51)

.020

(0,51)

.020

±.010

(3,18)

.125

(4,57)

.180

±.015

(7,62)

.300

(8,89)

.350

(1,52)

.061

DIA

(0,71)

.028

SC–1P1–

EZ–1P1–

SC–6P1–

EZ–6P1–

(1,32)

.052

DIA

Insertion Depth (SC-1P1, SC-6P1) = .95" to .145" (2,41 mm to 3,68 mm)

Plating Available (SC-1P1) = GG, GT, TT, ST

Plating Available (SC-6P1) = GG, GT

DIA

EZ–2P3–

(1,83)

.072

DIA

SC–1W1–, EZ–1W1–

(1,83)

.072

DIA

(1,52)

.061

DIA

(0,71)

.028

(0,76)

.030

(0,71)

.028

(0,76)

.030

(1,52)

.061

DIA

(1,32)

.052

DIA

(0,89)

.035

DIA

(13,77)

.542

(8,86)

.349

(1,32)

.052

DIA

HOLE SIZE

(0,61) .024 DIA

(0,66) .026 DIA

(0,79) .031 DIA

(0,91) .036 DIA

(1,04) .041 DIA

(1,30) .051 DIA

(1,47) .058 DIA

(0,76) .030 DIA

(1,02) .040 DIA

(1,75) .069 DIA

(0,89) .035 DIA

(0,71) .028 DIA

(0,79) .031 DIA

(0,89) .035 DIA

(1,04) .041 DIA

(4,32)

.170

(0,64)

.025

(0,51)

.020

DIA

Part No.

±.010

(12,95)

.510

(9,14)

.360

(6,60)

.260

±.015

(17,86)

.703

(14,05)

.553

(11,51)

.453

SC–1W1–XX–1

EZ–1W1–XX–1

SC–1W1–XX–2

EZ–1W1–XX–2

SC–1W1–XX–3

EZ–1W1–XX–3

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

Insertion Depth = .125" to .170" (3,18 mm to 4,32 mm)

Plating Available = GG, GT

Insertion Depth = .125" to .157" (3,18 mm to 3,99 mm)

Plating Available = GG, GT, TT

WWW.SAMTEC.COM

SC-8P1-GG Related Products

	SC-8P1-GG	SC-8P1-GT	SC-1P4-GG
Description	PCB Terminal	PCB Terminal	PCB Terminal
Maker	SAMTEC	SAMTEC	SAMTEC
Reach Compliance Code	unknown	unknown	not_compliant
ECCN code	EAR99	EAR99	EAR99
terminal gender	MALE	MALE	FEMALE
Terminal and terminal strip types	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL
Base Number Matches	1	1	1
Factory Lead Time	-	3 weeks	3 weeks
