Rev PrB, 05-Mar-08
Advanced Product Information―All Information Subject to Change
ACT5830
Twelve Channel PMU for Mobile Phones
FEATURES
•
Multiple Patents Pending
•
350mA, PWM Step-Down DC/DC Converter
•
Eight I
2
C-Programmable, Low Noise LDOs
−
Three Optimized for RF Section Power
−
Five Optimized for BB Section Power
•
Li+ Battery Charger with Integrated MOSFET
−
Charger Current Monitor Output (VICHG)
−
Charger ON/OFF Control Pin
•
Two N-channel Open Drain Switches
•
Minimal External Components
•
I
2
C
TM
Serial Interface
−
Configurable Operating Modes
•
AC-OK and RESET Outputs
•
5×5mm, Thin-QFN (TQFN55-40) Package
−
Only 0.75mm Height
−
RoHS Compliant
GENERAL DESCRIPTION
The patent-pending ACT5830 is a complete, inte-
grated power management solution that is ideal for
mid-high and mobile phones. This device integrates
a linear Li+ battery charger with an internal power
MOSFET, a high efficiency 350mA DC/DC con-
verter, eight low dropout linear regulators, a reset
output, and two N-Channel open drain switches,
and an I
2
C Serial Interface to achieve flexibility for
programming LDO outputs and individual on/off
control.
The charger is a complete, thermally-regulated,
stand-alone single-cell linear Li+ battery charger
that incorporates an internal power MOSFET
for constant-current/constant-voltage control. The
charger includes a variety of value-added features,
and it is programmable via the I
2
C-Interface to con-
trol charging current, termination voltage, along with
safety features and operation modes.
The ACT5830 is available in a compact 5mm x
5mm 40-pin Thin-QFN package that is just 0.75mm
thin.
APPLICATIONS
•
GSM or CDMA Mobile Phones

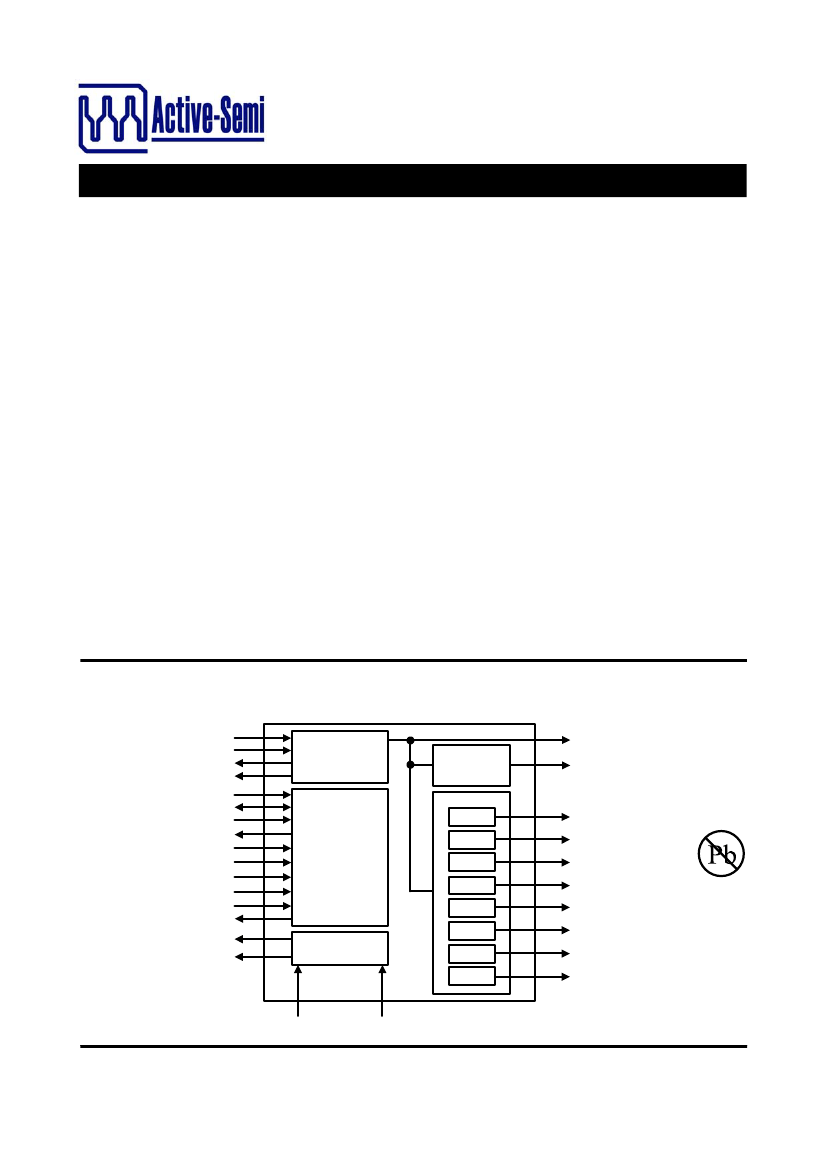

SYSTEM BLOCK DIAGRAM
CHG_IN
nENCHG
VICHG
ACOK
SCL
SDA
PWR_HOLD
nON
HF_PWR
PWR_ON
TX_EN
RX_EN
TCXO_EN
nRST
OD1
OD2
Open-Drain
Drivers
System
Control
Single Cell
Li+ Battery Charger
REG
Step-Down
DC/DC
Low-Noise LDOs
LDO1
LDO2
LDO3
LDO4
LDO5
LDO6
LDO7
LDO8
Single Cell Li+
Battery Charger
1.1V to 4.4V
Up to 350mA
1.4V to 3.7V
Up to 300mA
1.4V to 3.7V
Up to 300mA
1.4V to 3.7V
Up to 100mA
1.4V to 3.7V
Up to 100mA
1.4V to 3.7V
Up to 150mA
1.4V to 3.7V
Up to 150mA
0.645V to 3.7V
Up to 250mA
1.4V to 3.7V
Up to 250mA
Pb-free
ACT5830
Active
PMU
TM
ODI1
ODI2
Innovative Power
TM
ActivePMU
is a trademark of Active-Semi.
I
2
C
TM
is a trademark of Philips Electronics.
TM
-1-
www.active-semi.com
Copyright © 2008 Active-Semi, Inc.
ACT5830
TABLE OF CONTENTS
GENERAL INFORMATION ...................................................................................... P. 01
Functional Block Diagram ................................................................................................. p. 03
Ordering Information ......................................................................................................... p. 04
Pin Configuration .............................................................................................................. p. 04
Pin Descriptions ................................................................................................................ p. 05
Absolute Maximum Ratings .............................................................................................. p. 07
Rev PrB, 05-Mar-08
SYSTEM MANAGEMENT ........................................................................................ P. 08
Electrical Characteristics................................................................................................... p. 08
I
2
C Interface Electrical Characteristics .............................................................................. p. 09
System Management Register Descriptions ..................................................................... p. 10
Functional Descriptions..................................................................................................... p. 11
STEP-DOWN DC/DC CONVERTER ....................................................................... P. 13
Electrical Characteristics .................................................................................................. p. 13
Register Descriptions ........................................................................................................ p. 14
Typical Performance Characteristics ............................................................................... p. 16
Functional Description ...................................................................................................... p. 17
LOW-DROPOUT LINEAR REGULATORS .............................................................. P. 19
Register Descriptions ........................................................................................................ p. 19
Typical Performance Characteristics ................................................................................ p. 23
Functional Description ...................................................................................................... p. 24
LDO1................................................................................................................................. p. 25
LDO2................................................................................................................................. p. 26
LDO3................................................................................................................................. p. 27
LDO4................................................................................................................................. p. 28
LDO5................................................................................................................................. p. 29
LDO6................................................................................................................................. p. 30
LDO7................................................................................................................................. p. 31
LDO8................................................................................................................................. p. 32
SINGLE-CELL Li+ BATTERY CHARGER (CHGR) ................................................. P. 33
Electrical Characteristics ................................................................................................... p. 33
Li+ Battery Charger Register Descriptions ........................................................................ p. 35
Typical Performance Characteristics ................................................................................ p. 37
Functional Description....................................................................................................... p. 38
PACKAGE INFORMATION ...................................................................................... P. 41
Innovative Power
TM
ActivePMU
is a trademark of Active-Semi.
I
2
C
TM
is a trademark of Philips Electronics.
TM
-2-
www.active-semi.com
Copyright © 2008 Active-Semi, Inc.
ACT5830

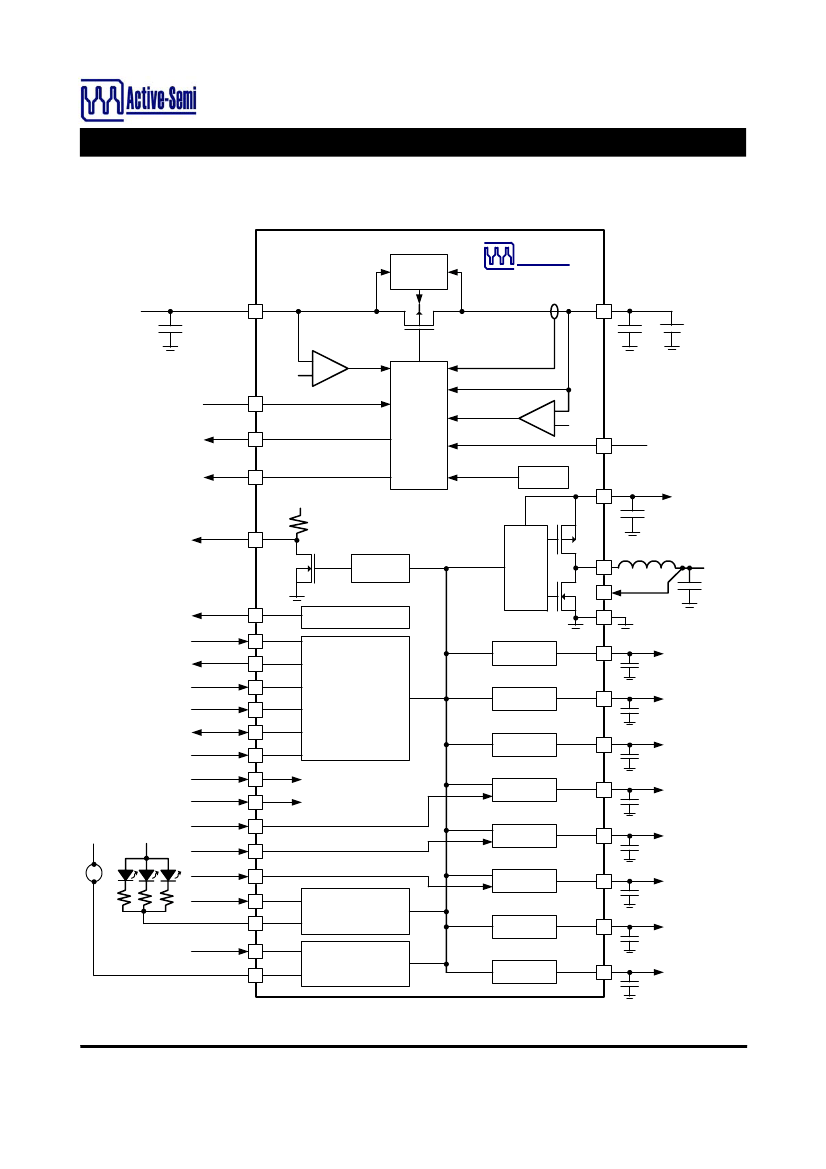

FUNCTIONAL BLOCK DIAGRAM
Active-Semi
ACT5830
BAT
Li+ Battery
+
CURRENT
SENSE
VOLTAGE
SENSE
PRE-
CONDITION
Rev PrB, 05-Mar-08
BODY AND
VSYS
CONTROL
AC Adaptor 4.3V to 6V
or USB
CHG_IN
VINUVLO
4.0V
nENCHG
nACOK
Charge
Control
2.9V
BATID
THERMAL
REGULATION
VICHG
OUT1
nRST
110°C
VP
To Battery
REG
Step-Down
DC/DC
SW
VBUCK
VBUCK
GP
OUT1
Reset
REF
PWR_HOLD
nON
HF_PWR
PWR_ON
SDA
SCL
IN1
IN2
TCXO_EN
BAT
OUT1
RX_EN
TX_EN
Voltage Reference
LDO1
OUT1
System
Control
LDO2
OUT2
OUT2
LDO3
To LDOs
To LDOs
LDO5
OUT3
OUT3
LDO4
OUT4
OUT4
OUT5
OUT5
LDO6
ODI1
OD1
ODI2
OD2
Open-Drain
#2
LDO8
Open-Drain
#1
LDO7
OUT6
OUT6
OUT7
OUT7
OUT8
OUT8
Innovative Power
TM
ActivePMU
is a trademark of Active-Semi.
I
2
C
TM
is a trademark of Philips Electronics.
TM
-3-
www.active-semi.com
Copyright © 2008 Active-Semi, Inc.
ACT5830
ORDERING INFORMATION
PART NUMBER V
BUCK
V
LDO1
V
LDO2
V
LDO3
V
LDO4
V
LDO5
V
LDO6
V
LDO7
V
LDO8
I
CHARGER
PACKAGE PINS
ACT5830QJCGN-T 1.2V 3.0V 1.8V 3.0V 3.0V 3.0V 3.0V 1.3V 3.0V
ACT5830QJCES-T 1.2V 1.8V 2.8V 2.8V 3.0V 3.3V 1.8V 3.0V 2.8V
0.45A TQFN55-40 40
0.45A TQFN55-40 40
TEMPERATURE
RANGE
-40°C to +85°C
-40°C to +85°C
Rev PrB, 05-Mar-08
: Output voltage options detailed in this table represent standard voltage options, and are available for samples or production orders.
Additional output voltage options, as detailed in the
Output Voltage Codes
table, are available for production subject to minimum order
quantities. Contact Active-Semi for more information regarding semi-custom output voltage combinations.
: All Active-Semi components are RoHS Compliant and with Pb-free plating unless specified differently. The term Pb-free means
semiconductor products that are in compliance with current RoHS (Restriction of Hazardous Substances) standards.

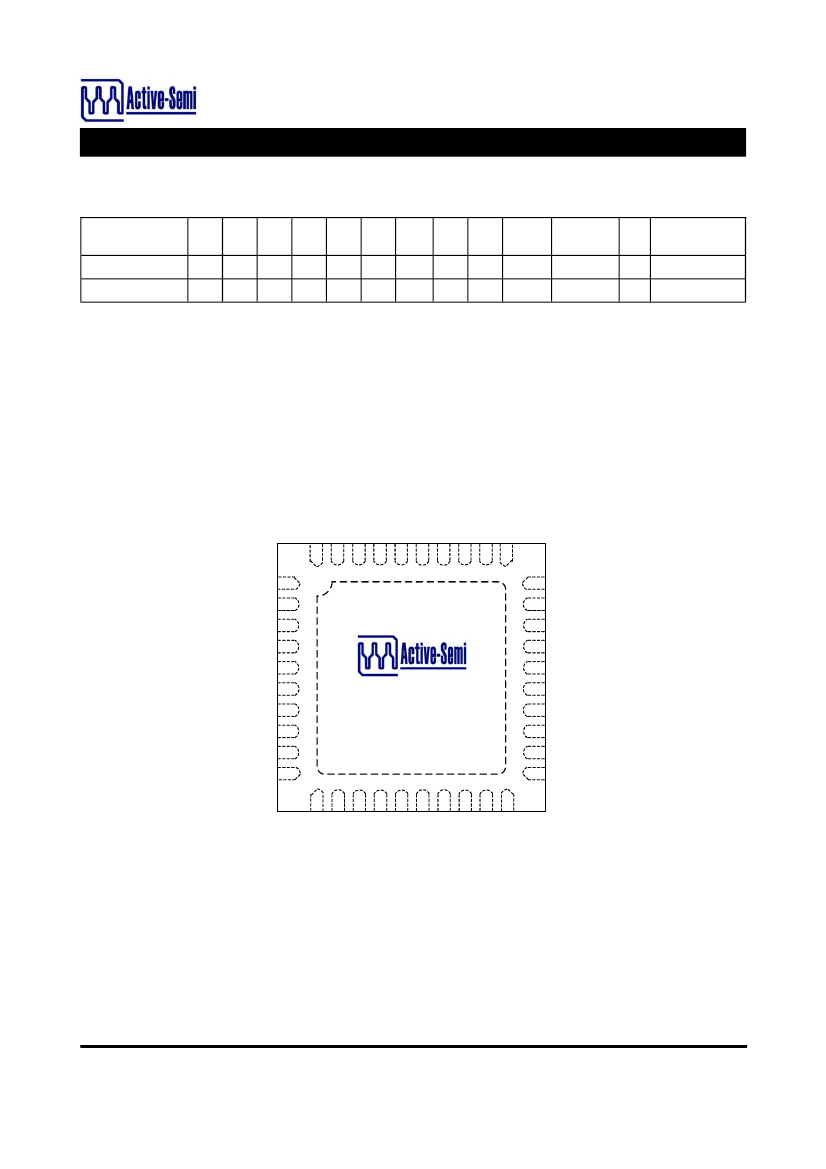

PIN CONFIGURATION
nENCHG
nACOK
VICHG
BATID
SW
SW
NC
NC
GP
VP
CHG_IN
BAT
REF
nRST
IN2
OUT4
OUT6
OUT8
OUT2
TX_EN
VBUCK
HF_PWR
G
nON
IN1
ACT5830
OUT3
OUT5
OUT7
OUT1
RX_EN
TCXO_EN
5×5mm QFN (TQFN55-40)
SDA
SCL
ODI1
OD1
OD2
ODI2
PWR_ON
PWR_HOLD
NC
Innovative Power
TM
ActivePMU
is a trademark of Active-Semi.
I
2
C
TM
is a trademark of Philips Electronics.
TM
-4-
www.active-semi.com
Copyright © 2008 Active-Semi, Inc.
ACT5830
PIN DESCRIPTIONS
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Rev PrB, 05-Mar-08
NAME
CHG_IN
BAT
REF
nRST
IN2
OUT4
OUT6
OUT8
OUT2
TX_EN
TCXO_EN
SDA
SCL
ODI1
OD1
OD2
ODI2
PWR_ON
DESCRIPTION
Battery Charge Supply Input. Connect a 1µF ceramic capacitor from CHG_IN to G.
Battery Charger Output. Connect this pin directly to the battery anode (+ terminal), and to IN1
and IN2 pins. Bypass with 10µF ceramic capacitor to G.
Reference Noise Bypass. Connect a 0.01µF ceramic capacitor from REF to G. This pin is
discharged to G in shutdown.
Active Low Reset Output. nRST asserts low for the reset timeout period of 65ms whenever the
ACT5830 is first enabled. This output is internally connected to OUT1 via a 15kΩ pull-up resistor.
Input supply to LDO2, LDO4, LDO6, and LDO8. Connect to BAT and IN1.
LDO4 Output. Capable of delivering up to 100mA of output current. Output is discharged to
ground with 1kΩ when disabled.
LDO6 Output. Capable of delivering up to 150mA of output current. Output is discharged to
ground with 1kΩ when disabled.
LDO8 Output. Capable of delivering up to 250mA of output current. Output has high impedance
when disabled.
LDO2 Output. Capable of delivering up to 300mA of output current. Output has high impedance
when disabled.
LDO6 Independent On/Off Control. Drive to a logic high for normal operation, and to a logic low
to disable.
LDO4 Independent On/Off Control. Drive to a logic high for normal operation, and to a logic low
to disable.
Data Input for I
2
C Serial Interface. Data is read on the rising edge of the clock.
Clock Input for I
2
C Serial Interface. Data is read on the rising edge of the clock.
Digital Control for Open Drain N-channel Switch 1. Drive to a logic high to turn on the switch.
Drive to a logic low to turn off the switch.
N-channel Open–Drain Output 1. State of output controlled by ODI1.
N-channel Open–Drain Output 2. State of output controlled by ODI2.
Digital Control for Open Drain N-channel Switch 2. Drive to a logic high to turn on the switch.
Drive to a logic low to turn off the switch.
Push Button On/Off Input. Connect a push-button between this pin and BAT. There is an internal
200kΩ pull down resistor to G. See the
System Startup & Shutdown
section for more information.
Power Hold Input for REG and LDO1. Drive PWR_HOLD to a logic high to complete the startup
PWR_HOLD sequence. Drive the pin to a logic low to disable REG and LDO1. See the
System Startup &
Shutdown
section for more information.
NC
RX_EN
No Connect. Not internally connected.
LDO5 Independent On/Off Control. Drive to a logic high for normal operation, and to a logic low
to disable.
Innovative Power
TM
ActivePMU
is a trademark of Active-Semi.
I
2
C
TM
is a trademark of Philips Electronics.
TM
-5-
www.active-semi.com
Copyright © 2008 Active-Semi, Inc.
