DATA SHEET
MOS FIELD EFFECT TRANSISTOR
µ
PA1854
P-CHANNEL MOS FIELD EFFECT TRANSISTOR
FOR SWITCHING
DESCRIPTION
The
µ
PA1854 is a switching device which can be
driven directly by a 2.5
-
V power source.
The
µ
PA1854 features a low on-state resistance and
excellent switching characteristics, and is suitable for
applications such as power switch of portable machine
and so on.
8

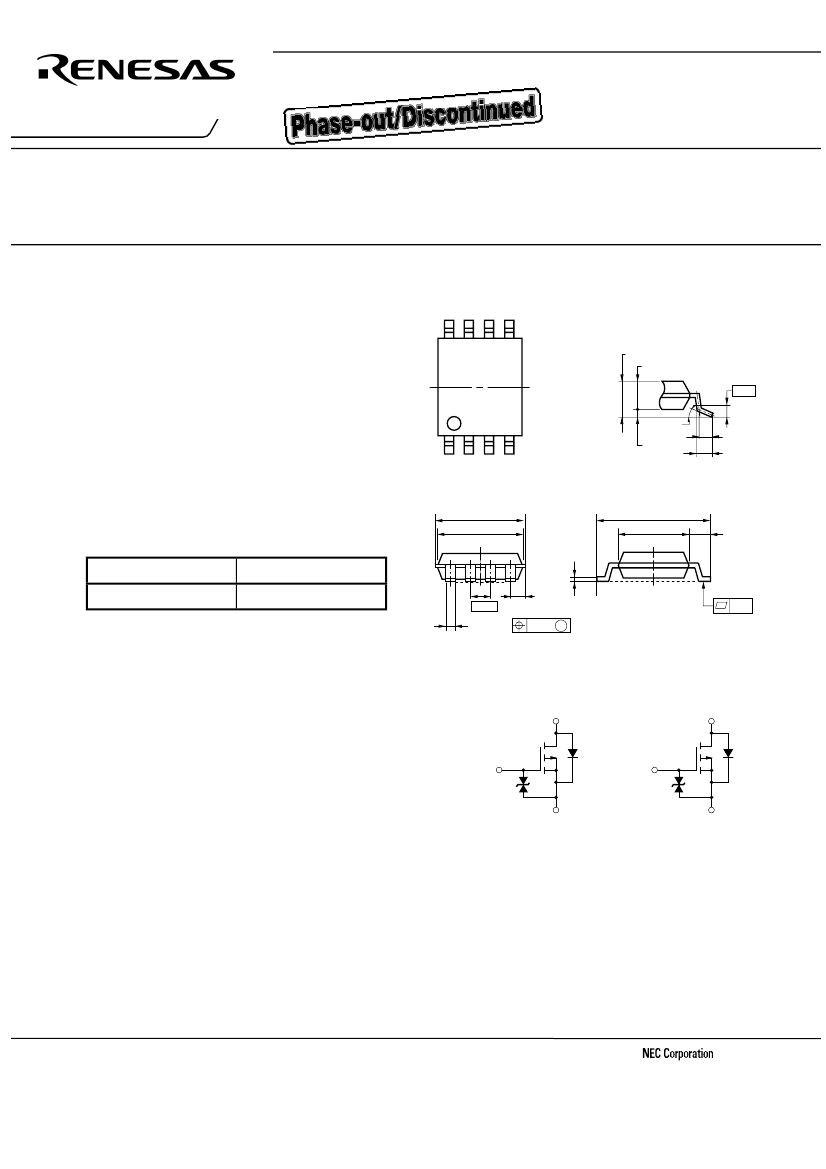

PACKAGE DRAWING (Unit : mm)
5
1
2, 3
4
5
6, 7
8
:Drain1
:Source1
:Gate1
:Gate2
:Source2
:Drain2
1.2 MAX.
1.0±0.05
0.25
3°
+5°
–3°
0.1±0.05
0.5
0.6
+0.15
–0.1
FEATURES
•
Can be driven by a 2.5-V power source
•
Low on-state resistance
R
DS(on)1
= 60 mΩ MAX. (V
GS
= –4.5 V, I
D
= –1.5 A)
R
DS(on)2
= 70 mΩ MAX. (V
GS
= –4.0 V, I
D
= –1.5 A)
R
DS(on)3
= 105 mΩ MAX. (V
GS
= –2.5 V, I
D
= –1.5 A)
•
Built-in G-S protection diode against ESD
1
4
0.145 ±0.055
3.15 ±0.15
3.0 ±0.1
6.4 ±0.2
4.4 ±0.1
1.0 ±0.2
ORDERING INFORMATION
PART NUMBER
PACKAGE
Power TSSOP8
0.65
0.27
+0.03
–0.08
0.8 MAX.
µ
PA1854GR-9JG
0.1
0.10 M
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C)
Drain to Source Voltage
Gate to Source Voltage
Drain Current (DC)
Drain Current (pulse)
Note1
Note2
V
DSS
V
GSS
I
D(DC)
I
D(pulse)
P
T
T
ch
T
stg
–12
–10/+5
V
V
A
A
W
°C
°C
Gate
Protection
Diode
Gate1
EQUIVALENT CIRCUIT
Drain1
Drain2
m
3.0
m
1
2
2.0
150
–55 to +150
Total Power Dissipation
Channel Temperature
Storage Temperature
Body
Diode
Gate2
Body
Diode
Notes 1.
PW
≤
10
µ
s, Duty Cycle
≤
1 %
2
2.
Mounted on ceramic substrate of 5000 mm x 1.1 mm
Remark
Source1
Gate
Protection
Diode
Source2
The diode connected between the gate and source of the transistor serves as a protector against ESD.
When this device actually used, an additional protection circuit is externally required if a voltage
exceeding the rated voltage may be applied to this device.
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No.
D13295EJ2V0DS00 (2nd edition)
Date Published May 2001 NS CP(K)
Printed in Japan
