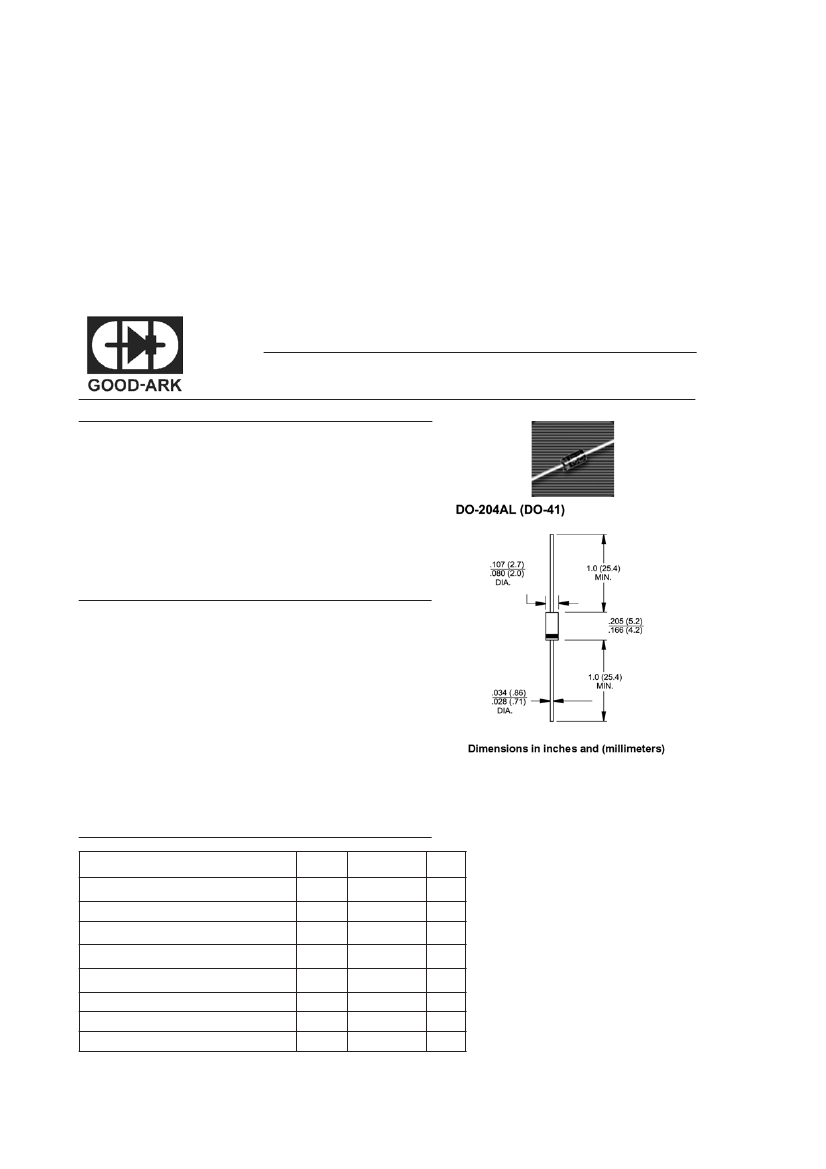

P4KE6.8 thru P4KE550CA

Transient Voltage Suppressors

Peak Pulse Power 400W Breakdown Voltage 6.8 to 550V

Features

Plastic package has Underwriters Laboratory Flammability

Classification 94V-0

Glass passivated junction

400W peak pulse power capabililty on 10/1000uS waveform,

repetition rate (duty cycle): 0.01%

Excellent clamping capability

Low incremental surge resistance

Very fast response time

High temperature soldering guaranteed: 265

C/10 seconds,

0.375” (9.5mm) lead length, 5lbs. (2.3 kg) tension

Mechanical Data

Case: JEDEC DO-204AL(DO-41) molded plastic body over

passivated junction

Terminals: Axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: For unidirectional types the color band denotes the

cathode, which is positive with respect to the anode under

normal TVS operation

Mounting Position: Any

Weight: 0.012oz., 0.3g

Devices for Bidirectional Applications

For bi-directional, use C or CA suffix for types P4KE6.8 thru types P4KE440

(e.g. P4KE6.8C, P4KE440CA). Electrical characteristics apply in both directions.

Maximum Ratings and Characteristics

=25

C unless otherwise noted)

Parameter

Peak power dissipation with a 10/1000

s waveform

(1)

(Fig. 1)

Peak pulse current with a 10/1000

s waveform

(1)

Steady state power dissipation

at T

=75

C, lead lengths 0.375" (9.5mm)

(2)

Peak forward surge current, 8.3ms

single half sine-wave unidirectional only

(3)

Maximum instantaneous forward voltage

at 25A for unidirectional only

(4)

Typical thermal resistance junction-to-lead

Typ. thermal resistance junction-to-ambient, L

Lead

=10mm

Operating junction and storage temperature range

Symbol

PPM

M(AV)

FSM

, T

STG

Value

Minimum 400

See Next Table

1.0

3.5/5.0

100

-55 to +175

Unit

Volts

C/W

Notes:

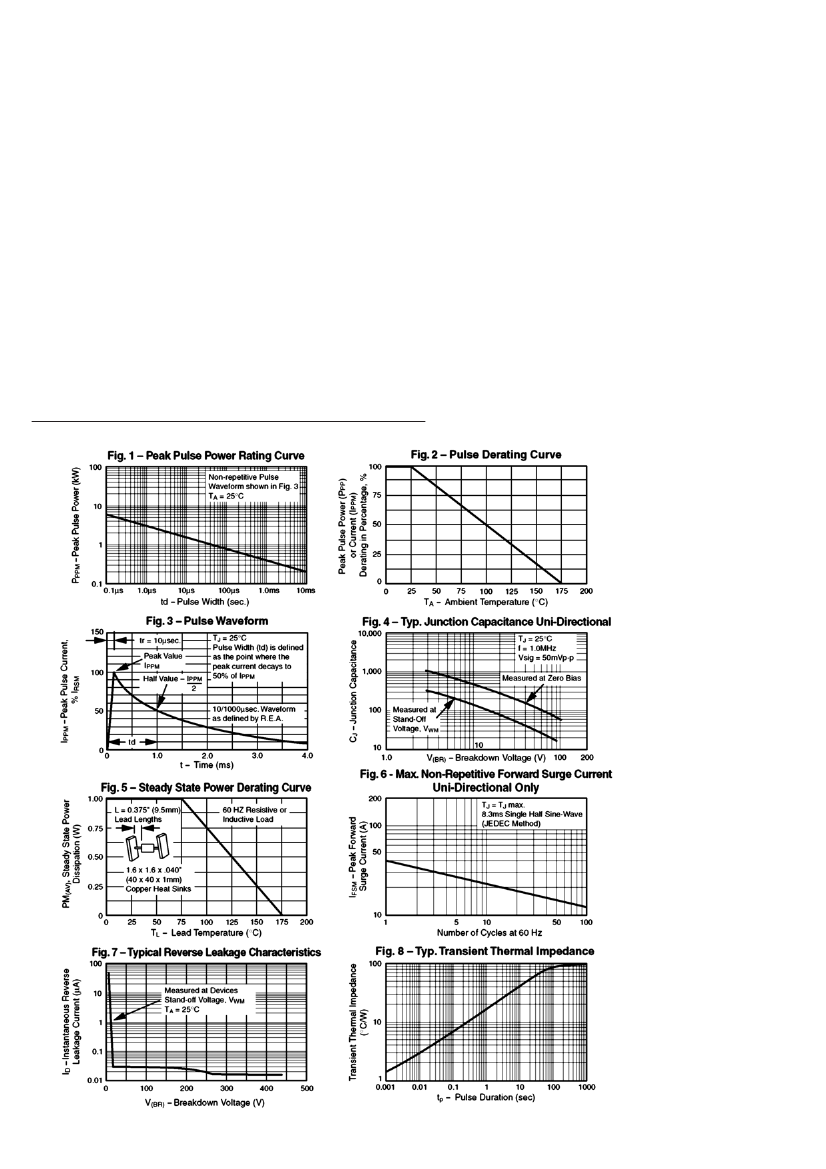

1. Non-repetitive current pulse, per Fig.3 and derated above T

=25

C per Fig. 2

2. Mounted on copper pad area of 1.6 x 1.6” (40 x 40mm) per Fig. 5

3. Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum

4. V

=3.5 V for devices of V

(BR)

<220V, and V

=5.0 Volt max. for devices of V

(BR)

>220V
