BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-BEG202
●
Features:
1. Chip material: GaAsP/GaP (Red)
and GaP/GaP (Green)
2. Emitted color : Hi-Eff Red and Green
3. Lens Appearance : White Diffused
4. Low power consumption.
5. High efficiency.
6. Versatile mounting on P.C. Board or panel.
7. Low current requirement.
8. 4mm diameter package.
9. This product don’t contained restriction
substance, compliance ROHS standard.
●Package
dimensions
4.00(.158)
CENTER LEADS
COMMON CATHODE
1.0(.039)
6.00(.236)
1.50(.059)
MAX.
1.2 0.5
(.047 .020)
21.0(.827) MIN.
Hi-Eff Red
ANODE
Green
ANODE
0.5(.02)
SQ. TYP.
2.0(.080)MIN.
4.60(.181)
2.54(.100) 2.54(.100)
NOM.
NOM.
●
Applications:
1. TV set
2. Monitor
3. Telephone
4. Computer
5. Circuit board
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25mm (0.01”) unless otherwise specified.
3. Lead spacing is measured where the leads emerge from
the package.
4. Specifications are subject to change without notice.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Symbol
Pd
I
F
Hi-Eff Red
80
30
Green
80
30
Unit
mW
mA
mA
V
Peak Forward Current*
1
Reverse
Voltage
Operating Temperature
Storage Temperature
½鴻工業股½有限公司
http://www.brtled.com
I
FP
150
150
V
R
5
Topr
Tstg
Tsol
-40
℃
~80
℃
-40
℃
~85
℃
260
℃
(for 5 seconds)
Soldering Temperature
*
1
Condition for I
FP
is pulse of 1/10 duty and 0.1msec width.
Ver.1.0 Page: 1 of 2
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-BEG202
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Symbol Condition
V
F
Iv
I
R
λp
λd
∆λ
2θ
1/2
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Color
Red
Green
Red
Green
Red
Green
Red
Green
Red
Green
Red
Green
Red
Green
Min.
-
-
-
-
617
560
-
-
Typ.
2.0
2.2
55
60
-
640
568
-
-
45
30
60
Max.
2.6
2.6
-
100
-
638
576
-
-
Unit
V
mcd
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Viewing Angle
µA
nm
nm
nm
deg
●

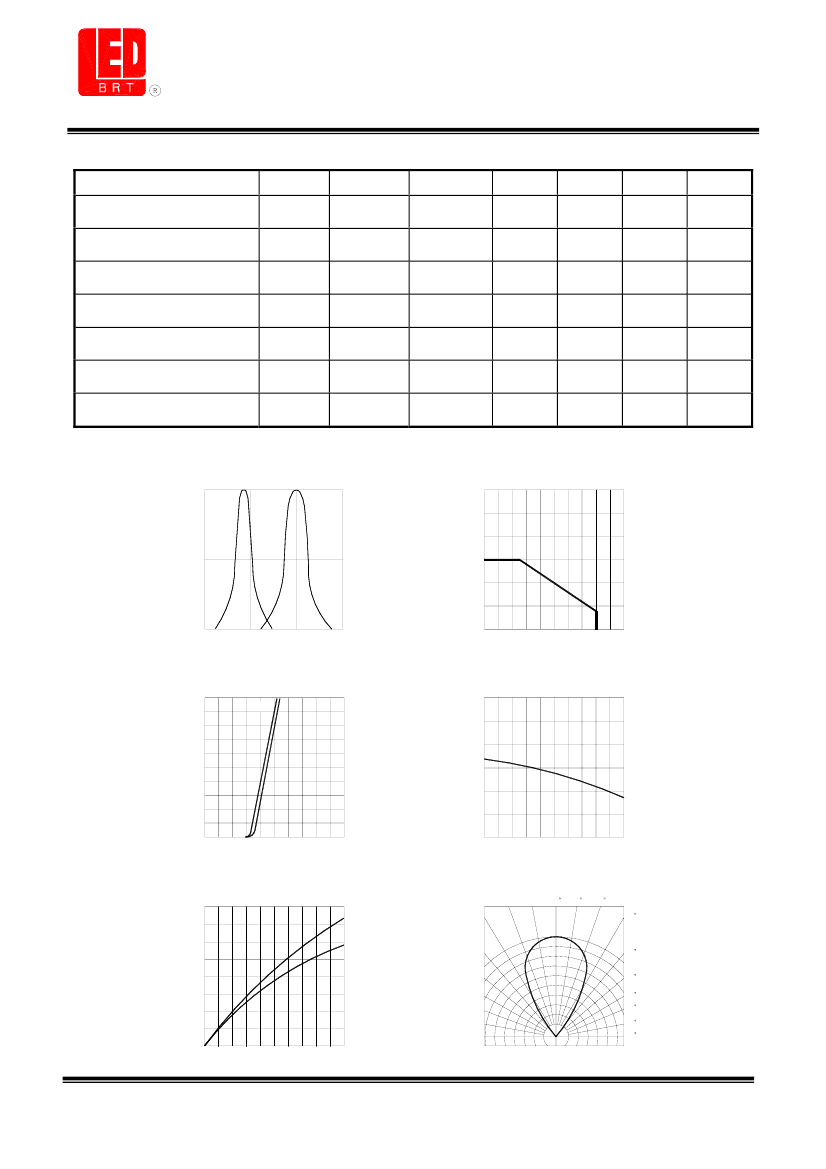

Typical Electro-Optical Characteristics Curves
Fig.1 Relative intensity vs. Wavelength
1.0
(G)
(E)
Fig.2 Forward current derating curve
vs. Ambient temperature
60
50
Relative radiant intensity
Forward current(mA)
580
640
720
40
0.5
30
20
10
0
500
0
20
40
60
80
100
Wavelength
λ(nm)
Ambient temperature Ta(
℃
)
Fig.3 Forward current vs. Forward voltage
50
(E)
40
(G)
3.0
Fig.4 Relative luminous intensity
vs. Ambient temperature
Relative luminous intensity
1
2
3
4
5
2.5
Forward current(mA)
2.0
30
1.5
20
1.0
10
0.5
0
0
-40
-20
0
20
40
60
Forward voltage(V)
Ambient temperature Ta(
℃
)
Relative luminous intensity(@20mA)
6.0
5.0
4.0
3.0
2.0
1.0
Relative radiant intensity
½鴻工業股½有限公司
http://www.brtled.com
Fig.5 Relative luminous intensity
vs. Forward current
Fig.6 Radiation diagram
0
8.0
7.0
10
20
(G)
30
(E)
1.0
40
0.9
0.8
50
60
70
0.7
80
90
0
5
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Ver.1.0 Page: 2 of 2
