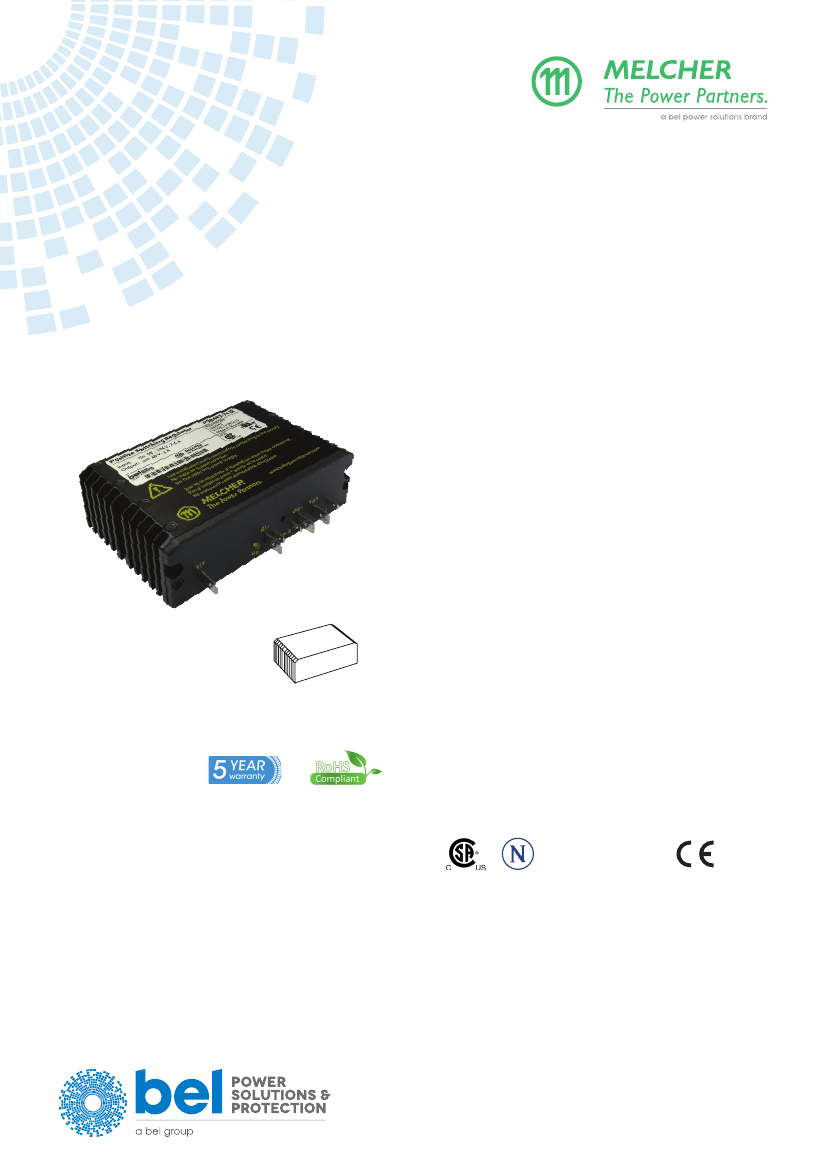

Positive Switching Regulator

The PSB Series of positive switching regulators are designed as

power supplies for electronic systems, where no input-to-output

isolation is required. Their major advantages include a high

level of efficiency, high reliability, low output ripple, and excellent

dynamic response. Models with input voltages up to 144 V are

specially designed for secondary switched and battery-driven

mobile applications. The converters are suitable for railway

applications according to EN 50155 and EN 50121.

The case design allows for operation up to 71 °C. The PSB Series

is designed for wall or chassis mounting with faston connectors.

Various options are available to adapt the converters to different

applications.

PSB Series

Features

• RoHS lead-free-solder and lead-solder-exempted

products are available

• 5 year warranty for RoHS compliant products with an

extended temperature range

• Input voltage up to 144 VDC

• Single output of 5.1 to 48 VDC

• No input-to-output isolation

•

High efficiency up to 96%

• Extremely wide input voltage range

•

Low input-to-output differential voltage

• Very good dynamic properties

• Input undervoltage lockout

• Output voltage adjustment and inhibit function

• Continuously no-load and short-circuit proof

• All boards are coated with a protective lacquer

Safety-approved to the latest edition of IEC/EN 60950-1

and UL/CSA 60950-1

2.7"

1.3"

106

4.2"

Table of Contents

Description............................................................................1

Model Selection ....................................................................2

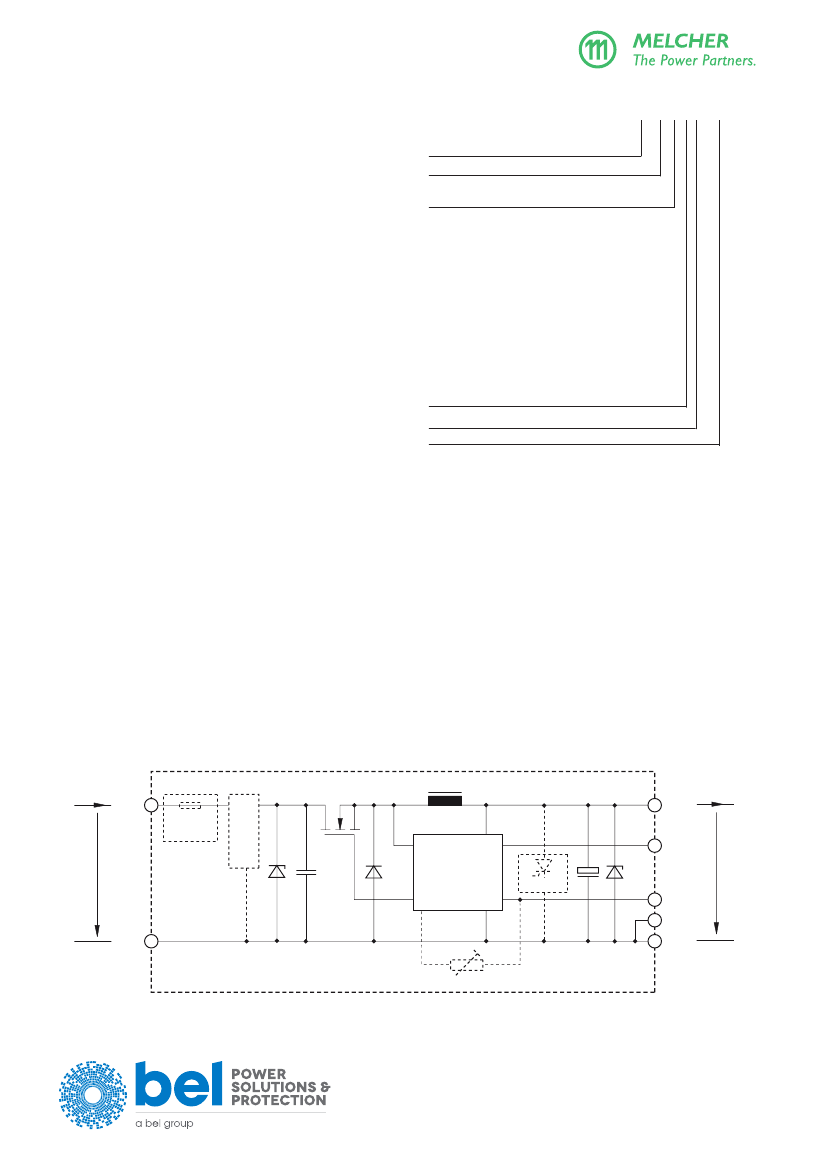

Functional Description ..........................................................3

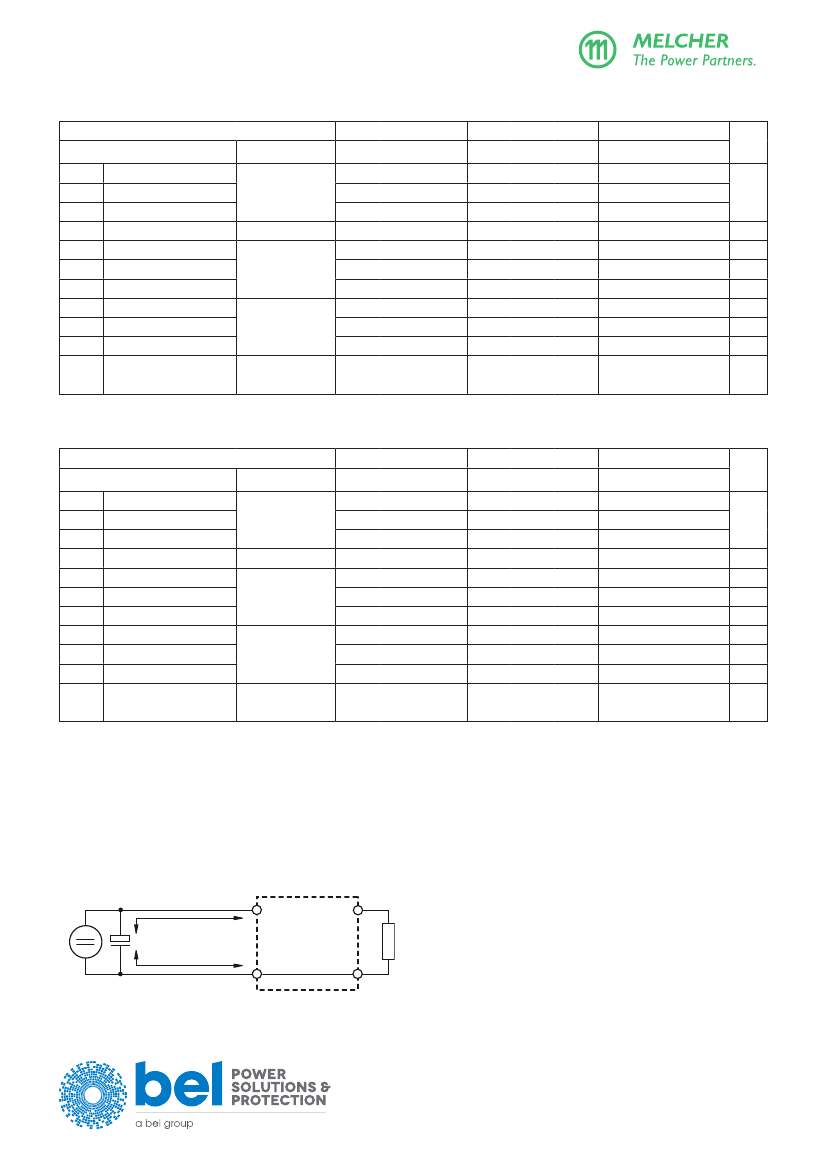

Electrical Input Data .............................................................4

Electrical Output Data...........................................................6

Auxiliary Functions .............................................................10

Electromagnetic Compatibility (EMC) ................................. 11

Immunity to Environmental Conditions ...............................12

Mechanical Data .................................................................13

Safety and Installation Instructions .....................................14

Description of Options ........................................................15

Accessories ........................................................................16
