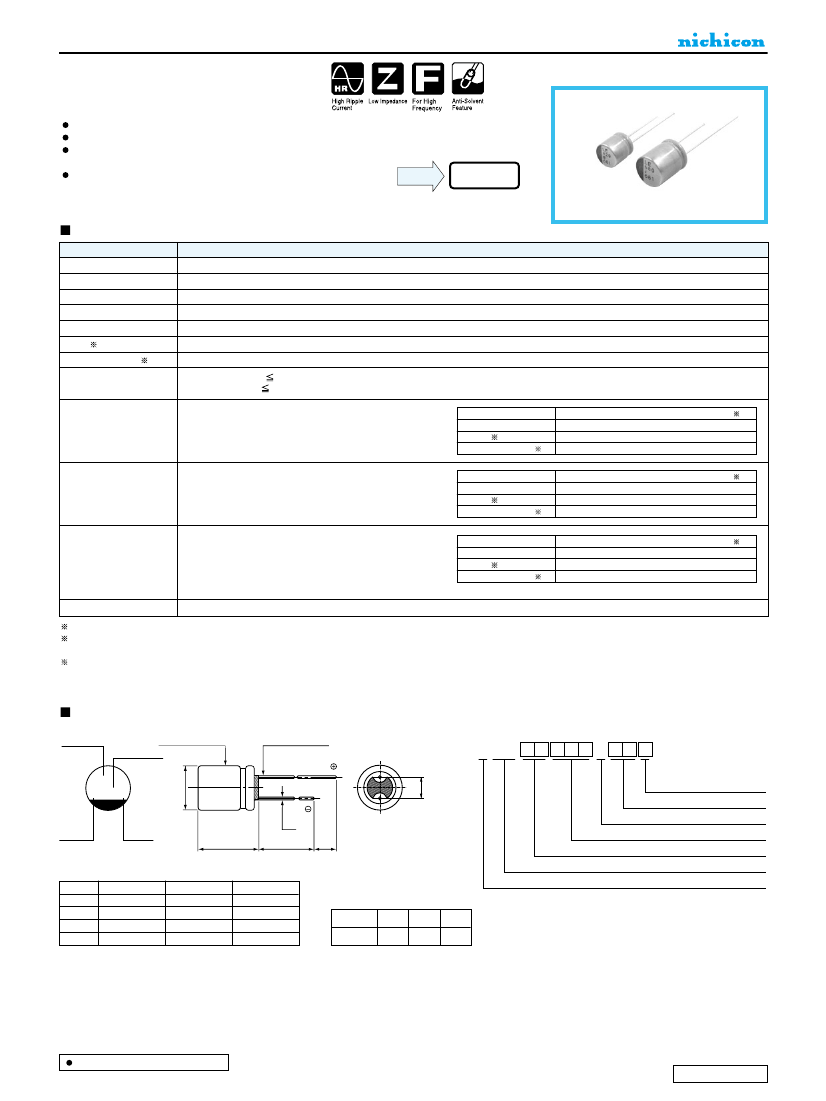

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS
LE
Radial Lead Type, Ultra-low ESR
series
Ultra-low ESR, High ripple current.
Load life of 2000 hours at 105°C.
Radial lead type :
Lead free flow soldering condition correspondence
Compliant to the RoHS directive (2002/95/EC).
LF
Low ESR
LE
Specifications
Item
Category Temperature Range
Rated Voltage Range
Performance Characteristics
– 55 to +105°C
2.5 to 6.3V
± 20% at 120Hz, 20°C
Less than or equal to the specified value at 100kHz, 20°C
Rated Capacitance Range
470 to 1500µF
Capacitance Tolerance
Tangent of loss angle (tan
δ)
Less than or equal to the specified value at 120Hz, 20°C
ESR (
1)
2)
Leakage Current (
Less than or equal to the specified value.
Z+105°C / Z+20°C
Z
–
55°C / Z+20°C
1.25
1.25
(100kHz)
After 2 minutes' application of rated voltage at 20°C
Temperature Characteristics
(Max.Impedance Ratio)
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 2000 hours at 105°C.
Capacitance change
tan
δ
ESR
( 1)
Leakage current ( 2)
Capacitance change
tan
δ
ESR
( 1)
Leakage current ( 2)
Within ± 20% of the initial capacitance value ( 3)
150% or less than the initial specified value
150% or less than the initial specified value
Less than or equal to the initial specified value
Within ± 20% of the initial capacitance value ( 3)
150% or less than the initial specified value
150% or less than the initial specified value
Less than or equal to the initial specified value
Within ± 10% of the initial capacitance value ( 3)
130% or less than the initial specified value
130% or less than the initial specified value
Less than or equal to the initial specified value
Damp Heat
(Steady State)
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 1000 hours at 60°C, 90% RH.
Resistance to
Soldering Heat
After soldering the capacitor under the soldering conditions prescribed
here as preheat at 150 to 200°C for 60 to 180 seconds and peak
temperature at 265°C for 10 seconds or less, the capacitor shall meet
the specifications listed at right, provided that its temperature profile is
measured at both of terminal ends facing the soldering side.
Navy blue print on the case top
Capacitance change
tan
δ
ESR
( 1)
Leakage current ( 2)
Marking
1 ESR should be measured at both of the terminal ends closest to the capacitor body.
2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120
minutes at 105°C.
3 Initial value : The value before test of examination of resistance to soldering.
Dimensions
Capacitance
Type numbering system (Example : 4V 560µF)
Resin coated Case
Silvered lead Wire
1
2
3
4
5
6
7
8
9 10 11 12
Voltage(g:4V)
φD
+0.5 MAX.
P L E 0 G 5 6 1 MCO 1
P
±0.5
Size code
Configuration
Capacitance toleranc (±20%)
Rated capacitance (560µF)
LE
560
g
841
φ
d
Series
Lot. No.
L+0.5MAX.
15MIN
4MIN
Rated voltage (4V)
Series name
(mm)
Size
φD
L
P
φd
φ8
×
9L
8.0
8.5
3.5
0.6
φ8
×
12L
8.0
11.5
3.5
0.6
φ10
×
13L
10.0
12.5
5.0
0.6
Type
Voltage
V
Code
2.5
e
4
g
6.3
j
Please refer to page 20 about the end seal configulation.
Dimension table in next page.
CAT.8100Z
