Pomona

Model 5110 & 5126

Connector Audio, Straight Cord,

Male, 3&5 Conductor

FEATURES:

•

Model 5110 mates to Model # 5113 wall mount female receptacle.

•

Model 5126 mates to Model # 5129 wall mount female receptacle.

•

Model 5110 will accept standard 3 pin XLR female jacks.

•

Model 5126 will accept standard 5 pin XLR female jacks.

•

Durable Zinc Alloy housing.

•

Model 5110 accepts up to 14 AWG wire.

•

Model 5126 accepts up to 18 AWG wire.

MATERIALS:

Housing: Zinc Alloy with a nickel finish

Contacts: Bronze with a tin plate finish

Cable Relief: Elastomer

Insulator: Polyester

RATINGS:

Operating Voltage: 133 VRMS/DC.

Current: 15 Amperes.

ORDERING INFORMATION:

Models 5110, 5126

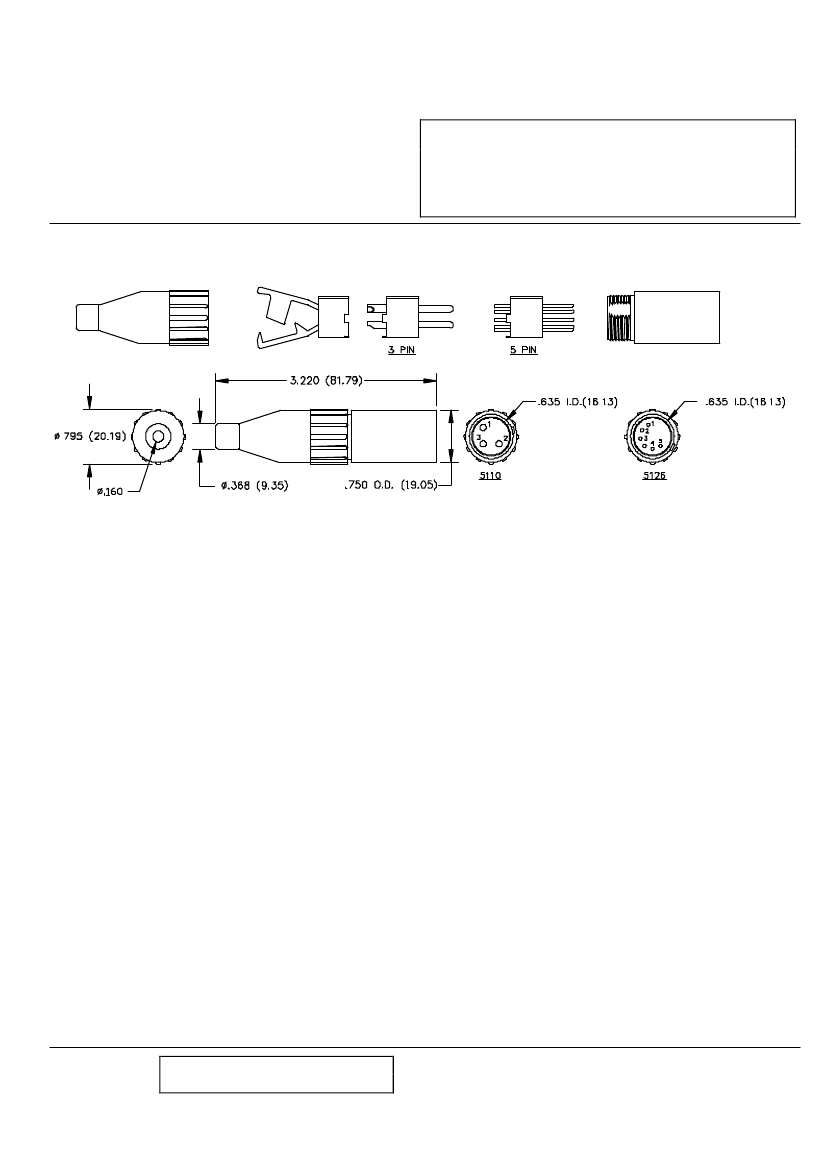

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

6/9/99

SY/EH/LS

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90618

(800) 444-6785 or (425) 446-6010

More drawings available at www.pomonaelectronics.com

Page 1 of 1

C:\Laura Goldberg\FlukeDataSheet\d5110_5126_1_01.doc
