DP3ED16MX8R8KY5-DP-XX50C datasheet, PDF

Datasheet> All Categories > storage> storage> DP3ED16MX8R8KY5-DP-XX50C

DP3ED16MX8R8KY5-DP-XX50C: DescriptionEDO DRAM Module, 16MX8, 50ns, CMOS, PDSO32, STACK, LEADLESS, MODULE, TSOP-32; Categorystorage storage; File Size201KB，2 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric Compare View All

DP3ED16MX8R8KY5-DP-XX50C Overview

EDO DRAM Module, 16MX8, 50ns, CMOS, PDSO32, STACK, LEADLESS, MODULE, TSOP-32

DP3ED16MX8R8KY5-DP-XX50C Parametric

Parameter Name	Attribute value
Maker	B&B Electronics Manufacturing Company
Parts packaging code	TSOP
package instruction	ATSOP,
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	50 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G32
memory density	134217728 bit
Memory IC Type	EDO DRAM MODULE
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	32
word count	16777216 words
character code	16000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX8
Package body material	PLASTIC/EPOXY
encapsulated code	ATSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, PIGGYBACK, THIN PROFILE
Certification status	Not Qualified
Maximum seat height	2.4892 mm
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

16Mx8 50 - 60ns, TSOP Stack

30A228-10

High Density Memory Device

ADVANCED INFORMATION

DESCRIPTION:

The

M-Densus

series is a family of interchangeable memory

modules. The 64 Megabit DRAM is a member of this family

which utilizes the new and innovative space saving TSOP

stacking technology. The module is constructed with two

8 Meg x 8 EDO, 3.3 Volt DRAM’s available in a 128 Megabit

compatible pin-out.

The 64 Megabit based

M-Densus

modules have been

designed to fit in the same footprint as the 16 Meg x 8 DRAM

TSOP monolithic. This allows the memory board designer to

upgrade the memory in their products without redesigning the

memory board, thus saving time and money.

FEATURES:

•

Configurations Available:

128 Megabit: 16 Meg x 8

•

Access Times: 50, 60ns (max.)

•

3.3 Volt Supply

•

Common Data Inputs and Outputs

•

Extended Data Out Capability (EDO)

•

4K/8K 64ms Refresh

•

3 Variations of Refresh:

- RAS only Refresh

- CAS before RAS Refresh

- Hidden Refresh

•

Package: Leadless TSOP Module

M-Densus

128 Megabit CMOS

3.3V EDO DRAM

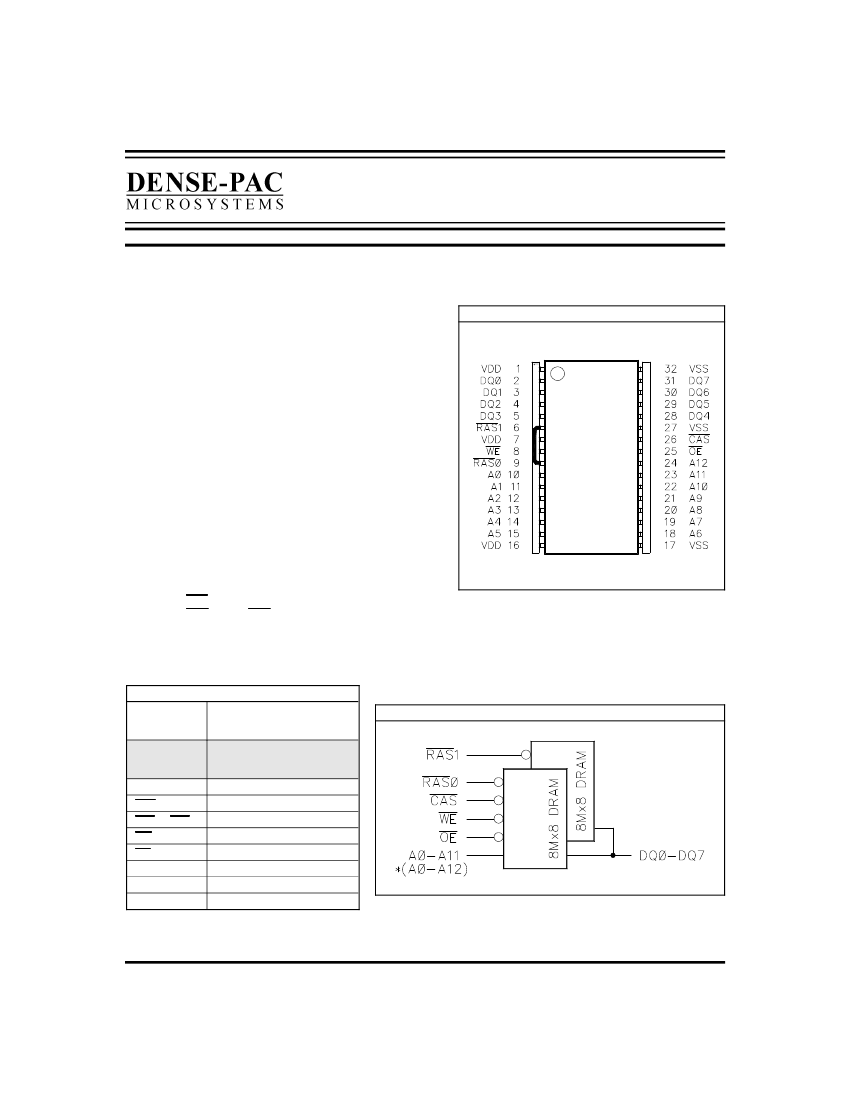

DP3ED16MX8RKY5

PIN-OUT DIAGRAM

PIN NAMES

A0 - A11

A0 - A12*

DQ0 - DQ7

CAS

RAS0 - RAS1

N.C.

Row Address:

A0 - A11

Column Address: A0 - A10

Refresh Address: A0 - A11

Row Address:

A0 - A12

Column Address: A0 - A9

Refresh Address: A0 - A12

Data In / Data Out

Column Address Strobe

Row Address Enables

Data Write Enable

Data Output Enable

Power Supply (+3.3V)

Ground

No Connect

FUNCTIONAL BLOCK DIAGRAM

A12 for 8K refresh device.

30A228-10

REV. A

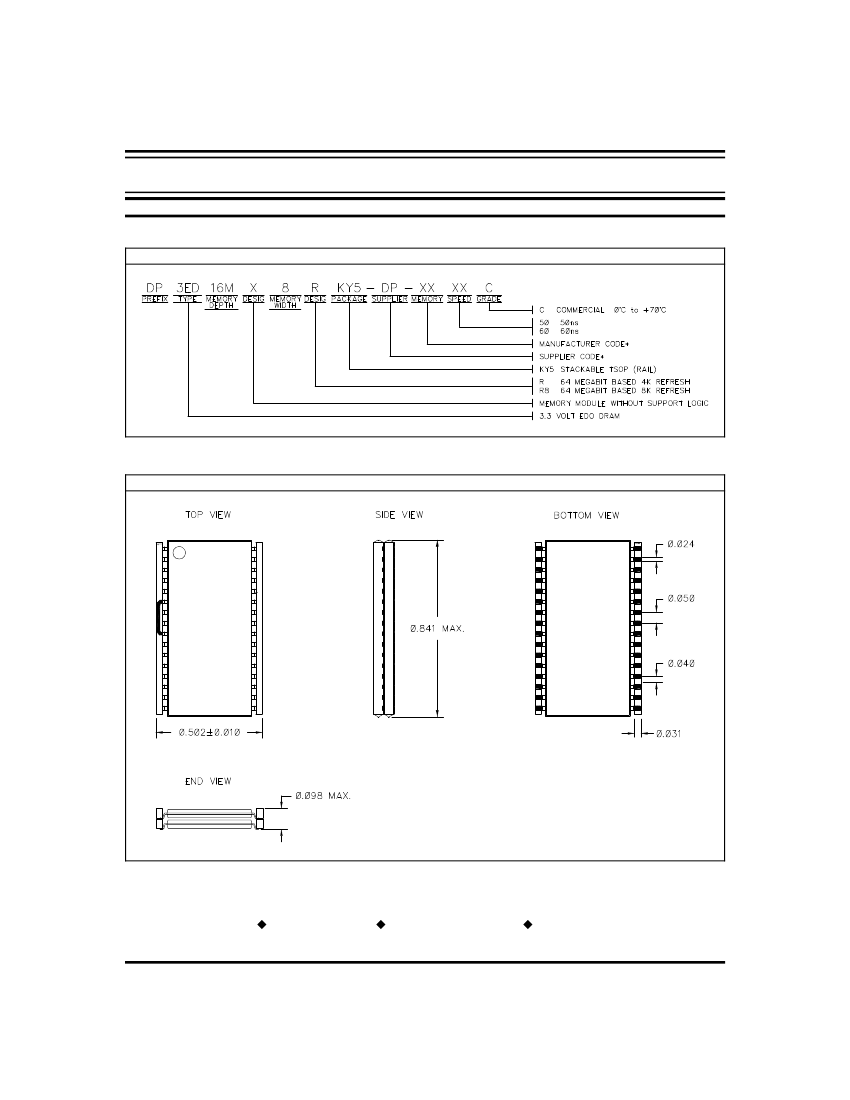

This document contains information on a product under consideration for

development at Dense-Pac Microsystems, Inc. Dense-Pac reserves the right

hange or discontinue information on this product without prior notice.
