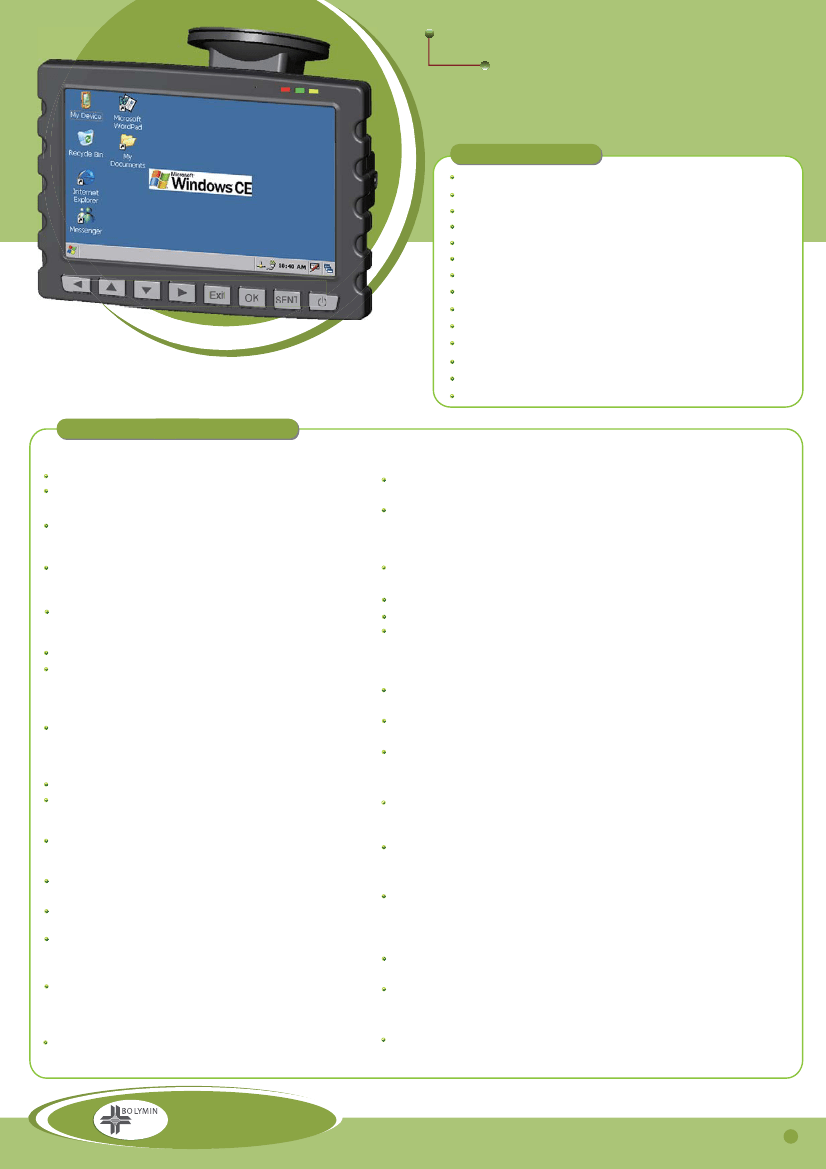

BETA903A

Mobile Data Terminal

Features

400MHz 32bit RISC architecture ARM926EJ CPU core

2GB NAND Flash / 64 MB DDRII / 512KB SRAM

WINCE5.0 OS

8 interruptible key pad

4 x IO / 1 x Host USB / Device USB / 3 x RS232

On board GSM / GPS module

7” TFT 16:9 display with 800 x 480 resolution

DSP based audio codec via IIS-bus interface

Built-in 2W amplifier / earphone

Support SD / HS-MMC card

4-wired touch panel interface(option)

9V~28V DC requirement

Backup charger circuit inside

With car holder

Hardware Specifications

Processor

32 bit RISC architecture ARM926EJ CPU core

64-way associative cache with I-cache (16KB)

and D-cache (16KB)

400MHz CPU clock

Display

Support 16M color TFT at 18bpp mode with resolution 800 x 480

or equvalence

LED backlight supported

OS Memory

WINCE 5.0 with 2GB NAND Flash memory

GSM Module

Siemens Tri-Band wireless module supporting 900/1800/1900MHz

default(or 850 / 1800 / 1900MHz )

Support Voice / SMS / CS Data / GPRS mode

Built-in TCP / IP stack speed design of M2M application

Support passive antenna

System Memory

16-bit 64MB / 133MHz DDRII memory

SD / MMC Card Socket

Support SD / MMC host interface

Compatible with SD memory protocol and SD

media card protocol

GPS Module

Support GPS module with 16 channels ANTARIS 4 receiver

engine (or 50 channels receiver engine) with passive antenna

Support GGA / RMC / TXT / GLL / GSA / GSV / VTG message

Sensitivity of tracking -158dBm ~ -160dBm

Support active antenna

External Setting Connector

Support JTAG for debug and USB (device) for

system setting

Serial Ports

Support 2 x 3-wired DMA-based operation UART

One UART fully compatible 16C550

Chassis

Provide ABS 94V0 chassis with 2 x serial ports , 1 x 8 isolated IO,

2 x USB device , 1 x USB host , 1 x DC Power port and

1 x Power switch

Built-in metal or equivalence for EMC / EMI

USB Ports

Support 1 x USB host compatible with USB 1.1

Audio Codec

Support DSP based processing stereo codec with

SNR 102dB DAC / differential microphone input

Software programmable volume control and mute

control

Dual channels 2 watts speaker output

Power Requirement

DC9V~DC28V power requirement with short-circuit protection

Battery Power

( option

Top: TFT -20°C - 70°C

)

Support 2200/4400mAh polymer battery with low voltage and

thermal protection

Support constant voltage regulation / constant current charging

and auto-termination charger

GPIO

Support 4 photo-couple input and 4 photo-couple

output

Key Pads

Support 8 interrupted based capacitive touch sensor

keys with LED backlight

Operating Temperature

Industrial: TFT -20°C ~ 85°C

Car: TFT -30°C ~ 80°C

T/P -20°C ~ 60°C

T/P -30°C ~ 80°C

BOLYMIN, INC.

VER:02
