BLM21AJ601SN1J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> BLM21AJ601SN1J

BLM21AJ601SN1J: DescriptionFerrite Chip, 1 Function(s), 0.2A, EIA STD PACKAGE SIZE 0805, 2 PIN; CategoryAnalog mixed-signal IC filter; File Size44KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BLM21AJ601SN1J Overview

Ferrite Chip, 1 Function(s), 0.2A, EIA STD PACKAGE SIZE 0805, 2 PIN

BLM21AJ601SN1J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	EIA STD PACKAGE SIZE 0805, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MONOLITHIC TYPE
shell code	0805
structure	Chip Bead
Maximum DC resistance	1.1 Ω
filter type	FERRITE CHIP
maximum frequency	100 MHz
minimum frequency	100 MHz
high	0.85 mm
JESD-609 code	e3
length	2 mm
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	600 OHM Ω
method of packing	TAPE AND REEL
physical size	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)
Rated current	0.2 A
Terminal surface	Tin (Sn)
width	1.25 mm

Preview

Download Datasheet

View All

Noise Suppression Products/EMI Suppression Filters > Chip EMIFILr Inductor Type > Chip Ferrite Beads

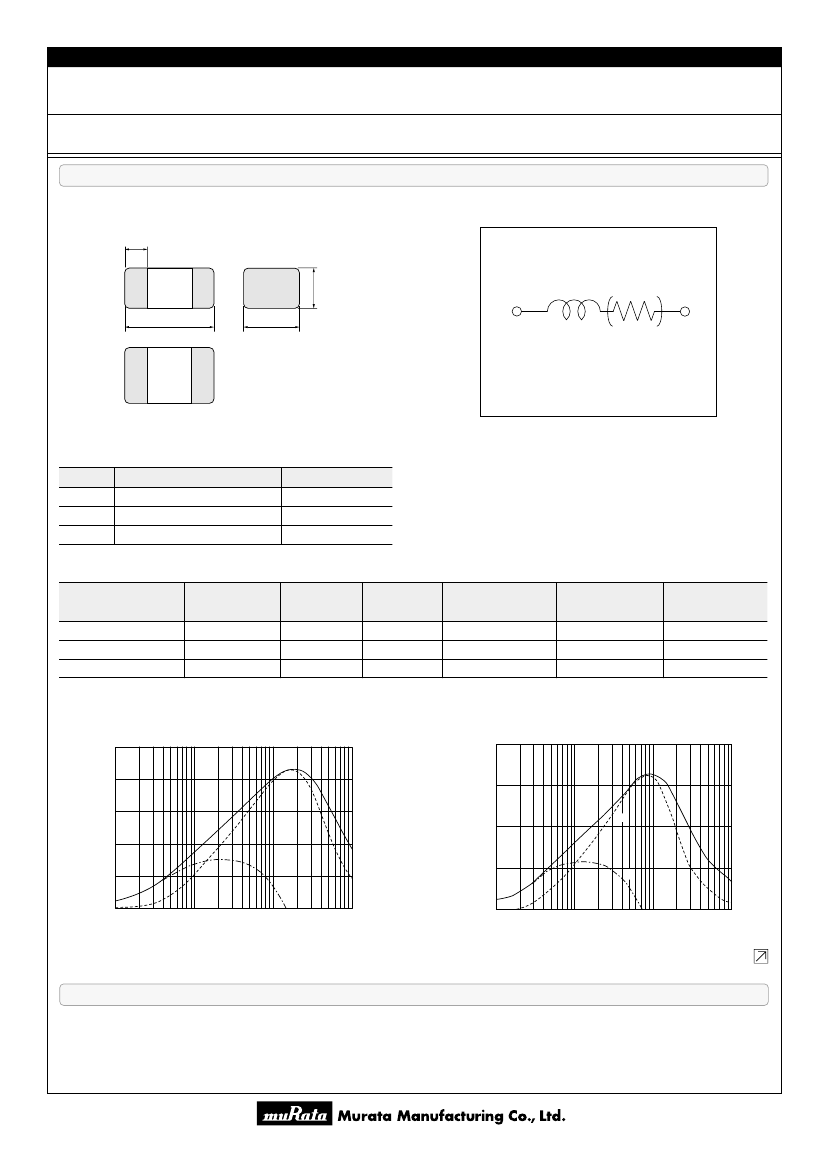

Data Sheet

Chip EMIFILr Inductor Type

Chip Ferrite Beads

BLM21A Series (0805 Size)

For your new designs, alternative parts should be used. These parts should be used only for existing design. Please consult with us for details.

Dimension

0.5±0.2

Equivalent Circuit

2.0±0.2

1.25±0.2

0.85±0.2

(Resistance element becomes dominant

at high frequencies.)

EIA CODE : 0805

(in mm)

Packaging

Code

Packaging

180mm Paper Tape

330mm Paper Tape

Bulk(Bag)

Minimum Quantity

4000

10000

1000

Rated Value (p: packaging code)

Part Number

BLM21AJ401SN1p

BLM21AJ601SN1p

BLM21AH102SN1p

Impedance

(at 100MHz/20°C)

400ohm±25%

600ohm±25%

1000ohm±25%

Impedance

(at 1GHz/20°C)

Rated Current

200mA

DC Resistance(max.)

0.85ohm

1.10ohm

0.45ohm

Operating

Temperature Range

-55°C to +125°C

-55°C to +85°C

Number of Circuits

Impedance-Frequency Characteristics

BLM21AJ401SN1

500

Impedance-Frequency Characteristics

BLM21AJ601SN1

800

400

600

Impedance (ohm)

Impedance (Ω)

400

300

200

100

Frequency (MHz)

100

1000

100

Frequency (MHz)

1000

Continued on the following page.

This data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.

Note:

1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our

products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.

2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product

specifications or transact the approval sheet for product specifications before ordering.

2007.11.1

http://www.murata.com/

BLM21AJ601SN1J Related Products

	BLM21AJ601SN1J	BLM21AH102SN1B	BLM21AH102SN1J	BLM21AJ601SN1B	BLM21AJ401SN1B	BLM21AJ401SN1J
Description	Ferrite Chip, 1 Function(s), 0.2A, EIA STD PACKAGE SIZE 0805, 2 PIN	Ferrite Chip, 1 Function(s), 0.2A, EIA STD PACKAGE SIZE 0805, 2 PIN	Ferrite Chip, 1 Function(s), 0.2A, EIA STD PACKAGE SIZE 0805, 2 PIN	Ferrite Chip, 1 Function(s), 0.2A, EIA STD PACKAGE SIZE 0805, 2 PIN	Ferrite Chip, 1 Function(s), 0.2A, EIA STD PACKAGE SIZE 0805, 2 PIN	Ferrite Chip, 1 Function(s), 0.2A, EIA STD PACKAGE SIZE 0805, 2 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	EIA STD PACKAGE SIZE 0805, 2 PIN	EIA STD PACKAGE SIZE 0805, 2 PIN	EIA STD PACKAGE SIZE 0805, 2 PIN	0805	0805	0805
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	MONOLITHIC TYPE	MONOLITHIC TYPE	MONOLITHIC TYPE	MONOLITHIC TYPE	MONOLITHIC TYPE	MONOLITHIC TYPE
shell code	0805	0805	0805	0805	0805	0805
structure	Chip Bead	Chip Bead	Chip Bead	Chip Bead	Chip Bead	Chip Bead
Maximum DC resistance	1.1 Ω	0.45 Ω	0.45 Ω	1.1 Ω	0.85 Ω	0.85 Ω
filter type	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP
maximum frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
minimum frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
high	0.85 mm	0.85 mm	0.85 mm	0.85 mm	0.85 mm	0.85 mm
JESD-609 code	e3	e3	e3	e3	e3	e3
length	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Material	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1
Maximum operating temperature	125 °C	85 °C	85 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output impedance	600 OHM Ω	1000 OHM Ω	1000 OHM Ω	600 OHM Ω	400 OHM Ω	400 OHM Ω
method of packing	TAPE AND REEL	BULK	TAPE AND REEL	BULK	BULK	TAPE AND REEL
physical size	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)
Rated current	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
width	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm	1.25 mm
Maker	Murata	Murata	Murata	Murata	-	-
