AE617 is designed as low cost drive amplifiers for many applications including FTTH, CATV System.
This MMIC is based on Gallium Arsenide Enhancement Mode pHEMT which shows low current draw and very low noise.
The data in this spec sheet is valid only for 75 ohm application. 50 ohm data is in a separate spec sheet.
Specifications
PARAMETER
Frequency
Gain
Input Return Loss
Output Return Loss
Output IP3
1dB Compression Point
Noise Figure
CSO
CTB
XMOD
DC Current
NOTE
1. Test conditions unless otherwise noted. Test Freq = 500MHz, T=25
℃
, Vdd=8V, 75Ω system
2. OIP3 measured with 2 tones at an output power of +10dBm/tone separated by 1MHz, Test Freq = 500MHz
UNIT
MHz
dB
dB
dB
dBm
dBm
dB
dBc
MIN
TYP
50 ~ 1000
MAX
Condition
20
22
-22
-17
38
25
41
28
2.3
-63
-64
-57
260
3.5
-58
-59
-52
At 500MHz/10dBm 2tone
At 500MHz
79 channel, +39dBmV/ch
79 channel, +39dBmV/ch
79 channel, +39dBmV/ch
Vdd = 8.0V
30 ~ 870MHz
dBc
dBc
mA
Absolute Minimum and Maximum Ratings
PARAMETER
Device Voltage
Operating Temperature
Storage Temperature
UNIT
VDC
MIN
TYP
+8
-40
-40
MAX
+9
+85
+150
℃
℃
▪
Tel : 82-31-250-5011
▪
rfsales@rfhic.com
▪
All specifications may change without notice.
▪
Version 0.1
E-pHEMT MMIC
AE617
(Preliminary)
◎

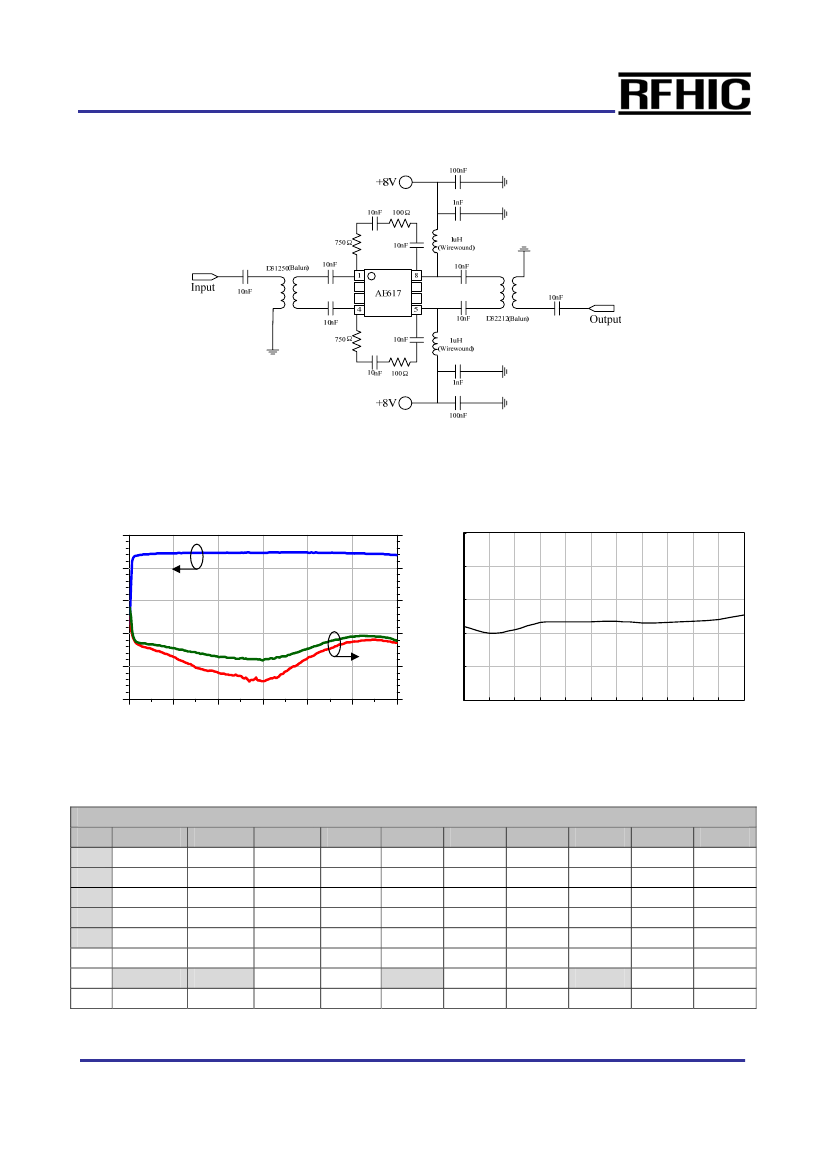

Application Circuit: 50MHz ~ 1000MHz, 75ohm System
◎
Typical RF Performance: V
DD
=8V, I
DS
=260mA, T=25℃, 75ohm System
S-Parameter
25
20
Noise Figure vs Frequency
5
20
S21
10
Return Loss(dB)
4
Gain(dB)
10
-10
NF(dB)
15
0
3
2
S22
5
-20
1
S11
0
0.0
0.2
0.4
0.6
Freq(GHz)
0.8
1.0
1.2
-30
0
10
200
400
600
Freq(MHz)
800
1000
◎
Multi-Tone Test 79CH_FLAT@Output Power +39dBmV/Ch
Level: +39dBmV
FRQ
55.25
211.25
331.25
445.25
547.25
Tilt: 79CH_FLAT
CTB_RAW
64.9
65.4
64.5
65.4
66.9
CTB_COR
64.9
65.4
64.5
65.4
67
N-FLR
84.6
85.2
84
84.9
82.8
CSU_RAW
83.6
76.4
70.6
67.8
63.1
CSU_COR
87.9
77.1
70.8
67.8
63.1
CSU_FRQ
56
212.5
332.49
446.49
548.5
CSL_RAW
72.5
72.2
71
75.1
73.7
CSL_COR
72.8
72.4
71.2
75.6
74.2
CSL_FRQ
54
209.99
329.99
444
546.49
XMD(NCTA)
57.4
57.9
58.2
58.2
58.8
Min
Max
57.4
58.8
64.5
66.9
64.5
67
82.8
85.2
63.1
83.6
63.1
87.9
56
548.5
71
75.1
71.2
75.6
54
546.49
▪
Tel : 82-31-250-5011
▪
rfsales@rfhic.com
▪
All specifications may change without notice.
▪
Version 0.1
E-pHEMT MMIC
Pin Description
AE617
(Preliminary)
PIN No
1
2
3
4
AMP2
8
7
6
5
Description
RF IN(2)
RF OUT(1)
RF IN(1)
RF OUT(2)
N.C
GND
1
5
4
8
2, 3, 6, 7
Exposed slug
AMP1

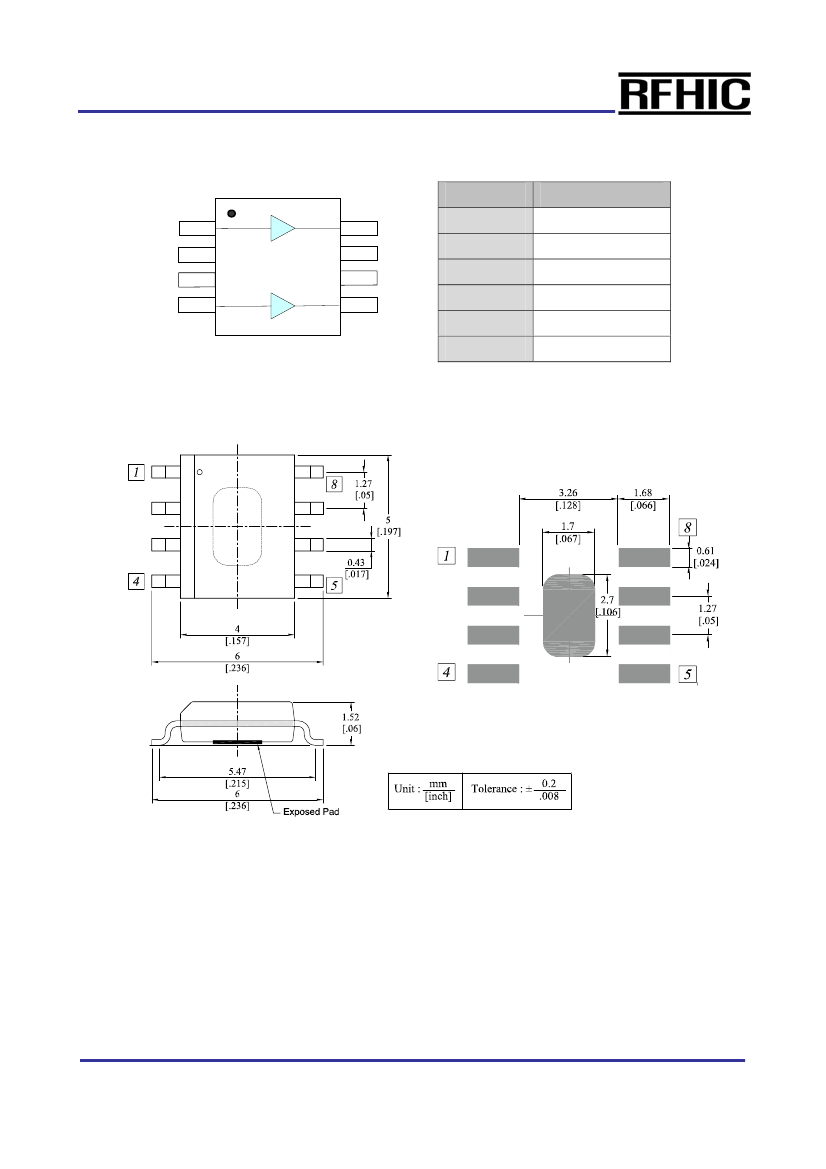

Package Dimensions
(Type: SOIC-8)
RFHIC Corporation (RFHIC) reserves the right to make changes to any products herein or to discontinue any product at any time without notice. RFHIC do not
assume any liability for the suitability of its products for any particular purpose, and disclaims any and all liability, including without limitation consequential or
incidental damages. The product specifications herein expressed have been carefully checked and are assumed to be reliable. However, RFHIC disclaims liability for
inaccuracies and strongly recommends buyers to verify that the information they are using is current before placing purchase orders. RFHIC products are not
intended for use in life support equipment or application where malfunction of the product can be expected to result in personal injury or death. Buyer uses or sells
such products for any such unintended or unauthorized application, buyer shall indemnify, protect and hold RFHIC and its directors, officers, stockholders,
employees, representatives and distributors harmless against any and all claims arising out of such use. RFHIC’s liability under or arising out of damages, claims of
whatsoever kind and nature which RFHIC products could cause shall be limited in amount to the net purchase price of the products sold to buyer by RFHIC
