HLMP-AG66/67, HLMP-AJ66/67
Precision Optical Performance Red and Orange
New 5mm Mini Oval LEDs
Data Sheet
Description
These Precision Optical Performance Oval LEDs are spe-
cifically designed for full color/video and passenger infor-
mation signs. The oval shaped radiation pattern and high
luminous intensity ensure that these devices are excellent
for wide field of view outdoor applications where a wide
viewing angle and readability in sunlight are essential.
The package epoxy contains both UV-A and UV-B inhibi-
tors to reduce the effects of long term exposure to direct
sunlight.
Features
•
Well defined spatial radiation pattern
•
Available in Red and Orange color
Red 626nm
Orange 605nm
•
High brightness material
•
Superior resistance to moisture
•
Standoff and Non-standoff Package
•
Tinted and diffused
•
Typical viewing angle: 30° x 70°
Applications
Package Dimensions
Package drawing A
8.70 ± 0.20
0.342 ± 0.008
24.00 MIN.
0.945
CATHODE LEAD
5.20 ± 0.20
0.205 ± 0.008
0.8 MAX. EPOXY MENISCUS
0.016
0.50 ± 0.10 Sq Typ
0.020 ± 0.004
2.54 ± 0.3
0.100 ± 0.012
•
Full color signs
•
Mono color signs
1.0 MIN.
0.038
Measured at base of lens
3.80 ± 0.20
0.150 ± 0.008
Package drawing B
11.70 ± 0.50
0.4606 ± 0.02
8.70 ± 0.20
0.342 ± 0.008
24.00 MIN.
0.945
1.50 ± 0.15
0.0591 ± 0.006
1.0 MIN.
0.038
CATHODE LEAD
2.54 ± 0.3
0.100 ± 0.012
Measure at base of lens
3.80 ± 0.20
0.150 ± 0.008
5.2 ± 0.20
0.205 ± 0.008
0.8 MAX. EPOXY MENISCUS
0.032
0.50 ± 0.10 Sq Typ
0.020 ± 0.004
Notes:
All dimensions in millimeters (inches).
Tolerance is ± 0.20mm unless other specified
Device Selection Guide
Part Number
HLMP-AG66-120DD
HLMP-AG67-120DD
HLMP-AJ66-Z10DD
HLMP-AJ67-Z10DD
Color and Dominant
Wavelength
λ
d
(nm) Typ
Red 626
Red 626
Orange 605
Orange 605
Luminous Intensity Iv
(mcd) at 20 mA-Min
[1,2,5]
2900
2900
2400
2400
Luminous Intensity Iv
(mcd) at 20 mA-Max
[1,2,5]
4200
4200
3500
3500
Package Drawing
A
B
A
B
Notes:
1. The luminous intensity is measured on the mechanical axis of the lamp package and it is tested with pulsing condition.
2. The optical axis is closely aligned with the package mechanical axis.
3. Dominant wavelength,
λ
d
, is derived from the CIE Chromaticity Diagram and represents the color of the lamp.
4.
θ
½
is the off-axis angle where the luminous intensity is half the on-axis intensity.
5. Tolerance for each bin limit is ± 15%.
Part Numbering System
HLMP -A x 6x – x x x xx
Packaging Option
DD: Ammopack
Color Bin Selection
0: Full distribution
Maximum Intensity Bin
Refer to Device Selection Guide
Minimum Intensity Bin
Refer to Device Selection Guide
Standoff / Non Standoff
6: Non Standoff
7: Standoff
Color
G: Red
J : Orange
Package
A: 5mm Mini Oval 50° x 70°
Note:
Please refer to AB 5337 for complete information about part numbering system.
2
Absolute Maximum Ratings
T
J
= 25°C
Parameter
DC Forward Current
[1]
Peak Forward Current
Power Dissipation
Reverse Voltage
LED Junction Temperature
Operating Temperature Range
Storage Temperature Range
Notes:
1. Derate linearly as shown in Figure 4.
2. Duty Factor 30%, frequency 1KHz.
Red / Orange
50
100
[2]
120
5 (I
R
= 100
μA)
130
-40 to +100
-40 to +100
Unit
mA
mA
mW
V
°C
°C
°C
Electrical / Optical Characteristics
T
J
= 25°C
Parameter
Forward Voltage
Red / Orange
Reverse Voltage
Dominant Wavelength
[1]
Red
Orange
Peak Wavelength
Red
Orange
Thermal Resistance
Luminous Efficacy
[2]
Red
Orange
Thermal coefficient of
λ
d
Red
Orange
Symbol
V
F
V
R
λ
d
Min.
1.8
5
618
600
Typ.
2.1
Max.
2.4
Units
V
V
nm
Test Conditions
I
F
= 20 mA
I
F
= 100
μA
I
F
= 20 mA
626
605
634
609
240
200
335
630
612
nm
λ
PEAK
Peak of Wavelength of Spectral
Distribution at I
F
= 20 mA
LED Junction-to Anode lead
Emitted Luminous Power/Emitted
Radiant Power
I
F
= 20 mA ; +25°C ≤ T
J
≤ +100°C
Rθ
J-PIN
η
V
°C/W
lm/W
nm/°C
0.050
0.083
Notes:
1. The dominant wavelength is derived from the chromaticity Diagram and represents the color of the lamp.
2. The radiant intensity, I
e
in watts per steradian, may be found from the equation I
e
= I
V
/η
V
where I
V
is the luminous intensity in candelas and
η
V
is
the luminous efficacy in lumens/watt.
3.
ηe
=
Φv
/ I
F
x V
F
where
Φv
is the emitted luminous flux, I
F
is electrical forward current and V
F
is the forward voltage.
3
1.0
0.8
RELATIVE INTENSITY
Orange
0.6
0.4
0.2
0.0
500
100
80
60
40
20
0
Red
FORWARD CURRENT-mA
550
600
WAVELENGTH - nm
650
700
0
1
2
FORWARD VOLTAGE-V
3

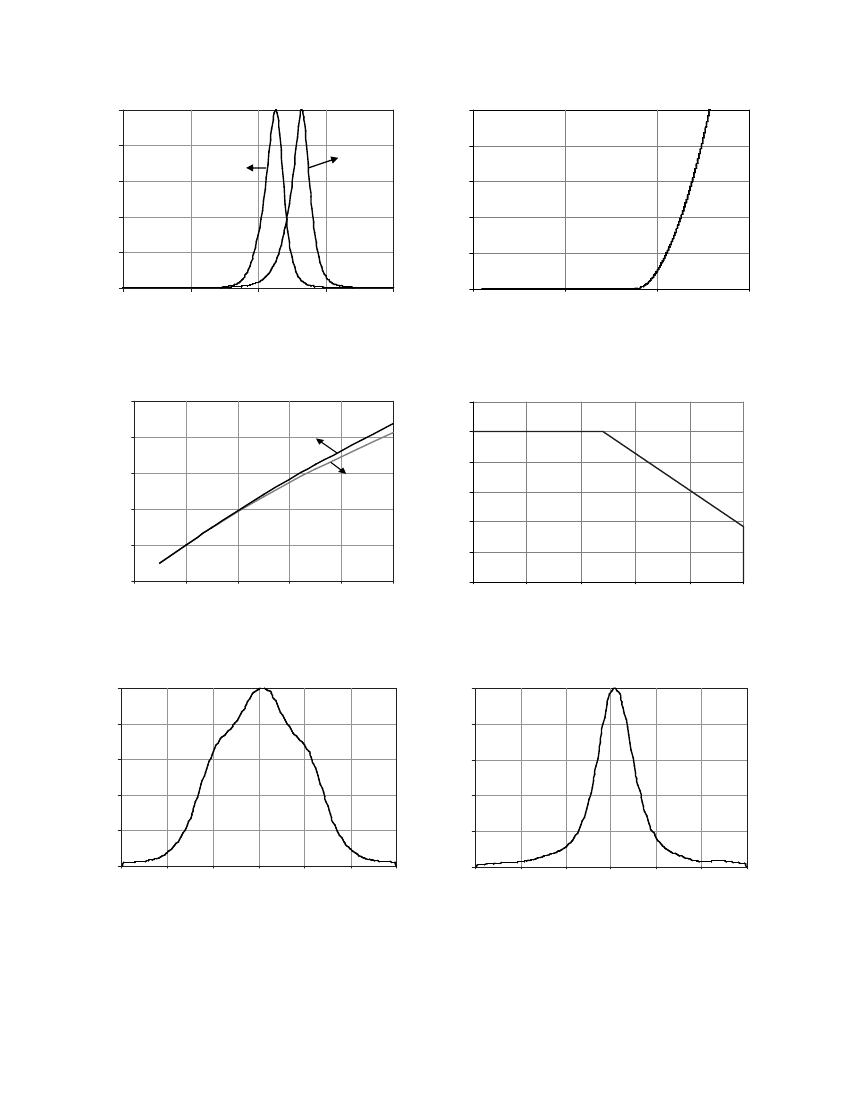

Figure 1. Relative Intensity vs Wavelength
Figure 2. Forward Current vs Forward Voltage
IF MAX - MAXIMUM FORWARD CURRENT - mA
5.0
RELATIVE LUMINOUS INTENSITY
(NORMALIZED AT 20 mA)
4.0
3.0
2.0
1.0
0.0
Red
60
50
40
30
20
10
0
0
20
40
60
TA - AMBIENT TEMPERATURE - C
80
100
Orange
0
20
40
60
80
DC FORWARD CURRENT - mA
100
Figure 3. Relative Intensity vs Forward Current
Figure 4. Maximum Forward Current vs Ambient Temperature
1.0
0.8
0.6
0.4
0.2
0.0
-90
1.0
0.8
0.6
0.4
0.2
0.0
-90
NORMALIZED INTENSITY
NORMALIZED INTENSITY
-60
-30
0
30
ANGULAR DISPLACEMENT-DEGREE
60
90
-60
-30
0
30
60
ANGULAR DISPLACEMENT-DEGREE
90
Figure 5. Radiation Pattern - Major Axis
Figure 6. Radiation Pattern - Minor Axis
4
10
RELATIVE LIGHT OUTPUT
(NORMALIZED AT T
J
=25°C)
FORWARD VOLTAGE SHIFT-V
Orange
Red
0.2
0.15
0.1
0.05
0
-0.05
-0.1
-0.15
-0.2
Orange
Red
1
0.1
-40
-20
0
20
40
60
80 100
T
J
- JUNCTION TEMPERATURE - °C
120
140
-40
-20
0
20 40 60 80 100
T
J
- JUNCTION TEMPERATURE - °C
120
140
Figure 7. Relative Light Output vs Junction Temperature
Figure 8. Relative Forward Voltage vs Junction Temperature
Intensity Bin Limit Table (1.2: 1 Iv Bin Ratio)
Intensity (mcd) at 20 mA
Bin
Z
1
2
Red Color Range
Min Dom Max Dom X min
618
630
0.6872
0.6690
Y Min
0.3126
0.3149
X max
0.6890
0.7080
Y max
0.2943
0.2920
Min
2400
2900
3500
Max
2900
3500
4200
Tolerance for each bin limit is ± 0.5nm
Tolerance for each bin limit is ± 15%
V
F
Bin Table (V at 20mA)
Bin ID
VD
VA
VB
Orange Color Range
Max
2.0
2.2
2.4
2
3
604
608
608
612
Min
1.8
2.0
2.2
Bin
1
Min
Dom
600
Max
Dom
604
Xmin
0.6107
0.6262
0.6285
0.6418
0.6418
0.3405
Ymin
0.3720
0.3723
0.3545
0.3405
0.6549
0.3282
Xmax
0.6288
0.6436
0.6436
0.6575
0.6575
0.6712
Ymax
0.3545
0.3552
0.3552
0.3405
0.3405
0.3280
Tolerance for each bin limit is ± 0.05V
Avago Color Bin on CIE 1931 Chromaticity Diagram
0.400
Tolerance for each bin limit is ± 0.5nm
0.380
Orange
0.360
1
2
0.340
3
0.320
Red
Y
0.300
0.280
0.500
0.550
0.600
0.650
x
0.700
0.750
0.800
5
