TRANSITRONIX
DC/DC Converter Series Datasheet
Datasheet # F002011
TCF-series
Single and Dual Output DC/DC Converter – Unregulated
>
2-Watts
>
SIP Package
>
Fixed Input Range
>
>
1,000 VDC Isolation
ELECTRICAL SPECIFICATIONS
All specifications are typical at nominal input, full load, and 25°C unless otherwise noted.
INPUT SPECIFICATIONS
Input Voltage Range (DC)
3.3V ±10%
5V ±10%
12V ±10%
15V ±10%
24V ±10%
LC
Input Filter
OUTPUT SPECIFICATIONS
Output Voltage Range (DC)
Single Output
3.3V at 400mA
5V at 400mA
9V at 222mA
12V at 167mA
15V at 133mA
± 5.0%
75mVp-p Typ
Dual Output
±5V at ±200mA
±9V at ±111mA
±12V at ±83mA
±15V at ±67mA
Output Voltage Accuracy
Ripple and Noise
GENERAL SPECIFICATIONS
Switching Frequency
Efficiency
MTBF
Isolation Voltage
RoHS
Short Circuit Protection
75KHZ Typ
73% ~ 86%
3,500,000 Hours Min
1,000VDC
Compliant
1 second
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature Range
Storage Temperature Range
Temperature Coefficient
Cooling
-40°C to +85°C (De-rating linearly to 0% power at 105°C)
-55°C to +125°C
± 0.03%/°C
Free-air Convection
PHYSICAL SPECIFICATIONS
Case Material

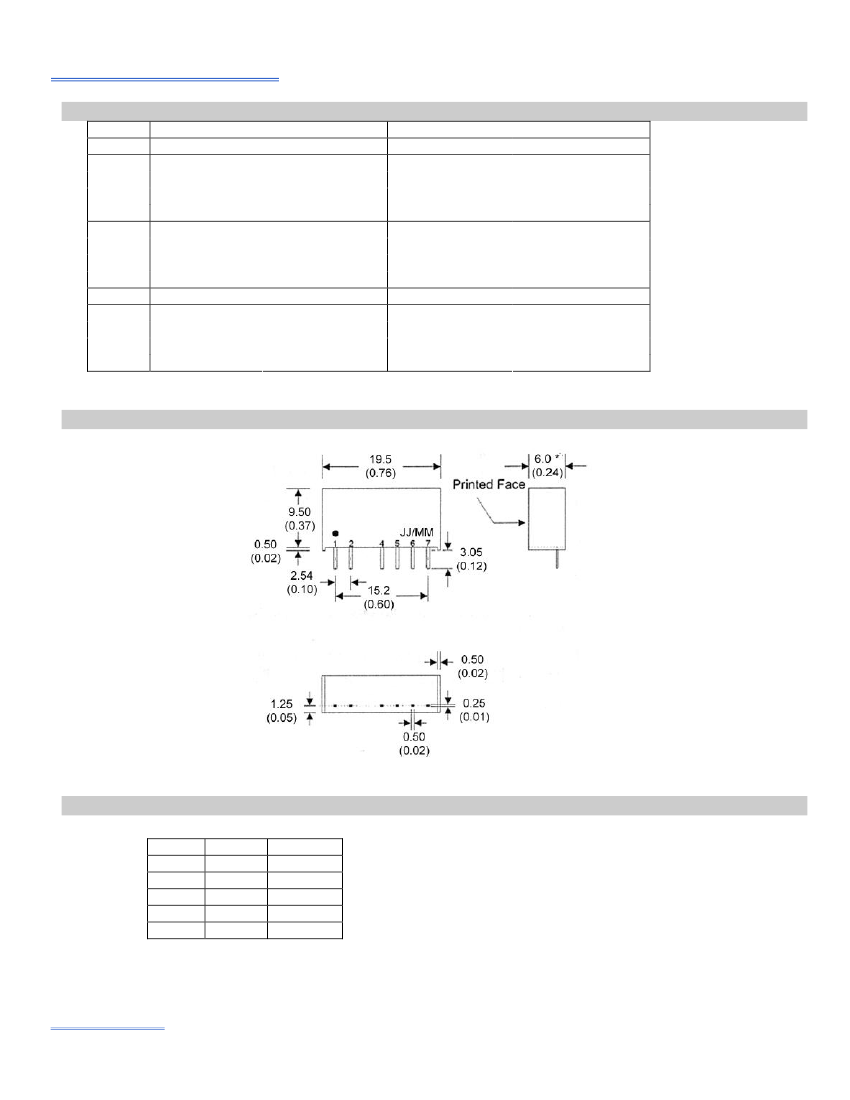

Dimensions (length x width x height) (inches)
TRANSITRONIX
Plastic UL94-V0
SIP: 0.77 x 0.24 x 0.39
Ronkonkoma, New York
http://www.transitronix.com
