Bussmann
¨
CUBEFuseª and Fuseholder
Finger-Safe Dual-Element Time-Delay Fuses
Indicating Ð 600 Volts or Less
TCF & TCFH
1-60 Amps
Catalog Symbol:
TCF (Fuse) & TCFH (Holder)
Dual-Element, Time-Delay Fuse:
10 Seconds
Minimum Operating Time at 500% Rated Current
Ampere Rating:
1 to 60 Amperes
Voltage Rating:
600 Volts AC (or less)
Interrupting Rating:
300,000A RMS Symmetrical (UL)
200,000A RMS Symmetrical (CSA)
Agency Approvals:
U.L. Listed Special Purpose Fuse (UL 248-8) (15-60A)
CSA Certified Fuse (CSA-22.2 No. 106) (15-60A)
U.L. Recognized Fuseholder
CSA Certified Fuseholder (C22.2 Nos. 39 & 65)
Other Electrical Certifications:
CE compliance for the European Union Low Voltage
Directive (50-1000V AC, 75-1500V DC)
DC Voltage Rating:
300 Volts DC (or less), 20,000AIR
Catalog Numbers
TCF1
TCF3
TCF15
TCF17-1/2
TCF30
TCF35
TCF50
TCF60
•

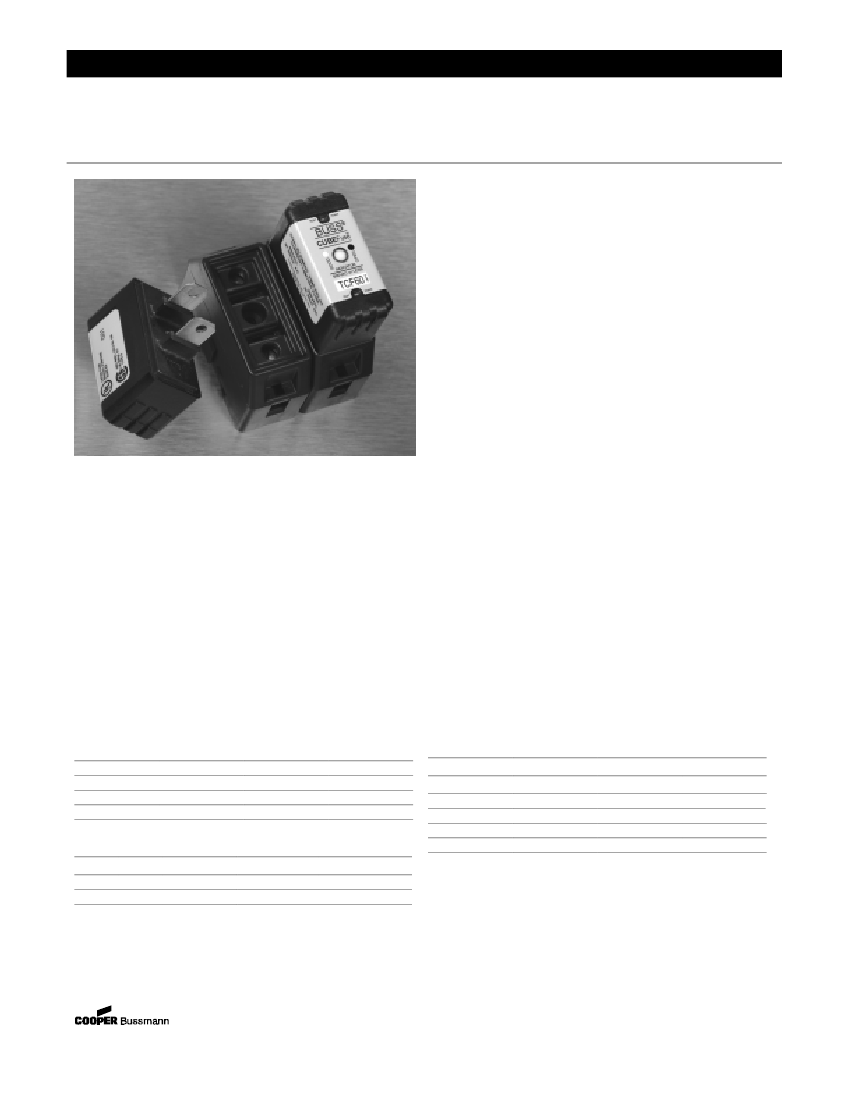

The worldÕs first finger safe industrial fuse system.
•
True dual-element fuse construction with a minimum of 10
seconds time-delay at 500% of rating.
•
Long time-delay minimizes nuisance circuit openings due to
temporary overloads and transient surges.
•
Time-delay characteristic allows for back-up protection
against motor burnout from overload or single phasing if
other overload device fails.
•
Meets UL Class J Time-Delay electrical performance
requirements.
•
High interruption rating to safely interrupt faults up to
300,000 amperes.
•
Faster response to damaging faults reduces destructive
thermal and magnetic forces.
•
Permanent open fuse indication.
•
Designed to be an internationally accepted and specified
world class product.
•
Smallest footprint of any power class fuse including Class J,
CC, T and RK.
•
Meets requirements of IEC 60529 for IP-20 finger safe
rating.
•
No venting of arc or molten metal and gases during
opening.
•
Robust cycling and inrush current withstand.
•
Low let through currents under fault conditions.
•
Provides TYPE 2 Òno damageÓ protection for IEC motors
starters when properly sized.
•
Low watt loss reduces power consumption and lowers
operating temperature.
•
Conventional Class J fuse case sizes and ampere ratings.
•
Dovetail fuseholder design for ganging multiple fuse poles.
•
30 and 60 Amp fuseholders can be ganged together.
•
30 Amp fuses can be plugged into the 60A holder without a
reducer.
•
35mm DIN rail and chassis mounting features.
•
Fuseholder wire ports rated for dual wires.
TCF6
TCF20
TCF40
TCFH30
TCF10
TCF25
TCF45
TCFH60
CUBEFuseª Fuseholder Catalog Data
Amps Poles
Wire *
Dual Wire * Part Number
30
1
#14 - #8 Cu
#14 Cu
TCFH30
60
1
#14 - #4 Cu
#10 Cu
TCFH60
* 75¼C (MIN) CU Wire Only
Carton Quantity and Weight
Ampere
Carton.
Weight Per Carton
Rating
Qty
Lbs.
Kg.
TCF1-30
12
1.39
.518
TCFH1-30
12
2.42
.902
TCF35-60
12
1.42
.530
TCFH35-60
12
2.57
.958
This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice,
to change design or construction of any products and to discontinue or limit distribution of any product. Bussmann also reserves the right to change or update, without notice, any technical information
contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Form No. CUBEFuse
Page 1 of 3
BIF Document: 9000
Bussmann
¨
CUBEFuseª and Fuseholder
Finger-Safe Dual-Element Time-Delay Fuses
Indicating Ð 600 Volts or Less

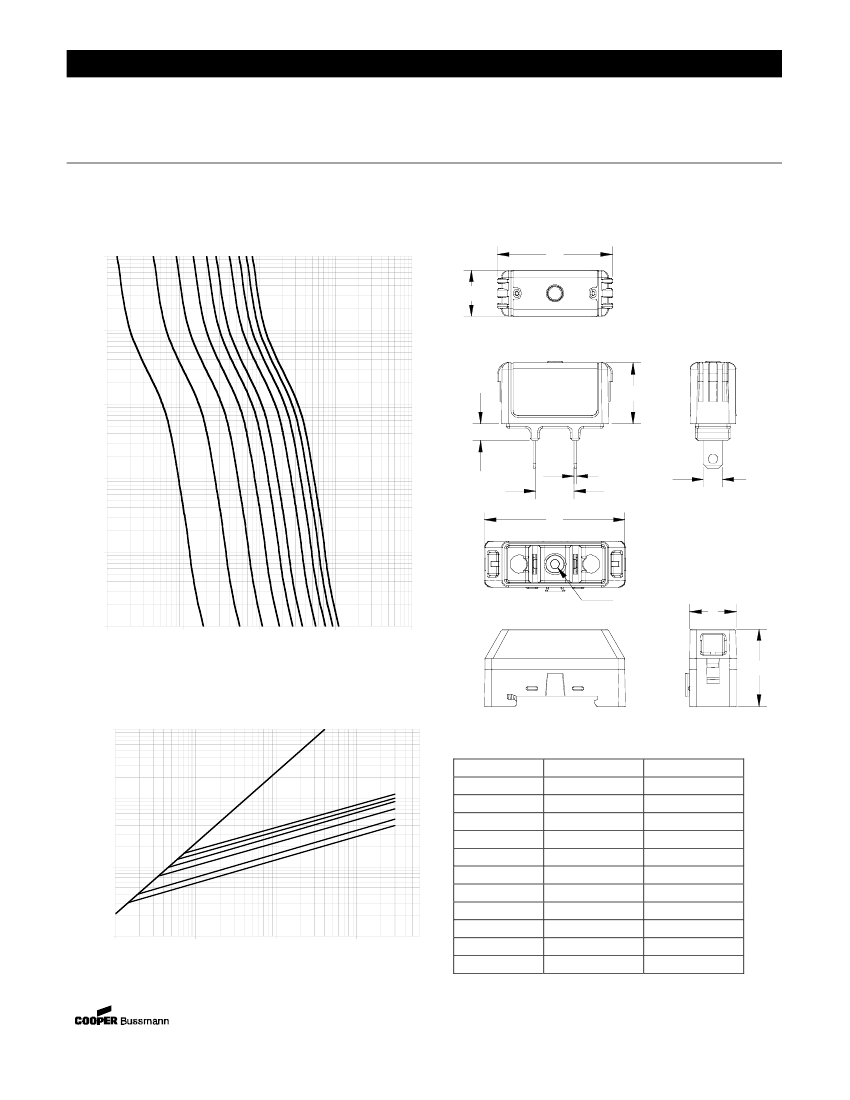

Time-Current Characteristic Curves Ð Average
Melt
6A
10A
15A
20A
30A
40A
50A
60A
1A
3A
TCF & TCFH
1-60 Amps
Dimensional Data For TCF and TCFH
1000
A
B
100
TIME (SECONDS)
10
C
G
1
E
F
H
D
0.1
K
1
1,000
10
10,000
100
0.01
I
RMS SYMMETRICAL CURRENT (AMPS)
J
Current Limitation Curves
INSTANTANEOUS PEAK LET-THRU CURRENT (AMPS)
100,000
B
10,000
60A
50A
40A
30A
20A
15A
1,000
A
300,000
1,000
10,000
100,000
PROSPECTIVE SHORT-CIRCUIT CURRENT
(SYMMETRICAL RMS AMPS)
1,000,000
100
100
Dimension
A
B
C
D
E
F
G
H
I
J
K
30A in [mm]
1.88 [47.75]
.75 [19.05]
1.00 [25.40]
.31 [7.94]
.04 [1.02]
.63 [15.88]
.27 [6.86]
2.30 [58.42]
.76 [19.30]
1.27 [32.18]
.15 [3.81]
60A in [mm]
2.13 [54.10]
1.00 [25.40]
1.13 [28.58]
.44 [11.11]
.04 [1.02]
.63 [15.88]
.38 [9.65]
2.60 [66.04]
1.03 [26.16]
1.53 [38.86]
.17 [4.32]
This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice,
to change design or construction of any products and to discontinue or limit distribution of any product. Bussmann also reserves the right to change or update, without notice, any technical information
contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Form No. CUBEFuse
Page 2 of 3
BIF Document: 9000
Bussmann
¨
CUBEFuseª and Fuseholder
Finger-Safe Dual-Element Time-Delay Fuses
Indicating Ð 600 Volts or Less
TCF & TCFH
1-60 Amps
ELECTRICAL SPECIFICATIONS
Maximum operating voltage:
600VAC (300VDC)
Maximum interruption current:
300K Amps maximum @ 600 VAC
20K Amps maximum @ 300 VDC
Watts Loss at rated current:
TCF30 : 3.99W
TCF60: 6.23W
Current limitation threshold:
30X rating minimum
FUSE MODULE MATERIAL SPECIFICATIONS
Fuse case: 20% glass filled PES (Polyethersulfone)
Fuse terminals: 110 Copper
Fuse terminal plating: Electroless Tin
Fusible element: Copper Alloys
Filler: Pure quartz silica
Fill plug: Nylon
Indicator lens: PES (Polyethersulfone)
Indicator: Energetic chemical
THERMAL SPECIFICATIONS
Operating temperature range: -10¡C to 65¡C
FUSEHOLDER MATERIAL SPECIFICATIONS
Holder case: 15% glass filled PBT (polybutylene terephthalate)
Interface Clips: CDA7025
MECHANICAL SPECIFICATIONS
Tested continuous harmonic vibration:
0.03Ó amplitude,
10Hz-60Hz-10Hz 4min excursion, repeated for 4hr,
repeated for 3 mutually perpendicular planes (fuse in
holder)
Tested impact acceleration:
20g in 3 mutually
perpendicular planes
Interface Clip plating: Electroless Tin
Contact Lubricant: Fluoroether Grease
30A Box Lug: Copper
60A Box Lug: Copper
DIN Rail Spring: Stainless Steel
HANDLING & STORAGE SPECIFICATIONS
Storage Temperature:
-10¡C to 65¡C
This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice,
to change design or construction of any products and to discontinue or limit distribution of any product. Bussmann also reserves the right to change or update, without notice, any technical information
contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Form No. CUBEFuse
Page 3 of 3
BIF Document: 9000
