BK1/TDC11-1.5A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BK1/TDC11-1.5A

BK1/TDC11-1.5A: DescriptionFAST BLOW ELECTRIC FUSE, 1.5A, 250VAC, 15A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size65KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BK1/TDC11-1.5A Overview

FAST BLOW ELECTRIC FUSE, 1.5A, 250VAC, 15A (IR), INLINE/HOLDER

BK1/TDC11-1.5A Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	unknown
Fusing characteristics	FAST
body height	31.8 mm
Body length or diameter	6.35 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	TDC
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	6.35mm x 31.8mm
Rated breaking capacity	15 A
Rated current	1.5 A
Rated voltage (AC)	250 V
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

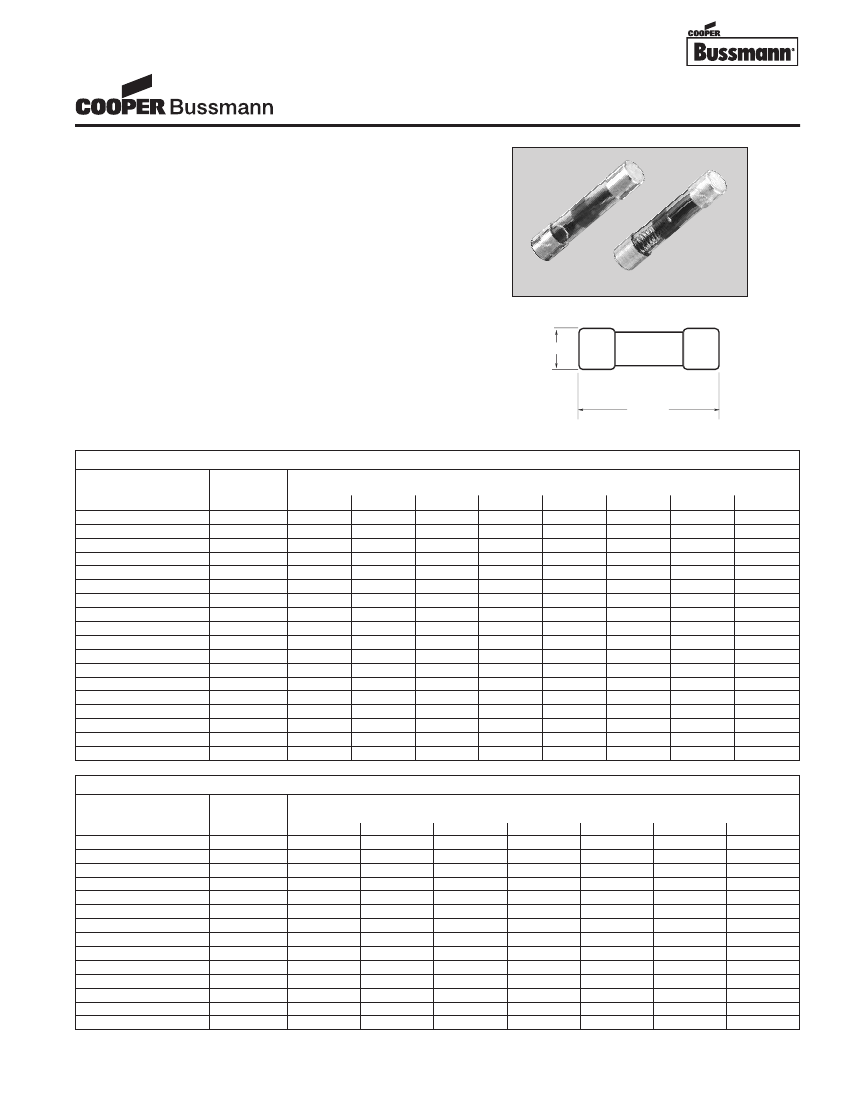

1/4" x 1-1/4" Fuses

TDC Series, Glass Tube

Description

TDC10

• Fast Acting

• 1/4" x 1-1/4" physical size

• Glass tube, electroplated brass endcap construction

• Interrupting rating equals 10 times rated current

• Designed to British Standard BS2950A

TDC11

• Time Delay

• 1/4" x 1-1/4" physical size

• Glass tube, electroplated brass endcap construction

• Interrupting rating equals 10 times rated current

Ordering

• Specify packaging and product code

Dimensions

⁄

(inches)

6.35mm

35mm

31.8mm

SPECIFICATIONS - TDC10

Product Code

TDC10-50MA

TDC10-60MA

TDC10-100MA

TDC10-150MA

TDC10-250MA

TDC10-500MA

TDC10-750MA

TDC10-1A

TDC10-1.5A

TDC10-2A

TDC10-3A

TDC10-5A

TDC10-7A

TDC10-10A

TDC10-12A

TDC10-15A

TDC10-20A

TDC10-25A

Voltage

Rating

1000V

750V

500V

350V

250V

150V

100V

32V

1000V

500MA

600MA

1.5A

2.5A

750V

500V

7.5A

Interrupting

Rating*

350V

250V

10A

15A

20A

30A

50A

150V

70A

100V

100A

32V

120A

150A

200A

250A

SPECIFICATIONS - TDC11

Product Code

TDC11-50MA

TDC11-60MA

TDC11-100MA

TDC11-150MA

TDC11-250MA

TDC11-500MA

TDC11-750MA

TDC11-1A

TDC11-1.5A

TDC11-2A

TDC11-3A

TDC11-5A

TDC11-7A

TDC11-10A

Voltage

Rating

1000V

750V

500V

350V

250V

150V

100V

1000V

500MA

600MA

1.5A

2.5A

750V

500V

7.5A

Interrupting

Rating*

350V

10A

250V

15A

20A

30A

50A

150V

70A

100V

100A

* Interrupting Rating: Interrupting rating is 10 times the rated current.

** DC Cold Resistance (Measured at <10% of rated current)

BK1/TDC11-1.5A Related Products

	BK1/TDC11-1.5A	BK1/TDC11-5A	BK1/TDC11-500MA	BK1/TDC11-3A	BK1/TDC11-1A	BK1/TDC11-100MA	BK1/TDC11-250MA	BK1/TDC11-2A	BK1/TDC11-150MA	BK1/TDC11-50MA
Description	FAST BLOW ELECTRIC FUSE, 1.5A, 250VAC, 15A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 5A, 250VAC, 50A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 0.5A, 750VAC, 5A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 3A, 250VAC, 30A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 1A, 350VAC, 10A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 0.1A, 1000VAC, 1A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 0.25A, 1000VAC, 2.5A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 2A, 250VAC, 20A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 0.15A, 1000VAC, 1.5A (IR), INLINE/HOLDER	FAST BLOW ELECTRIC FUSE, 0.05A, 1000VAC, 0.5A (IR), INLINE/HOLDER
Maker	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Fusing characteristics	FAST	FAST	FAST	FAST	FAST	FAST	FAST	FAST	FAST	FAST
body height	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm
Body length or diameter	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Manufacturer's serial number	TDC	TDC	TDC	TDC	TDC	TDC	TDC	TDC	TDC	TDC
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
method of packing	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX	BOX
physical size	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm	6.35mm x 31.8mm
Rated breaking capacity	15 A	50 A	5 A	30 A	10 A	1 A	2.5 A	20 A	1.5 A	0.5 A
Rated current	1.5 A	5 A	0.5 A	3 A	1 A	0.1 A	0.25 A	2 A	0.15 A	0.05 A
Rated voltage (AC)	250 V	250 V	750 V	250 V	350 V	1000 V	1000 V	250 V	1000 V	1000 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP
Base Number Matches	1	1	1	1	1	1	1	1	1	1
