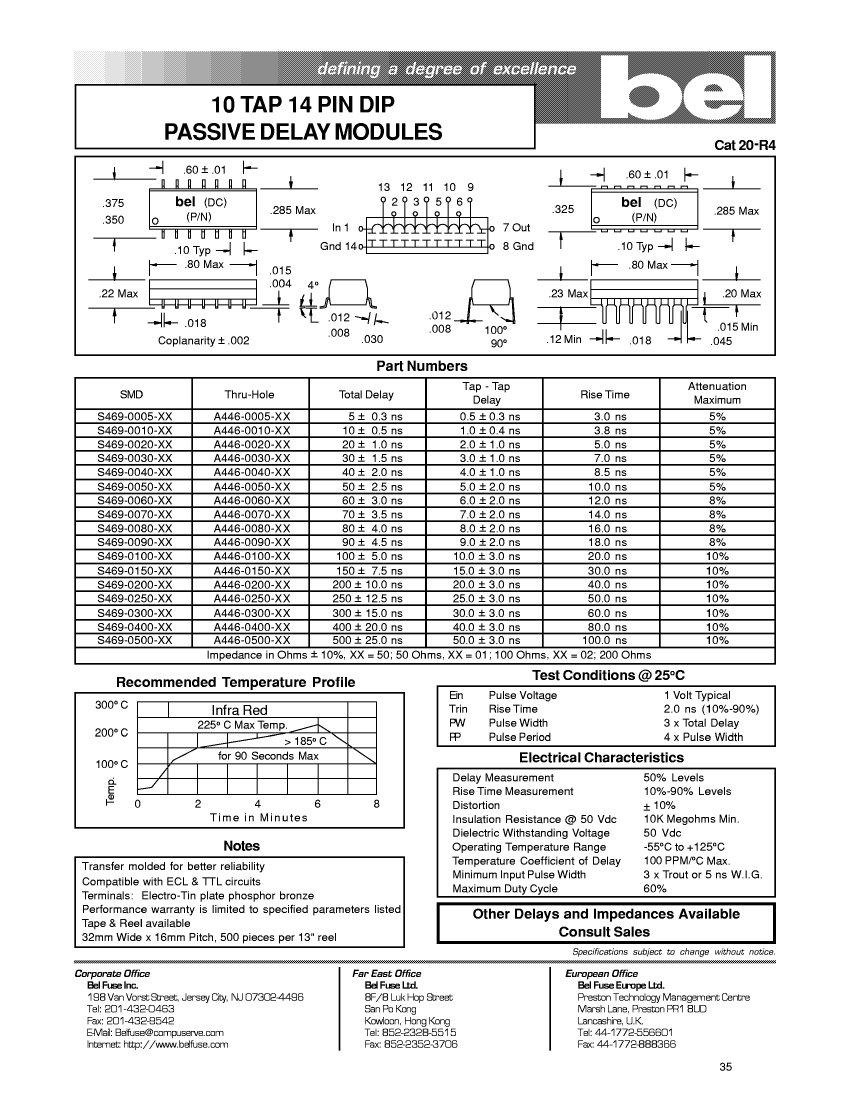

S469-0005-100 datasheet, PDF - EEWORLD Datasheet

S469-0005-100: DescriptionPassive Delay Line, 1-Func, 10-Tap, True Output, PDSO14, SMD-14; Categorylogic logic; File Size84KB，1 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

S469-0005-100 Overview

Passive Delay Line, 1-Func, 10-Tap, True Output, PDSO14, SMD-14

Parameter Name	Attribute value
Maker	Bel Fuse
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G14
Logic integrated circuit type	PASSIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance nominal value (Z0)	100 Ω
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	5.588 mm
surface mount	YES
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	5 ns
Base Number Matches	1
