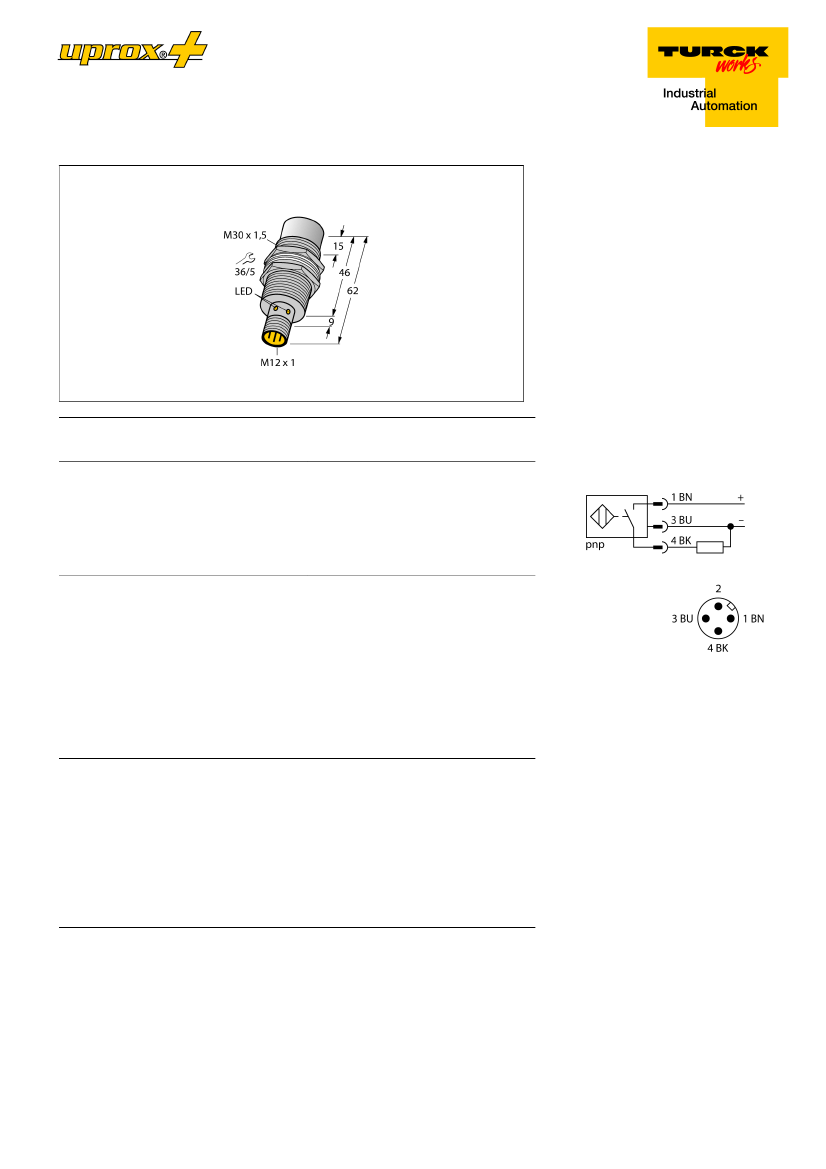

Inductive sensor
With WeldGuard™ Coating
NI30U-MT30-AP6X2-H1141/S1589
■
Threaded barrel, M18 x 1
■
Brass, PTFE
■
Front cap with special coating, very re-
sistant to thermal and mechanical load
■
Factor 1 for all metals
■
Protection class IP68
■
Resistant to magnetic fields
■
Large switching distance
■
Integrated protection against pre-atten-
uation
■
Little metal-free spaces
■
DC 3-wire, 10…30 VDC
■
NO contact, PNP output
Type designation
Ident-No.
Rated switching distance Sn
Mounting conditions
Secured operating distance
Repeat accuracy
Temperature drift
Hysteresis
Ambient temperature
Operating voltage
Residual ripple
DC rated operational current
No-load current I
0
Residual current
Isolation test voltage
Short-circuit protection
Voltage drop at I
e
Wire breakage/Reverse polarity protection
Output function
Protection class
Switching frequency
Design
Dimensions
Housing material
Active area material
Max. tightening torque housing nut
Electrical connection
Vibration resistance
Shock resistance
Protection class
MTTF
Packaging unit
Power-on indication
Switching state
NI30U-MT30-AP6X2-H1141/S1589
1646648
30 mm
Non-flush
ð
(0,81 x Sn) mm
ð
2 % of full scale
ð
± 10 %
3…15 %
-30…+85 °C
10…30 VDC
ð
10 % U
ss
ð
200 mA
ð
20 mA
ð
0.1 mA
ð
0.5 kV
yes/ Cyclic
ð
1.8 V
yes/ Complete
3-wire, NO contact, PNP
÷
1 kHz
Threaded barrel,M30 × 1.5
62 mm
Metal, CuZn, PTFE-coated
Plastic, PBT + WeldGuard™ , PTFE-coated
75 Nm
Connectors, M12 × 1
55 Hz (1 mm)
30 g (11 ms)
IP68
874 years acc. to SN 29500 (Ed. 99) 40 °C
1
LED,Green
LED,Yellow
■
M12 x 1 male connector
Wiring Diagram
Functional principle
Inductive sensors detect metal objects con-
tactless and wear-free. Due to the patented
multi-coil system,
uprox®+
sensors have dis-
tinct advantages over conventional sensors.
They excel in largest switching distances,
maximum flexibility and operational reliability
as well as efficient standardization.
Edition • 2018-05-22T09:58:06+02:00
1/3
TURCK Inc.
ñ
3000 Campus Drive Minneapolis, MN 55441-2656
ñ
Phone: 763-553-7300
ñ
Application Support: 1-800-544-7769
ñ
Fax 763-553-0708
ñ
www.turck.com
Inductive sensor
With WeldGuard™ Coating
NI30U-MT30-AP6X2-H1141/S1589

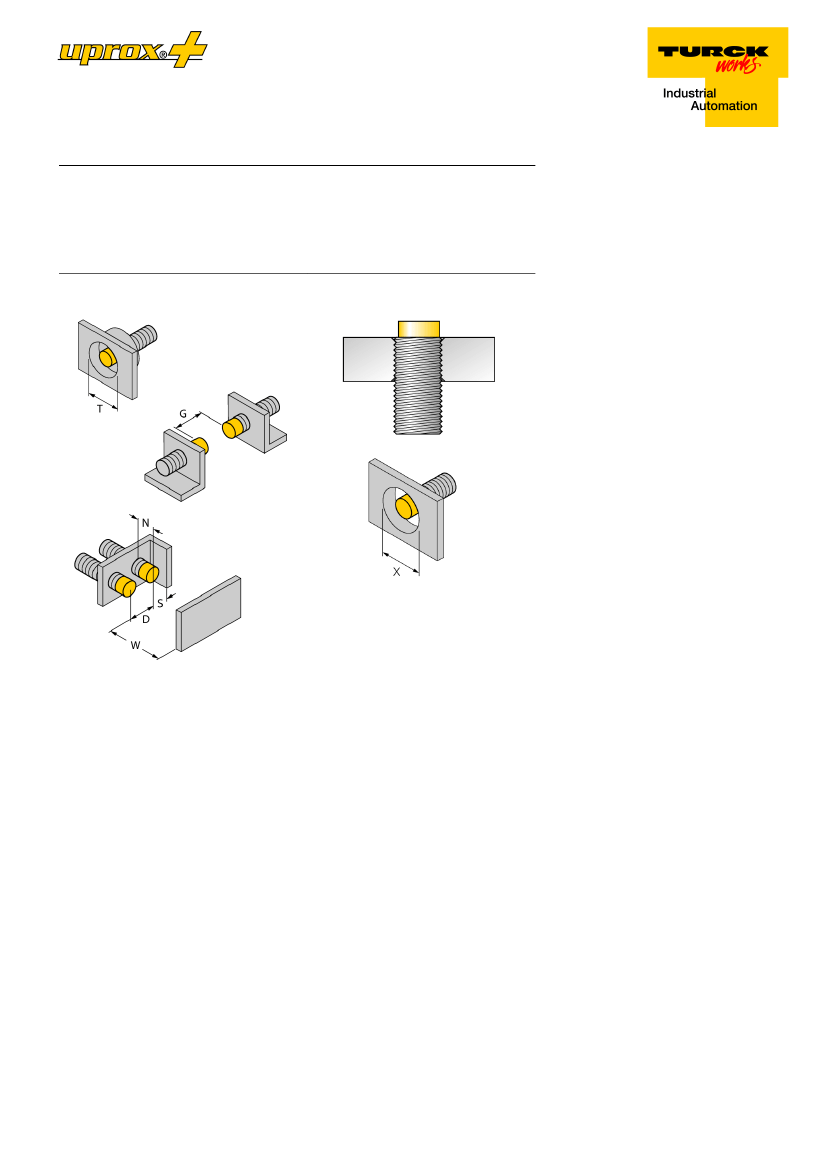

Distance D
Distance W
Distance T
Distance S
Distance G
Distance N
Diameter active area B
3xB
3 x Sn
3xB
1.5 x B
6 x Sn
2 x Sn
Ø 30 mm
All non-flush mountable
uprox®+
threaded barrel sen-
sors can be screwed to the upper edge of the bar-
rel. Thus safe operation is guaranteed with a reduced
switching distance of max. 20 %.
When installed in an aperture plate a distance of X =
140 mm must be observed.
Edition • 2018-05-22T09:58:06+02:00
2/3
TURCK Inc.
ñ
3000 Campus Drive Minneapolis, MN 55441-2656
ñ
Phone: 763-553-7300
ñ
Application Support: 1-800-544-7769
ñ
Fax 763-553-0708
ñ
www.turck.com
Inductive sensor
With WeldGuard™ Coating
NI30U-MT30-AP6X2-H1141/S1589

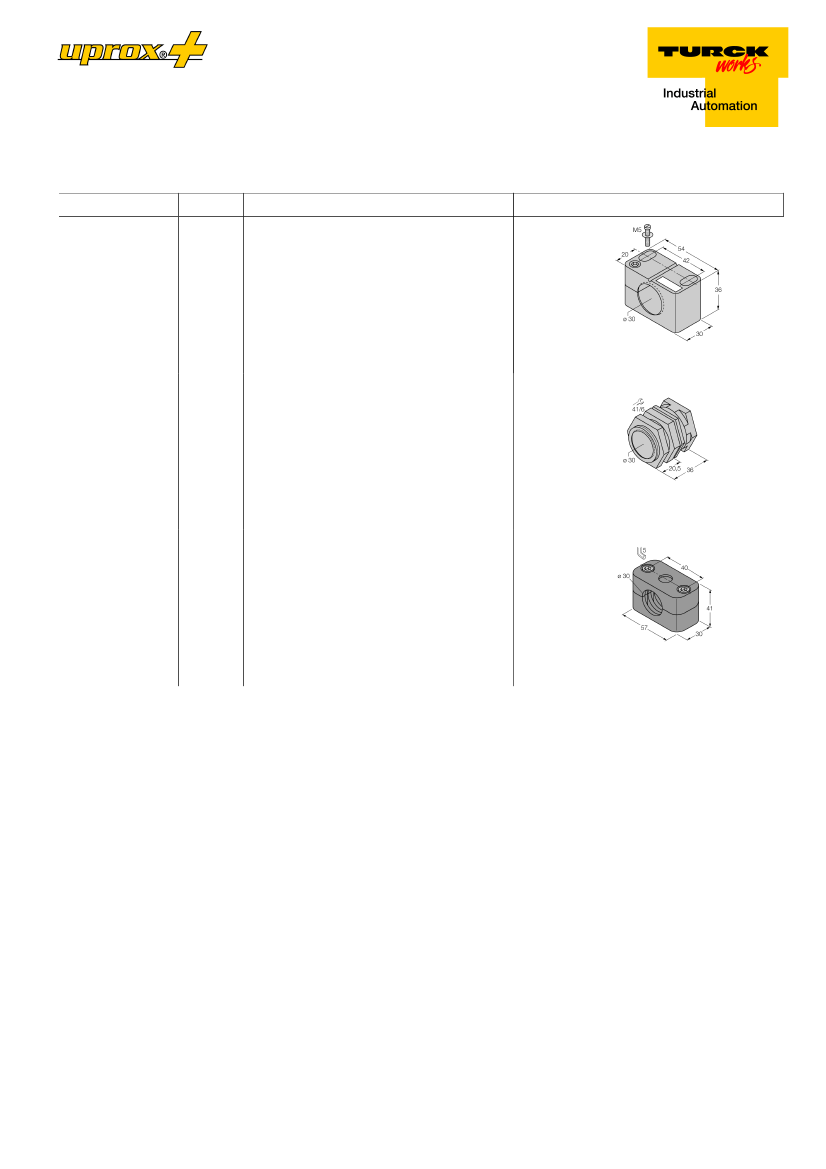

Accessories
Type code
BST-30B
Ident-No.
6947216
Description
Fixing clamp for threaded barrel devices, with dead-stop; ma-
terial: PA6
QMT-30
6945105
Quick-mount bracket with dead-stop; material: brass, PTFE-
coated; male thread M36 x 1.5. Note: The switching distance
of the proximity switches may reduce when using quick-
mount brackets.
BSS-30
6901319
Mounting bracket for smooth and threaded barrel devices;
material: Polypropylene
Edition • 2018-05-22T09:58:06+02:00
3/3
TURCK Inc.
ñ
3000 Campus Drive Minneapolis, MN 55441-2656
ñ
Phone: 763-553-7300
ñ
Application Support: 1-800-544-7769
ñ
Fax 763-553-0708
ñ
www.turck.com
