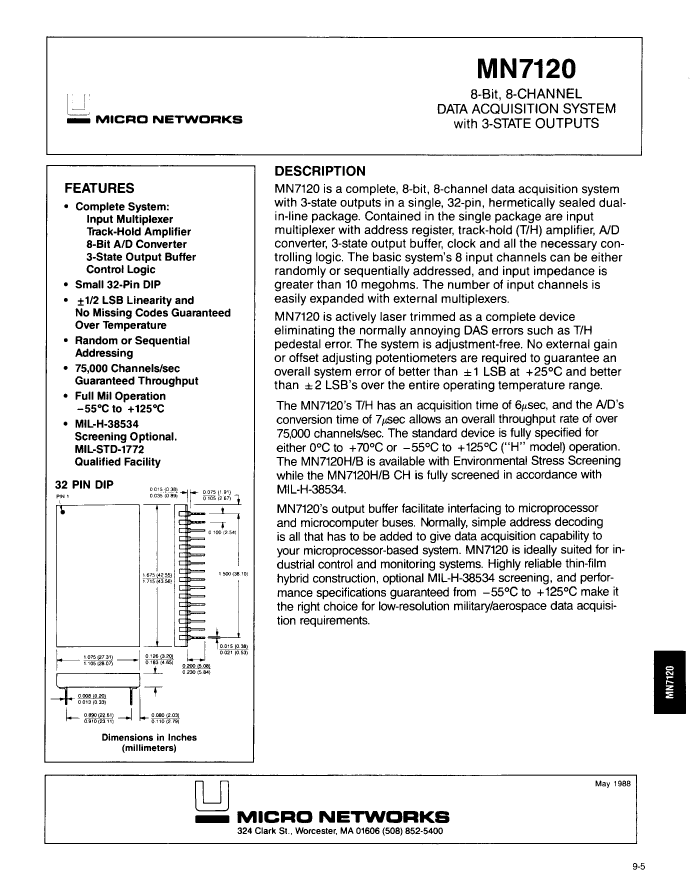

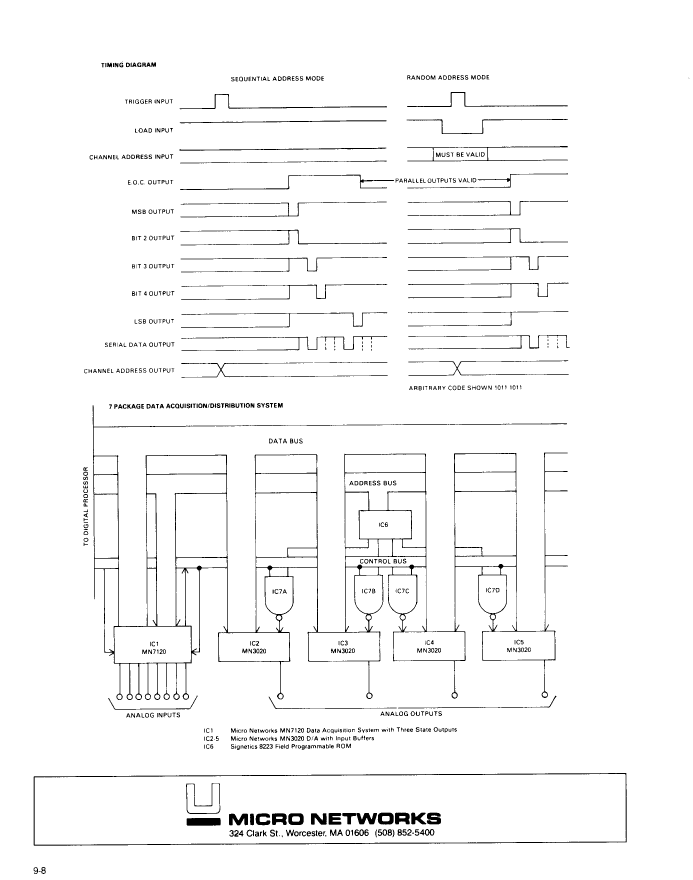

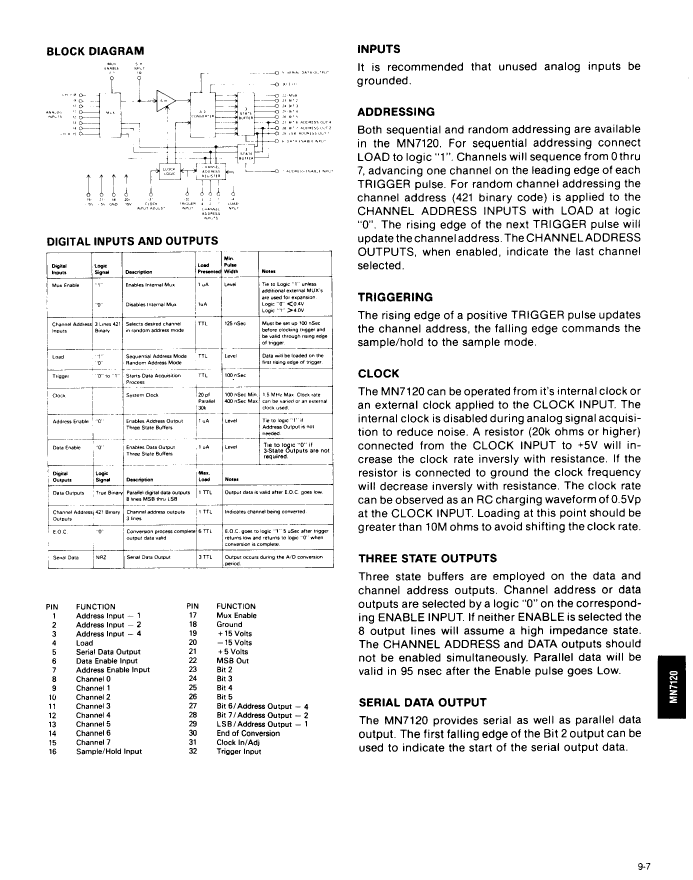

ADC Subsystem, 8-Bit, 1 Func, 8 Channel, Serial, Parallel, 8 Bits Access, Hybrid, CDIP32, HERMETIC SEALED, DIP-32

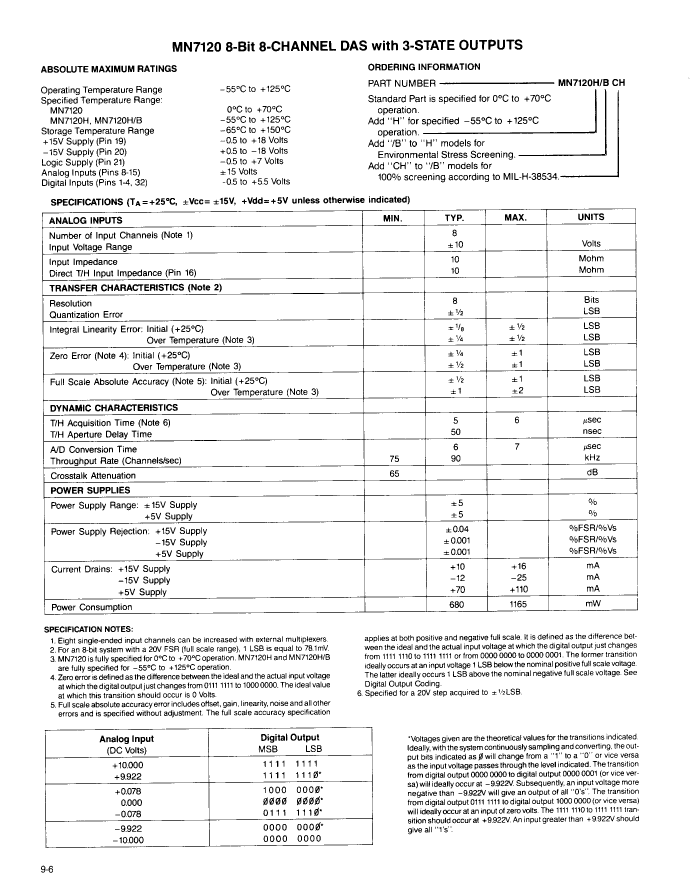

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Spectrum Microwave |
| Parts packaging code | DIP |
| package instruction | DIP, DIP32,.9 |
| Contacts | 32 |
| Reach Compliance Code | unknown |
| ECCN code | 3A001.A.2.C |
| Maximum analog input voltage | 10 V |
| Minimum analog input voltage | -10 V |
| Maximum conversion time | 7 µs |
| Converter type | ADC SUBSYSTEM |
| JESD-30 code | R-CDIP-T32 |
| JESD-609 code | e0 |
| length | 43.055 mm |
| Maximum linear error (EL) | 0.2% |
| Nominal negative supply voltage | -15 V |
| Number of analog input channels | 8 |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 32 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output bit code | BINARY |
| Output format | SERIAL, PARALLEL, 8 BITS |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP32,.9 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5,+-15 V |
| Certification status | Not Qualified |
| Sample and hold/Track and hold | SAMPLE |
| Filter level | MIL-STD-883 Class B (Modified) |
| Maximum seat height | 5.54 mm |
| Maximum slew rate | 110 mA |
| Nominal supply voltage | 15 V |
| surface mount | NO |
| technology | HYBRID |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 22.86 mm |
| Base Number Matches | 1 |
| MN7120H/B | MN7120H/BCH | MN7120H | MN7120 | |
|---|---|---|---|---|
| Description | ADC Subsystem, 8-Bit, 1 Func, 8 Channel, Serial, Parallel, 8 Bits Access, Hybrid, CDIP32, HERMETIC SEALED, DIP-32 | ADC Subsystem, 8-Bit, 1 Func, 8 Channel, Serial, Parallel, 8 Bits Access, Hybrid, CDIP32, HERMETIC SEALED, DIP-32 | ADC Subsystem, 8-Bit, 1 Func, 8 Channel, Serial, Parallel, 8 Bits Access, Hybrid, CDIP32, HERMETIC SEALED, DIP-32 | ADC Subsystem, 8-Bit, 1 Func, 8 Channel, Serial, Parallel, 8 Bits Access, Hybrid, CDIP32, HERMETIC SEALED, DIP-32 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Maker | Spectrum Microwave | Spectrum Microwave | Spectrum Microwave | Spectrum Microwave |
| Parts packaging code | DIP | DIP | DIP | DIP |
| package instruction | DIP, DIP32,.9 | DIP, DIP32,.9 | DIP, DIP32,.9 | DIP, DIP32,.9 |
| Contacts | 32 | 32 | 32 | 32 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| ECCN code | 3A001.A.2.C | 3A001.A.2.C | 3A001.A.2.C | EAR99 |
| Maximum analog input voltage | 10 V | 10 V | 10 V | 10 V |
| Minimum analog input voltage | -10 V | -10 V | -10 V | -10 V |
| Maximum conversion time | 7 µs | 7 µs | 7 µs | 7 µs |
| Converter type | ADC SUBSYSTEM | ADC SUBSYSTEM | ADC SUBSYSTEM | ADC SUBSYSTEM |
| JESD-30 code | R-CDIP-T32 | R-CDIP-T32 | R-CDIP-T32 | R-CDIP-T32 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| length | 43.055 mm | 43.055 mm | 43.055 mm | 43.055 mm |
| Maximum linear error (EL) | 0.2% | 0.2% | 0.2% | 0.2% |
| Nominal negative supply voltage | -15 V | -15 V | -15 V | -15 V |
| Number of analog input channels | 8 | 8 | 8 | 8 |
| Number of digits | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 32 | 32 | 32 | 32 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 70 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | - |
| Output bit code | BINARY | BINARY | BINARY | BINARY |
| Output format | SERIAL, PARALLEL, 8 BITS | SERIAL, PARALLEL, 8 BITS | SERIAL, PARALLEL, 8 BITS | SERIAL, PARALLEL, 8 BITS |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP32,.9 | DIP32,.9 | DIP32,.9 | DIP32,.9 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5,+-15 V | 5,+-15 V | 5,+-15 V | 5,+-15 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Sample and hold/Track and hold | SAMPLE | SAMPLE | SAMPLE | SAMPLE |
| Maximum seat height | 5.54 mm | 5.54 mm | 5.54 mm | 5.54 mm |
| Maximum slew rate | 110 mA | 110 mA | 110 mA | 110 mA |
| Nominal supply voltage | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO | NO |
| technology | HYBRID | HYBRID | HYBRID | HYBRID |
| Temperature level | MILITARY | MILITARY | MILITARY | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 22.86 mm | 22.86 mm | 22.86 mm | 22.86 mm |
| Base Number Matches | 1 | 1 | 1 | 1 |
