AA-1280-2: Descriptioncompact, single phase, device with very good common mode and differential mode insertion loss; File Size21KB，1 Pages; ManufacturerJMK; Websitehttp://www.jmkfilters.com/

Download Datasheet View All

AA-1280-2 Overview

compact, single phase, device with very good common mode and differential mode insertion loss

Preview

Download Datasheet

View All

JMK Inc.

Operating Voltage = 115/250 V~

Operating Current = 2 Amps

Operating Frequency = 50 / 60 Hz

Temperature Range = -30 TO 50 Deg. C

Diel. Withstand (L-CASE) = 1500 V~ FOR 1 MIN.

Diel. Withstand (L-L) = 1500 Vdc For 1 Min.

Leakage Current = 0.5 ma @ 250 V~, 60 Hz

Discharge Volt after 1.0 second = 35 V Max.

Transient Clamping voltage = 354—432 volts

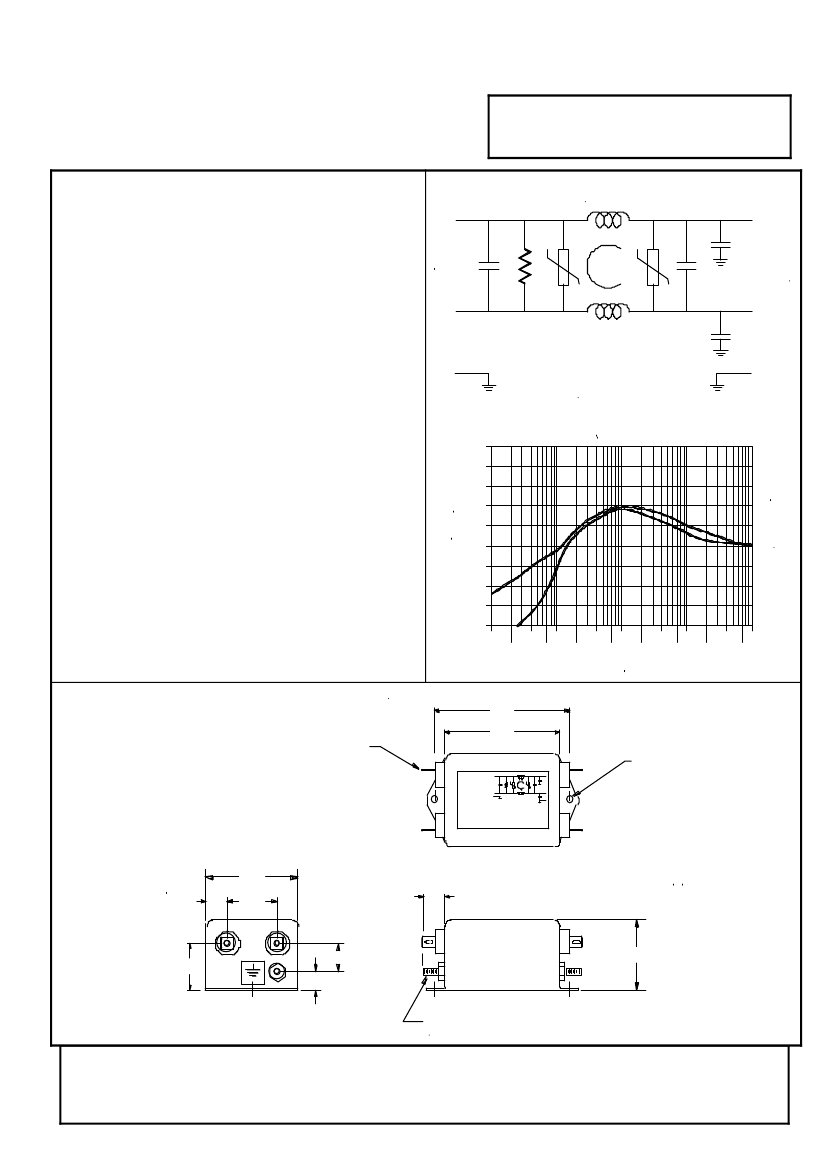

AA-1280-2

LINE

LOAD

Order P/N:

AA-1280-2

INSERTION LOSS (db)

.01

.02

.04

.07

100

FREQUENCY (MEGAHERTZ)

2.94

2.50

FASTON, 0.25x.032

(4 PL)

LINE

LOAD

.188 DIA

JMK, INC.

AA-1280-2

115/250 VAC

50/60 HZ

2 AMP, 50C

ASSMEBLY IN MEXICO

(2 PL)

Cx = 0.68 uF

Cy = .0033 uF

R = 235K

Lc = 10.2 mH

VARISTOR = 250 V~

2.00

0.46

1.08

0.46 TYP

0.61

1.00

1.50

0.39

8-32 THR'D GRD TERM (2PL)

USA

EUR

JMK Inc 15 Caldwell Dr. Amherst, NH 03031

JMK Inc Glasgow G13 1DN Scotland UK

PH: 603 886-4100

FX: 603 886-4115

email: info@jmkfilters.com

PH: 44-(0) 7785310729 FX: 44-(0) 141-589-1884
