SF7281-4SG-520: DescriptionCircular Connector, 4 Contact(s), Copper Alloy, Female, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size148KB，2 Pages; ManufacturerSwitchcraft

Download Datasheet Parametric View All

SF7281-4SG-520 Overview

Circular Connector, 4 Contact(s), Copper Alloy, Female, Solder Terminal, ROHS COMPLIANT

SF7281-4SG-520 Parametric

Parameter Name	Attribute value
Maker	Switchcraft
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SHIELDED
Back shell type	SOLID
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	COPPER ALLOY
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

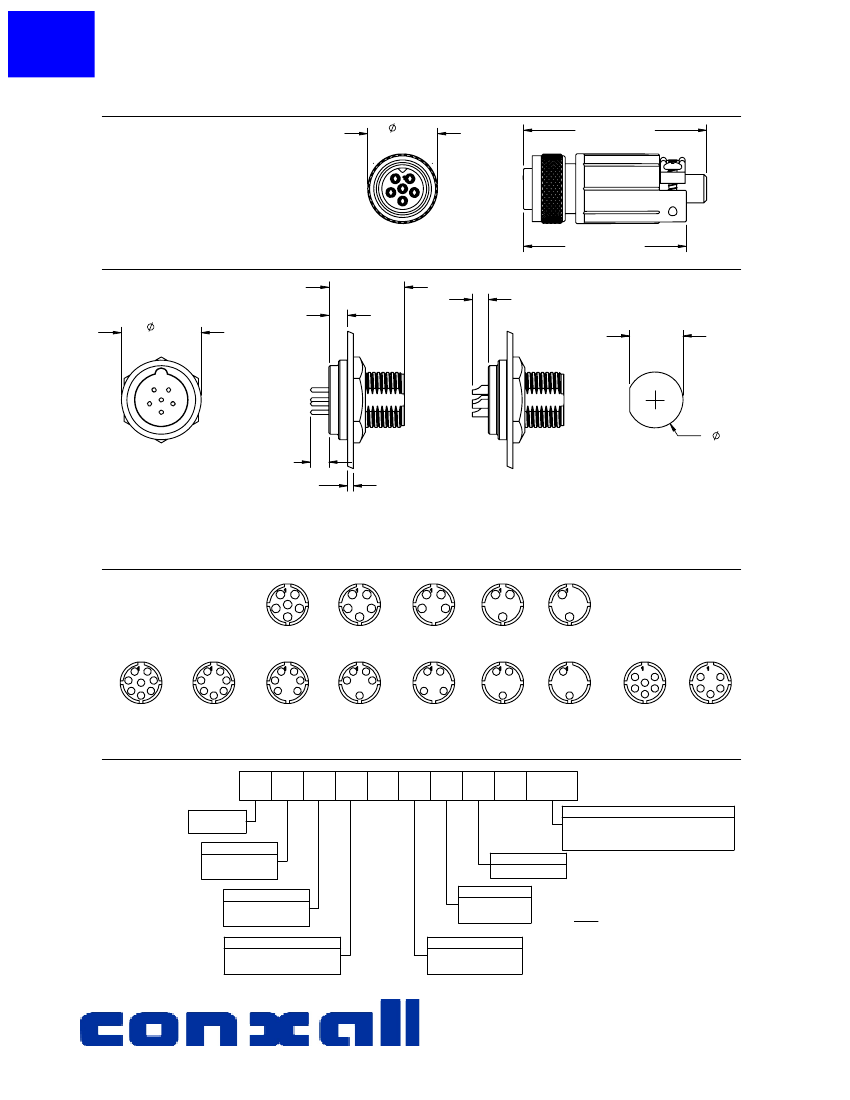

Preview

Download Datasheet

View All

a

Switchcraft

®

co.

Made in USA

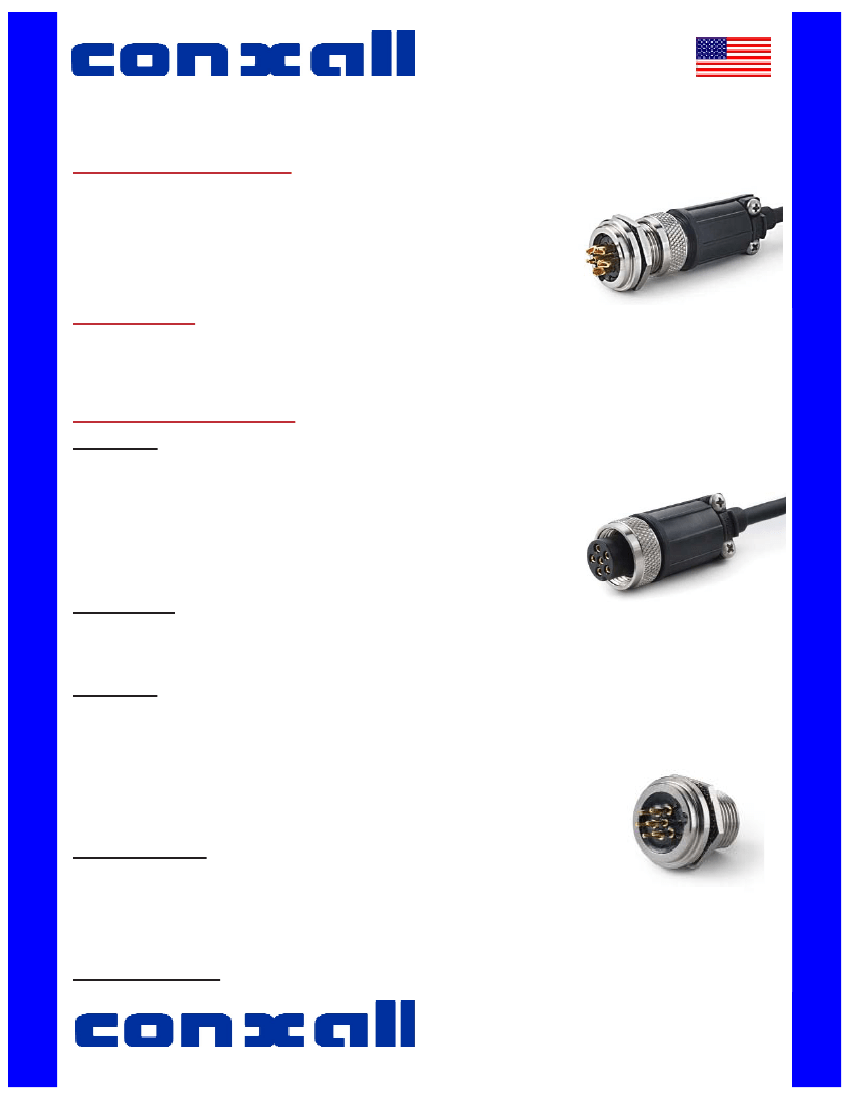

HARSH ENVIRONMENT IP66 / IP68 SHIELDED MINI-CON-X® CONNECTOR

Features and Benefits

●

Protects circuits from EMI & RF interference

Rugged machined metal housing and construction

Field installable

Scoop-proof connector design

Same panel cutout as MINI-CON-X

®

Also available overmolded

Mated Cable End

Applications

●

Conveyor Equipment

●

Machine Tools

●

Spot Welders

●

Automated Assembly

●

Food Processing Equipment

●

Packaging & Material Handling Equipment

Product Specifications

Materials

Panel Shell, Cable Housing & Coupling Nuts:

Nickel plated copper alloy

All Connector Inserts:

Engineered Polyester Resin

Contacts:

Gold plated copper alloy with nickel underplate

Backshell & Strap:

G.F. Nylon

O-Rings:

Neoprene

Grommet:

Santoprene

®

Screws:

Stainless Steel

Mechanical

Shock:

Method 213, Mil-Std 202

Vibration:

Method 201, Mil-Std 202

Life:

400 insertion/withdrawal cycles

Electrical

Voltage Rating:

Tested at 600 VRMS

Insulation Resistance:

Method 302, Mil-Std 202

Contact Resistance:

Method 307, Mil-Std 202

Current Ratings:

13A: 1 - 6, #16 contacts with 16 AWG Wire

7.5A: 1 - 3, #20 contacts with 20 AWG Wire

5.6A: 4 - 8, #20 contacts with 20 AWG Wire

Environmental

Operating Temperature Limits:

-40°C (-40°F) to

+85°C (+185°F)

Temperature Rise:

UL 1054

Thermal Shock:

Method 107, Mil-Std 202

Moisture/Salt Spray:

Method 106F / 101 Mil-Std 202

Product Ratings:

IP66 / IP68 (when mated), RoHS Compliant

®
