LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
BIPOLAR TYPE LED LAMPS
Pb
Lead-Free Parts
LHG3362-PF
DATA SHEET
DOC. NO :
REV.
DATE
:
:
QW0905- LHG3362-PF
A
14 - Jul. - 2007
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LHG3362-PF
Page 1/6

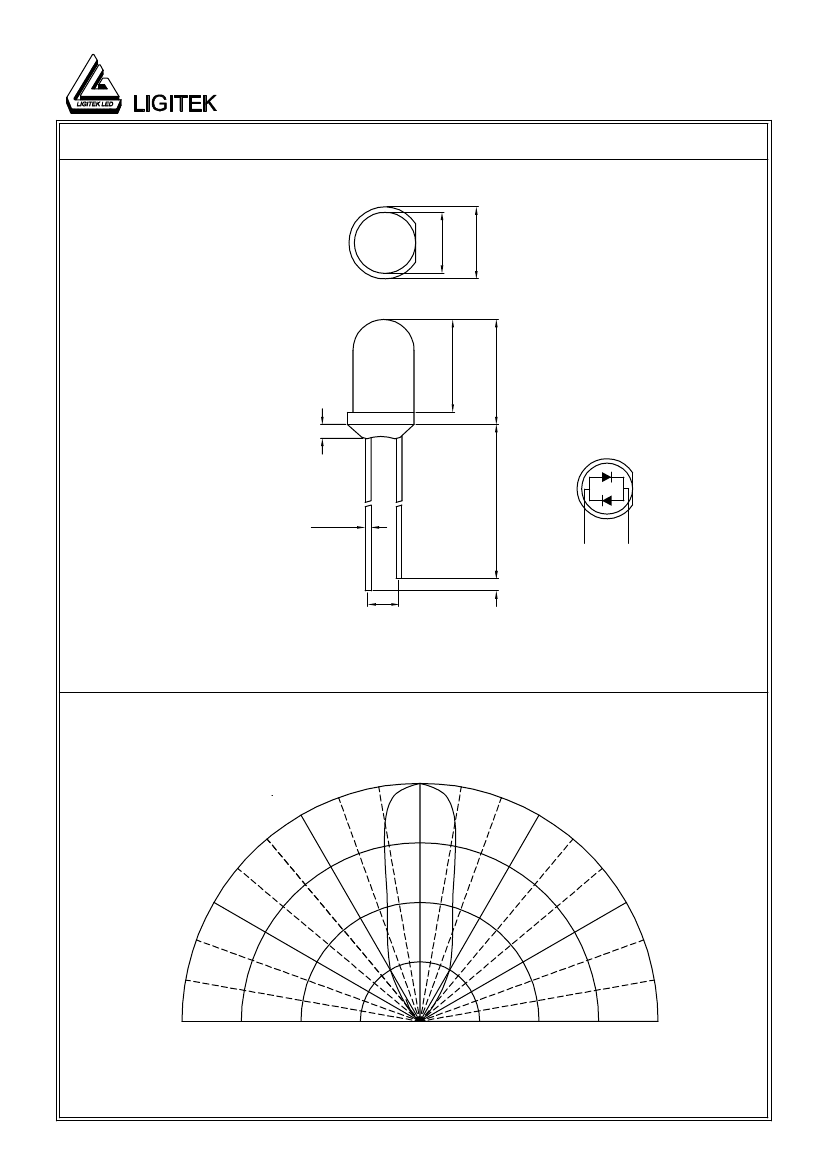

Package Dimensions
5.0
5.9
7.6
8.6
1.5MAX
H
25.0MIN
□
0.5
TYP
1
1.0MIN
2.54TYP
G
2
1
2
Note : 1.All dimension are in millimeter tolerance is
±
0.25mm unless otherwise noted.
2.Specifications are subject to change without notice.
Directivity Radiation
-30
°
0
°
30
°
-60
°
60
°
100% 75% 50%
25%
0
25% 50% 75% 100%
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LHG3362-PF
Page 2/6
Absolute Maximum Ratings at Ta=25
℃
Ratings
Parameter
Symbol
H
Forward Current
Peak Forward Current
Duty 1/10@10KHz
Power Dissipation
Reverse Current @5V
Operating Temperature
Storage Temperature
I
F
I
FP
PD
Ir
T
opr
Tstg
15
60
40
10
-40 ~ +85
-40 ~ +100
G
30
120
100
mA
mA
mW
UNIT
μ
A
℃
℃
Typical Electrical & Optical Characteristics (Ta=25
℃
)
PART NO
MATERIAL
Emitted
GaP
Red
COLOR
Forward
Peak
Spectral
voltage
wave
halfwidth
length
△λ
nm
@ 20mA(V)
λ
Pnm
Luminous
intensity
@10mA(mcd)
Viewing
angle
2
θ
1/2
(deg)
Lens
697
White Diffused
565
90
30
Min. Max. Min. Typ.
1.7
1.7
2.6
2.6
1.2
4.5
2.0
8.0
30
30
LHG3362-PF
GaP
Green
Note : 1.The forward voltage data did not including
±
0.1V testing tolerance.
2. The luminous intensity data did not including
±
15% testing tolerance.
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LHG3362-PF
Page 3/6
Typical Electro-Optical Characteristics Curve
H CHIP
Fig.1 Forward current vs. Forward Voltage
Fig.2 Relative Intensity vs. Forward Current
3.0
1000
Forward Current(mA)
100
Relative Intensity
Normalize @20mA
1.0
2.0
3.0
4.0
5.0
2.5
2.0
1.5
1.0
0.5
0.0
1.0
10
100
1000
10
1.0
0.1
Forward Voltage(V)
Fig.3 Forward Voltage vs. Temperature
Forward Current(mA)
Fig.4 Relative Intensity vs. Temperature
Forward Voltage@20mA
Normalize @25
℃
Relative Intensity@20mA
Normalize @25
℃
-40
-20
0
20
40
60
80
100
1.2
3.0
2.5
2.0
1.5
1.0
0.5
0.0
-40
-20
0
20
40
60
80
100
1.1
1.0
0.9
0.8
Ambient Temperature(
℃
)
Ambient Temperature(
℃
)
Fig.5 Relative Intensity vs. Wavelength
Relative Intensity@20mA
1.0
0.5
0.0
600
700
800
900
1000
Wavelength (nm)
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LHG3362-PF
Page 4/6
Typical Electro-Optical Characteristics Curve
G CHIP
Fig.1 Forward current vs. Forward Voltage
Fig.2 Relative Intensity vs. Forward Current
3.5
1000
Forward Current(mA)
100
Relative Intensity
Normalize @20mA
1.0
3.0
2.5
2.0
1.5
1.0
0.5
0.0
10
1.0
0.1
2.0
3.0
4.0
5.0
1.0
10
100
1000
Forward Voltage(V)
Fig.3 Forward Voltage vs. Temperature
Forward Current(mA)
Fig.4 Relative Intensity vs. Temperature
3.0
2.5
2.0
1.5
1.0
0.5
0.0
-40
-20
0
20
40
60
80
100
Forward Voltage@20mA
Normalize @25
℃
1.1
1.0
0.9
0.8
-40
-20
0
20
40
60
80
100
Relative Intensity@20mA
Normalize @25
℃
1.2
Ambient Temperature(
℃
)
Ambient Temperature(
℃
)
Fig.5 Relative Intensity vs. Wavelength
Fig.6 Directive Radiation
Relative Intensity@20mA
1.0
0.5
0.0
500
550
600
650
Wavelength (nm)
