MODULES
MAB 06 Series
3 W
S I N G L E
&
D U A L
O U T P U T
D C / D C
I N D U S T R I A L
Features
•
•
•
•
2:1 Input range
500 VDC isolation voltage
24-pin DIP Package
Efficiency to 80 %
Specifications
INPUT
Nominal voltage
Voltage range
Isolation
Filter
OUTPUT
Power
Regulation
3W.
Line:±0.5%.
Load:Single: ±0.5 %. Dual: ±1%.
Single output models require 10% min load to
meet specification. Dual output models require
25% min load to meet specification.
± 2%.
5 V:Max 100mV pp
12/15: max 1%Vpp)
Fold-back. Approx 80% of output current at
short circuit.
±0.05 %/°C.
65-80 %.
–25°C to +71°C.
–40°C to +100°C.
Convection.
200 000 hours at 25°C ambient.
Min. 100 kHz.
Single output: 80pF
Dual output:120pF
Non-conductive black plastic.
10.2 x 20.3 x 31.8 mm
(height H-version 12.7 mm).
12g.
EN55022 Class B
AS/NZS CISPR11 Group 1 Class A
12V, 24V, 48V.
9-18V, 18-36V, 36-72V.
500VDC (3kV available).
PI-type

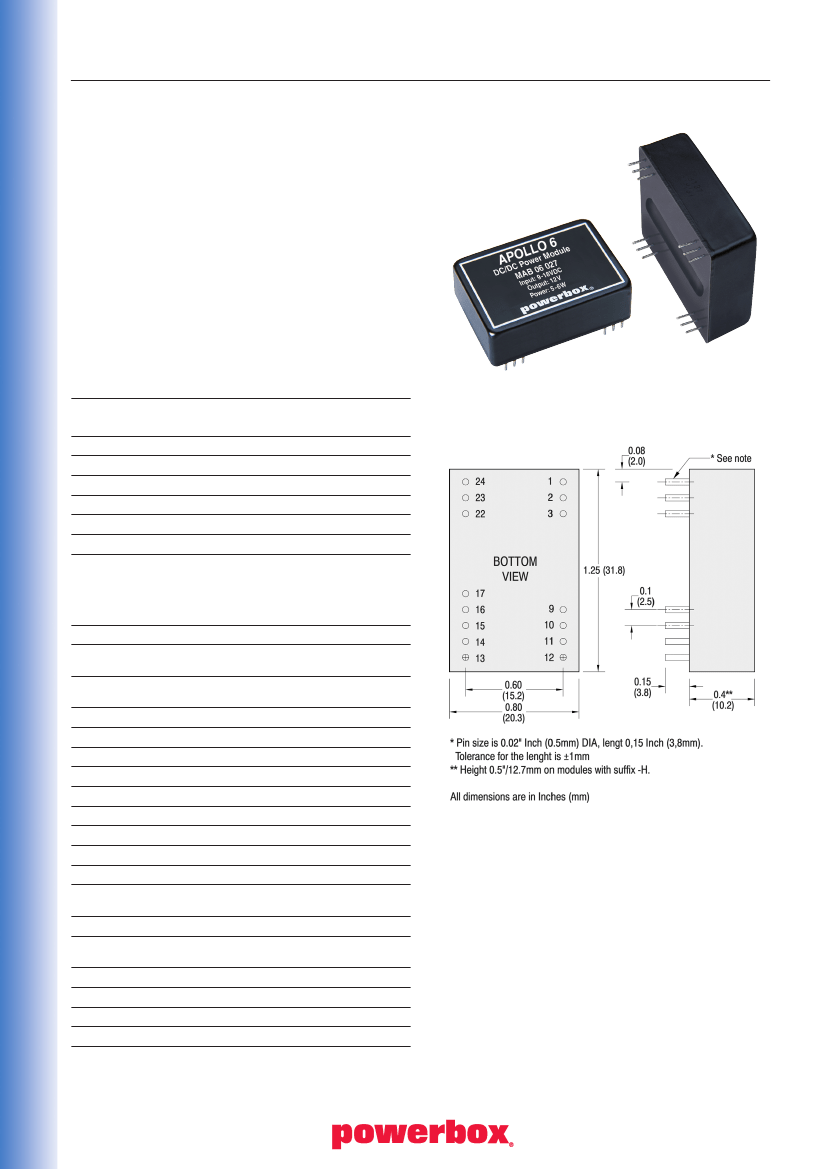

Technical Illustration
Setting accuracy
Ripple and noise
Short circuit protection
Temp coefficient
Efficiency
ENVIRONMENTAL
Operating temperature
Storage temperature
Cooling
GENERAL
MTTF
Switching frequency
Equivalent capacitance
Case
Dimensions (H x W x L)
Weight
STANDARDS
EMI standards
C-Tick
160
MAB 06 Series
3 W
S I N G L E
&
D U A L
O U T P U T
D C / D C
I N D U S T R I A L
MODULES
Selection Table
POWERBOX
ARTICLE
NUMBER
3MAB 06 003
MAB 06 006
MAB 06 009
MAB 06 012
MAB 06 015
MAB 06 018
MAB 06 021
MAB 06 024
INPUT
VOLTAGE
VDC
4.5-6
4.5-6
4.5-6
4.5-6
4.5-6
4.5-6
4.5-6
9-18
9-18
9-18
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
18-36
18-36
18-36
36-72
36-72
36-72
36-72
36-72
36-72
36-72
OUTPUT
VOLTAGE
VDC
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
OUTPUT
CURRENT
MA
600
600
250
200
300
125
100
600
600
250
200
300
125
100
600
600
250
200
300
125
100
600
600
250
200
300
125
100
INPUT
CURRENT
NO LOAD MA
15
15
15
15
25
25
25
7.5
7.5
7.5
7.5
12
12
12
5
5
5
5
7.5
7.5
7.5
3
2
2
2
3
3
3
INPUT
CURRENT
FULL LOAD MA
650
850
800
800
800
800
800
254
340
320
320
340
320
320
125
168
156
156
168
156
156
61
82
78
78
82
80
80
MAB 06 027
MAB 06 030
MAB 06 033
MAB 06 036
MAB 06 039
MAB 06 042
MAB 06 045
MAB 06 048
MAB 06 051
MAB 06 054
MAB 06 057
MAB 06 060
MAB 06 063
MAB 06 066
MAB 06 069
MAB 06 072
MAB 06 075
MAB 06 078
MAB 06 081
MAB 06 084
For isolation voltage 3kV add suffix -H to the article number. Ex MAB 06 003H.
Standard Pin Connection 500VDC
IN
1
2
3
9
10
11
12
13
14
15
16
17
22
23
24
SINGLE
OUTPUT
+V Input
NC
NC
NP
-V Output
+V Output
-V Input
-V Input
+V Output
-V Output
NP
NP
NC
NC
+V Input
DUAL
OUTPUT
+V Input
-V Output
Common
NP
Common
+V Output
-V Input
-V Input
+V Output
Common
NP
NP
Common
-V Output
+V Input
Pin Connection 3KVDC
PIN
1
2
3
9
10
11
12
13
14
15
16
17
22
23
24
SINGLE
OUTPUT
NP
-V Input
-V Input
NC
NC
NC
NP
NP
+V Output
NC
-V Output
NP
+V Input
+V Input
NP
DUAL
OUTPUT
NP
-V Input
-V Input
Common
NC
-V Output
NP
NP
+V Output
NC
Common
NP
+V Input
+V Input
NP
161
