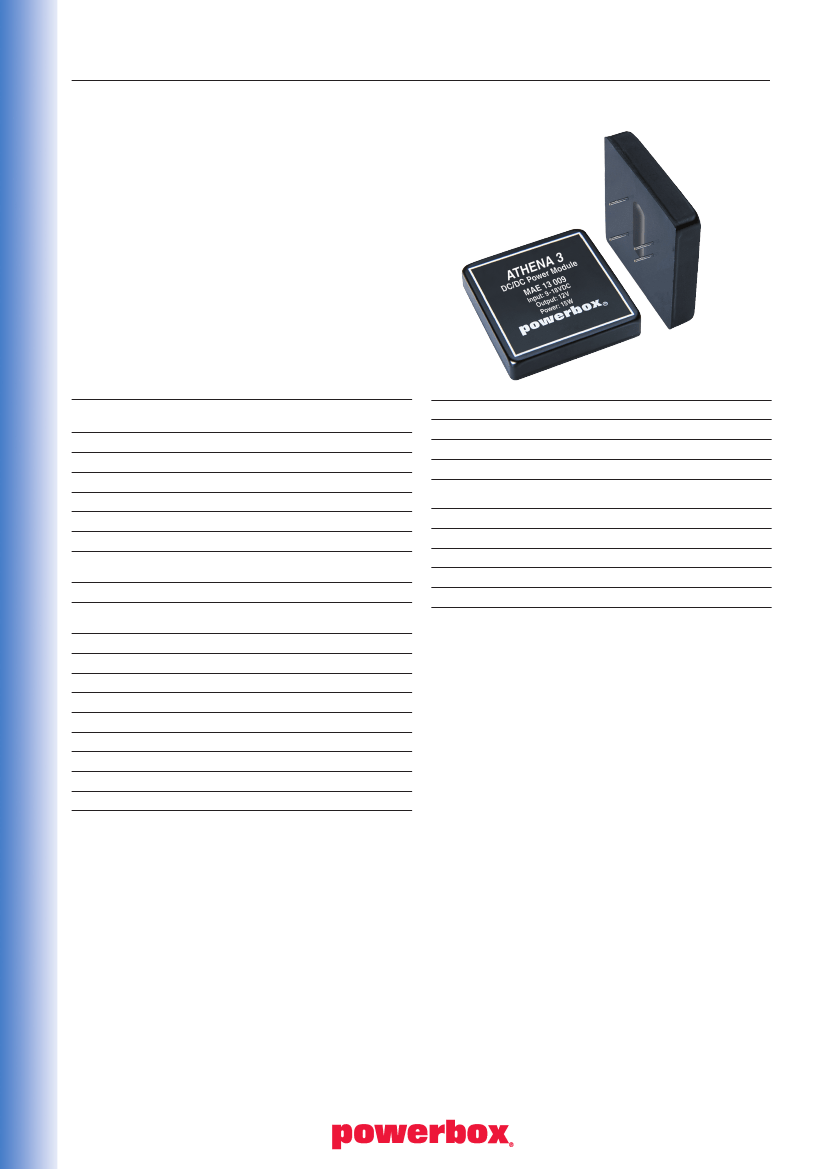

MODULES
MAE 13 Series
10-15
WATTS
SINGLE
&
DUAL
OUTPUT
DC/DC
I N D U S T R I A L
Features
•
•
•
•
•
2:1 Input range
Meet EN55022 class B
Efficiency to 82 %
500 VDC isolation
Six-sided shield
Specifications
INPUT
Nominal voltage
Voltage range
Isolation
Filter
OUTPUT
Power
Regulation
Load transient response
Setting accuracy
Ripple and noise
Short circuit protection
Current limit
Temp coefficient
Efficiency
ENVIRONMENTAL
Operating temperature
Storage temperature
Cooling
–25°C to +71°C.
–40°C to +100°C.
Convection.
10W and 15W.
Line: 0.2%max
Load: 1.0% max
<480µs.
Single: 1% max
Dual: 1% & 3%
Max. 75 mVp-p.
Indefinite and current limit.
Yes.
±0.02 %/°C.
75% to 82%.
12V, 24V, 48V.
9-18V, 18-36V, 36-72V.
500VDC.
PI-type
GENERAL
MTTF
Switching frequency
Equivalent capacitance
Case
Dimensions (H x W x L)
Weight
STANDARDS
RFI/EMI standards
C-Tick
EN55022 class B.
AS/NZS CISPR11 Group 1 Class A
200 000 hours at 25°C ambient.
Min. 200 kHz.
650 pF.
Black coated copper with non-conductive base.
10.2 x 50.8 x 50.8 mm.
58g.
166
MAE 13 Series
10-15
WATTS
SINGLE
&
DUAL
OUTPUT
DC/DC
I N D U S T R I A L
MODULES
Selection Table
POWERBOX
ARTICLE
NUMBER
MAE 13 003
MAE 13 006
MAE 13 009
MAE 13 012
MAE 13 015
MAE 13 018
MAE 13 021
MAE 13 024
MAE 13 027
MAE 13 030
MAE 13 033
MAE 13 036
MAE 13 039
MAE 13 042
MAE 13 045
MAE 13 048
MAE 13 051
MAE 13 054
MAE 13 057
MAE 13 060
MAE 13 063
INPUT
VOLTAGE
VDC
9-18
9-18
9-18
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
18-36
18-36
18-36
36-72
36-72
36-72
36-72
36-72
36-72
36-72
OUTPUT
VOLTAGE
VDC
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
3.3
5
12
15
±5
±12
±15
OUTPUT
CURRENT
MA
3000
3000
1250
1000
1500
625
500
3000
3000
1250
1000
1500
625
500
3000
3000
1250
1000
1500
625
500
INPUT CURRENT
NO LOAD
MA
30
30
30
30
35
35
35
15
15
20
20
25
25
25
20
10
15
15
20
20
20
INPUT CURRENT
FULL LOAD
MA
1250
1660
1625
1625
1620
1620
1620
590
812
772
772
780
780
780
283
390
381
381
386
386
386

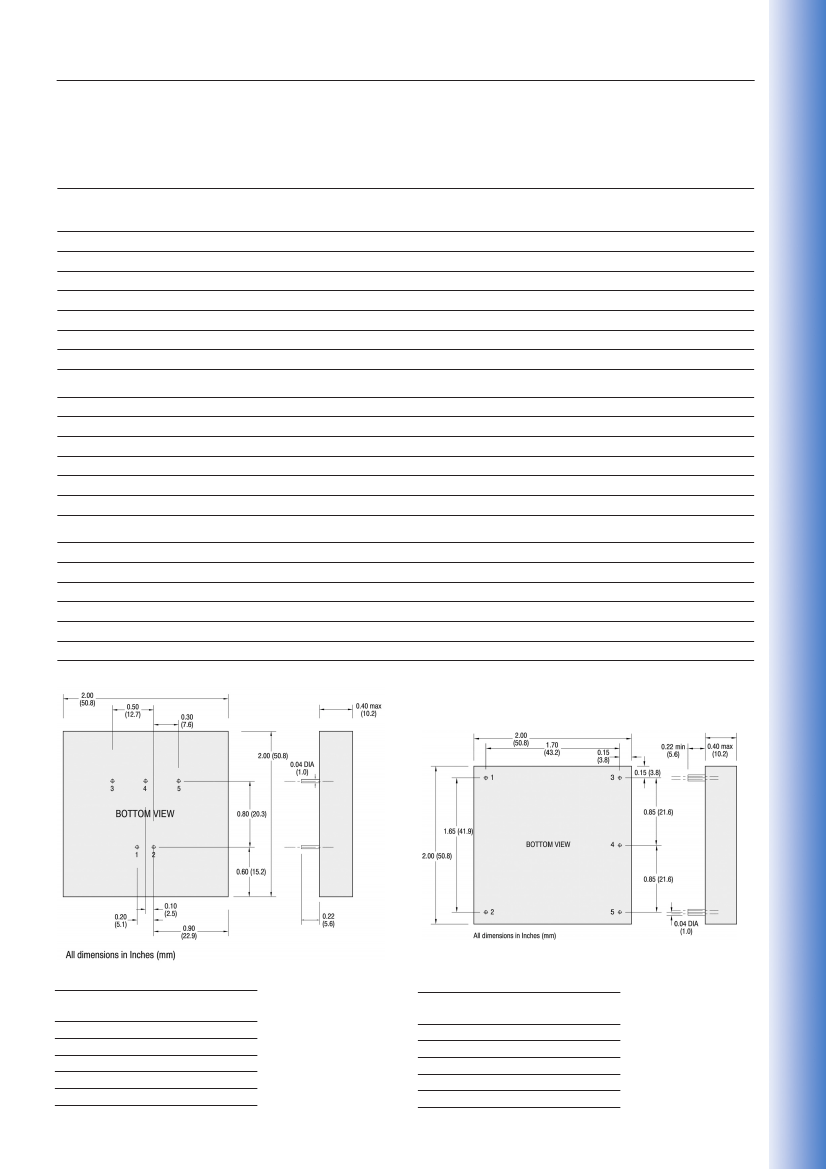

Standard Pin Configuration
Alternative Pin Configuration, Suffix “S”
Add suffix “s” for this pin configuration. Ex MAC 14 003S
Standard Pin Connection
PIN
1
2
3
4
5
SINGLE
OUTPUT
+V Input
- V Input
+V Output
NP
-V Output
DUAL
OUTPUT
+V Input
-V Input
+V Output
Common
-V Output
Suffix “S” Pin Connection
PIN
1
2
3
4
5
SINGLE
OUTPUT
+V Input
- V Input
+V Output
NP
-V Output
DUAL
OUTPUT
+V Input
-V Input
+V Output
Common
-V Output
167
