B8546

Description
Telecom Filter, 2 Function(s), 0.1A
CategoryAnalog mixed-signal IC    filter
File Size103KB,1 Pages
ManufacturerPulse Electronics
Download Datasheet Parametric View All

B8546 Online Shopping

Suppliers Part Number Price MOQ In stock
B8546 - - View Buy Now

B8546 Overview

Telecom Filter, 2 Function(s), 0.1A

B8546 Parametric

Parameter NameAttribute value
MakerPulse Electronics
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum DC resistance50 Ω
filter typeTELECOM FILTER
high15.74 mm
length50.9 mm
Manufacturer's serial numberB8546
Installation typeTHROUGH HOLE MOUNT
Number of functions2
Maximum operating temperature70 °C
Minimum operating temperature
method of packingTRAY
physical sizeL50.9XB16.1XH15.74 (mm)/L2.004XB0.634XH0.62 (inch)
Rated current0.1 A
width16.1 mm
Base Number Matches1

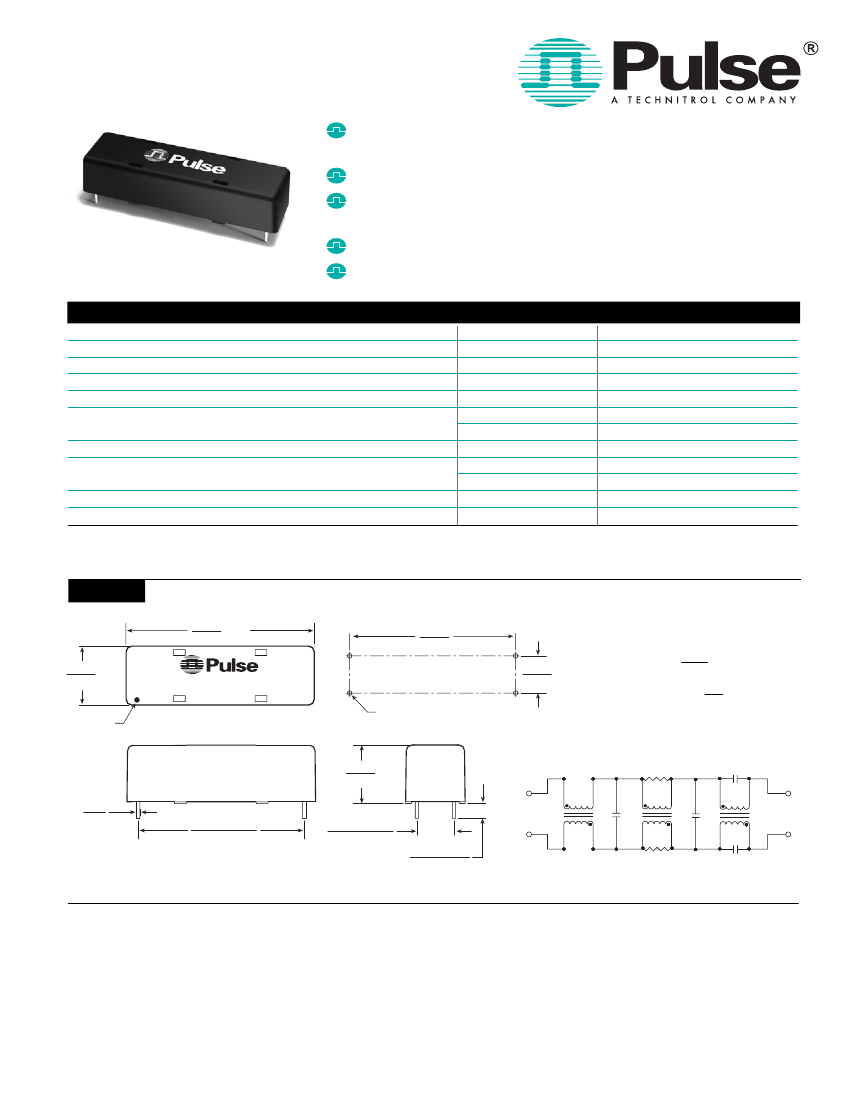

XDSL SPLITTER FILTER MODULE
POTS Central Office Splitter for standard
ADSL applications
Complies with BT-SIN-346 standard
This module is part of a standard series which has
footprint compatibility
Patent pending
ADSL2+ compatible
Electrical Specifications @ 25°C — Operating Temperature 0°C to -70°C
PARAMETER
POTS Impedance
POTS Insertion Loss
POTS Attenuation Distortion relative to 1 kHz
POTS Delay Distortion
POTS Return Loss
Longitudinal Balance
ADSL Insertion Loss
DC Current
Total DC Resistance
FREQUENCY
100Hz to 4kHz
1kHz
200Hz to 3.4kHz
600Hz to 4kHz
200Hz to 2kHz
2kHz to 3.4kHz
100Hz to 3.4kHz
32kHz to 200kHz
200kHz to 2.2MHz
320Ω + 1050Ω / 230nF
-1.0dB MAX
±1.0dB
200µSec MAX
-18dB MIN
-14dB MIN
-52dB MIN
-29dB MIN
-55dB MIN
100mA MAX
50Ω MAX
Mechanical
B8546
2.000 MAX
50,90
.634 MAX
16,10
Pin 1
B8546
SUGGESTED BOARD LAYOUT
1.760
44,70
.394
10,00
4 X Ø 1.25
U. S. Pat. D485536
(Date Code) (Country of Origin)
Weight
. . . . . . . . . . . .15 grams
Tray
. . . . . . . . . . . . . . .35/tray
Dimensions:
Inches
mm
Unless otherwise specified,
all tolerances are ± .010
0,25
Schematic
.620 MAX
15,74
.034
0,86
1.760 ± .010
44,70 ± 0,25
.394 ± .008
10,00 ± 0,20
2
ADSL
& LINE
.138 ± .020
3,50 ± 0,50
3
PHONE
4
1
For More Information:
Pulse Worldwide
Headquarters
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
www.pulseeng.com
TEL: 858 674 8100
FAX: 858 674 8262
Pulse
Northern Europe
3 Huxley Road
Surrey Research Park
Guildford, Surrey GU2 5RE
United Kingdom
TEL: 44 1483 401700
FAX: 44 1483 401701
Pulse
Southern Europe
Zone Industrielle
F-39270
Orgelet
France
TEL: 33 3 84 35 04 04
FAX: 33 3 84 25 46 41
Pulse
Pulse North China
China Headquarters
Room 1002
No. 1
Industrial District
Changan, Dongguan
China
TEL: 86 769 5538070
FAX: 86 769 5538870
No. 819
Nanjing West Rd
Shanghai
China
TEL: 86 21 32181071
FAX: 86 21 32181396
Pulse South Asia
150 Kampong Ampat
#07-01/02
KA Centre
Singapore 368324
TEL: 65 6287 8998
FAX: 65 6280 0080
Pulse North Asia
3F-4, No. 81, Sec. 1
Hsin Tai Wu Road
Hsi-Chih
Taipei Hsien
Taiwan
TEL: 886 2 26980228
FAX: 886 2 26980948
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product
names mentioned herein may be trademarks or registered trademarks of their respective owners.
© Copyright, 2005. Pulse Engineering, Inc. All rights reserved.
www.pulseeng.com
B884.A (9/05)
