CT4015F-07J

Description
General Purpose Inductor, 0.00715uH, 5%, 1 Element, Air-Core, SMD, 1606, CHIP, 1606, ROHS COMPLIANT
CategoryPassive components    inductor
File Size344KB，1 Pages
ManufacturerCT [ Central Technologies ]
Environmental Compliance
Download Datasheet Parametric Compare View All

CT4015F-07J Overview

General Purpose Inductor, 0.00715uH, 5%, 1 Element, Air-Core, SMD, 1606, CHIP, 1606, ROHS COMPLIANT

CT4015F-07J Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerCT [ Central Technologies ]
package instruction1606
Reach Compliance Codecompliant
ECCN codeEAR99
uppercase and lowercase codes1606
core materialAIR
Nominal inductance(L)0.00715 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Minimum quality factor (at nominal inductance)100
self resonant frequency3000 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeFLAT
Test frequency800 MHz
Tolerance5%
Base Number Matches1

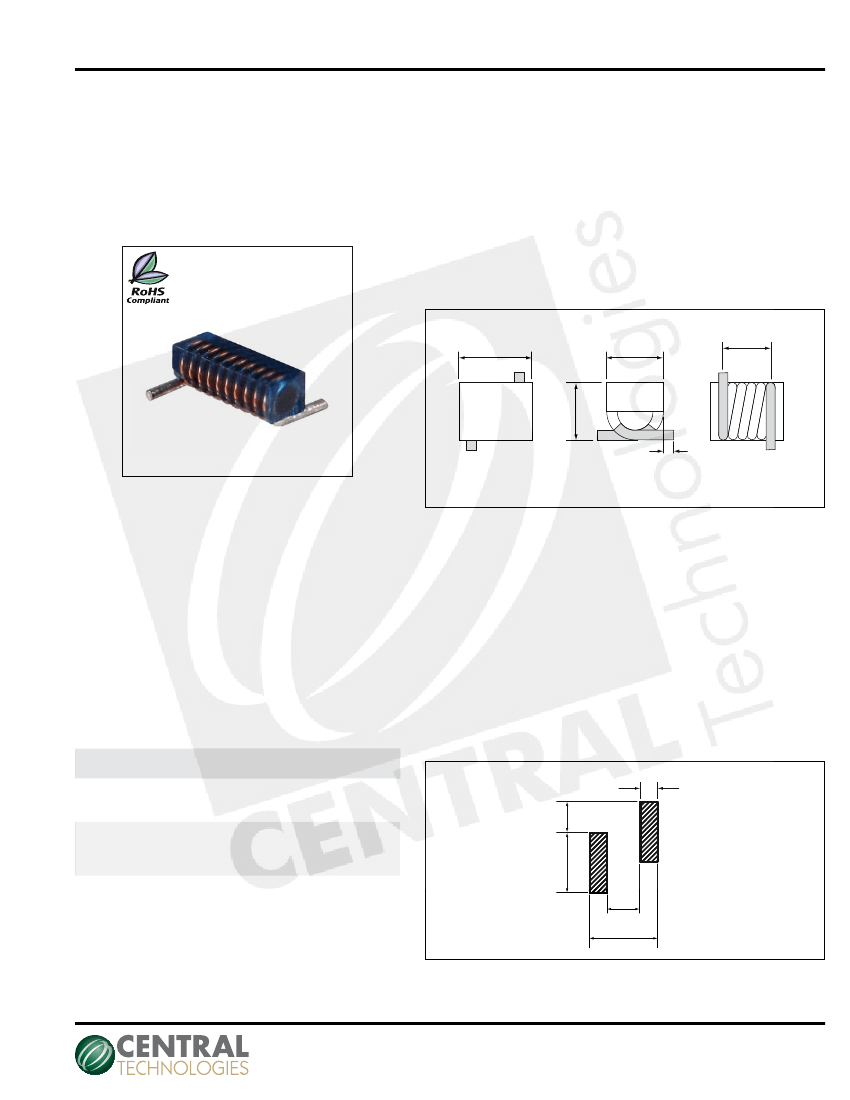

Preview

Download Datasheet
Wire-wound Chip Inductors - Open Wound
www.ctparts.com
CT2214F & CT4015F
Series
From 1.65 nH to 12.55 nH
PHYSICAL DIMENSIONS
Size
mm
inches
A
2.20±0.3
0.09±0.012
CT2214F SERIES
B
C
1.40±0.2
0.05±0.008
1.40±0.2
0.05±0.008
D
1.80±0.3
0.07±0.012
E
0.90±0.3
0.03±0.012
Size
mm
inches
A
4.00±0.3
0.16±0.012
CT4015F SERIES
B
C
1.50±0.2
0.06±0.008
1.50±0.2
0.06±0.008
D
3.50±0.3
0.14±0.012
E
0.90±0.3
0.03±0.012
A
B
D
C
E
Not Shown at Actual Size
Top View
Side View
Bottom View
CHARACTERISTICS
Description:
SMD air coil inductor.
Applications:
Designed to operate a wide frequency range
application. Also designed to operate in high Q applications.
Operating Temperature:
-40°C to 125°C
Inductance Tolerance:
±5%, ±10%
Testing:
Inductance is tested on an HP4286A at 800MHz.
Packaging:
Tape & Reel
Miscellaneous:
RoHS Compliant.
Additional Information:
Additional electrical & physical
information available upon request.
Samples available. See website for ordering information.
PAD LAYOuT
Size
mm
inches
F
1.0
0.04
G
CT2214F SERIES
H
2.6
0.102
I
1.0
0.04
J
0.8
0.03
2.5
0.10
Part numbers indicate inductance tolerance available.
J = ±5%, K = ±10%
L Test
Freq.
(MHz)
800
800
800
800
800
800
800
800
800
SRF
(GHz)
Min.
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
3.0
SPECIFICATIONS
Size
mm
inches
F
1.0
0.04
G
CT4015F SERIES
H
4.5
0.18
I
2.9
0.11
J
0.8
0.03
2.5
0.10
Part
Number
CT2214F-02K
CT2214F-03K
CT2214F-04K
CT2214F-05J
CT4015F-06J
CT4015F-07J
CT4015F-08J
CT4015F-09J
CT4015F-10J
Inductance
(nH)
1.65
2.55
3.85
5.45
5.60
7.15
8.80
9.85
12.55
Q
Min.
100
100
100
100
100
100
100
100
100
J
F
G
I
H
Copyright © 2010 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
Manufacturer of Passive Components
800-684-5322 Inside US
949-453-1811 Outside US
REV 03.30.10

CT4015F-07J Related Products

CT4015F-07J CT2214F-02K CT2214F-04K CT2214F-03K CT4015F-09J CT4015F-06J CT4015F-10J CT4015F-08J CT2214F-05J
Description General Purpose Inductor, 0.00715uH, 5%, 1 Element, Air-Core, SMD, 1606, CHIP, 1606, ROHS COMPLIANT General Purpose Inductor, 0.00165uH, 10%, 1 Element, Air-Core, SMD, 0905, CHIP, 0905, ROHS COMPLIANT General Purpose Inductor, 0.00385uH, 10%, 1 Element, Air-Core, SMD, 0905, CHIP, 0905, ROHS COMPLIANT General Purpose Inductor, 0.00255uH, 10%, 1 Element, Air-Core, SMD, 0905, CHIP, 0905, ROHS COMPLIANT General Purpose Inductor, 0.00985uH, 5%, 1 Element, Air-Core, SMD, 1606, CHIP, 1606, ROHS COMPLIANT General Purpose Inductor, 0.0056uH, 5%, 1 Element, Air-Core, SMD, 1606, CHIP, 1606, ROHS COMPLIANT General Purpose Inductor, 0.01255uH, 5%, 1 Element, Air-Core, SMD, 1606, CHIP, 1606, ROHS COMPLIANT General Purpose Inductor, 0.0088uH, 5%, 1 Element, Air-Core, SMD, 1606, CHIP, 1606, ROHS COMPLIANT General Purpose Inductor, 0.00545uH, 5%, 1 Element, Air-Core, SMD, 0905, CHIP, 0905, ROHS COMPLIANT
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to
package instruction 1606 0905 0905 0905 1606 1606 1606 1606 0905
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
uppercase and lowercase codes 1606 0905 0905 0905 1606 1606 1606 1606 0905
core material AIR AIR AIR AIR AIR AIR AIR AIR AIR
Nominal inductance(L) 0.00715 µH 0.00165 µH 0.00385 µH 0.00255 µH 0.00985 µH 0.0056 µH 0.01255 µH 0.0088 µH 0.00545 µH
Inductor Applications RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR RF INDUCTOR
Inductor type GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR GENERAL PURPOSE INDUCTOR
Number of functions 1 1 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Minimum quality factor (at nominal inductance) 100 100 100 100 100 100 100 100 100
self resonant frequency 3000 MHz 3000 MHz 3000 MHz 3000 MHz 3000 MHz 3000 MHz 3000 MHz 3000 MHz 3000 MHz
Shape/Size Description RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE
shield NO NO NO NO NO NO NO NO NO
surface mount YES YES YES YES YES YES YES YES YES
Terminal location DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED DUAL ENDED
Terminal shape FLAT FLAT FLAT FLAT FLAT FLAT FLAT FLAT FLAT
Test frequency 800 MHz 800 MHz 800 MHz 800 MHz 800 MHz 800 MHz 800 MHz 800 MHz 800 MHz
Tolerance 5% 10% 10% 10% 5% 5% 5% 5% 5%
Maker CT [ Central Technologies ] CT [ Central Technologies ] CT [ Central Technologies ] CT [ Central Technologies ] CT [ Central Technologies ] CT [ Central Technologies ] - - CT [ Central Technologies ]
Base Number Matches 1 1 1 1 1 1 1 1 -
