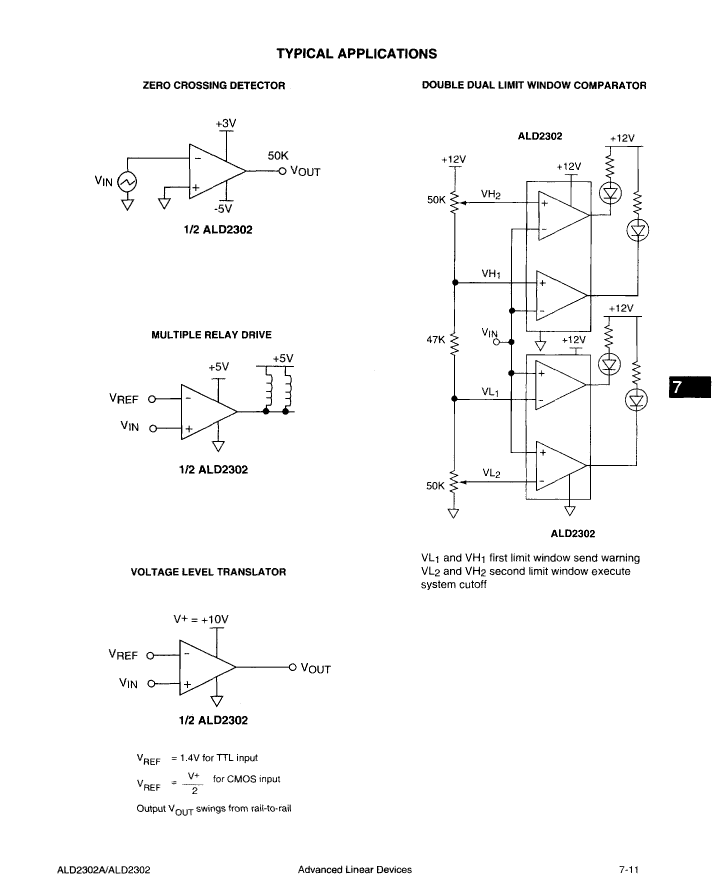

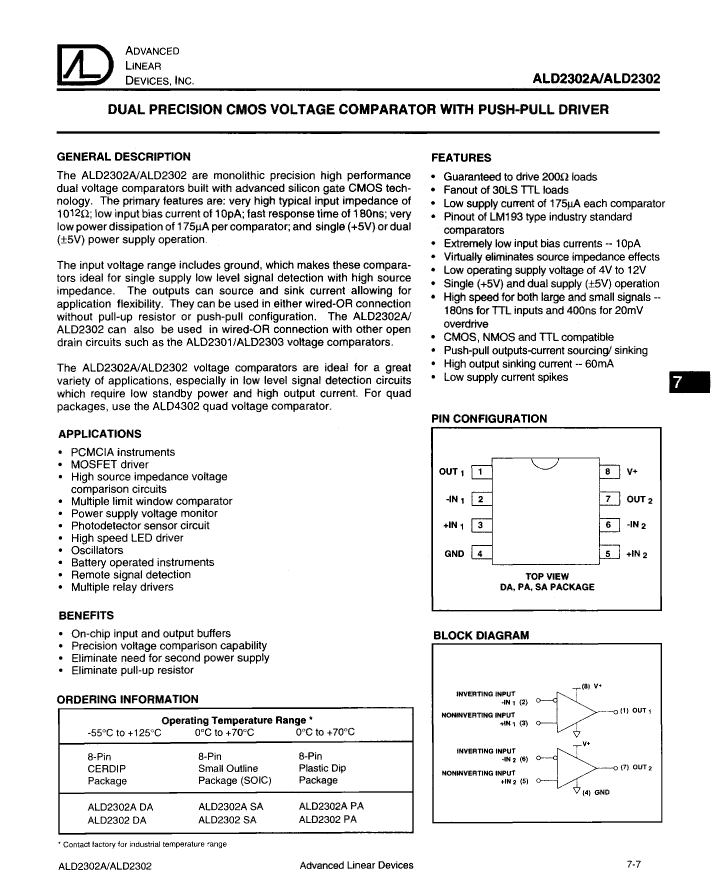

ALD2302ASAXXXX amplifier basic information:
ALD2302ASAXXXX is a COMPARATOR. The commonly used packaging method is SOP,

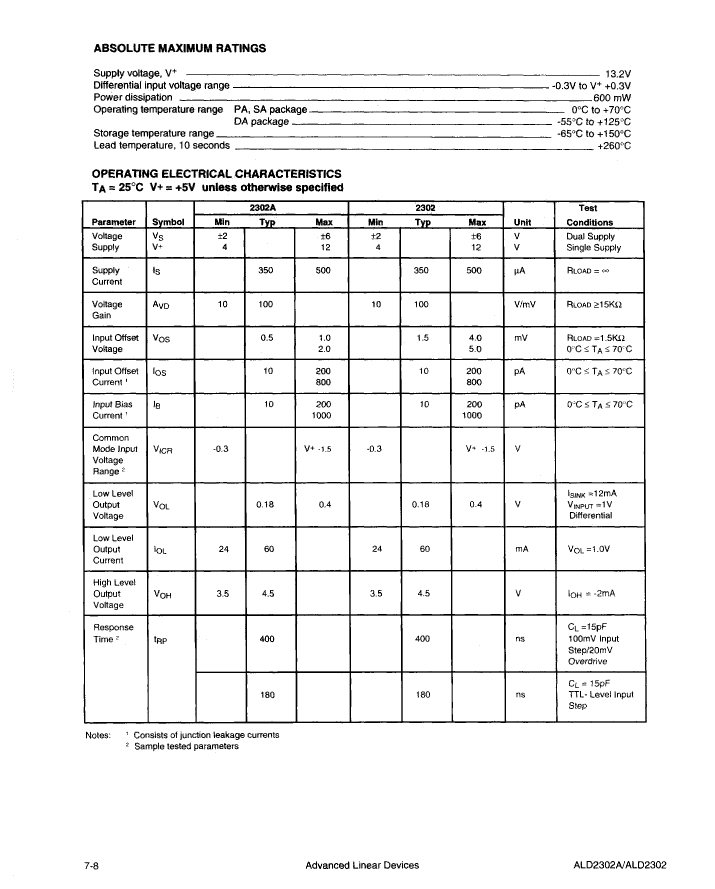

ALD2302ASAXXXX amplifier core information:
The minimum operating temperature of the ALD2302ASAXXXX is and the maximum operating temperature is 70 °C. Its maximum average bias current is 0.001 µA
When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The ALD2302ASAXXXX takes only 400 ns to respond.
The nominal supply voltage of the ALD2302ASAXXXX is 5 V. The upper limit of its supply voltage is 13.2 VALD2302ASAXXXX. The input offset voltage is 2000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of ALD2302ASAXXXX:
ALD2302ASAXXXX has 8 terminals. Its terminal position type is: DUAL. Total pins: 8
ALD2302ASAXXXX amplifier additional information:
Its temperature grade is: COMMERCIAL. The corresponding JESD-30 code is: R-PDSO-G8. The packaging code of ALD2302ASAXXXX is: SOP. ALD2302ASAXXXX packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The form of ALD2302ASAXXXX package pins is: SMALL OUTLINE. Its terminal forms are: GULL WING.
ALD2302ASAXXXX amplifier basic information:
ALD2302ASAXXXX is a COMPARATOR. The commonly used packaging method is SOP,

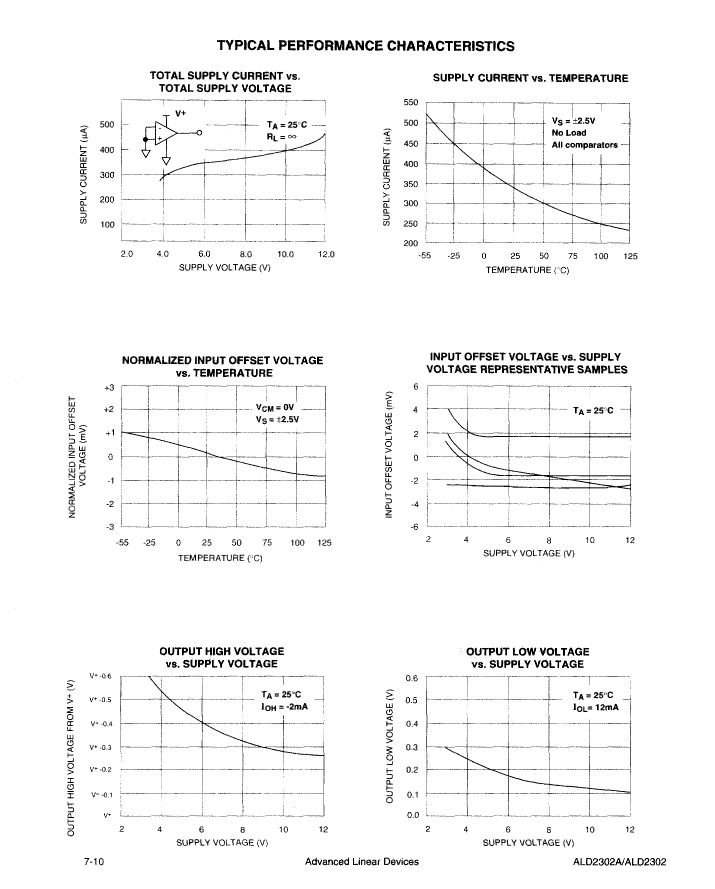

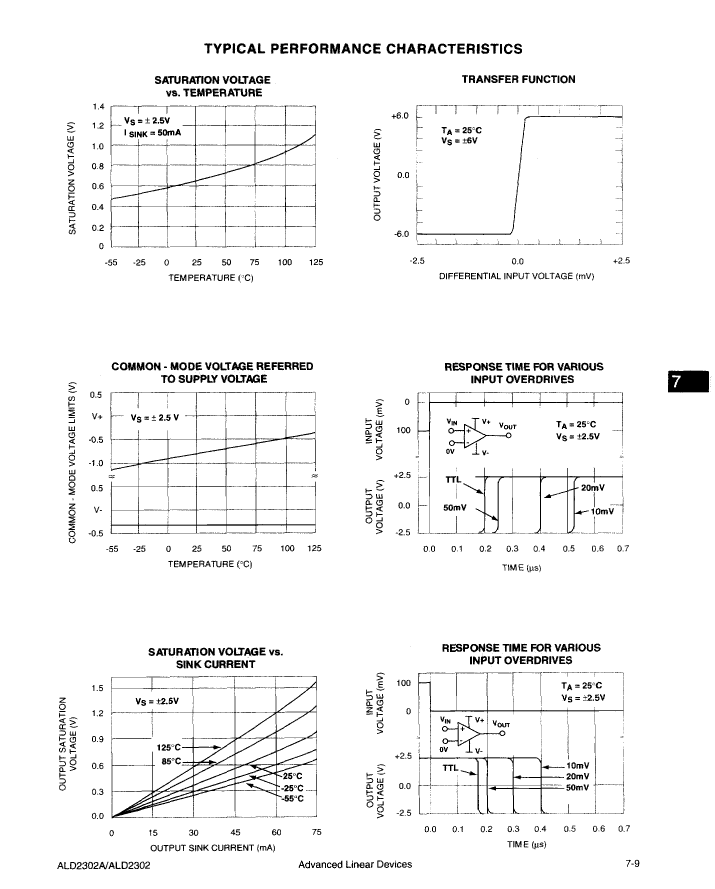

ALD2302ASAXXXX amplifier core information:
The minimum operating temperature of the ALD2302ASAXXXX is and the maximum operating temperature is 70 °C. Its maximum average bias current is 0.001 µA
When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The ALD2302ASAXXXX takes only 400 ns to respond.
The nominal supply voltage of the ALD2302ASAXXXX is 5 V. The upper limit of its supply voltage is 13.2 VALD2302ASAXXXX. The input offset voltage is 2000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of ALD2302ASAXXXX:
ALD2302ASAXXXX has 8 terminals. Its terminal position type is: DUAL. Total pins: 8
ALD2302ASAXXXX amplifier additional information:
Its temperature grade is: COMMERCIAL. The corresponding JESD-30 code is: R-PDSO-G8. The packaging code of ALD2302ASAXXXX is: SOP. ALD2302ASAXXXX packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The form of ALD2302ASAXXXX package pins is: SMALL OUTLINE. Its terminal forms are: GULL WING.
| Parameter Name | Attribute value |
| Maker | ALD [Advanced Linear Devices] |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 8 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | COMPARATOR |
| Maximum average bias current (IIB) | 0.001 µA |
| Maximum input offset voltage | 2000 µV |
| JESD-30 code | R-PDSO-G8 |
| Number of functions | 2 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output type | PUSH-PULL |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Nominal response time | 400 ns |
| Supply voltage upper limit | 13.2 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| ALD2302ASAXXXX | ALD2302DAMXXXX | ALD2302PAXXXX | ALD2302SAXXXX | ALD2302ADAMXXXX | ALD2302APAXXXX | |
|---|---|---|---|---|---|---|
| Description | Comparator, 2 Func, 2000uV Offset-Max, 400ns Response Time, CMOS, PDSO8, SOIC-8 | Comparator, 2 Func, 5000uV Offset-Max, 400ns Response Time, CMOS, CDIP8, CERDIP-8 | Comparator, 2 Func, 5000uV Offset-Max, 400ns Response Time, CMOS, PDIP8, PLASTIC, DIP-8 | Comparator, 2 Func, 5000uV Offset-Max, 400ns Response Time, CMOS, PDSO8, SOIC-8 | Comparator, 2 Func, 2000uV Offset-Max, 400ns Response Time, CMOS, CDIP8, CERDIP-8 | Comparator, 2 Func, 2000uV Offset-Max, 400ns Response Time, CMOS, PDIP8, PLASTIC, DIP-8 |
| Maker | ALD [Advanced Linear Devices] | ALD [Advanced Linear Devices] | ALD [Advanced Linear Devices] | ALD [Advanced Linear Devices] | ALD [Advanced Linear Devices] | ALD [Advanced Linear Devices] |
| Parts packaging code | SOIC | DIP | DIP | SOIC | DIP | DIP |
| Contacts | 8 | 8 | 8 | 8 | 8 | 8 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | COMPARATOR | COMPARATOR | COMPARATOR | COMPARATOR | COMPARATOR | COMPARATOR |
| Maximum average bias current (IIB) | 0.001 µA | 0.001 µA | 0.001 µA | 0.001 µA | 0.001 µA | 0.001 µA |
| Maximum input offset voltage | 2000 µV | 5000 µV | 5000 µV | 5000 µV | 2000 µV | 2000 µV |
| JESD-30 code | R-PDSO-G8 | R-CDIP-T8 | R-PDIP-T8 | R-PDSO-G8 | R-CDIP-T8 | R-PDIP-T8 |
| Number of functions | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 70 °C | 125 °C | 70 °C | 70 °C | 125 °C | 70 °C |
| Output type | PUSH-PULL | PUSH-PULL | PUSH-PULL | PUSH-PULL | PUSH-PULL | PUSH-PULL |
| Package body material | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | IN-LINE | SMALL OUTLINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal response time | 400 ns | 400 ns | 400 ns | 400 ns | 400 ns | 400 ns |
| Supply voltage upper limit | 13.2 V | 13.2 V | 13.2 V | 13.2 V | 13.2 V | 13.2 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | NO | YES | NO | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | MILITARY | COMMERCIAL | COMMERCIAL | MILITARY | COMMERCIAL |
| Terminal form | GULL WING | THROUGH-HOLE | THROUGH-HOLE | GULL WING | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - |
