HD74HCT449T datasheet, PDF - EEWORLD Datasheet

HD74HCT449T: DescriptionBus Transceiver, HCT Series, 1-Func, 4-Bit, True Output, CMOS, PDSO16, TSOP-16; Categorylogic logic; File Size70KB，2 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

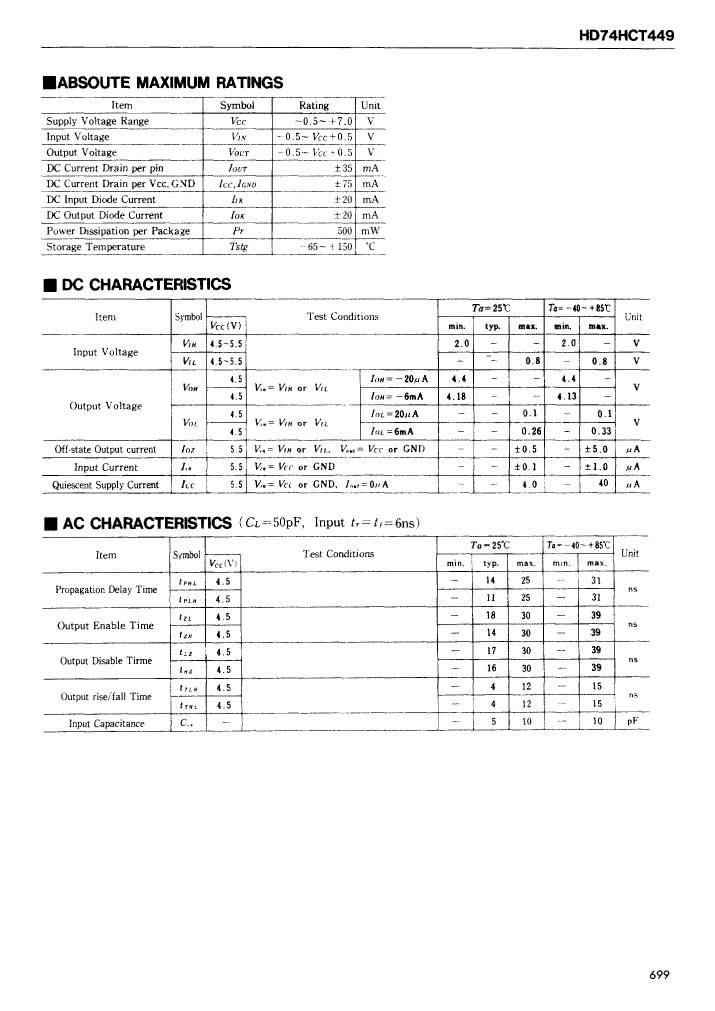

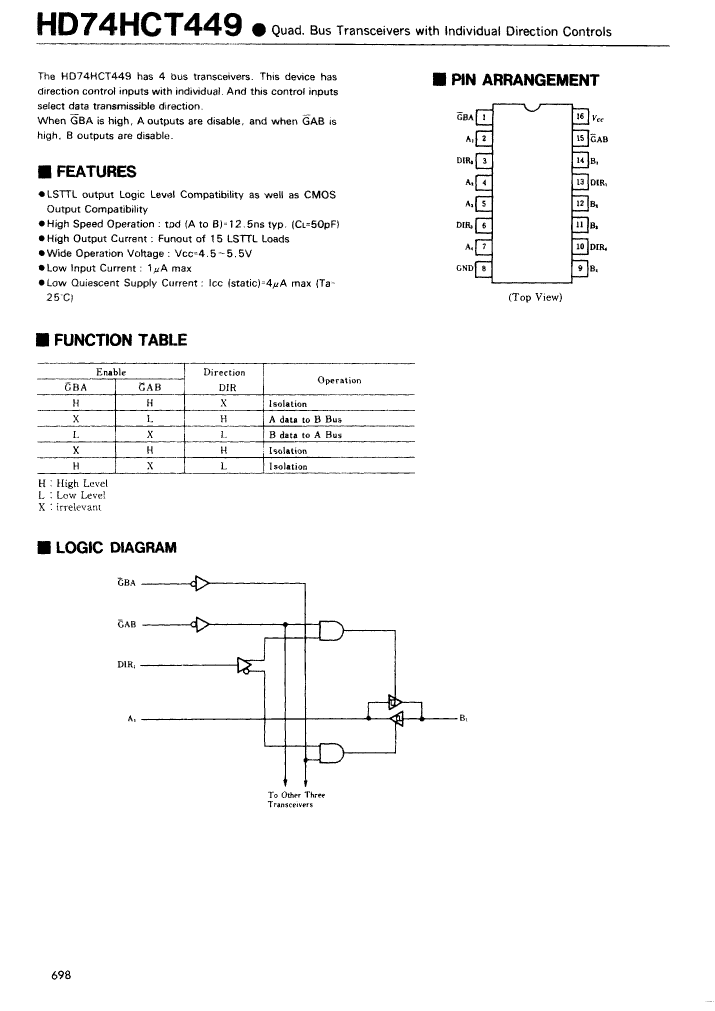

HD74HCT449T Overview

Bus Transceiver, HCT Series, 1-Func, 4-Bit, True Output, CMOS, PDSO16, TSOP-16

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	TSOP
package instruction	TSSOP,
Contacts	16
Reach Compliance Code	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	HCT
JESD-30 code	R-PDSO-G16
length	5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	4
Number of functions	1
Number of ports	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	31 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

	HD74HCT449T
Description	Bus Transceiver, HCT Series, 1-Func, 4-Bit, True Output, CMOS, PDSO16, TSOP-16
Maker	Hitachi （Renesas ）
Parts packaging code	TSOP
package instruction	TSSOP,
Contacts	16
Reach Compliance Code	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	HCT
JESD-30 code	R-PDSO-G16
length	5 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	4
Number of functions	1
Number of ports	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	31 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1
