SC3X4S273: DescriptionData Line Filter, 1 Function(s), 500V, 10A,; CategoryAnalog mixed-signal IC filter; File Size49KB，1 Pages; ManufacturerAVX

Download Datasheet Parametric View All

SC3X4S273 Overview

Data Line Filter, 1 Function(s), 500V, 10A,

SC3X4S273 Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	27000 µF
filter type	DATA LINE FILTER
JESD-609 code	e0
Manufacturer's serial number	SC
Installation type	PANEL MOUNT
Number of functions	1
Rated current	10 A
Rated voltage	500 V
Terminal surface	TIN LEAD
Base Number Matches	1

Preview

Download Datasheet

View All

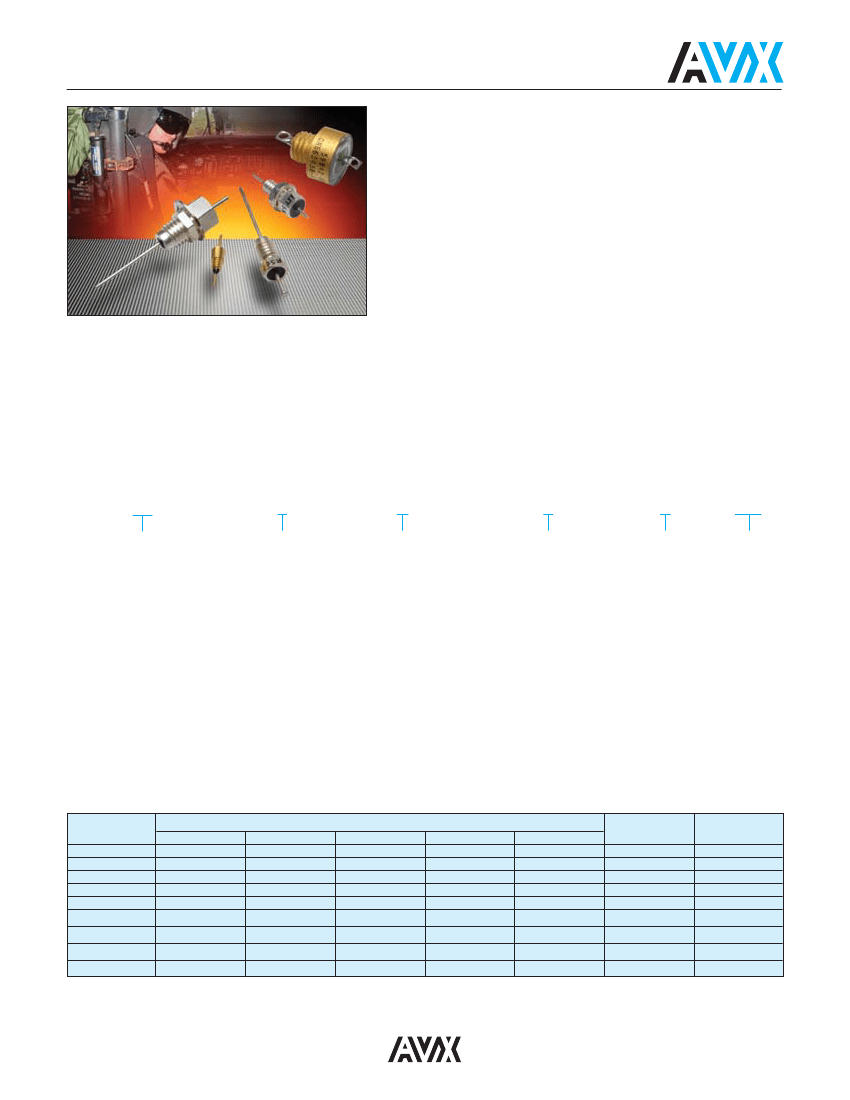

Bolt-in Style EMI Filter

AVX bolt-in style Pi filters, utilize discoidal capacitor technology to

provide effective attenuation in the RF to microwave frequency

spectrum from 10MHz to 26GHz.

Some versions offer large hex sizes which mean much higher

capacitance levels are available and that a 125 VAC/400Hz rating can

be offered for certain values.

In the “L” section version an internal ferrite bead element provides both

inductance and series resistance which improves insertion loss and

provides superior transient performance. They are ideal for filtering

signal/data lines of high impedance source and load systems. These

filters are designed to be mounted in a tapped bulkhead or with a

standard nut and lock-washer provided.

CHARACTERISTICS (Varies with series)

•

Miniature and Subminiature versions available

Rugged monolithic discoidal capacitor construction

Epoxy seal at both ends

Conservatively rated for 125VAC/400Hz

Pi design offers steeper insertion loss

NASA SSQ 21215-21218

HOW TO ORDER

Style

SXD = 1-64 Epoxy Sealed

SYD = 2-56 Epoxy Sealed

SZD = 2-56 Epoxy Sealed

SA = 4-40 Epoxy Sealed

SG = 6-32 Epoxy Sealed

SB = 8-32 Epoxy Sealed

SM = 8-32 Hermetic Sealed

SH = 10-32 Epoxy Sealed

SJ = 12-28 Epoxy Sealed

SC = 12-32 Epoxy Sealed

(.187 HEX)

SP = 12-32 Epoxy Sealed

(.250 HEX)

SN = 12-32 Hermetic Sealed

SL =

⁄

-28 Epoxy Sealed

SD = 5/16-24 Epoxy Sealed

SF = 5/16-32 Epoxy Sealed

Circuit

1 = Feed Thru (C)

2 = L-Section (L)

3 = PI-Section ( )

8 = Grounded

Feed Thru

Voltage Rating

A = 100 VDC

B = 200 VDC

C = 50 VDC

F = 500 VDC

G = 1000 VDC

H = 150 VDC

J = 600 VDC

K = 250 VDC

L = 200 VDC/125 VAC

M = 350 VDC

N = 70 VDC

X = 500 VDC

Y = 300 VDC

Options

1 = Copper

2 = Steel

3 = Special Lead Design

4 = Beryllium Copper

G = Olean Exact Equivalent

–

MIL-28861

Screening

B = Class B

S = Class S

103

3 Digit

Capacitor

Code (in pF)

Style

SXD

SYD

SZD

SB/SM

SJ/SC/SP/SN

SL/SD/SF

50VDC

5-5,600

5-6,200

5-22,000

5-33,000

5pF-.33µF

5pF-1.5µF

Capacitance Range (in pF if not indicated)

100VDC

200VDC/115VAC 400VDC/230VAC

5-1,800

5-1,000

–

5-2,200

5-1,200

–

5-8,200

5-4,700

5-2,700

5-12,000

5-6,800

5-3,900

5-12,000

5-6,800

5-3,900

5-12,000

5pF-.12µF

5pF-.56µF

5-6,800

5pF-.082µF

5pF-.39µF

5-3,900

5pF-.047µF

5pF-.22µF

500VDC

–

5-2,200

5pF-.027µF

5pF-.12µF

Current

Rating

10A

25A

Circuit

Available

C, L

C, L,
