PMP55-25 Overview

40 - 55 WATTS SINGLE & MULTIPLE OUTPUT AC/DC MEDICAL

Preview

Download Datasheet

View All

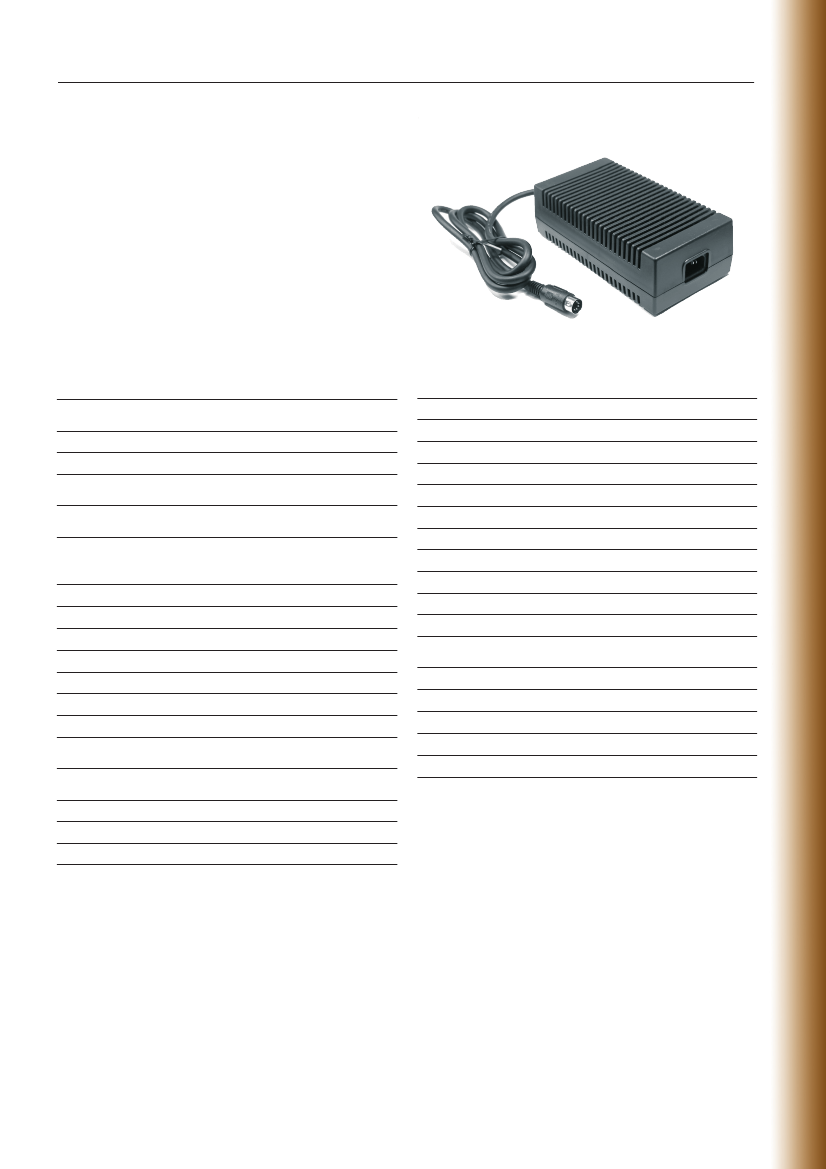

MEDICAL & MILITARY

PMP55 Series

4 0 - 5 5 W AT T S S I N G L E & M U LT I P L E O U T P U T A C / D C M E D I C A L

Features

• Input surge current protection.

• Overvoltage protection.

• Overcurrent protection.

• Short-circuit protection with auto recovery.

• 100% burn-in at full rated load.

Specifications

INPUT

Input Voltage

Frequency

Input Current

Leakage current

Isolation

85-264Vac

47Hz–67Hz

1.50A (rms) for 115Vac.

0.90A (rms) for 230Vac.

90µA max. @ 115Vac. 60Hz.

150µA max. @ 230Vac. 50Hz.

Input – Output: 4000Vac

Input – Ground: 1500Vac

Output – Ground: 500Vac

15A @ 115V, 30A @ 230V

OPERATING

MTBF

Efficiency

450,000 hrs @ 25°C

65-70% minimum.

ENVIRONMENTAL

Operating Temperature

Derating

Storage Temperature

Relative Humidity

0°C to 70°C

Derate to 50% at 70°C

-40°C to 85°C

5%–95% non-condensing

STANDARDS AND APPROVALS

Safety standards

C-Tick

UL2601-1, CSA C22.2, TUV EN60601-1

AS/NZS CISPR11 Group 1, Class A

EN60601-1-2: 2001,EN61000-3-2, -3,

EN61000-4-2, -3, -4, -5, -6, -8, -11

EN55011 Class B, FCC Class B, VCCI Class B

TBC

Inrush Current

OUTPUT

Output Voltage

Output Current

Ripple & Noise

Line Regulation

Load Regulation

Transient Response

Overvoltage Protection

Overcurrent Protection

Temperature Coefficient

Holdup Time

See table

1% peak to peak

±0.5% maximum at full load.

See table

Max. deviation 4% recovering to 1% within 500µs

after 25% load charge

Provided on V1 only. Set at 110%–132% of

nominal.

All outputs protected for short circuit conditions

All outputs ±0.04% per °C.

Typically 10ms at 110VAC.

EMC standards

EMI standards

MEPS compliance

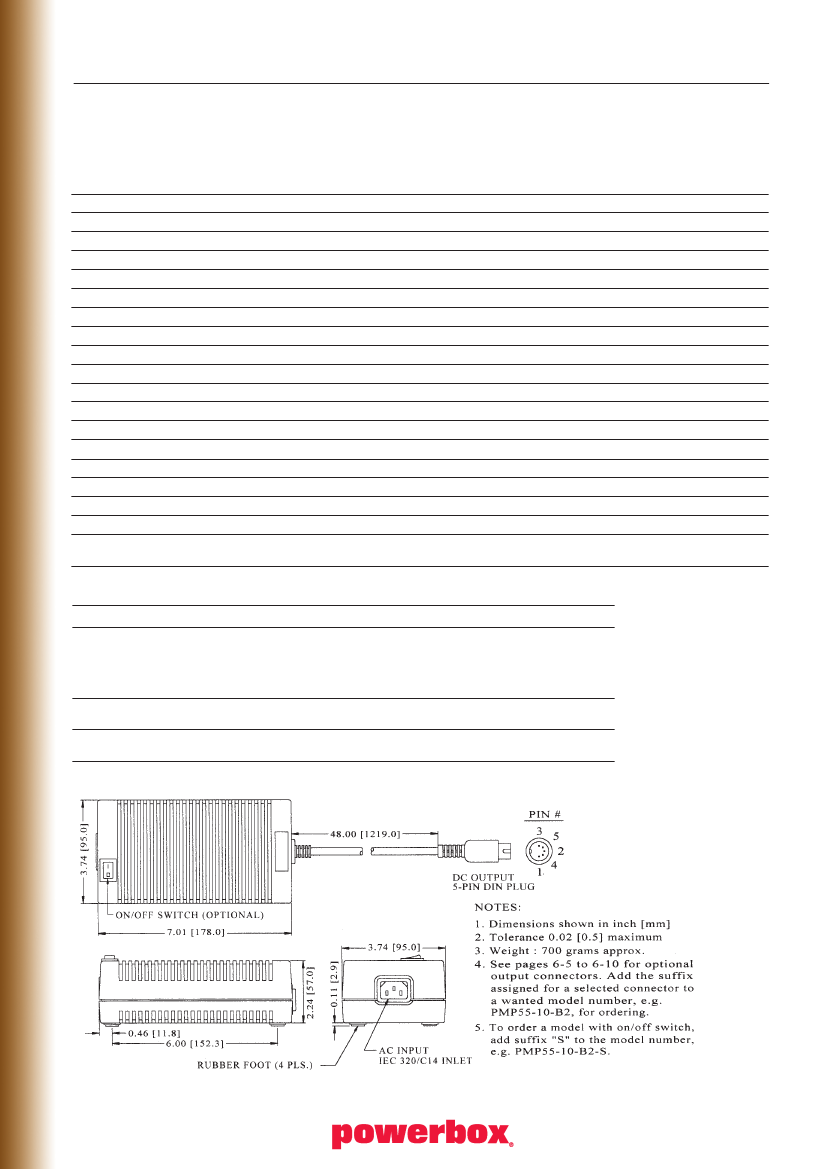

MECHANICAL

Dimensions

Weight

178x95x60mm

0.7kgs approx.

Your dependable power partner – www.powerbox.com.au

361
