CERAFILr (Filters/Traps/Discriminators) for Audio/Visual Equipment
CERAFILr 3.5-6.5MHz Low Profile Type SFSRL Series
10.0 max.
MARKING
EIAJ
CODE
s
Features
1. Installed height is 6.0mm, making it well suited
for compact, thin sets.
2. Electrical char. and performance are the same as
those of SFSRA series.
3. 2 types, narrow and middle bandwidth, are prepared.
1.1±0.1
5.0±1.0
2.5
±0.2
2.5
±0.2
4.0 max.
(1) : Input
(2) : Ground
(3) : Output
(in mm)
(3)
(2)
(1)
0.5±0.1
Part Number
SFSRL4M50CF00-B0
SFSRL4M50DF00-B0
SFSRL5M50CF00-B0
SFSRL5M50DF00-B0
SFSRL6M00CF00-B0
SFSRL6M00DF00-B0
SFSRL6M50CF00-B0
SFSRL6M50DF00-B0
Nominal Center
Frequency (fn)
(MHz)
4.500
4.500
5.500
5.500
6.000
6.000
6.500
6.500
3dB
Bandwidth
(kHz)
fn±60 min.
fn±70 min.
fn±60 min.
fn±80 min.
fn±60 min.
fn±80 min.
fn±70 min.
fn±80 min.
20dB
Bandwidth
(kHz)
600 max.
750 max.
600 max.
750 max.
600 max.
750 max.
650 max.
800 max.
Insertion
Loss
(dB)
6.0 max.
6.0 max.
6.0 max.
6.0 max.
6.0 max.
6.0 max.
6.0 max.
6.0 max.
Spurious
Attenuation(1)
(dB)
30 min.
[within 0 to fn]
30 min.
[within 0 to fn]
30 min.
[within 0 to fn]
30 min.
[within 0 to fn]
30 min.
[within 0 to fn]
30 min.
[within 0 to fn]
30 min.
[within 0 to fn]
30 min.
[within 0 to fn]
0.3±0.1
Spurious
Attenuation(2)
(dB)
15 min.
[within fn to 7.0MHz]
15 min.
[within fn to 5.7MHz]
15 min.
[within fn to 7.0MHz]
15 min.
[within fn to 7.0MHz]
15 min.
[within fn to 7.5MHz]
15 min.
[within fn to 7.5MHz]
15 min.
[within fn to 8.5MHz]
15 min.
[within fn to 8.0MHz]
6.0 max.
SFSRL series are the Low-profile type of standard
SFSRA series.
Input/Output
Impedance
(ohm)
1000
1000
600
600
470
470
470
470
14
Insertion Loss: at minimum loss point
The order quantity should be an integral multiple of the "Minimum Quantity" shown in the package page.
s
Test Circuit
1
R1
2
3
Rg
RF
Voltmeter
S.S.G.
R2
C
Rg+R1=R2=Input and Output Impedance
C=10pF (Including stray capacitance and
input capacitance of RF voltmeter)
46
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specificaions approval sheet for product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the before ordering.
P50E.pdf 03.4.16
s

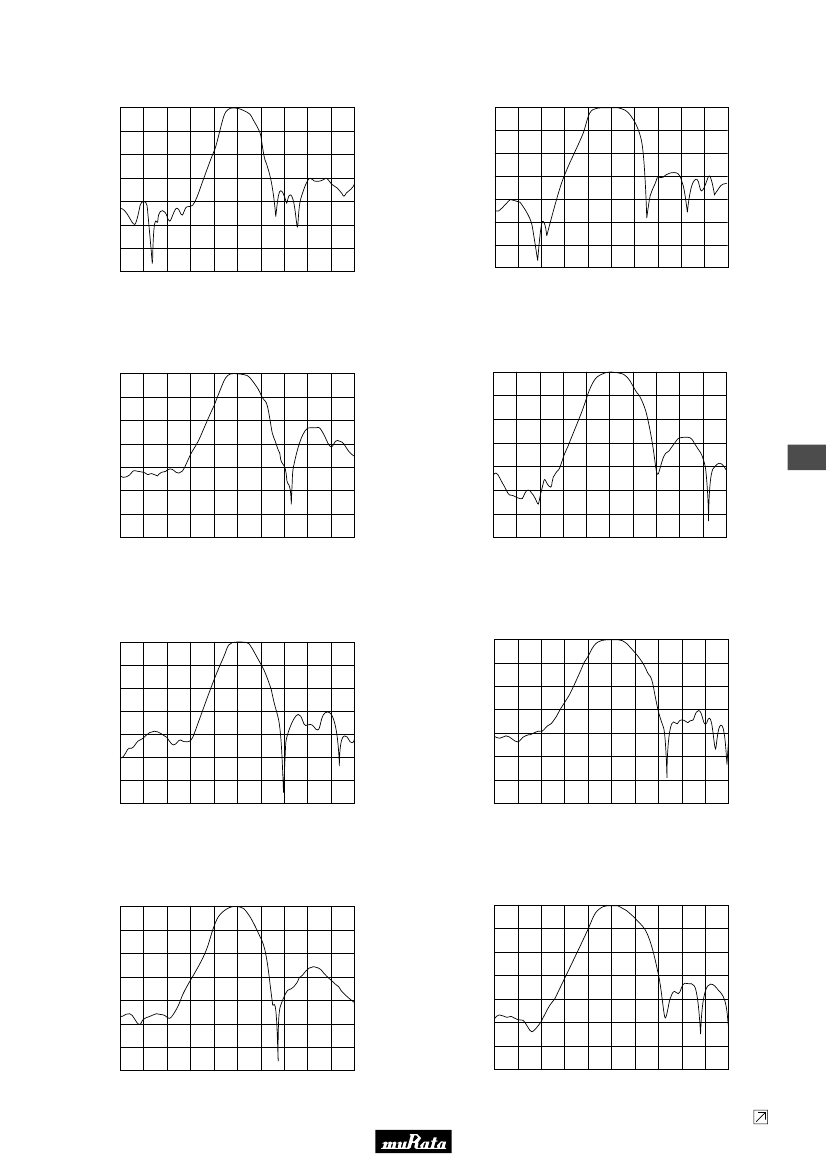

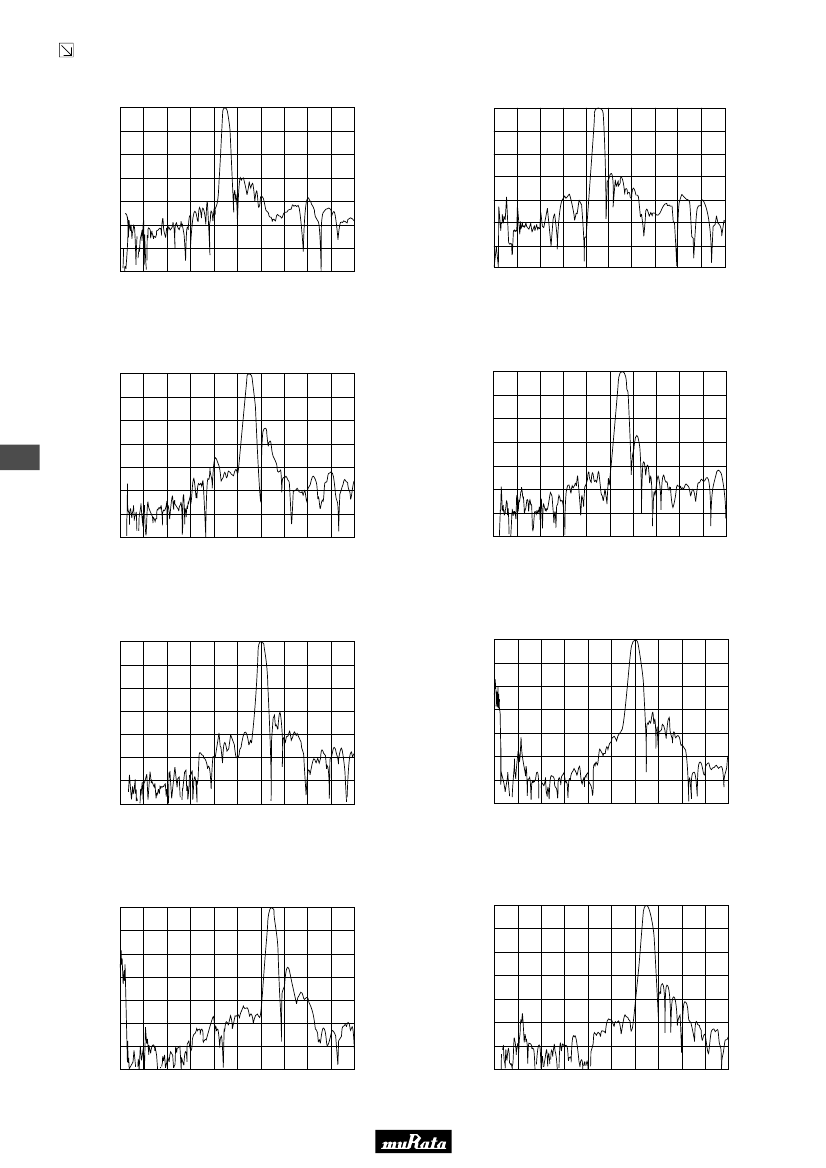

Frequency Characteristics
SFSRL4M50CF00-B0
0
10
20
Attenuation (dB)
Attenuation (dB)
30
40
50
60
70
3.5
0
10
20
30
SFSRL4M50DF00-B0
40
50
60
70
3.5
3.7
3.9
4.1
4.3
4.5
4.7
Frequency (MHz)
4.9
5.1
5.3
5.5
3.7
3.9
4.1
4.3
4.5
4.7
4.9
5.1
5.3
5.5
Frequency (MHz)
SFSRL5M50CF00-B0
0
10
20
Attenuation (dB)
Attenuation (dB)
30
40
50
60
70
4.5
0
10
20
30
40
50
60
70
4.5
SFSRL5M50DF00-B0
14
4.7
4.9
5.1
5.3
5.5
5.7
Frequency (MHz)
5.9
6.1
6.3
6.5
4.7
4.9
5.1
5.3
5.5
5.7
Frequency (MHz)
5.9
6.1
6.3
6.5
SFSRL6M00CF00-B0
0
10
20
Attenuation (dB)
Attenuation (dB)
30
40
50
60
70
5.0
0
10
20
30
40
50
60
70
5.0
SFSRL6M00DF00-B0
5.2
5.4
5.6
5.8
6.0
6.2
Frequency (MHz)
6.4
6.6
6.8
7.0
5.2
5.4
5.6
5.8
6.0
6.2
Frequency (MHz)
6.4
6.6
6.8
7.0
SFSRL6M50CF00-B0
0
10
20
Attenuation (dB)
Attenuation (dB)
30
40
50
60
70
5.5
0
10
20
30
40
50
60
70
5.5
SFSRL6M50DF00-B0
5.7
5.9
6.1
6.3
6.5
6.7
Frequency (MHz)
6.9
7.1
7.3
7.5
5.7
5.9
6.1
6.3
6.5
6.7
Frequency (MHz)
6.9
7.1
7.3
7.5
Continued on the following page.
