AWH20G-0232-T-R datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> AWH20G-0232-T-R

Preview

AWH20G-0232-T-R: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size806KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/

Download Datasheet Parametric View All

AWH20G-0232-T-R Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,

AWH20G-0232-T-R Parametric

Parameter Name	Attribute value
Maker	ASSMANN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.325 inch
subject depth	0.663 inch
body length	1.598 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	AWH
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

1

A

2

3

4

5

6

7

A

B

C

D

Material: PBT UL94V-0

Contact (material): Brass

Contact resistance: 10 m Max.

Insulation Resistance: 1000 M Min.

Current rating: 1 AMP

Dielectric Voltage: 500V AC for one minute

Operation Temperature: -55 C to +105C

D

E

F

Tolerance: ±0.2

Scale

1:1

Drawn

Approved

07/09/12

F

Unit: MM

G

Item No.

Name

Miller

Warner

G

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

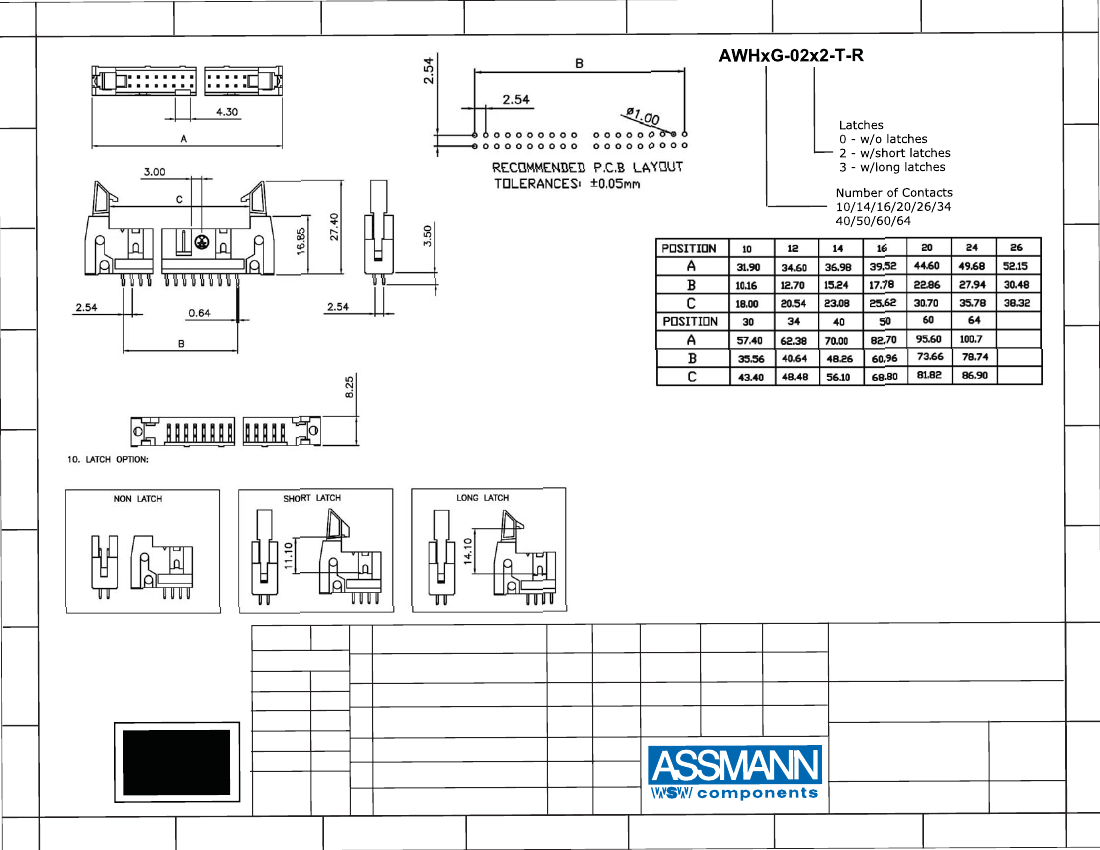

AWHx-G-02x2-T-R

Title

Dual Row Header, 2.54MM pitch,

PCB Mount

H

RoHS

Complaint

1

2

Angle

Drawing No.

rev00

Sheet

H

Modification

Date

Name

Replace

3

4

5

6

7
