MODULES
Q Series
0.5
WATTS-100-10KV
SINGLE
OUTPUT
DC/DC
I N D U S T R I A L
Features
•
•
•
•
•
•
Ultra-miniature case size
No external components required
Low ripple and EMI/RFI
Proportional input/output
Input/output isolation
Short circuit protection
Specifications
INPUT
Voltage
Typical turn-on voltage
OUTPUT
Power
Voltage tolerance
Isolation
ENVIRONMENTAL
Operating temperature
Storage temperature
GENERAL
Dimensions
Weight
Packaging
Case material
STANDARDS
Safety standard
The Q Series is a component DC to HV DC
converter, not a power supply. It operates from
a low voltage DC and is fully encapsulated. For
applications requiring safety approval, the Q
Series should be considered a component not
requiring individual certification.
Case A&B: 12.7 x 12.7 x 12.7 mm.
Case C: 21.59 x 21.59 x 21.59 mm.
Case A&B: 4.25g. Case C: 28.3g.
Fully encapsulated.
Glass-filled Epoxy.
–25°C to +70°C (Q30-Q101: –10°C to +60°C.)
–55°C to +105°C.
0.5W
+5%, –10% typical at full load.
500V +V out.
0-5, 12 or 24VDC.
0.7V
Selection Tables

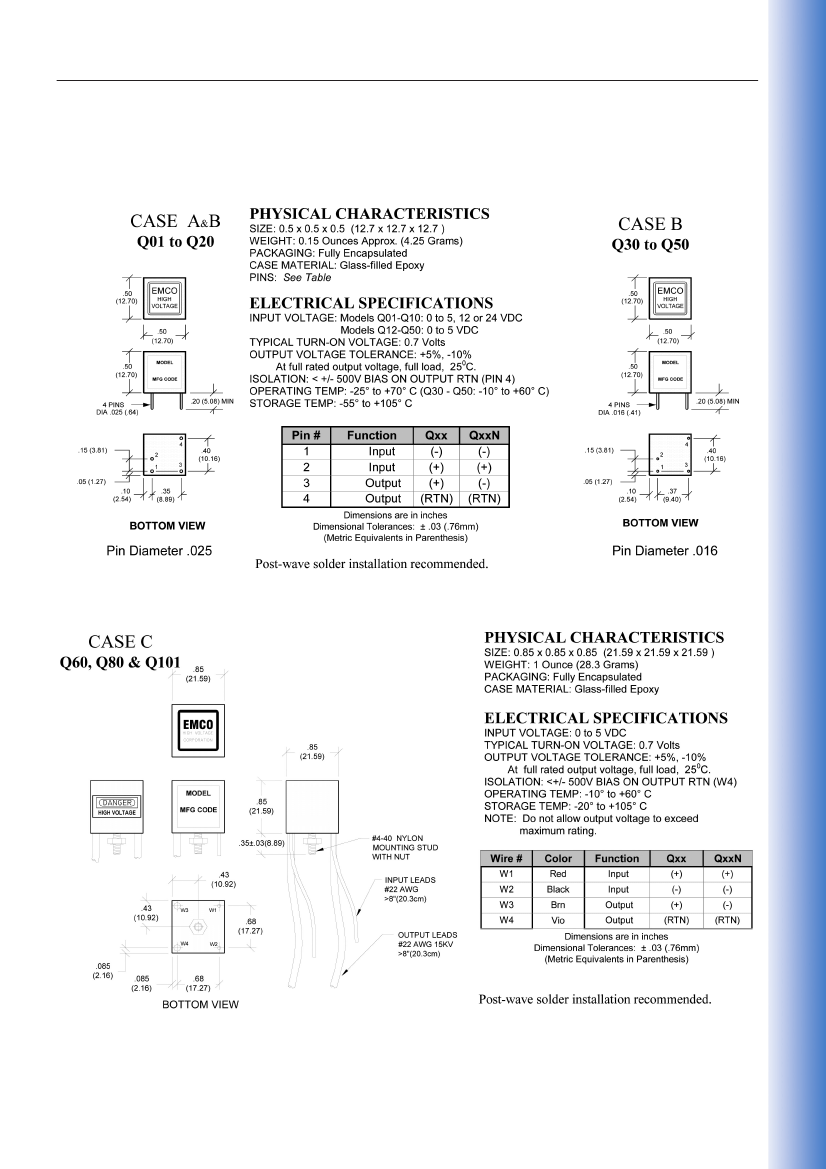

CASE A & B
PIN#
1
2
3
4
FUNCTION
Input
Input
Output
Output
QXX
(–)
(+)
(+)
(–)
QXXN
(–)
(+)
(–)
(+)
CASE C
WIRE
W1
W2
W3
W4
COLOR
Red
Black
Brn
Vio
FUNCTION
Input
Input
Output
Output
QXX
(+)
(–)
(+)
(–)
QXXN
(+)
(–)
(–)
(+)
