5-557101-3 datasheet, PDF - EEWORLD Datasheet

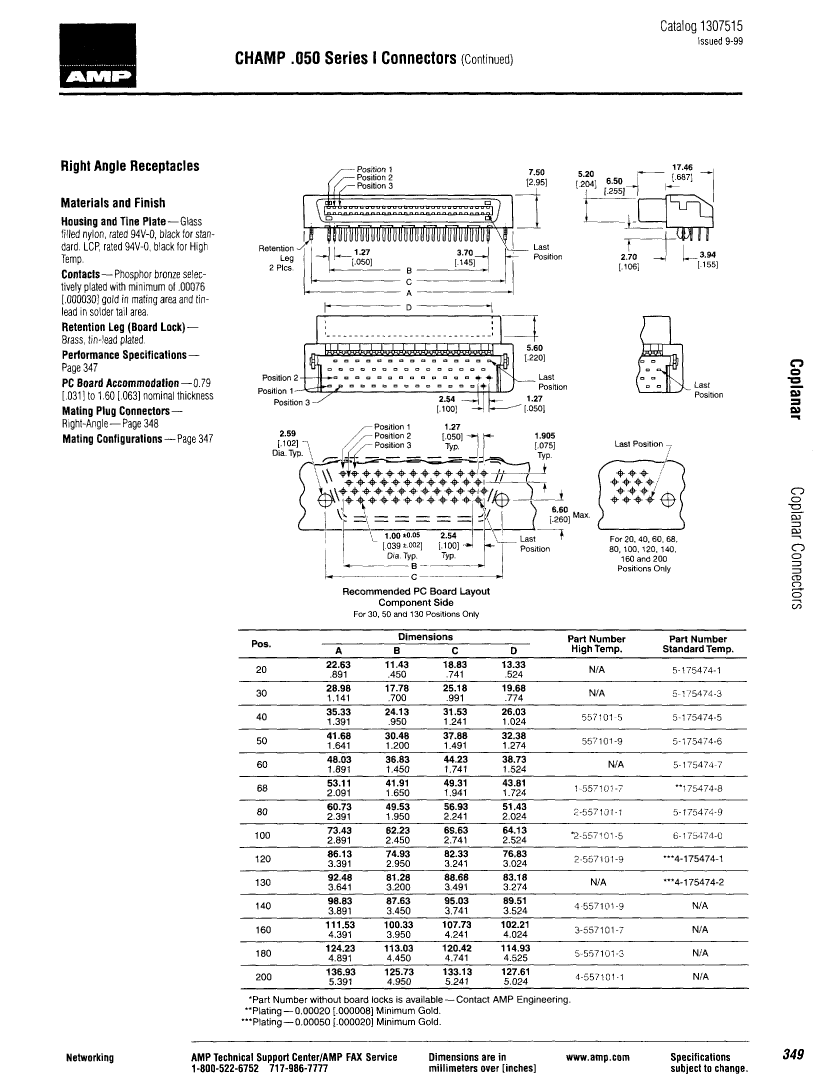

5-557101-3: DescriptionCONNECTOR,D-SHELL,PCB MNT,PLUG,180 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-557101-3 Overview

CONNECTOR,D-SHELL,PCB MNT,PLUG,180 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
body width	0.295 inch
subject depth	0.687 inch
body length	4.891 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
maximum insertion force	.8896 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Plug contact pitch	0.05 inch
Match contact row spacing	0.062 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell material	THERMOPLASTIC
Terminal length	0.106 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	180
Base Number Matches	1

	5-557101-3	4-557101-1
Description	CONNECTOR,D-SHELL,PCB MNT,PLUG,180 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL	CONNECTOR,D-SHELL,PCB MNT,PLUG,200 CONTACTS,SKT,0.05 PITCH,R ANGLE PC TAIL TERMINAL
Reach Compliance Code	unknown	unknown
body width	0.295 inch	0.301 inch
subject depth	0.687 inch	0.693 inch
body length	4.891 inch	5.391 inch
Body/casing type	PLUG	PLUG
Contact to complete cooperation	AU	AU
Contact completed and terminated	GOLD	GOLD
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	35 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	250VAC V	250VAC V
maximum insertion force	.8896 N	.8896 N
Insulation resistance	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED NYLON	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.05 inch	0.05 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
PCB row number	4	4
Number of rows loaded	2	2
Maximum operating temperature	85 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED
PCB contact row spacing	1.905 mm	1.905 mm
Plating thickness	30u inch	30u inch
Rated current (signal)	1 A	1 A
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.106 inch	0.134 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	180	200
Base Number Matches	1	1
