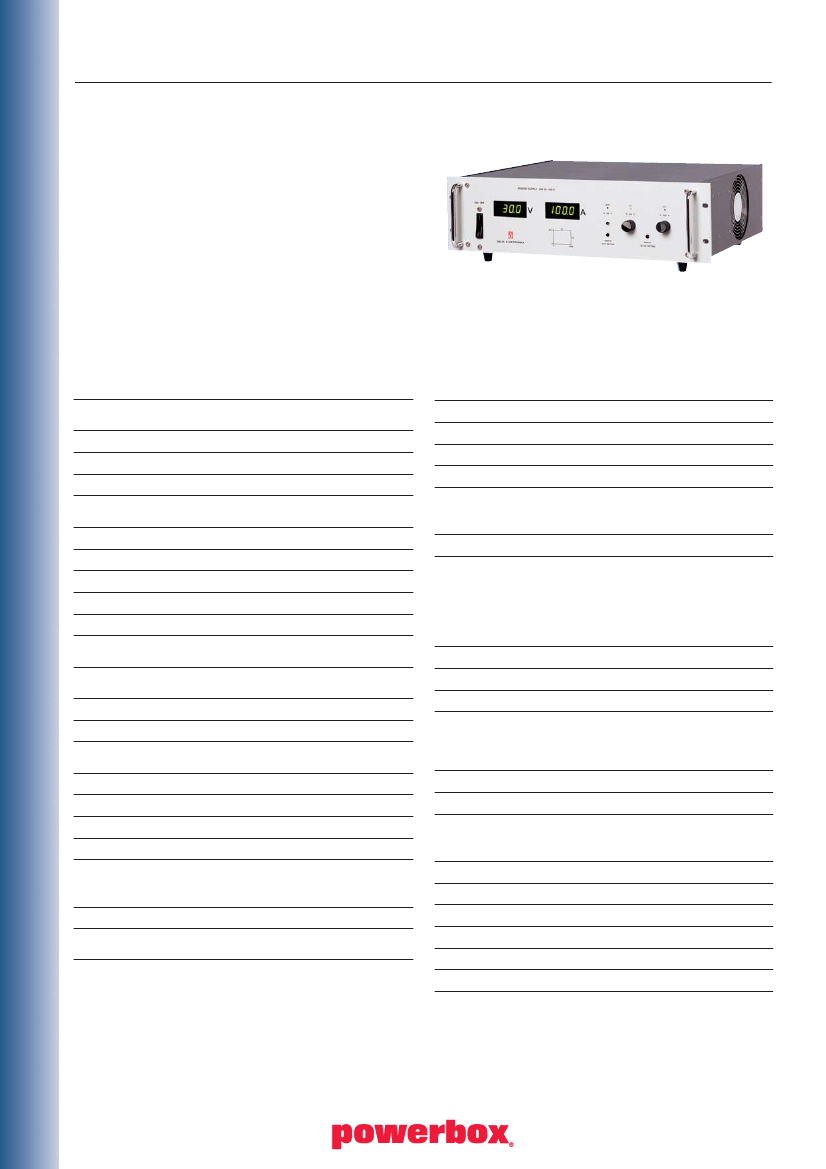

LABORATORY
SM 3000 Series
3 0 0 0 W A T T S P R O G R A M M A B L E D C S U P P LY
Features
•
•
•
•
•
•
•
Constant voltage and constant current operation
Parallel operation master/slave
EMC standard EN61204-3
CE marked
Optional ethernet, RS232, IEEE 488 programming
IEEE 488 programming option
Ethernet, RS232 option
Specifications
INPUT
Input voltage
Frequency
Inrush current
Isolation
342-457Vac 3 phase.
48Hz–62Hz
5.8A @ 400Vac input.
I/P to O/P: 3750V rms (8mm creepage),
I/P – Case: 2500V rms, O/P – Case: 600VDC
OPERATING
Efficiency
Switching frequency
Thermal protection
Programming
87%–91%
100kHz
Yes
Analogue Programming of voltage and current by
0-5V. IEEE488 programming with external
interface controller PSC44M
See table
Parallel and series operation with equal current
and voltage sharing. In this way two or more SM-
units can together be used as one high power
unit. Voltage and current of the units is controlled
by the master (by potentiometers or by
programming). Series operation up to 600V
Digital meters standard
CV/CC mode, OVP triggered LEDs
OUTPUT
Output voltage
Output voltage adjustment
Output current
Output current adjustment
Resolution
Overvoltage protection
Overload protection
Short Circuit protection
Temperature coefficient
Load regulation
Line regulation
Ripple & Noise
Stability
Output impedance
(0-100kHz)
Recovery time
Remote sense
See table.
0%–100%
See table.
0%–100%
0.03% voltage and current control with 10 turn
potentiometers.
Yes. Trip range user adjustable 0%–115% of V
max.
Yes
Yes
CV: 10x10
-6
to 35x10
-6
/ °C,
CC: 20x10
-6
to 60x10
-6
/ °C.
0%–100% load see table
Line ±10% – see table
See table
CV: 2.10-5 to 4.10-5, CC: 3.10-5 to 10.10-5
SM15-200D: < 25mΩ, SM30-100D: < 20mΩ
SM45-70D: < 60mΩ, SM70-45D: < 60mΩ
SM120-25D: < 150mΩ, SM300-10D: < 800mΩ.
(50%–100% load step): 100µS
2V max. per lead compensation (SM 3004 has no
remote sense)
Programming speed
Master/Slave operation
Metering
Indicators
BATTERY CHARGING
The CV/CC regulated power supplies are very suitable for battery charging.
Ask for the special datasheet “BATTERY CHARGING WITH SM-series POWER
SUPPLIES”. This datasheet contains information about protective measures
against accidental battery reversing.
ENVIRONMENTAL
Operating temperature
Cooling
-20°C to 50°C
Low noise blower, fan speed adapts to
temperature of internal heatsink. (from left to
right).
STANDARDS AND APPROVALS
Safety standards
EMC standards
EMI standards
EN60950 / EN61010
EN61204-3, EN61000-6-2
EN61000-6-3 (EN55022B)
MECHANICAL
Mounting
Bench or 19" rack mounting
468
LABORATORY
SM 3000 Series
3 0 0 0 W A T T S P R O G R A M M A B L E D C S U P P LY
Selection Table
MODEL
NUMBER
SM15-200D
SM30-100D
SM45-70D
SM70-45D
SM120-25D
SM300-10D
OUTPUT
VOLTAGE
(0V TO)
15V
30V
45V
70V
120V
300V
OUTPUT
CURRENT
(0A TO)
200A
100A
70A
45A
25A
10A
RIPPLE & NOISE
CV
CC
12mV pk-pk
8mV pk-pk
17mV pk-pk
12mV pk-pk
25mV pk-pk
50mV pk-pk
250mA pk-pk
60mA pk-pk
60mA pk-pk
25mA pk-pk
25mA pk-pk
10mA pk-pk
PROGRAMMING
SPEED
7mS
7mS
7mS
7mS
7mS
7mS
LOAD REG.
0%–100%
CV
CC
5mV
5mV
5mV
10mV
10mV
15mV
50mA
25mA
15mA
10mA
10mA
3mA
LINE REG.
200–264VAC
CV
CC
5mV
5mV
5mV
5mV
10mV
10mV
50mA
25mA
15mA
10mA
10mA
3mA
OPTIONS
Screwdriver adjustment - option P001
Master / slave operation
Battery charging
Increased max. output voltage / current - option P069
Enforced secondary isolation 1000V - option P089
High speed programming - SM15-200: P104, SM30-100: P031, SM45-70: P105,
SM70-45: P032, SM125-25: P106, SM300-10: P061.
Power sink for 2 quadrant operation - SM15-200: P127, SM30-100: P128, SM45-
70: P129, SM70-45: P130.
Built-in ISO AMP CARD for isolated analog programming - option P145
Built-in ethernet power supply controller - option P149
Built-in RS232 power suply controller - option P146
Built-in IEEE488 power supply controller - option P164

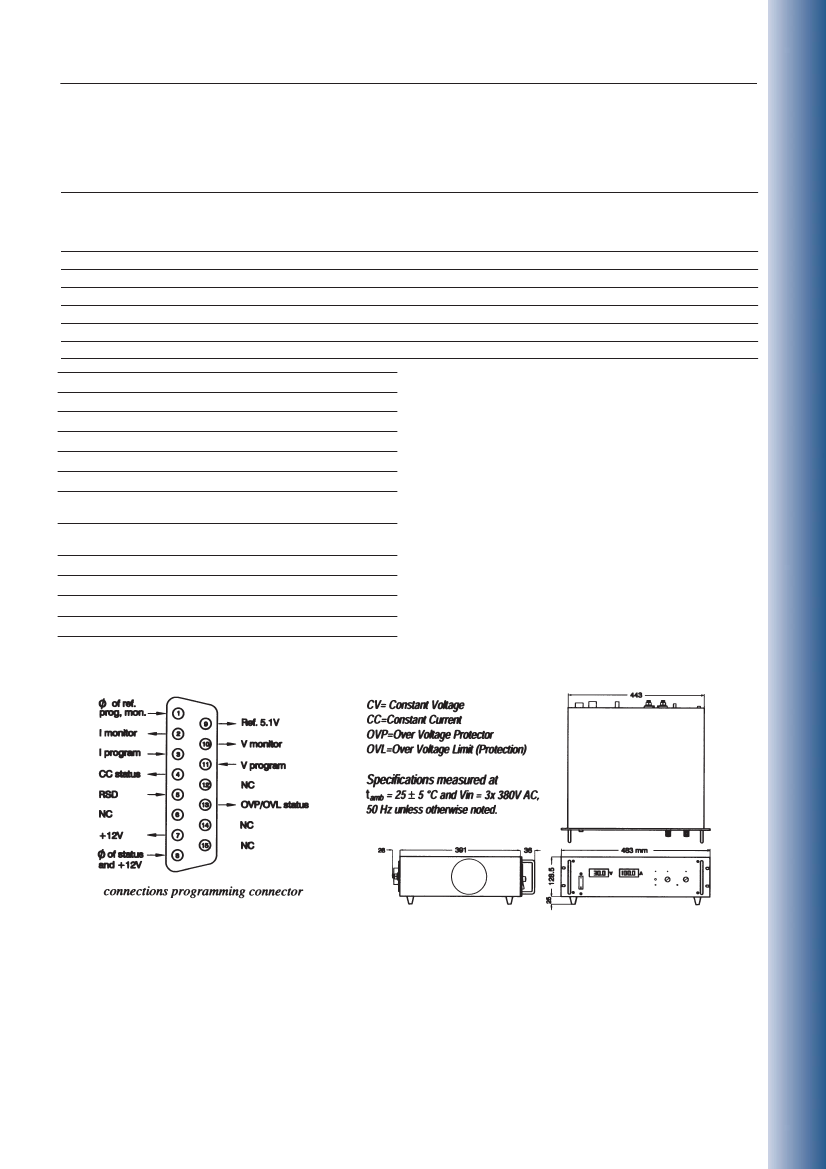

Technical Illustrations
Your dependable power partner – www.powerbox.com.au
469
