TXC-02020-AIPL datasheet, PDF - EEWORLD Datasheet

TXC-02020-AIPL: DescriptionPCM Transceiver, 1-Func, STS-1/OC-1, PQCC44, PLASTIC, LCC-44; CategoryWireless rf/communication Telecom circuit; File Size1MB，36 Pages; ManufacturerTranswitch Corporation

Download Datasheet Parametric Compare View All

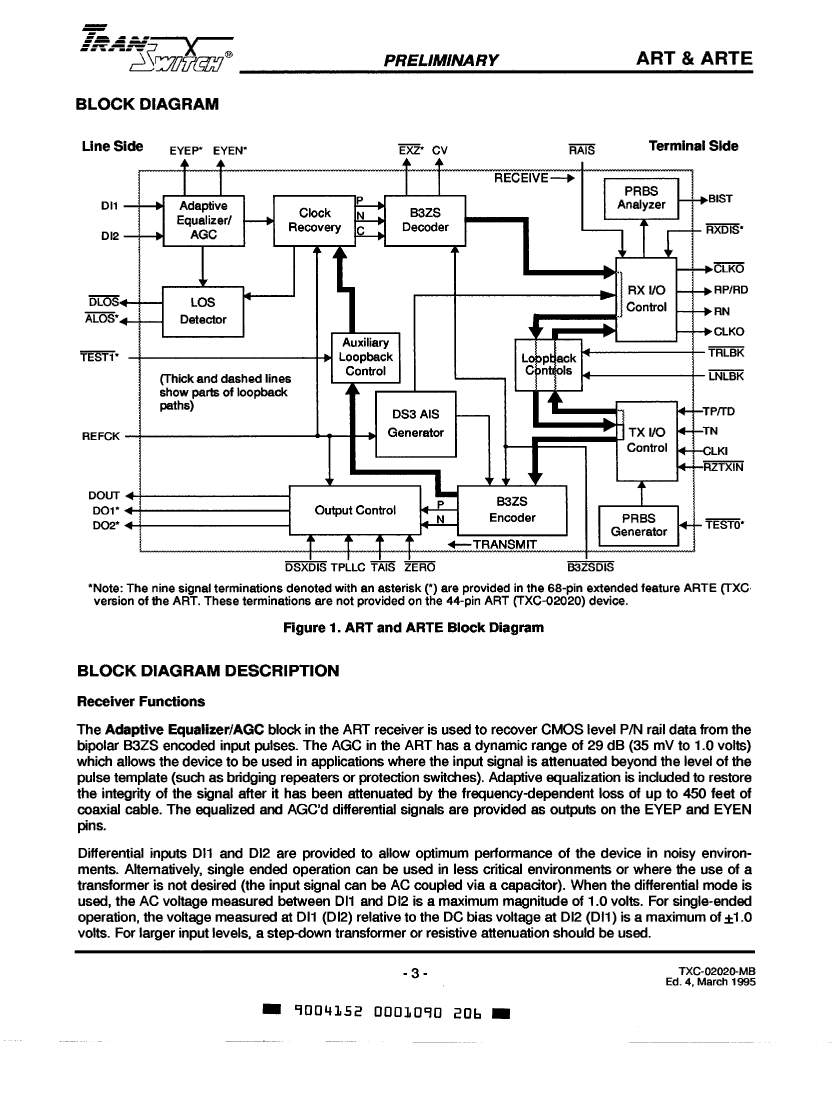

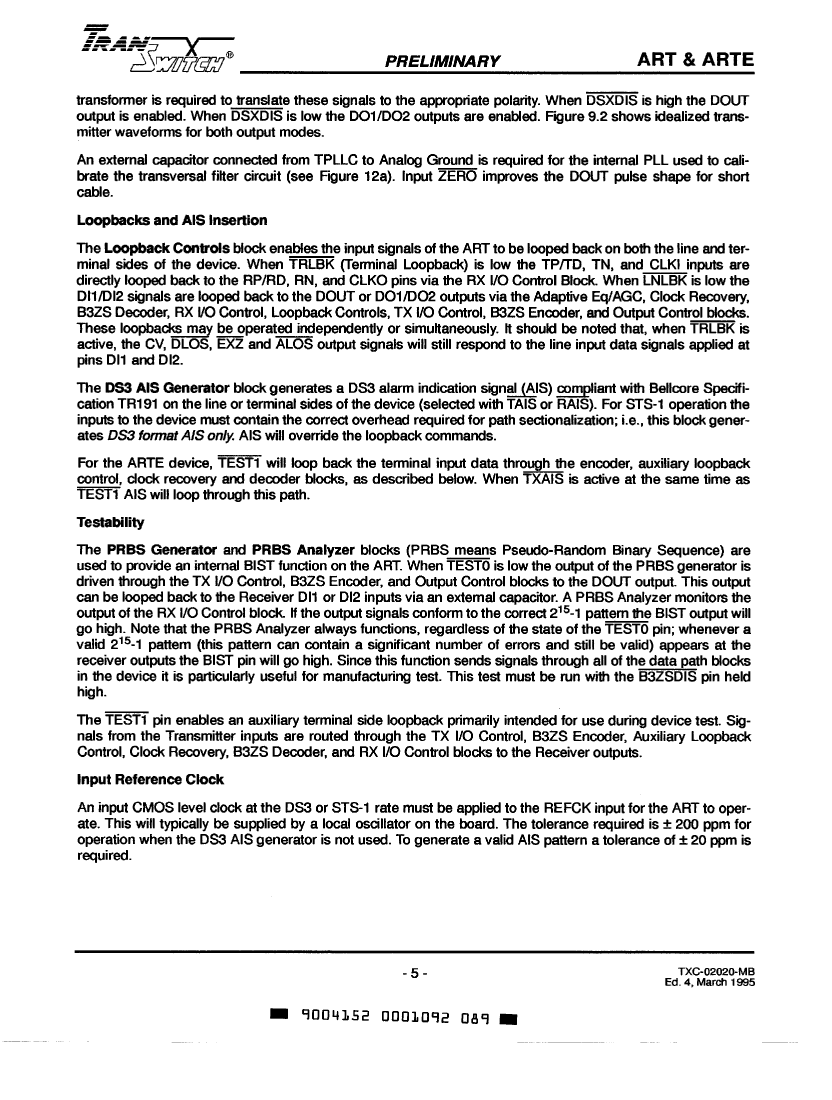

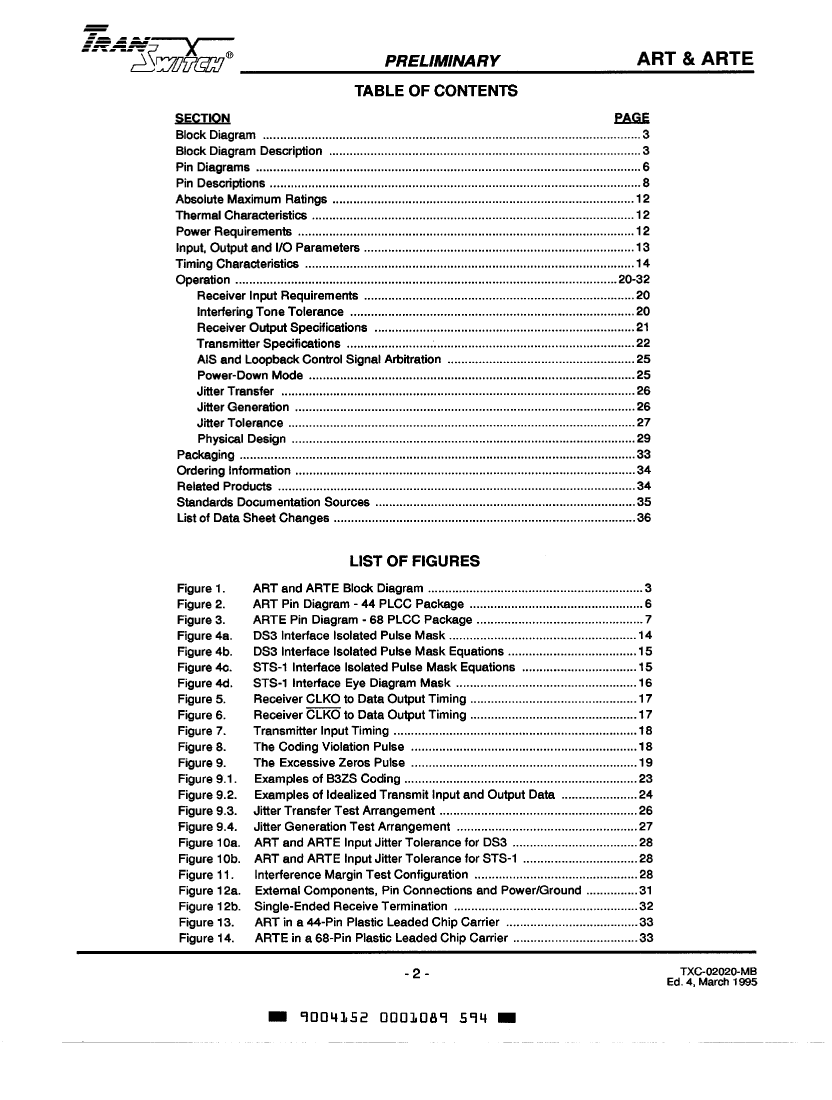

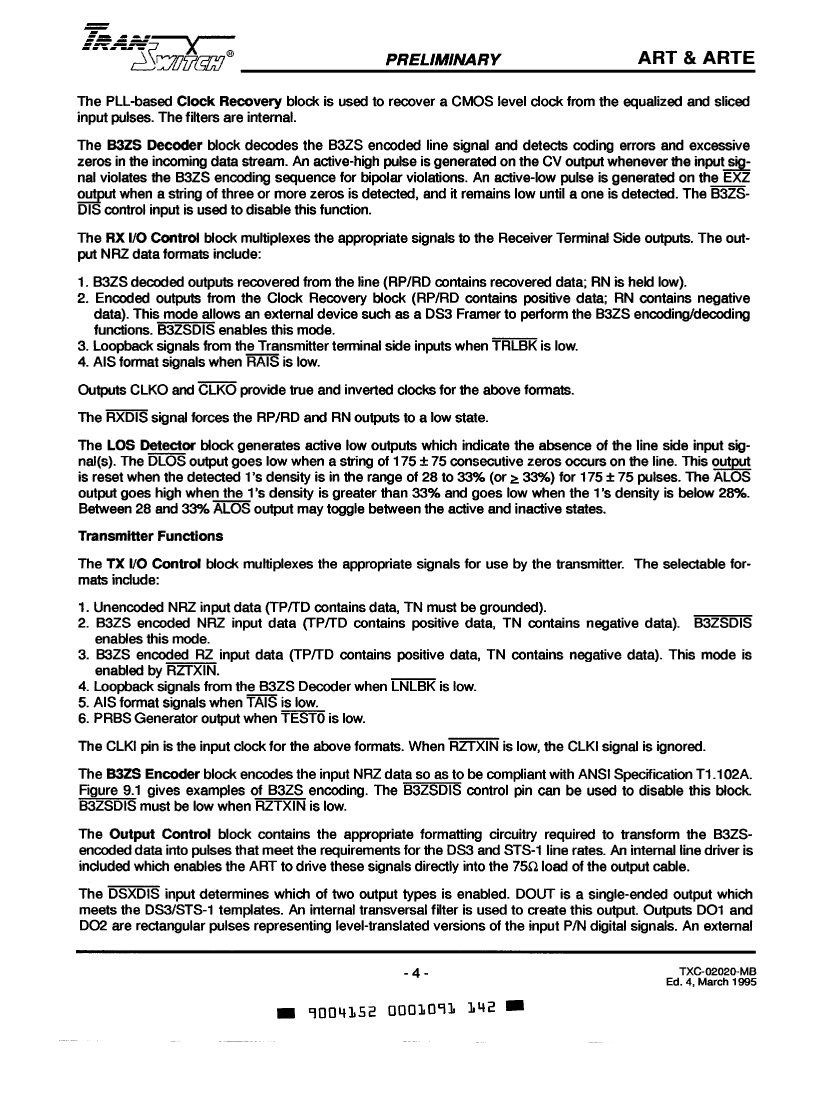

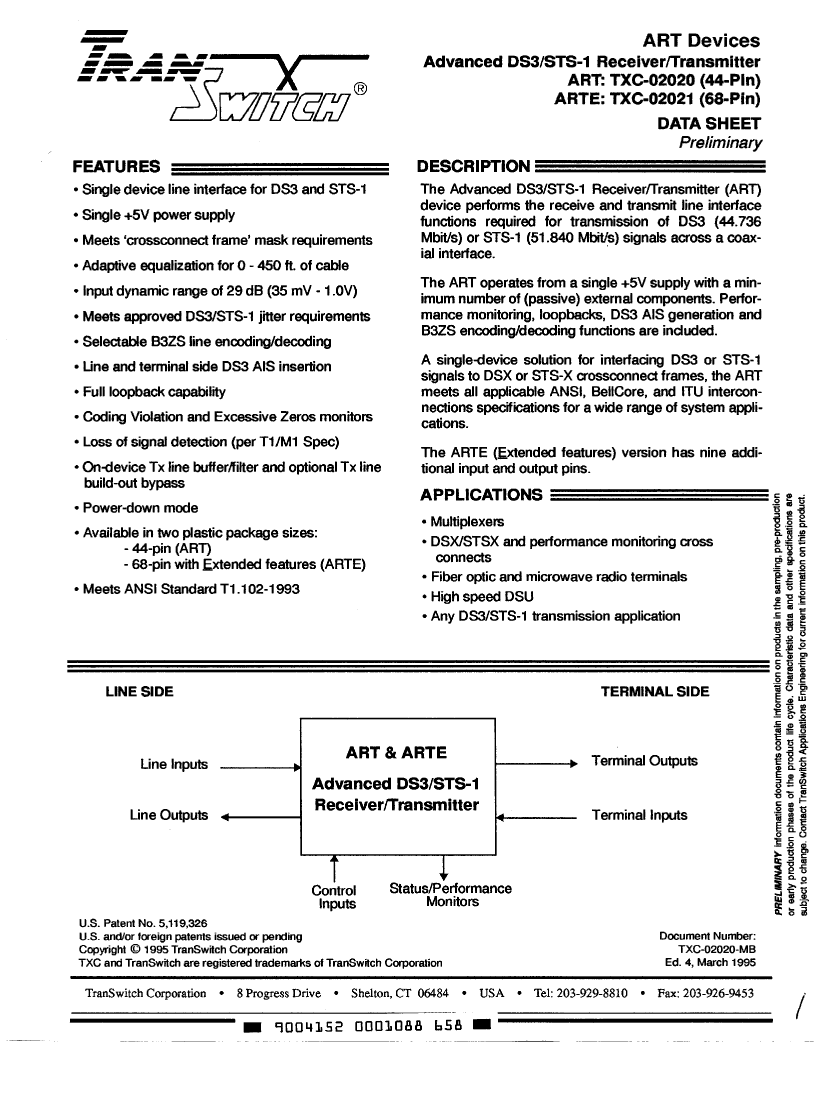

TXC-02020-AIPL Overview

PCM Transceiver, 1-Func, STS-1/OC-1, PQCC44, PLASTIC, LCC-44

Parameter Name	Attribute value
Maker	Transwitch Corporation
Parts packaging code	LCC
package instruction	QCCJ, LDCC44,.7SQ
Contacts	44
Reach Compliance Code	unknown
Carrier type	STS-1/OC-1
Carrier Type (2)	T-3(DS3)
JESD-30 code	S-PQCC-J44
length	16.5862 mm
Number of functions	1
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.318 mm
Maximum slew rate	220 mA
Nominal supply voltage	5 V
surface mount	YES
Telecom integrated circuit types	PCM TRANSCEIVER
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.5862 mm
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	TXC-02020-AIPL	TXC-02021-AIPL
Description	PCM Transceiver, 1-Func, STS-1/OC-1, PQCC44, PLASTIC, LCC-44	PCM Transceiver, 1-Func, STS-1/OC-1, PQCC68, PLASTIC, LCC-68
Maker	Transwitch Corporation	Transwitch Corporation
Parts packaging code	LCC	LCC
package instruction	QCCJ, LDCC44,.7SQ	QCCJ, LDCC68,1.0SQ
Contacts	44	68
Reach Compliance Code	unknown	unknown
Carrier type	STS-1/OC-1	STS-1/OC-1
Carrier Type (2)	T-3(DS3)	T-3(DS3)
JESD-30 code	S-PQCC-J44	S-PQCC-J68
length	16.5862 mm	24.2062 mm
Number of functions	1	1
Number of terminals	44	68
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ	LDCC68,1.0SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.318 mm	4.318 mm
Maximum slew rate	220 mA	220 mA
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
Telecom integrated circuit types	PCM TRANSCEIVER	PCM TRANSCEIVER
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
width	16.5862 mm	24.2062 mm
Base Number Matches	1	1
